考虑产消用户不确定性的售电公司购售电决策

doi:10.16183/j.cnki.jsjtu.2023.530

摘要/Abstract

摘要：

新型电力系统背景下,传统的能源消费者正逐步转变为兼具电能消费与生产的“产消者”.产消用户的大量涌现使得售电公司的购售电决策变得更加复杂,与此同时,售电公司也将面临更多的不确定性因素,造成较大的市场风险.针对上述问题,本文充分考虑产消用户的发用电特点,并计及光伏、现货市场购售电价格不确定性因素的影响,提出一种不确定性环境下面向产消用户的售电公司购售电决策优化方法.首先,构建考虑不确定性因素的售电公司购售电决策双层优化模型:下层模型考虑产消用户光伏出力不确定性,以舒适度与用电成本为目标,建立产消用户鲁棒用能优化模型;上层模型针对现货市场购售电价格的不确定性,基于信息间隙决策理论(IGDT)构建售电公司鲁棒综合决策模型,并在售电公司侧引入储能和中长期购售电合约以增强售电公司的风险应对能力.随后,利用Karush-Kuhn-Tucker(KKT)条件将该双层优化问题转化为单层非线性规划问题进行求解.最后,通过仿真分析验证了所制定零售电价的经济性以及所建模型的有效性.

关键词: 产消用户, 不确定性因素, 信息间隙决策理论, KKT条件, 双层优化问题

Abstract:

In the context of the new power system, traditional energy consumers are transforming into prosumers, entities that both consume and produce electricity. The emergence of a large number of prosumers has made the purchase and sale decisions of electricity retailers more complicated. At the same time, electricity retailers will also face more uncertainties, resulting in greater market risks. To address these challenges, this paper proposes an optimization method of power purchase and sales strategy for electricity retailers facing prosumers under uncertain factors. First, it establishes a two-tier optimization model for the purchase and sale of electricity by electricity retailers under uncertain conditions. The upper model focuses on the comfort and cost of prosumers, incorporates the uncertainty of photovoltaic output, and develops a robust energy optimization model for prosumers. For the uncertainty of electricity purchase and sale prices in the spot market, the lower model establishes a robust comprehensive decision-making model of electricity sales companies based on information gap decision theory (IGDT). Then, it uses the Karush-Kuhn-Tucker (KKT) condition to transform the two-tier optimization problem proposed in into a single-layer nonlinear programming problem. Finally, the simulation analysis demonstrates the economy of the retail electricity price obtained and the effectiveness of the proposed model.

Key words: prosumers, uncertainty, information gap decision theory (IGDT), KKT condition, two-tier optimization problem

中图分类号:

TM732

孙毅, 刘壮, 黄婷, 彭杰, 王晓甜, 刘创. 考虑产消用户不确定性的售电公司购售电决策[J]. 上海交通大学学报, 2025, 59(10): 1476-1486.

SUN Yi, LIU Zhuang, HUANG Ting, PENG Jie, WANG Xiaotian, LIU Chuang. Decision-Making Model of Electricity Procurement and Sale for Electricity Retailers Considering the Uncertainty of Prosumers[J]. Journal of Shanghai Jiao Tong University, 2025, 59(10): 1476-1486.

图/表 16

图1

表1

表2

图2

图3

图4

图5

图6

图7

图8

图9

表3

图10

图11

表4

表5

参考文献 21

[1]	张晗, 韩冬, 刘坦, 等. 碳中和背景下分布式光伏渗透与售电市场耦合机制分析[J]. 上海交通大学学报, 2023, 57(4): 464-472. doi: 10.16183/j.cnki.jsjtu.2021.514
	ZHANG Han, HAN Dong, LIU Tan, et al. Analysis of market coupling mechanism between distributed photovoltaic penetration and electricity market under background of carbon neutrality[J]. Journal of Shanghai Jiao Tong University, 2023, 57(4): 464-472.
[2]	杨甲甲, 赵俊华, 文福拴, 等. 电力零售核心业务架构与购售电决策[J]. 电力系统自动化, 2017, 41(14): 10-23.
	YANG Jiajia, ZHAO Junhua, WEN Fushuan, et al. Key business framework and purchase/sale decision-making for electricity retailers[J]. Automation of Electric Power Systems, 2017, 41(14): 10-23.
[3]	袁浩, 董晓亮, 刘强, 等. 全国统一电力市场体系下电力零售侧市场框架设计[J]. 电网技术, 2022, 46(12): 4852-4862.
	YUAN Hao, DONG Xiaoliang, LIU Qiang, et al. Electricity retail side market framework design in national unified electricity market system[J]. Power Grid Technology, 2022, 46(12): 4852-4862.
[4]	YANG J J, ZHAO J H, WEN F S, et al. A framework of customizing electricity retail prices[J]. IEEE Transactions on Power Systems, 2018, 33(3): 2415-2428.
[5]	卢恩, 别佩, 王浩浩, 等. 考虑用户自主选择性的零售电价套餐定价策略设计[J]. 电力系统自动化, 2020, 44(19): 177-184.
	LU En, BIE Pei, WANG Haohao, et al. Pricing strategy design of electricity retail pricing package considering self-selectivity of users[J]. Automation of Electric Power Systems, 2020, 44(19): 177-184.
[6]	肖白, 崔涵淇, 姜卓, 等. 基于有限理性用户选择行为的定制化电价套餐设计[J]. 电网技术, 2021, 45(3): 1050-1058.
	XIAO Bai, CUI Hanqi, JIANG Zhuo, et al. Customized electricity price package design based on limited rational user selection behavior[J]. Power System Technology, 2021, 45(3): 1050-1058.
[7]	潘虹锦, 高红均, 杨艳红, 等. 基于主从博弈的售电商多元零售套餐设计与多级市场购电策略[J]. 中国电机工程学报, 2022, 42(13): 4785-4800.
	PAN Hongjin, GAO Hongjun, YANG Yanhong, et al. Multi-type retail packages design and multi-level market power purchase strategy for electricity retailers based on master-slave game[J]. Proceedings of the CSEE, 2022, 42(13): 4785-4800.
[8]	ZHANG C X, QIU J, YANG Y, et al. Residential customers-oriented customized electricity retail pricing design[J]. International Journal of Electrical Power and Energy Systems, 2022, 146(2023): 108766.
[9]	YANG J J, ZHAO J H, WEN F S, et al. A model of customizing electricity retail prices based on load profile clustering analysis[J]. IEEE Transactions on Smart Grid, 2019, 10(3): 3374-3386.
[10]	彭一海, 刘继春, 刘俊勇, 等. 两级电力市场环境下考虑多类型零售套餐的售电公司购售电策略[J]. 电网技术, 2022, 46(3): 944-957.
	PENG Yihai, LIU Jichun, LIU Junyong, et al. Electricity purchasing and selling strategies for electricity retailers considering multiple types of retail packages in two level electricity market[J]. Power System Technology, 2022, 46(3): 944-957.
[11]	CUI S C, WANG Y W, LIU N, et al. A two-stage robust energy sharing management for prosumer microgrid[J]. IEEE Transactions on Industrial Informatics, 2019, 15(5): 2741-2752.
[12]	唐力, 刘继春, 杨阳方, 等. 基于信息间隙决策理论的多种零售合同模式下售电公司购售电策略[J]. 电网技术, 2019, 43(6): 1978-1988.
	TANG Li, LIU Jichun, YANG Yangfang, et al. Study on strategies of electricity procurement and sale of power retailer with multiple retail contract modes based on information gap decision theory[J]. Power System Technology, 2019, 43(6): 1978-1988.
[13]	李东东, 尤杨, 周波, 等. 基于信息间隙决策理论的售电公司参与多市场的优化决策[J]. 电网技术, 2022, 46(12): 4778-4790.
	LI Dongdong, YOU Yang, ZHOU Bo, et al. IGDT-based decision-making optimization of electricity retailers under multi-market[J]. Power System Technology, 2022, 46(12): 4778-4790.
[14]	GAO H J, ZHAO Y B, HE S J, et al. Demand response management of community integrated energy system: A multi-energy retail package perspective[J]. Applied Energy, 2023, 1(330): 120278.
[15]	刘乾晖, 唐岚, 杨乔丹, 等. 信息间隙决策理论在电力系统中的应用[J]. 电力科学与工程, 2021, 37(1): 1-15. doi: 10.3969/j.issn.1672-0792.2021.1.001
	LIU Qianhui, TANG Lan, YANG Qiaodan, et al. Application of information gap decision theory in power system[J]. Electric Power Science and Engineering, 2021, 37(1): 1-15. doi: 10.3969/j.issn.1672-0792.2021.1.001
[16]	傅质馨, 李紫嫣, 朱俊澎, 等. 面向多用户的多时间尺度电力套餐与家庭能量优化策略[J]. 电力系统保护与控制, 2022, 50(11): 21-31.
	FU Zhixin, LI Ziyan, ZHU Junpeng, et al. Multi-user multi-timescale power packages and home energy optimization strategies[J]. Power System Protection and Control, 2022, 50(11): 21-31.
[17]	谢琳, 冯天波, 李梁, 等. 基于供需匹配度的风光储套餐定价策略[J]. 电力系统及其自动化学报, 2023, 35(2): 112-120.
	XIE Lin, FENG Tianbo, LI Liang, et al. Pricing strategy for wind-pv-storage package based on matching degree of supply and demand[J]. Proceedings of the CSU-EPSA, 2023, 35(2): 112-120.
[18]	刘秋华, 胡苏晨, 周维初. 售电商参与现货市场下的售电套餐优化设计[J]. 电力工程技术, 2022, 41(1): 19-25.
	LIU Qiuhua, HU Suchen, ZHOU Weichu. Optimal design of electricity plans based on electricity retailers’ participation in spot market[J]. Electric Power Engineering Technology, 2022, 41(1): 19-25.
[19]	许梓荣, 刘友波, 殷科, 等. 基于主从博弈的售电商储能增值服务模式及其策略模型[J]. 电力系统自动化, 2023, 47(20): 154-165.
	XU Zirong, LIU Youbo, YIN Ke, et al. Value-added service model and its strategy model of energy storage for electricity retailers based on stackelberg game[J]. Automation of Electric Power Systems, 2023, 47(20): 154-165.
[20]	冀瑞强, 胡健, 张晓杰. 基于合作博弈的城市楼宇集群分布式储能容量共享[J]. 电力建设, 2024, 45(2): 115-126. doi: 10.12204/j.issn.1000-7229.2024.02.010
	JI Ruiqiang, HU Jian, ZHANG Xiaojie. Energy storage capacity sharing of urban building cluster based on cooperative game[J]. Electric Power Construction, 2024, 45(2): 115-126. doi: 10.12204/j.issn.1000-7229.2024.02.010
[21]	李咸善, 方子健, 李飞, 等. 含多微电网租赁共享储能的配电网博弈优化调度[J]. 中国电机工程学报, 2022, 42(18): 6611-6625.
	LI Xianshan, FANG Zijian, LI Fei, et al. Game-based optimal dispatching strategy for distribution network with multiple microgrids leasing shared energy storage[J]. Proceedings of the CSEE, 2022, 42(18): 6611-6625.

运行参数	取值
S^r(0)/(MW·h)	4
P^r.ch.max/MW	0.4
P^r.dis.max/MW	0.4
S^r.max/(MW·h)	6
S^r.min/(MW·h)	1
η^r.ch/η^r.dis	0.90/1.11

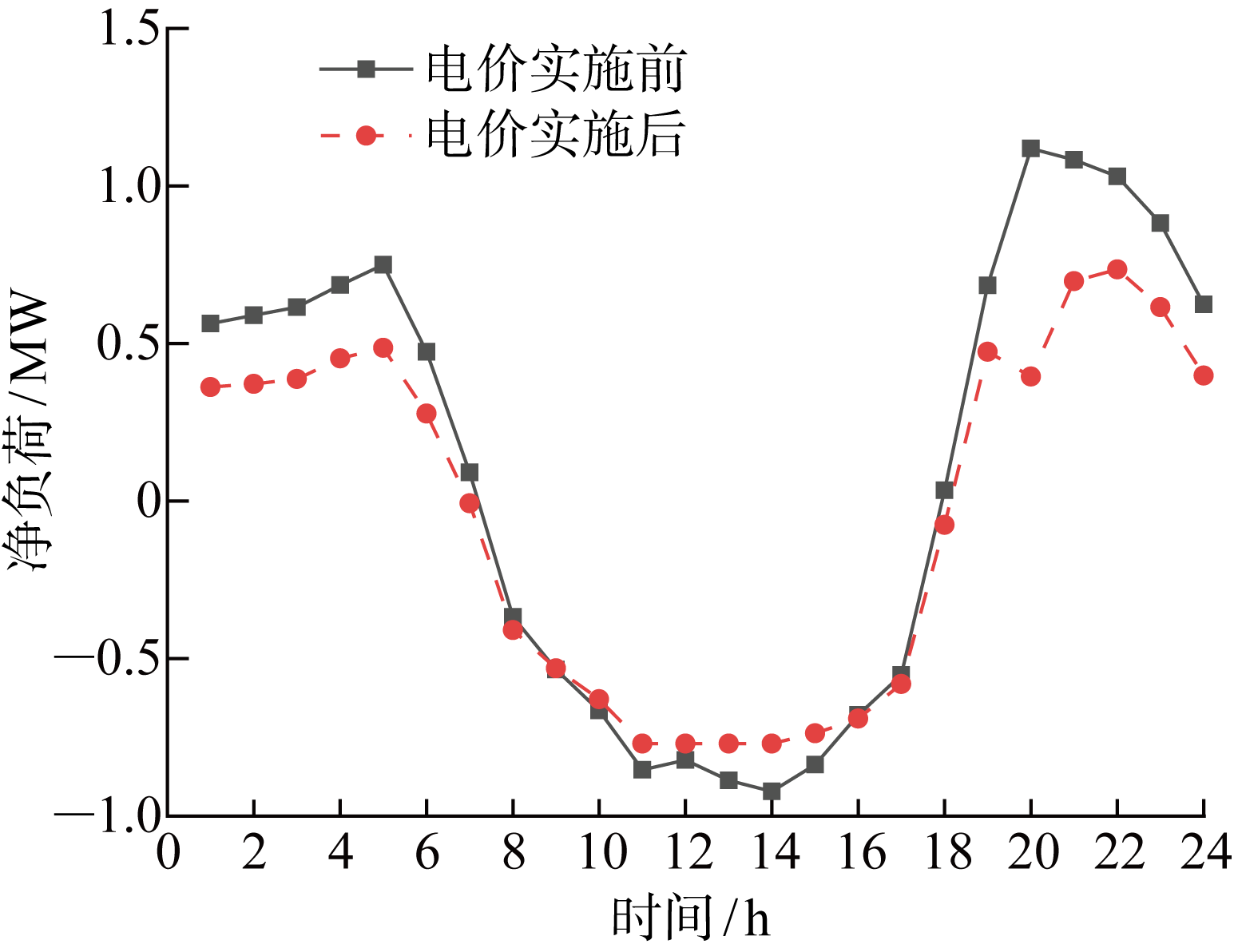

指标	实施前	实施后	变化比例/%
系统净电量/(kW·h)	16 340.8	12 391.7	24.17
最大净负荷/kW	1 118.4	735.2	34.27
最小净负荷/kW	-921.8	-769.7	16.50
峰谷差/kW	2 040.2	1 504.9	26.24

不同场景	售电公司基础收益/元
无储能	2 258
有储能	2 303
储能+中长期合同	2 371

预测误差/%	确定性优化方法					本文优化方法
预测误差/%	增加收益/元	现货成本/元	平衡成本/元	日前收益/元	总收益/ 元	增加收益/元	现货成本/元	平衡成本/元	日前收益/元	总收益/ 元
-15	-503	-509	-353	2 135	2 494	-1 111	-160	-706	2 356	2 111
0	0	0	0		2 135	-555	0	-353		2 154
15	1 063	509	1 247		1 442	0	160	0		2 196
30	2 125	1 018	2 493		749	1 063	320	1 247		1 852
