Analysis of Nonlinear Consolidation Characteristics of Soil Around Tunnels Considering Self-Gravity Stress

doi:10.16183/j.cnki.jsjtu.2023.322

Abstract

Abstract:

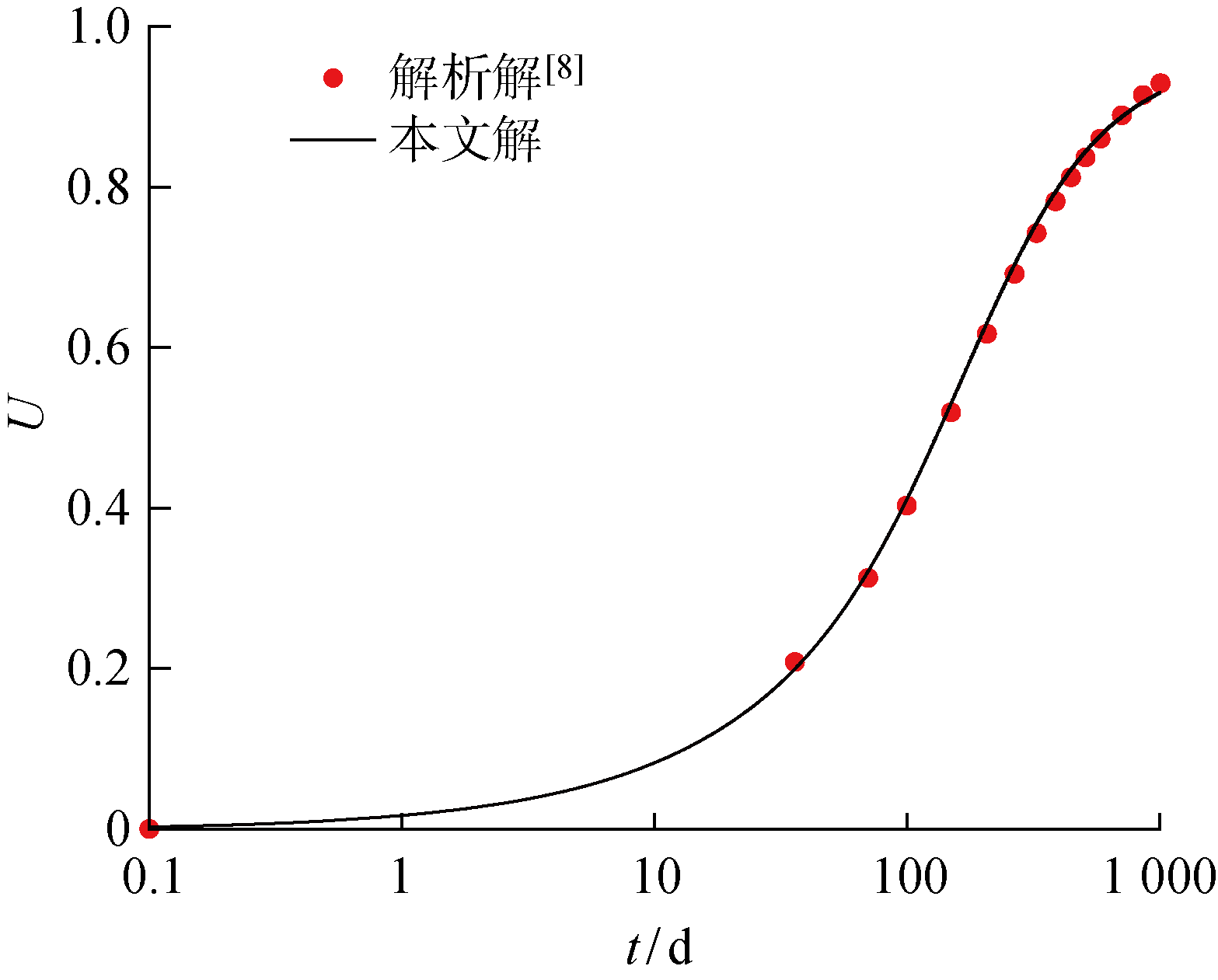

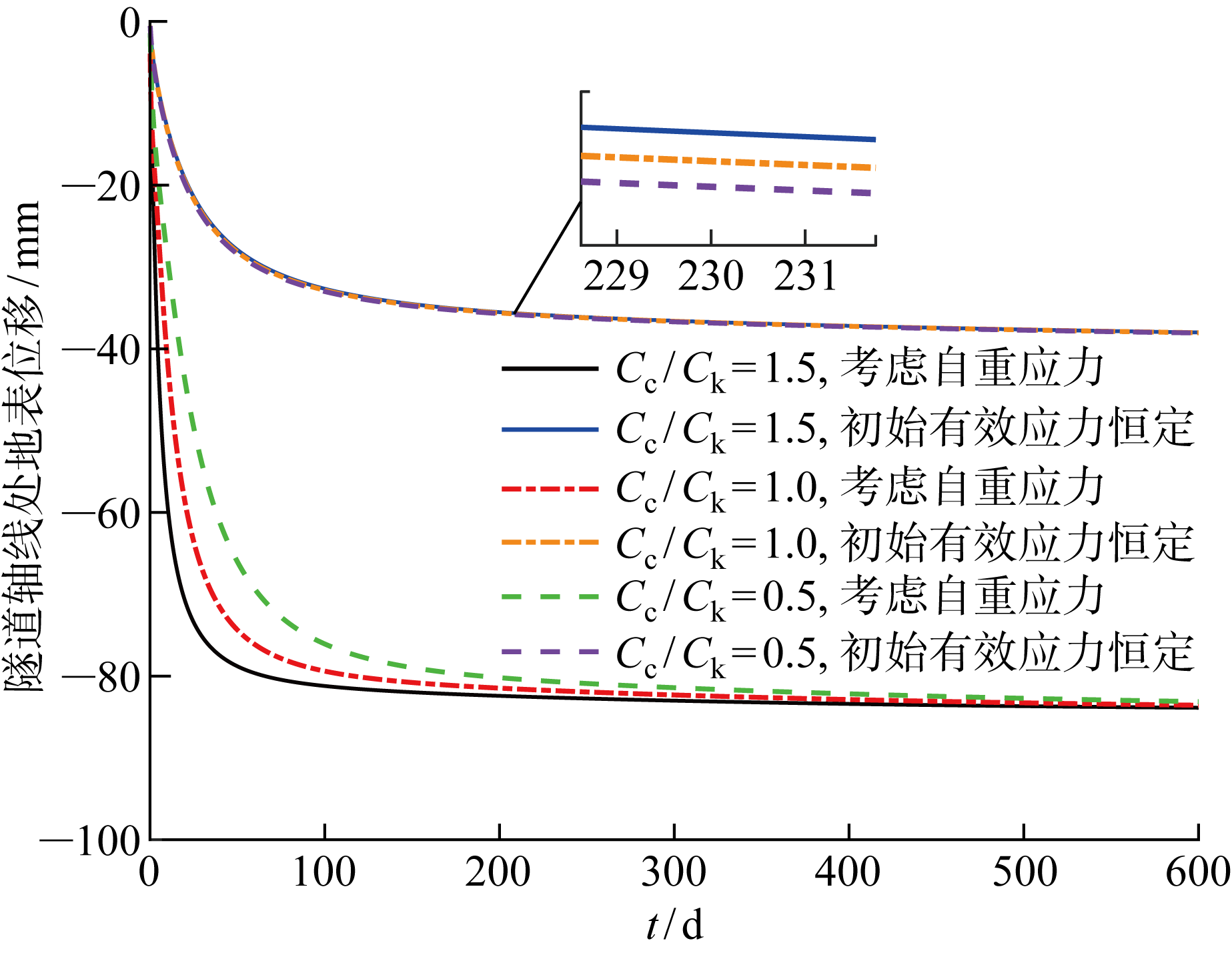

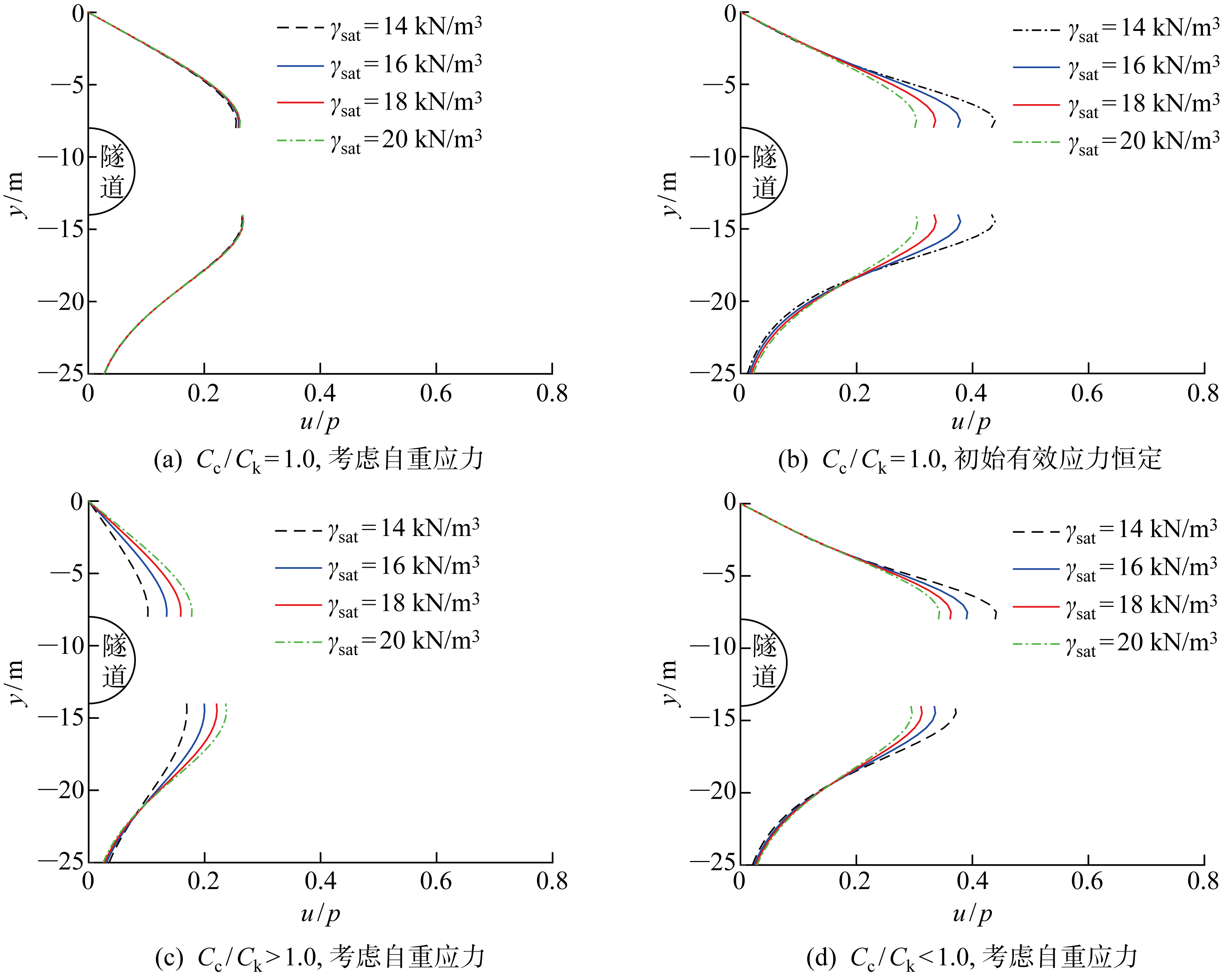

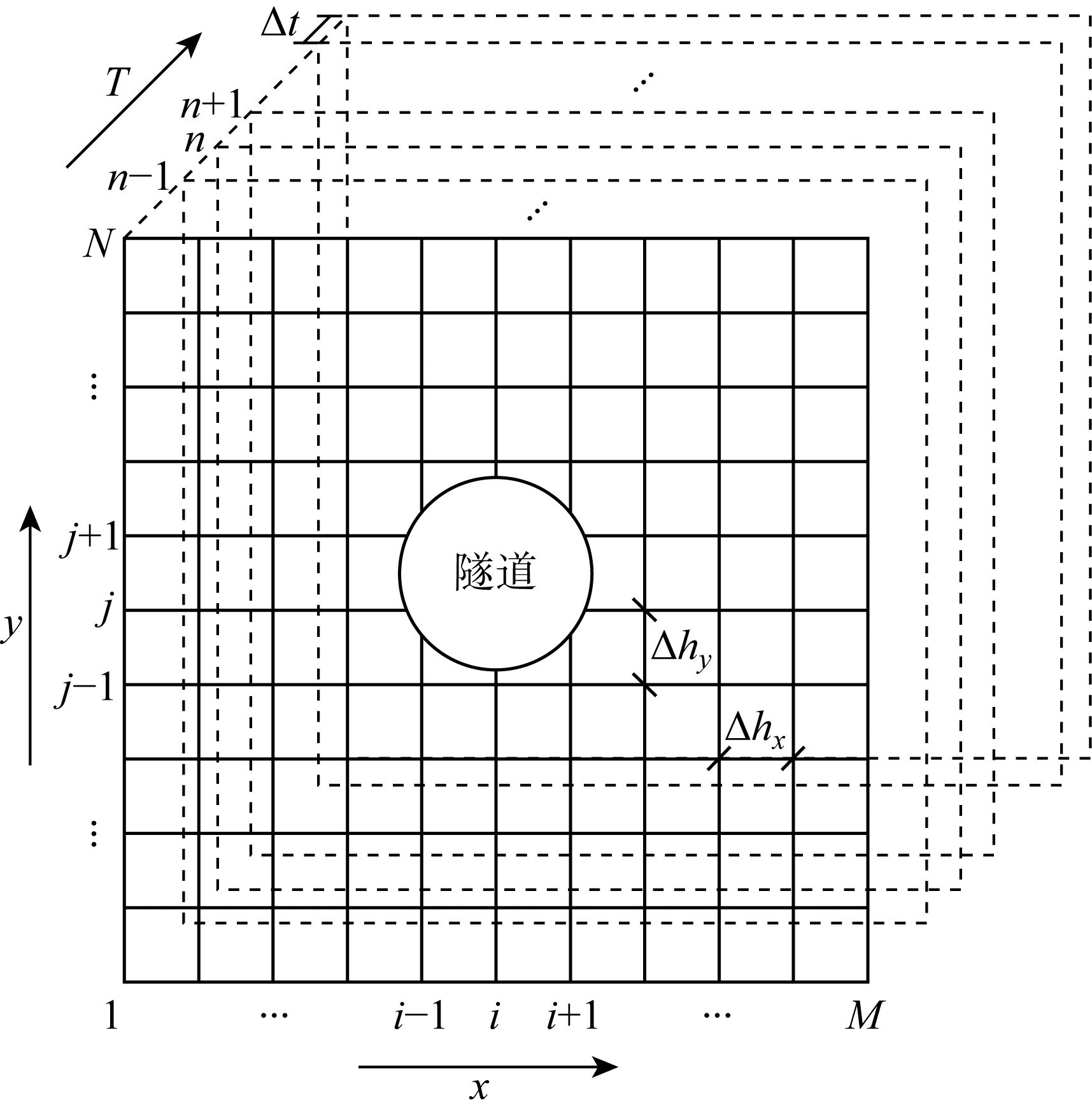

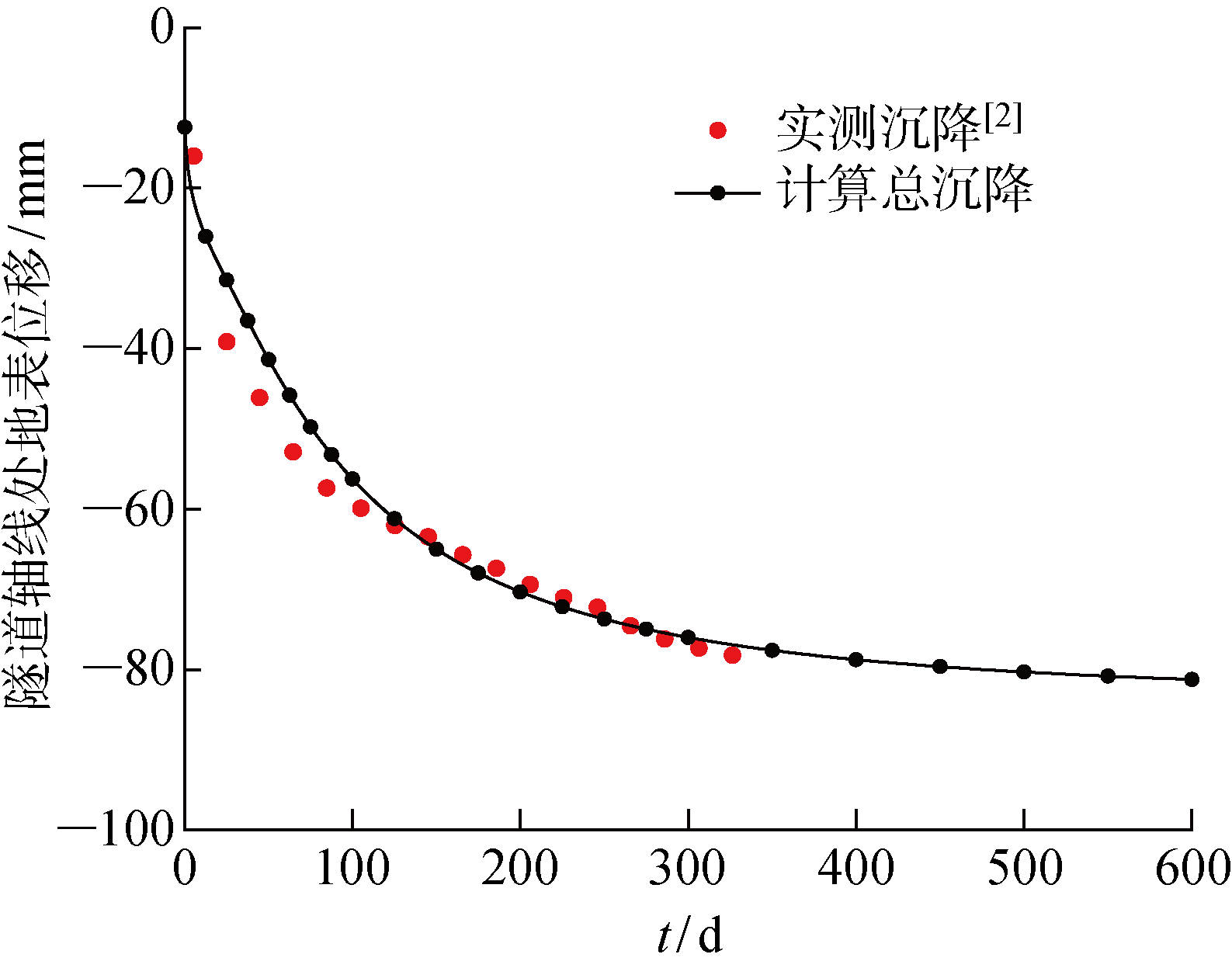

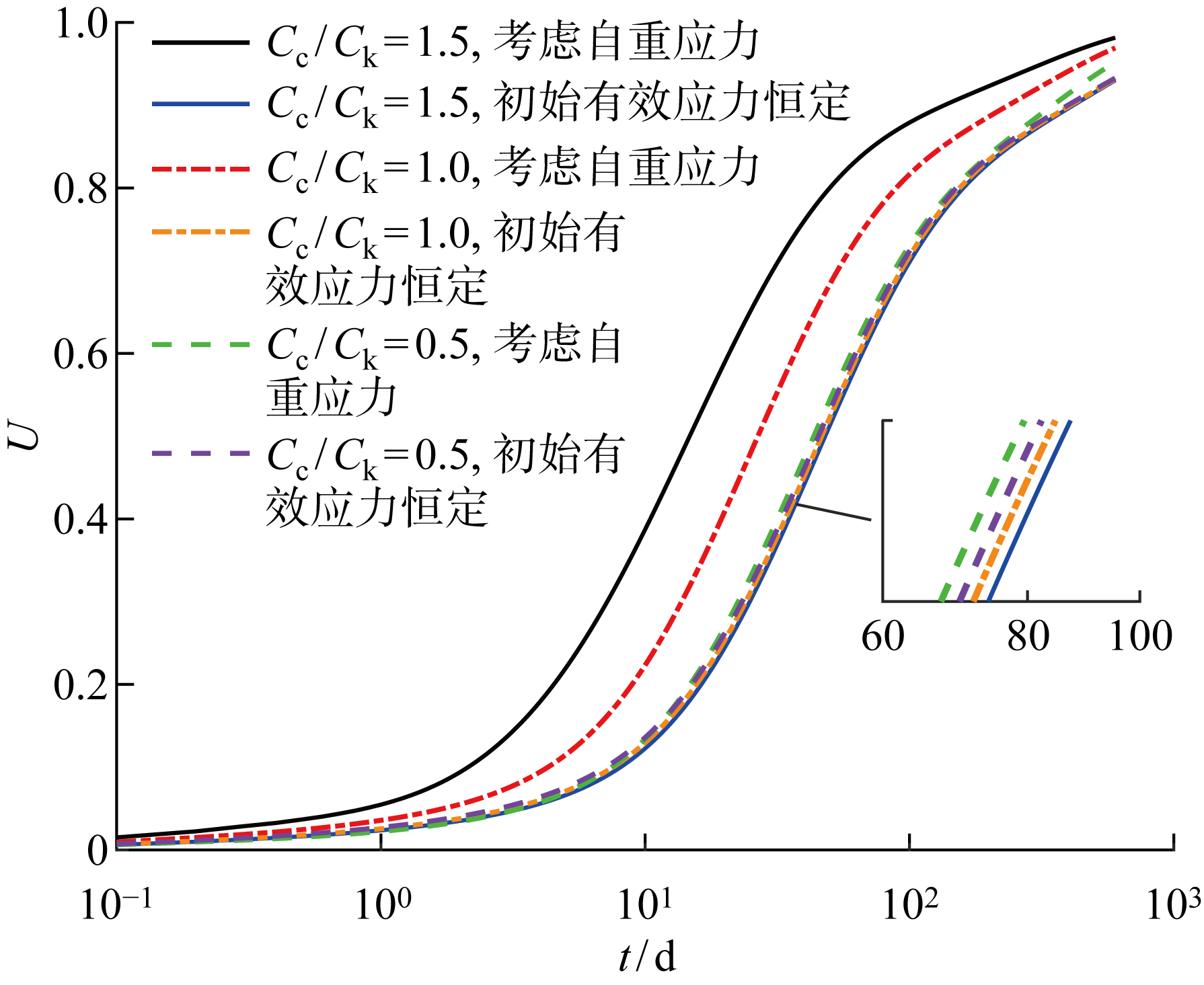

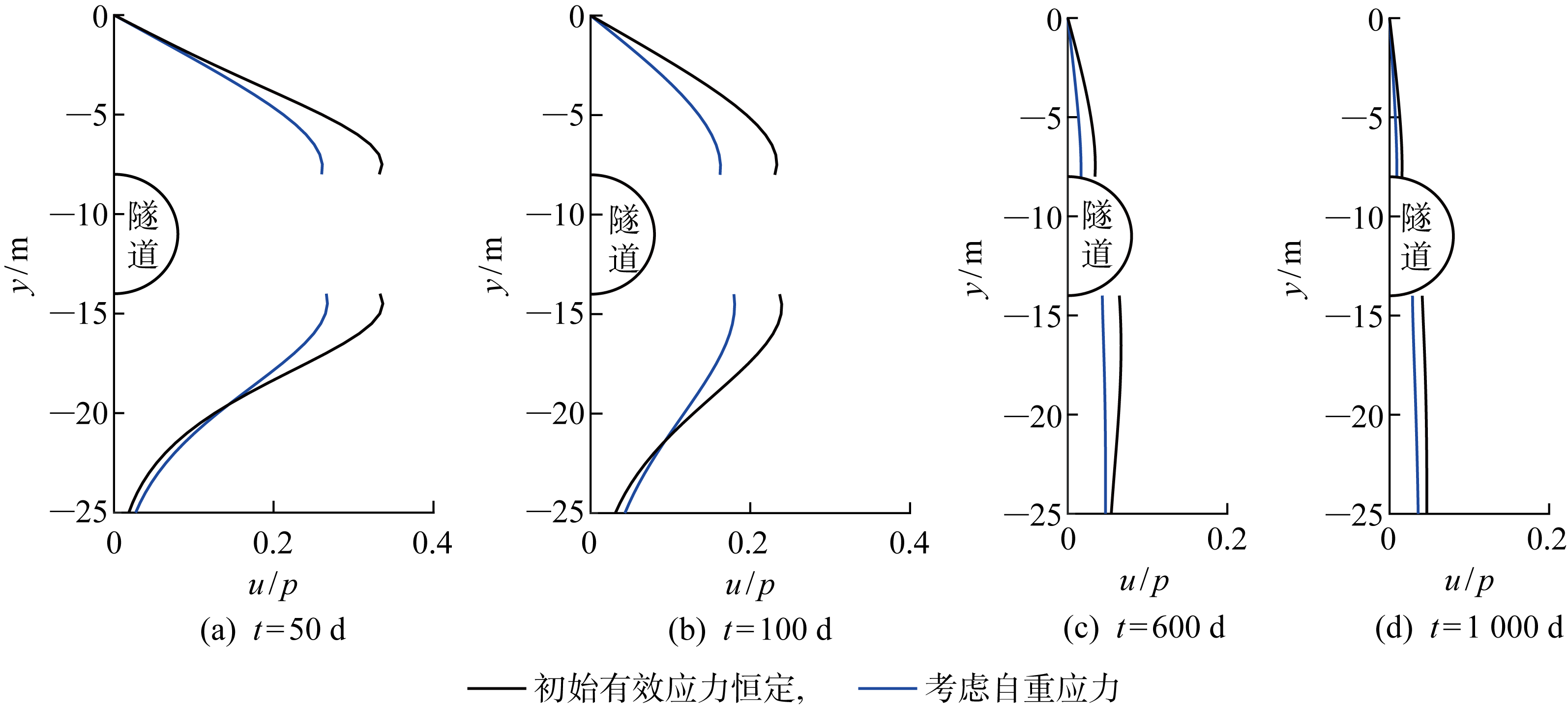

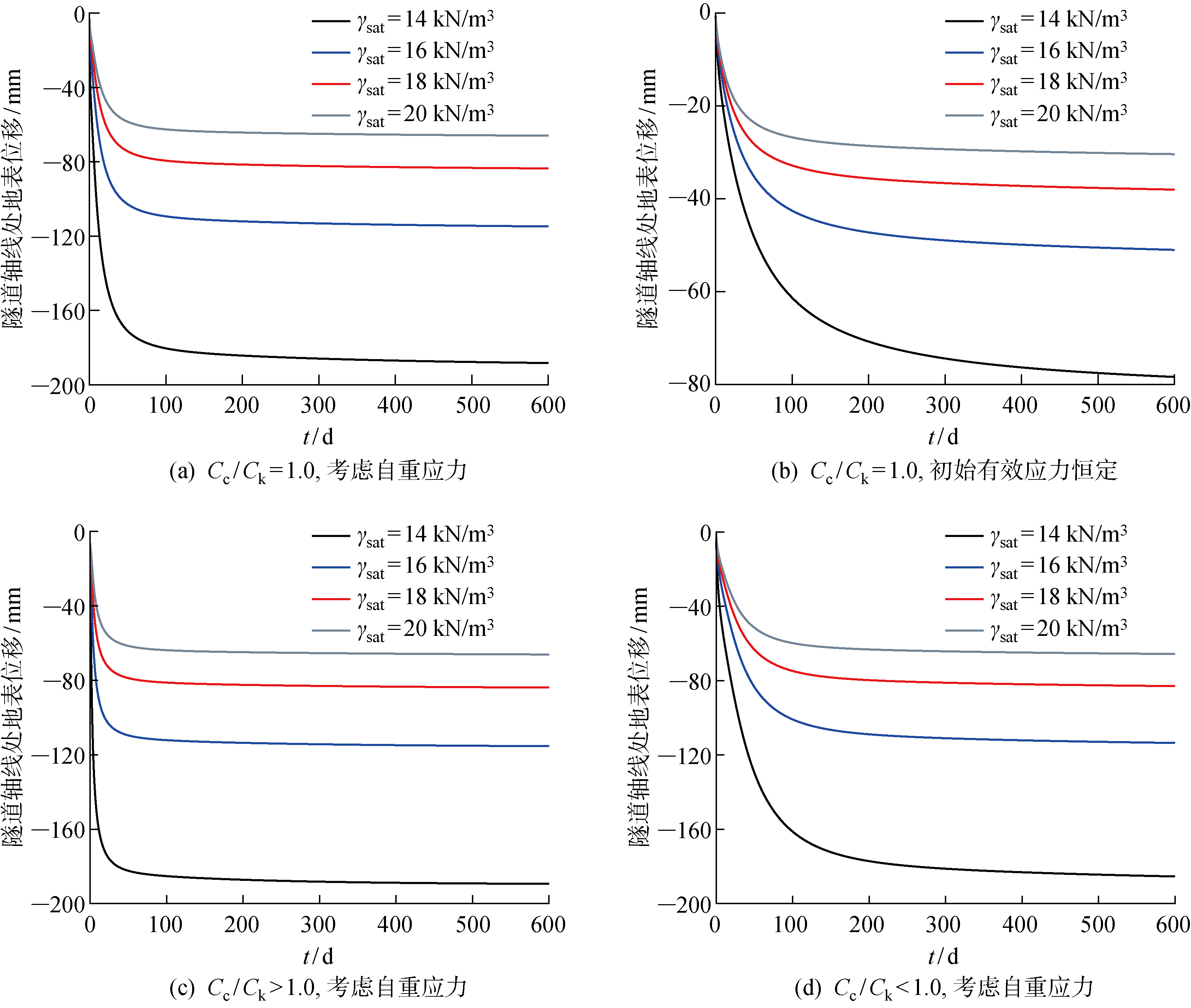

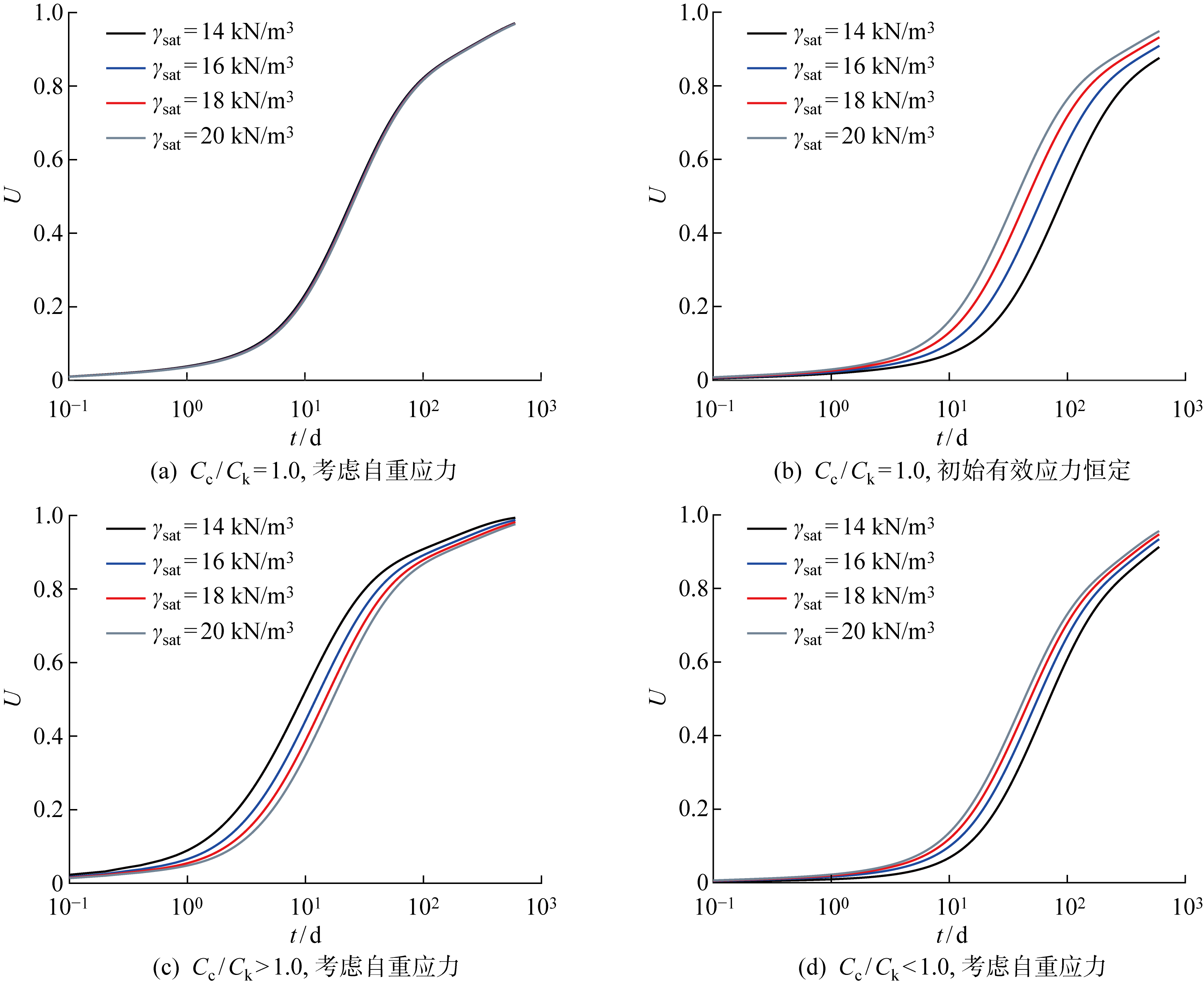

Considering the self-gravity stress of the soil around the tunnel, a two-dimensional nonlinear consolidation control equation for saturated soil was established, and solved using the alternating implicit difference method. The correctness of the solution was verified by comparing the degenerate solution with an existing analytical solution, and by comparing the calculated results with measured data. On this basis, the influence of changes in soil self-gravity stress and consolidation coefficient on the nonlinear consolidation characteristics of the soil around the tunnel was further explored. The results indicate that neglecting the self-gravity stress of the soil leads to a higher excess pore pressure and a lower rate of consolidation settlement, and leads to a lower final surface settlement. Under the influence of self-gravity stress, a smaller ratio of compression index to permeability index C_c/C_k results in a slower consolidation settlement rate of the soil, but does not affect the final surface settlement. When C_c/C_k=1.0, a smaller soil self-gravity results in a greater influence of the initial effective stress distribution on the consolidation rate and a higher final surface settlement. When C_c/C_k>1.0, the permeability coefficient plays a dominant role in the consolidation process, and the consolidation rate decreases as the gravity increases. In contrast, when C_c/C_k<1.0, the volume compression coefficient becomes more influential, and the consolidation rate increases with the increase of gravity, though the final surface settlement in both cases decreases with increasing gravity.

Key words: tunnel, nonlinear consolidation, finite difference method, self-gravity stress, coefficient of consolidation

CLC Number:

TU433

HU Anfeng, CHEN Yuchao, XIAO Zhirong, XIE Senlin, GONG Zhaoqi. Analysis of Nonlinear Consolidation Characteristics of Soil Around Tunnels Considering Self-Gravity Stress[J]. Journal of Shanghai Jiao Tong University, 2025, 59(4): 503-512.

Figures/Tables 12

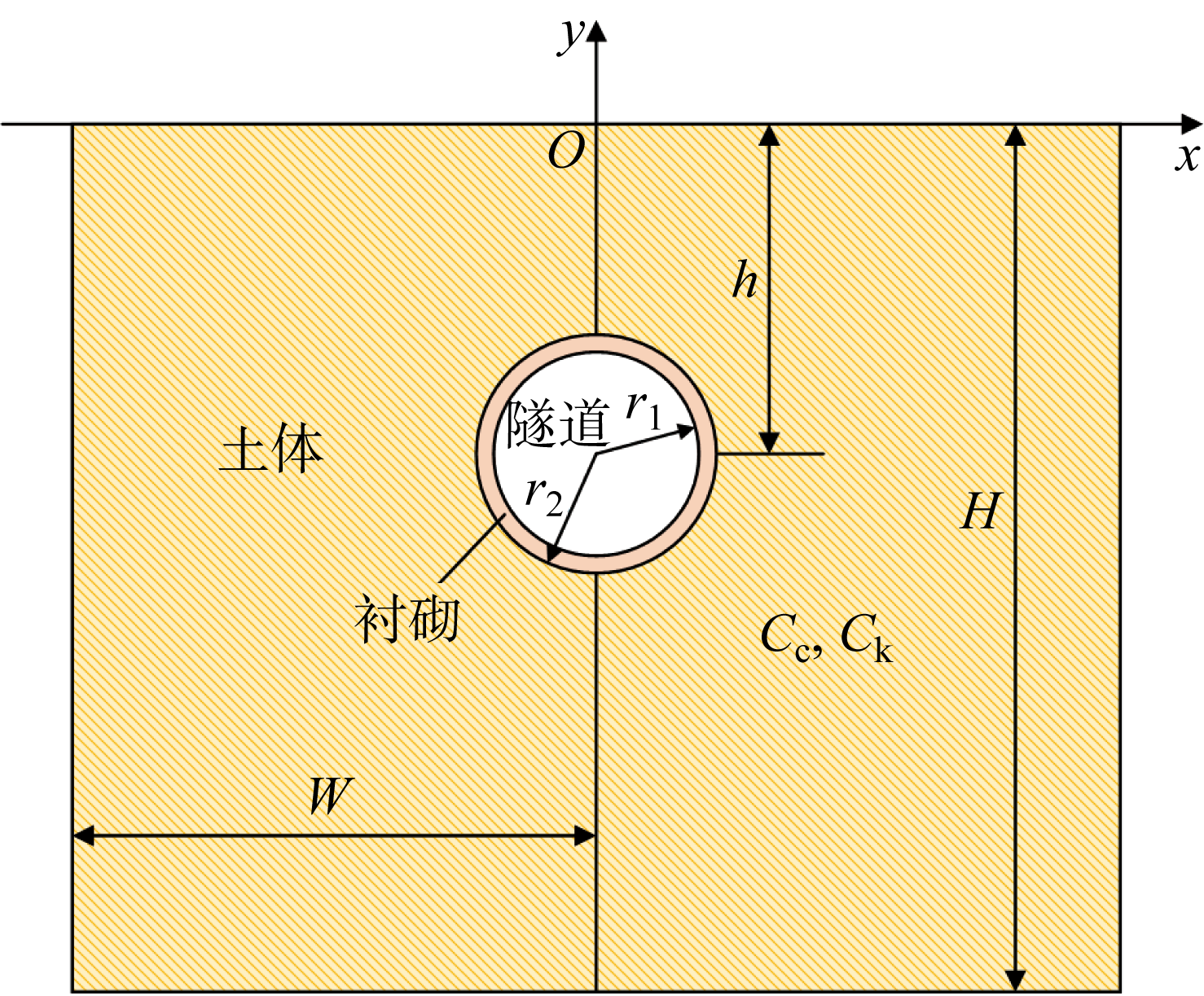

Fig.1

Fig.2

Fig.3

Fig.4

Tab.1

Tab.2

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

References 18

[1]	SHEN S L, WU H N, CUI Y J, et al. Long-term settlement behaviour of metro tunnels in the soft deposits of Shanghai[J]. Tunnelling and Underground Space Technology, 2014, 40: 309-323.
[2]	璩继立. 盾构施工引起的地面长期沉降研究[D]. 上海: 同济大学, 2002.
	QU Jili. Study of ground long-term settlement induced by shield construction[D]. Shanghai: Tongji University, 2002.
[3]	詹美礼, 钱家欢, 陈绪禄. 粘弹性地基中洞周土体固结问题的解析解[J]. 河海大学学报: 自然科学版, 1993, 21(2): 54-60.
	ZHAN Meili, QIAN Jiahuan, CHEN Xulu. Theoretical analysis for consolidation of viscoelastic clay about circular tunnels in foundations[J]. Journal of Hohai University, 1993, 21(2): 54-60.
[4]	王志良, 刘铭, 谢建斌, 等. 盾构施工引起地表固结沉降问题的研究[J]. 岩土力学, 2013, 34 (Sup.1): 127-133.
	WANG Zhiliang, LIU Ming, XIE Jianbin, et al. Research on consolidation settlement of ground surface caused by shield tunneling[J]. Rock and Soil Mechanics, 2013, 34 (Sup.1): 127-133.
[5]	申林方, 王志良, 魏纲, 等. 盾构施工引起土体超孔隙水压力消散问题的研究[J]. 铁道学报, 2015, 37(6): 112-118.
	SHEN Linfang, WANG Zhiliang, WEI Gang, et al. Research on dissipation if excess pore water pressure caused by shield tunnelling[J]. Journal of the China Railway Society, 2015, 37(6): 112-118.
[6]	LI X. Stress and displacement fields around a deep circular tunnel with partial sealing[J]. Computers and Geotechnics, 1999, 24(2): 125-140.
[7]	张治国, 黄茂松, 杨轩. 基于衬砌长期渗漏水影响的隧道施工扰动诱发超孔隙水压消散及地层固结沉降解[J]. 岩土力学, 2019, 40(8): 3135-3144.
	ZHANG Zhiguo, HUANG Maosong, YANG Xuan. Analytical solution for dissipation of excess pore water pressure and soil consolidation settlement induced by tunneling under the influence of long-term leakage[J]. Rock and Soil Mechanics, 2019, 40(8): 3135-3144.
[8]	曹奕. 软土中盾构隧道的长期非线性固结变形研究[D]. 杭州: 浙江大学, 2014.
	CAO Yi. Research on long-term nonlinear consolidation deformation of shield tunnel in soft soil[D]. Hangzhou: Zhejiang University, 2014.
[9]	李冰河, 谢康和, 应宏伟, 等. 初始有效应力沿深度变化的非线性一维固结半解析解[J]. 土木工程学报, 1999(6): 47-52.
	LI Binghe, XIE Kanghe, YING Hongwei, et al. Semi-analytical solution of 1-D nonlinear consolidation considering the initial effective stress distribution[J]. China Civil Engineering Journal, 1999(6): 47-52.
[10]	李传勋, 谢康和, 胡安峰, 等. 基于指数形式渗流考虑初始有效应力非均匀分布的软土一维非线性固结分析[J]. 岩石力学与工程学报, 2012, 31 (Sup.1): 3270-3277.
	LI Chuanxun, XIE Kanghe, HU Anfeng, et al. One dimensional nonlinear consolidation analysis of soft soil considering non-uniform distribution of initial effective stress based on exponential seepage[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31 (Sup.1): 3270-3277.
[11]	纠永志, 刘忠玉, 乐金朝, 等. 考虑非Darcy渗流和自重应力的一维固结分析[J]. 同济大学学报(自然科学版), 2012, 40(4): 541-548.
	JIU Yongzhi, LIU Zhongyu, YUE Jinchao, et al. One-dimensional consolidation with a consideration of non-darcy flow and self-gravity stress[J]. Journal of Tongji University (Natural Science), 2012, 40(4): 541-548.
[12]	MESRI G, TAVENAS F. Discussion of permeability and consolidation of normally consolidated soils[J]. Journal of Geotechnical Engineering, 1983, 109(6): 873-878.
[13]	TAVENAS F, JEAN P, LEBLOND P. The permeability of natural soft clays, part II: Permeability characteristics[J]. Canadian Geotechnical Journal, 1983, 20(4): 645-660.
[14]	魏纲. 盾构施工引起地面长期沉降的理论计算研究[J]. 岩石力学与工程学报, 2008 (Sup.1): 2960-2966.
	WEI Gang. Research on theoretical calculation of long-term ground settlement caused by shield tunneling[J]. Chinese Journal of Rock Mechamics and Geotechnical Engineering, 2008 Sup.1): 2960-2966.
[15]	胡安峰, 龚昭祺, 肖志荣, 等. 隧道周围饱和软土二维非线性固结分析[J]. 上海交通大学学报, 2023, 57(12): 1631-1638. doi: 10.16183/j.cnki.jsjtu.2022.228
	HU Anfeng, GONG Zhaoqi, XIAO Zhirong, et al. Two dimensional nonlinear consolidation analysis of saturated soft soil around tunnel[J]. Journal of Shanghai Jiao Tong University, 2023, 57(12): 1631-1638.
[16]	张锁春. 抛物型方程定解问题的有限差分数值计算[M]. 北京: 科学出版社, 2010.
	ZHANG Suochun. Finite difference numerical calculation of definite solution problem of parabolic equation[M]. Beijing: Science Press, 2010.
[17]	包鹤立. 衬砌局部渗漏条件下软土盾构隧道的长期性态研究[D]. 上海: 同济大学, 2008.
	BAO Heli. Research on the long-term behavior of sheild tunnel with partially sealed linings in soft soil[D]. Shanghai: Tongji University, 2008.
[18]	谢康和, 郑辉, 李冰河, 等. 变荷载下成层地基一维非线性固结分析[J]. 浙江大学学报(工学版), 2003(4): 50-55.
	XIE Kanghe, ZHENG Hui, LI Binghe, et al. Analysis of one dimensional nonlinear consolidation of layered soils under time-dependent loading[J]. Journal of Zhejiang University (Engineering Science), 2003(4): 50-55.

参数	取值
k_s1/(m·s^-1)	4.0×10^-9
C_c	0.2
C_k	0.2
e₁	1.0
σ'₁/kPa	200
γ_sat/(kN·m^-3)	18
H/m	30

参数	取值
h/m	11
r₁/m	2.75
r₂/m	3.10
k_l/(m·s^-1)	3.0×10^-11
p/kPa	30
