Journal of Shanghai Jiao Tong University ›› 2025, Vol. 59 ›› Issue (4): 513-524.doi: 10.16183/j.cnki.jsjtu.2023.350
• Naval Architeture, Ocean and Civil Engineering • Previous Articles Next Articles
WANG Jiachen1, MENG Lingzan1,2, ZHANG Dingli1(), LU Song1, WEN Ming3
Received:
2023-07-28
Revised:
2024-02-20
Accepted:
2024-03-27
Online:
2025-04-28
Published:
2025-05-09
Contact:
ZHANG Dingli
E-mail:zhang_dingli@263.net
CLC Number:
WANG Jiachen, MENG Lingzan, ZHANG Dingli, LU Song, WEN Ming. Evolution Law of Longitudinal Deformation Curve and Release Coefficient of Viscoelastic Rock[J]. Journal of Shanghai Jiao Tong University, 2025, 59(4): 513-524.
Tab.1

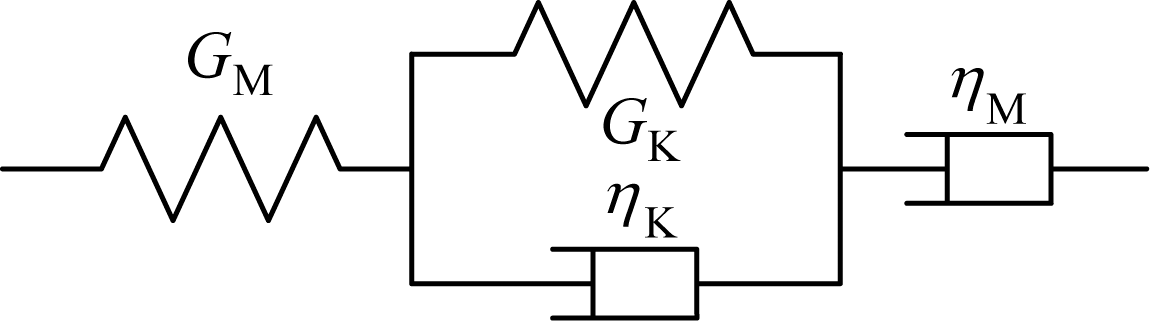

Fourteen actual Burgers parameters
系列 | GK/GPa | ηK/(GPa·h) | GM/GPa | K/MPa | 系列 | GK/GPa | ηK/(GPa·h) | GM/GPa | K/MPa |
---|---|---|---|---|---|---|---|---|---|
1 | 3.72 | 0.13 | 8.90 | 95.14 | 8 | 3.23 | 16.7 | 0.410 | 160.32 |
2 | 2.38 | 0.11 | 5.16 | 65.79 | 9 | 0.94 | 9.7 | 0.088 | 74.36 |
3 | 0.23 | 0.03 | 0.68 | 47.44 | 10 | 4.21 | 155.2 | 9.770 | 58.33 |
4 | 9.75 | 0.23 | 16.66 | 60.42 | 11 | 2.27 | 185.3 | 1.660 | 168.00 |
5 | 3.65 | 0.13 | 8.42 | 70.83 | 12 | 2.27 | 182.4 | 2.020 | 178.79 |
6 | 2.38 | 0.11 | 4.85 | 48.48 | 13 | 0.28 | 91.1 | 0.160 | 50.79 |
7 | 12.61 | 286.20 | 22.54 | 186.31 | 14 | 0.07 | 44.6 | 0.058 | 111.73 |
Tab.2
Comparison of maximum displacement theoretical results and numerical simulation results
系列 | k×104 | umax/σ0×104 | 系列 | k×104 | umax/σ0×104 |
---|---|---|---|---|---|
1 | 5.23 | 5.49 | 8 | 37.72 | 39.40 |
2 | 8.45 | 8.86 | 9 | 170.05 | 176.79 |
3 | 79.90 | 83.40 | 10 | 4.67 | 4.88 |
4 | 2.19 | 2.29 | 11 | 14.44 | 15.09 |
5 | 5.32 | 5.59 | 12 | 12.83 | 13.33 |
6 | 8.56 | 8.97 | 13 | 141.55 | 146.02 |
7 | 1.69 | 1.76 | 14 | 428.45 | 445.90 |

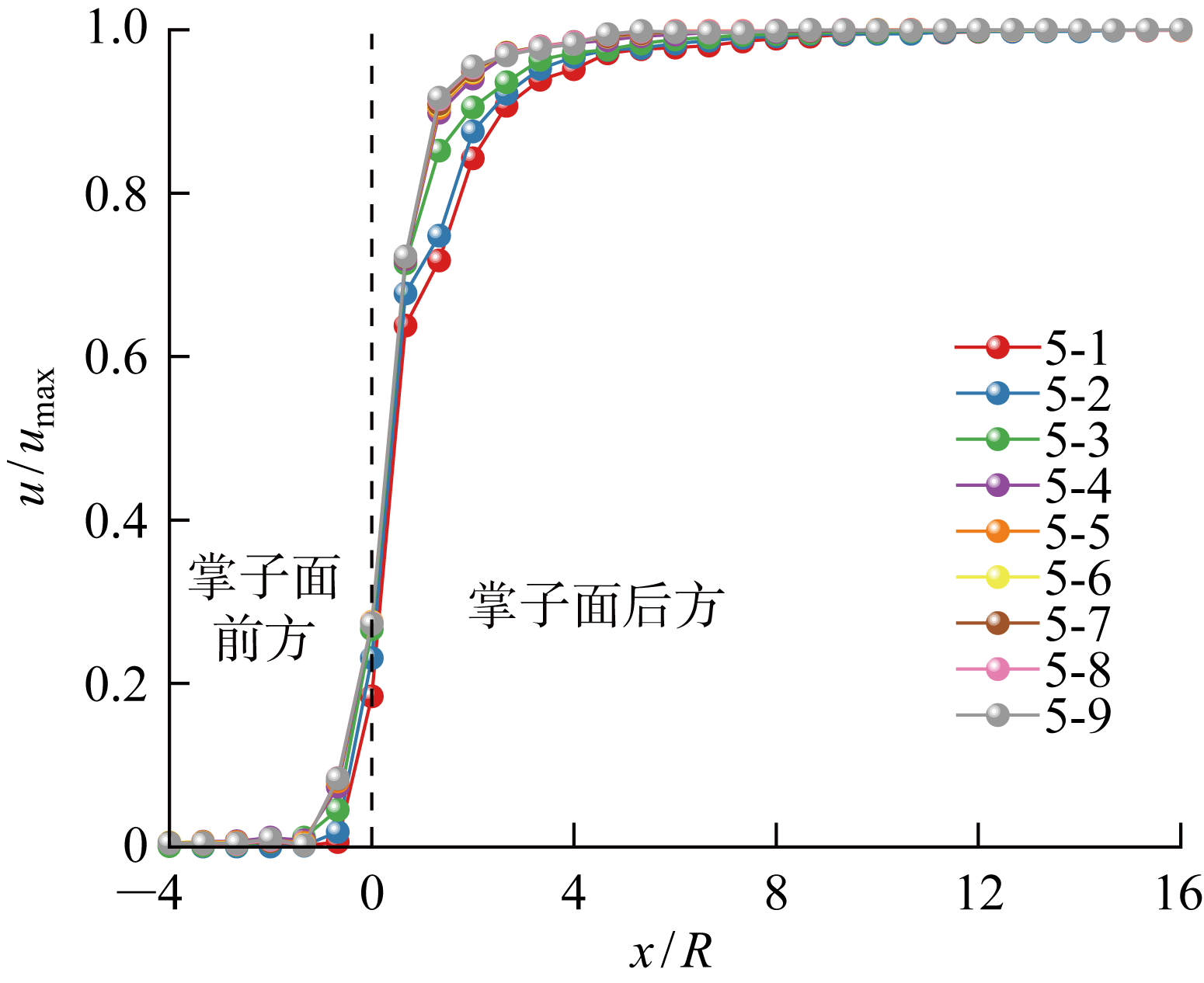

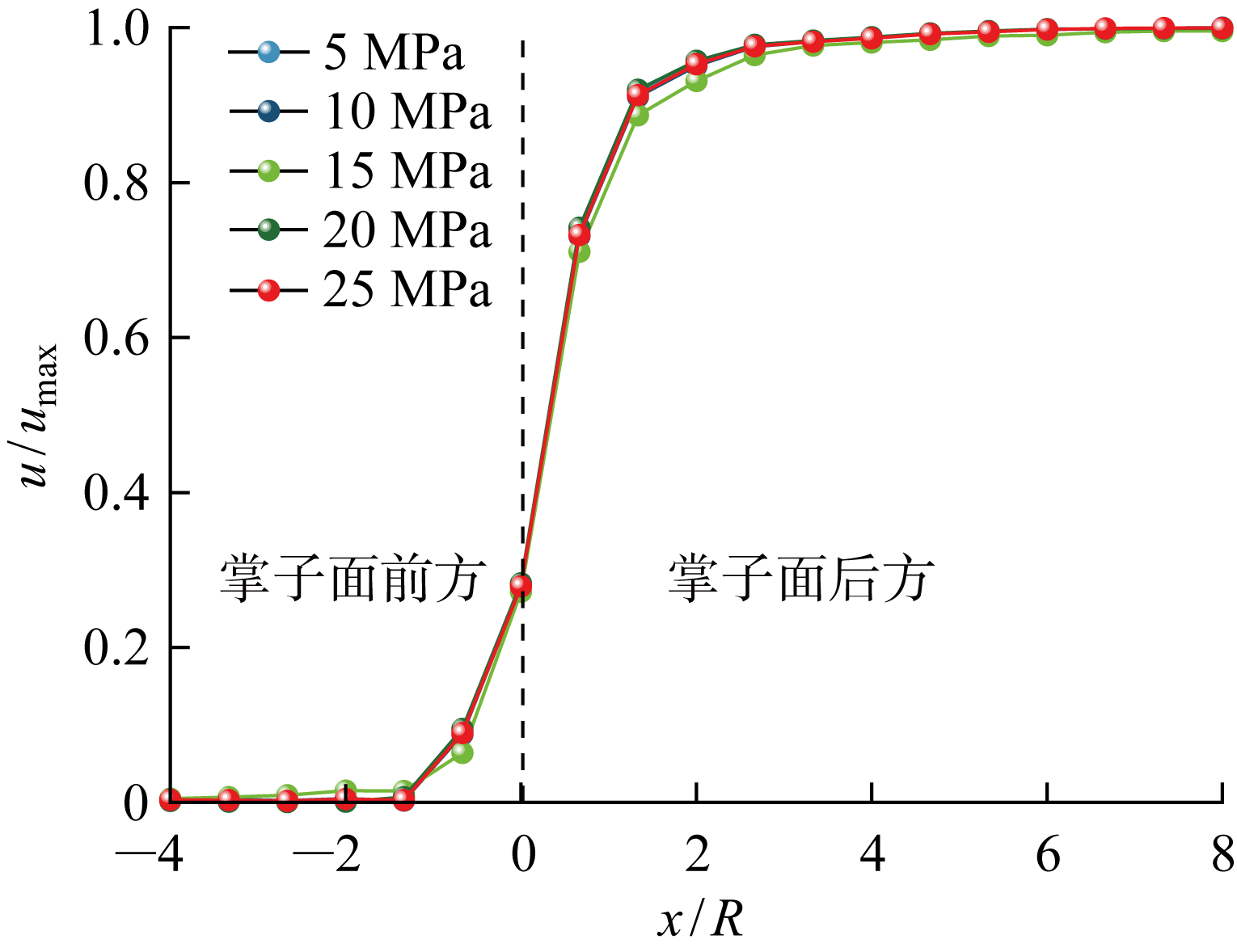

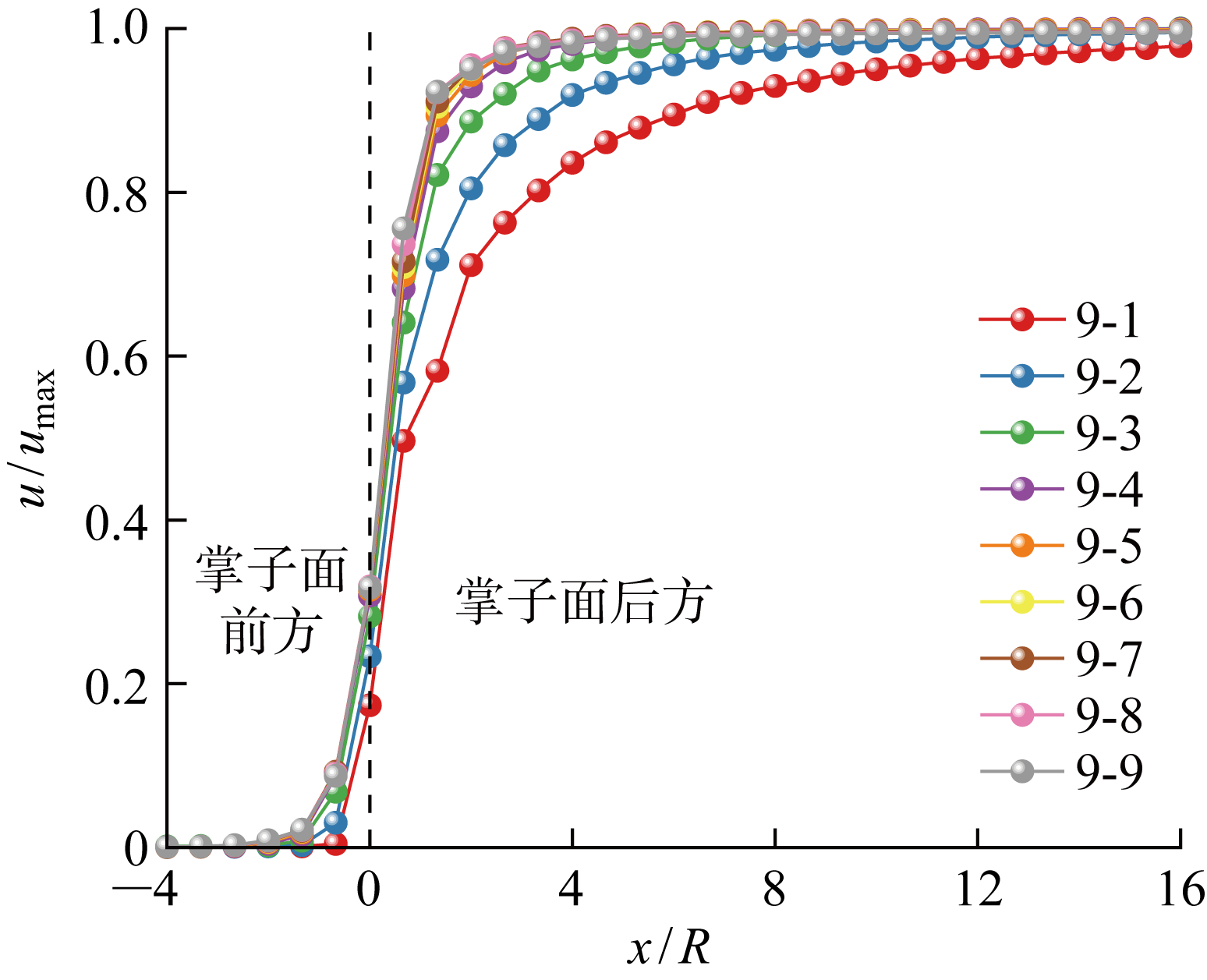

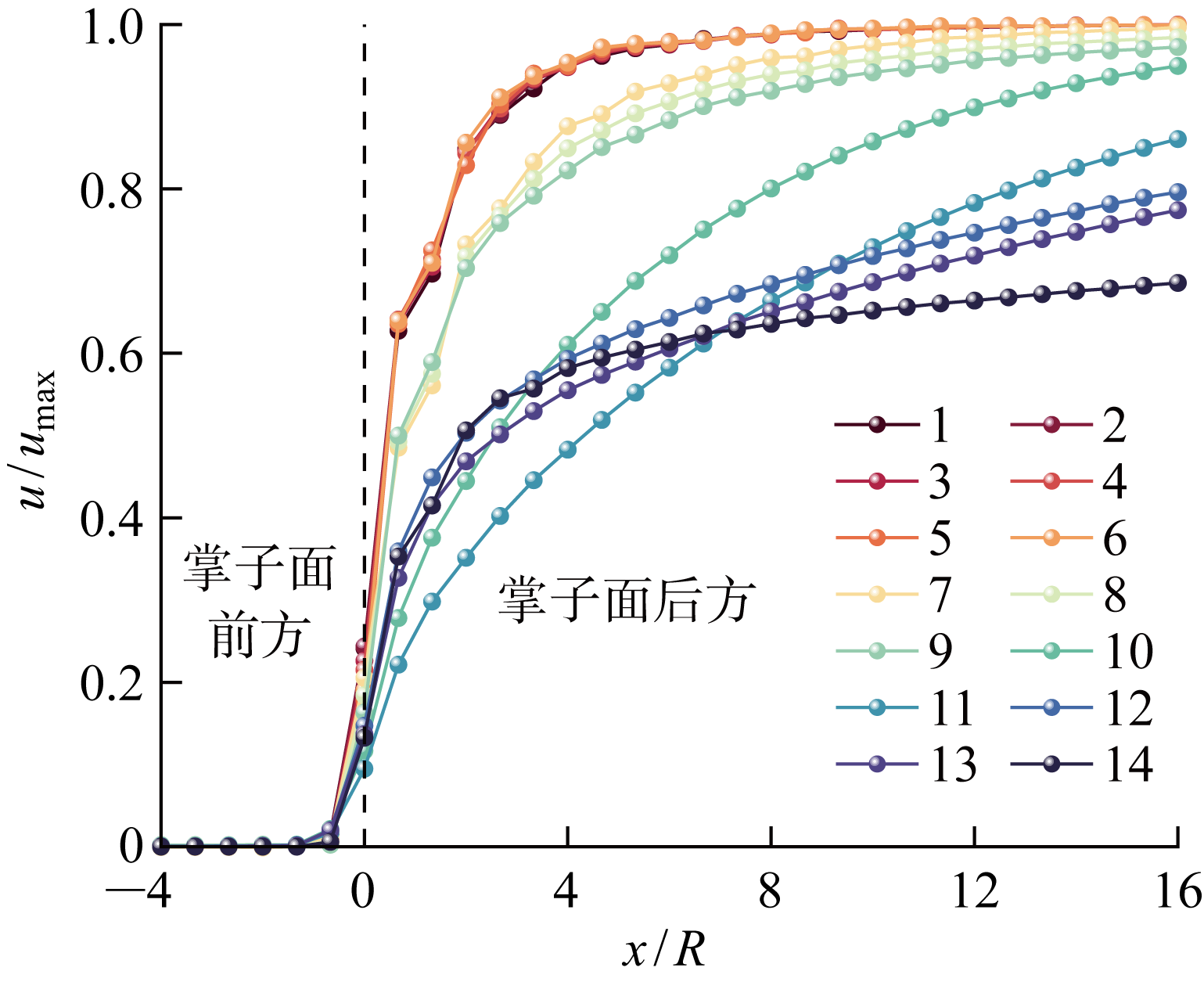

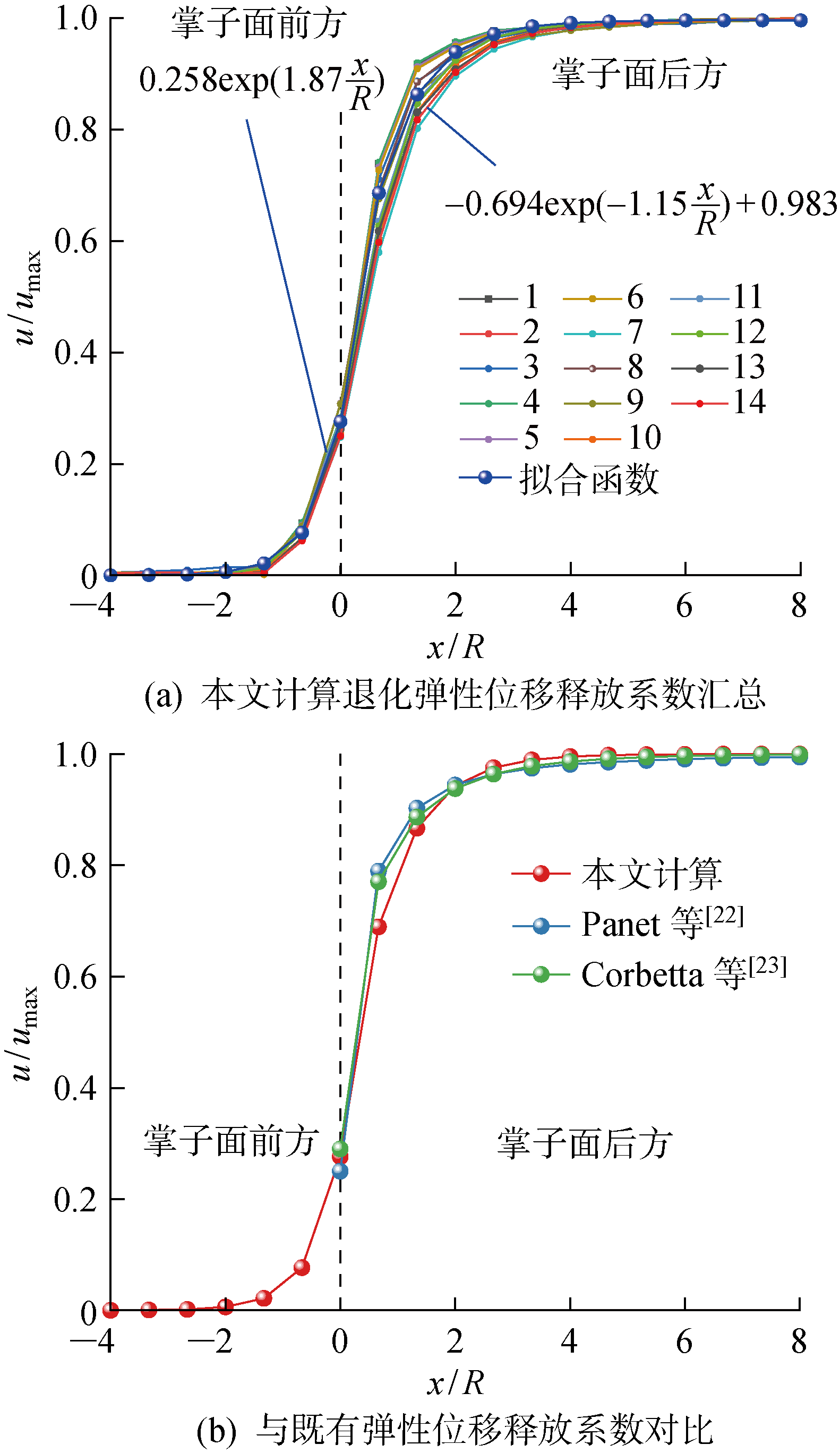

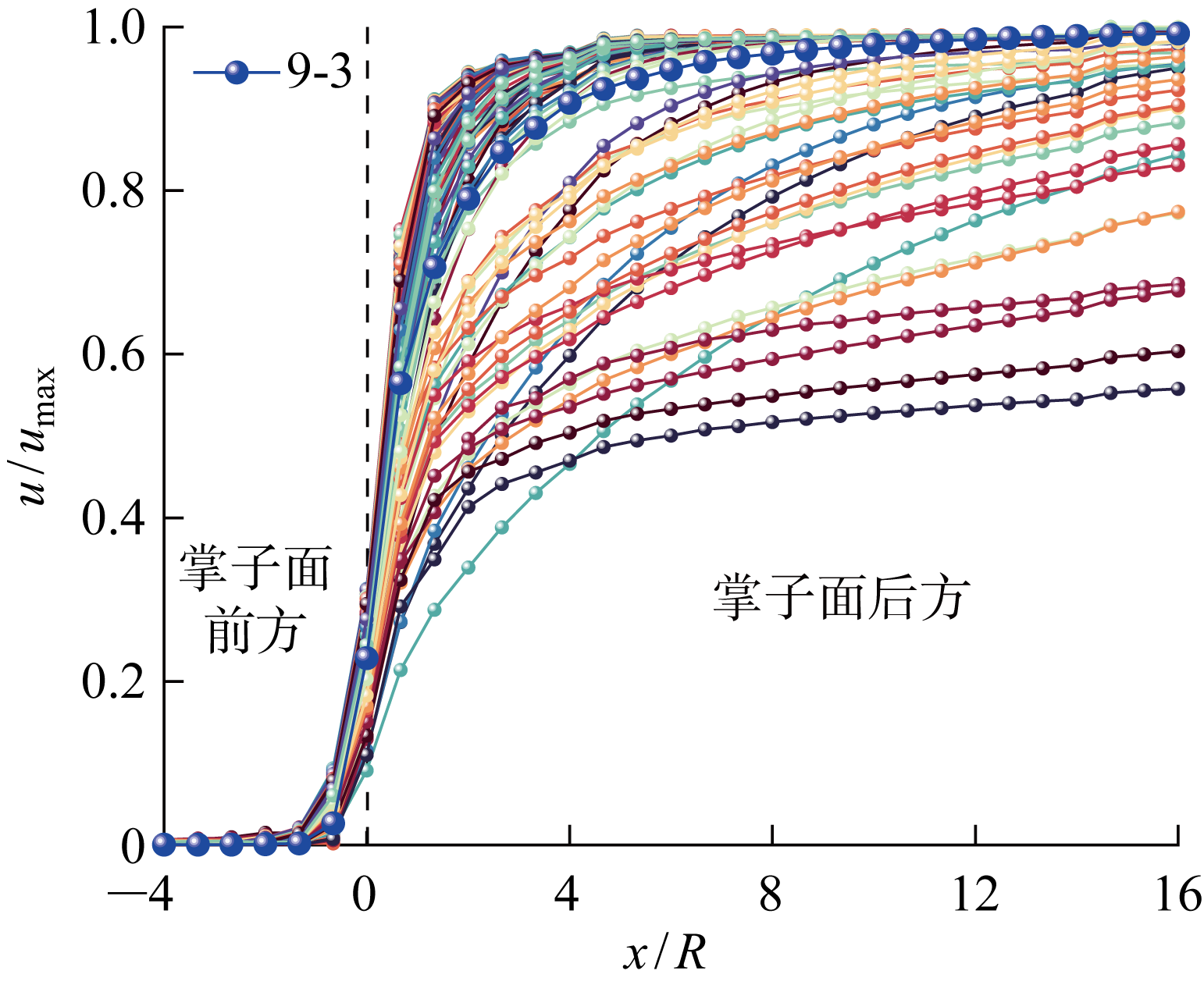

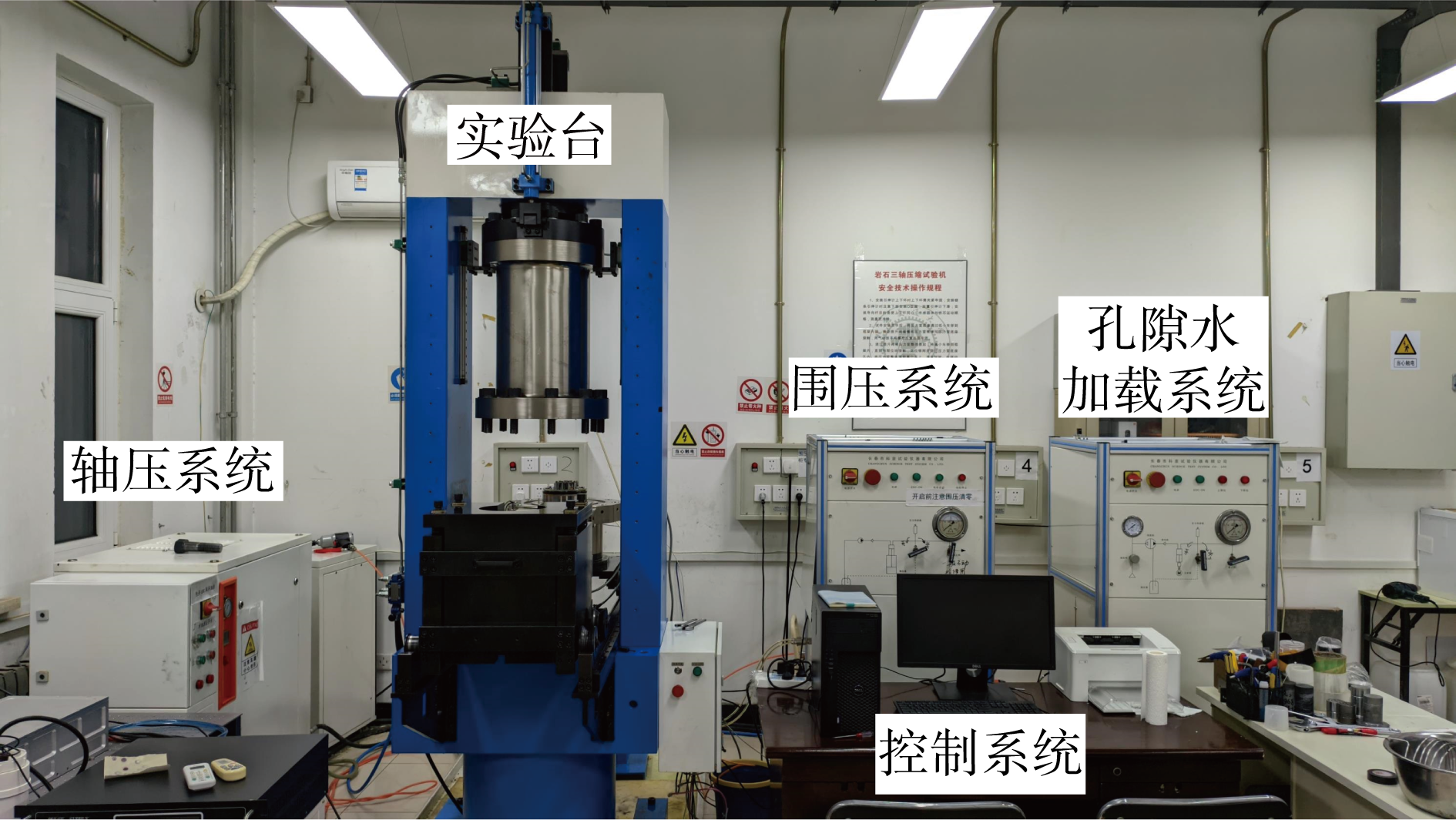

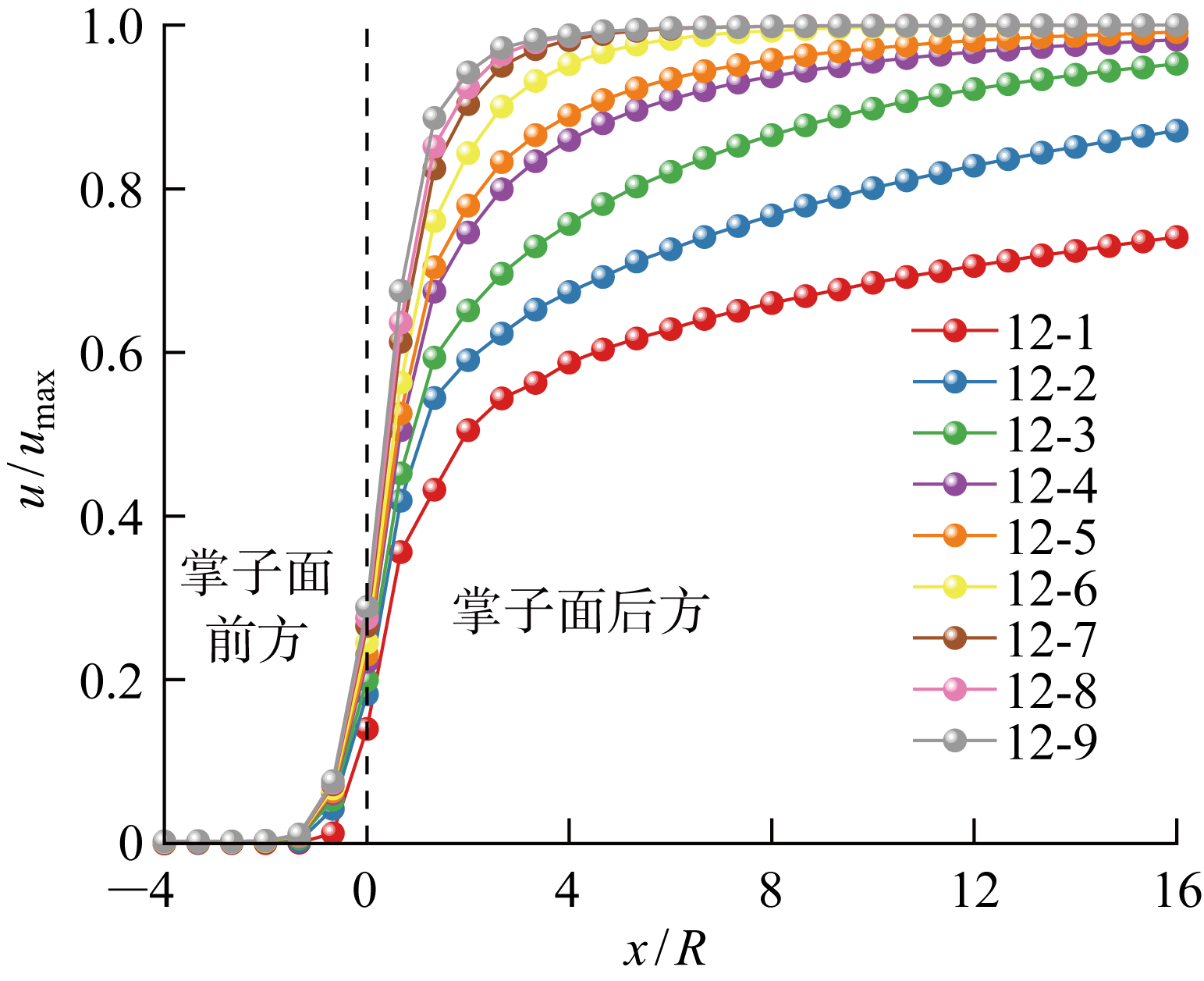

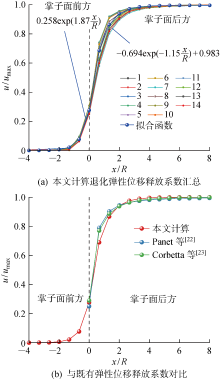

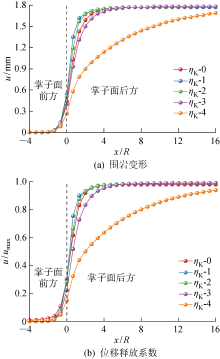

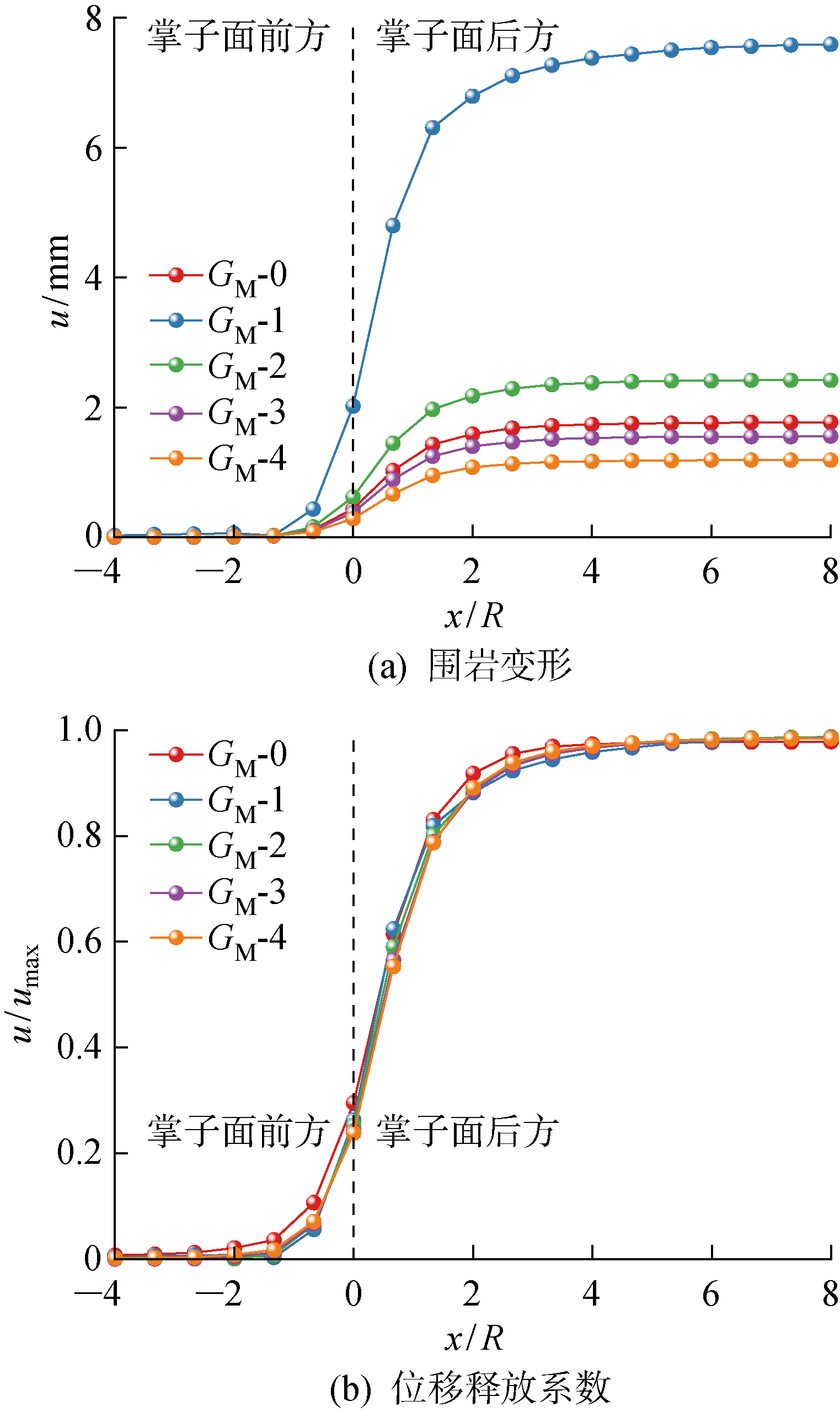

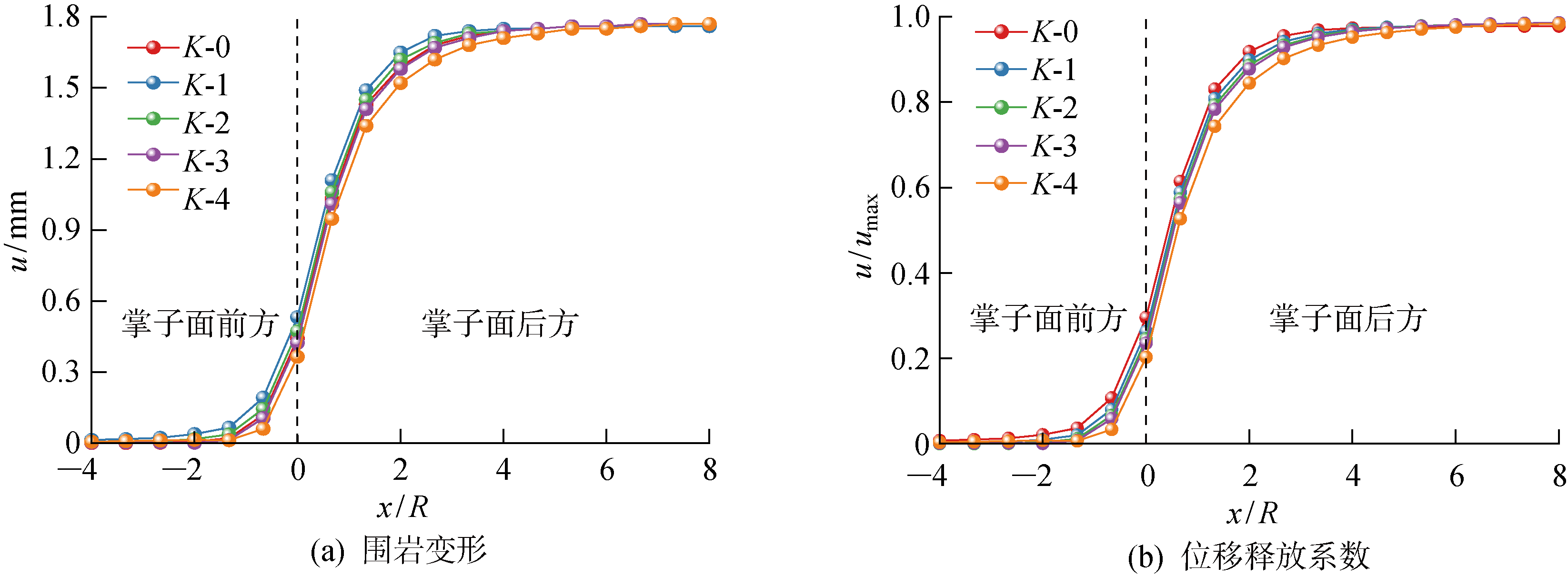

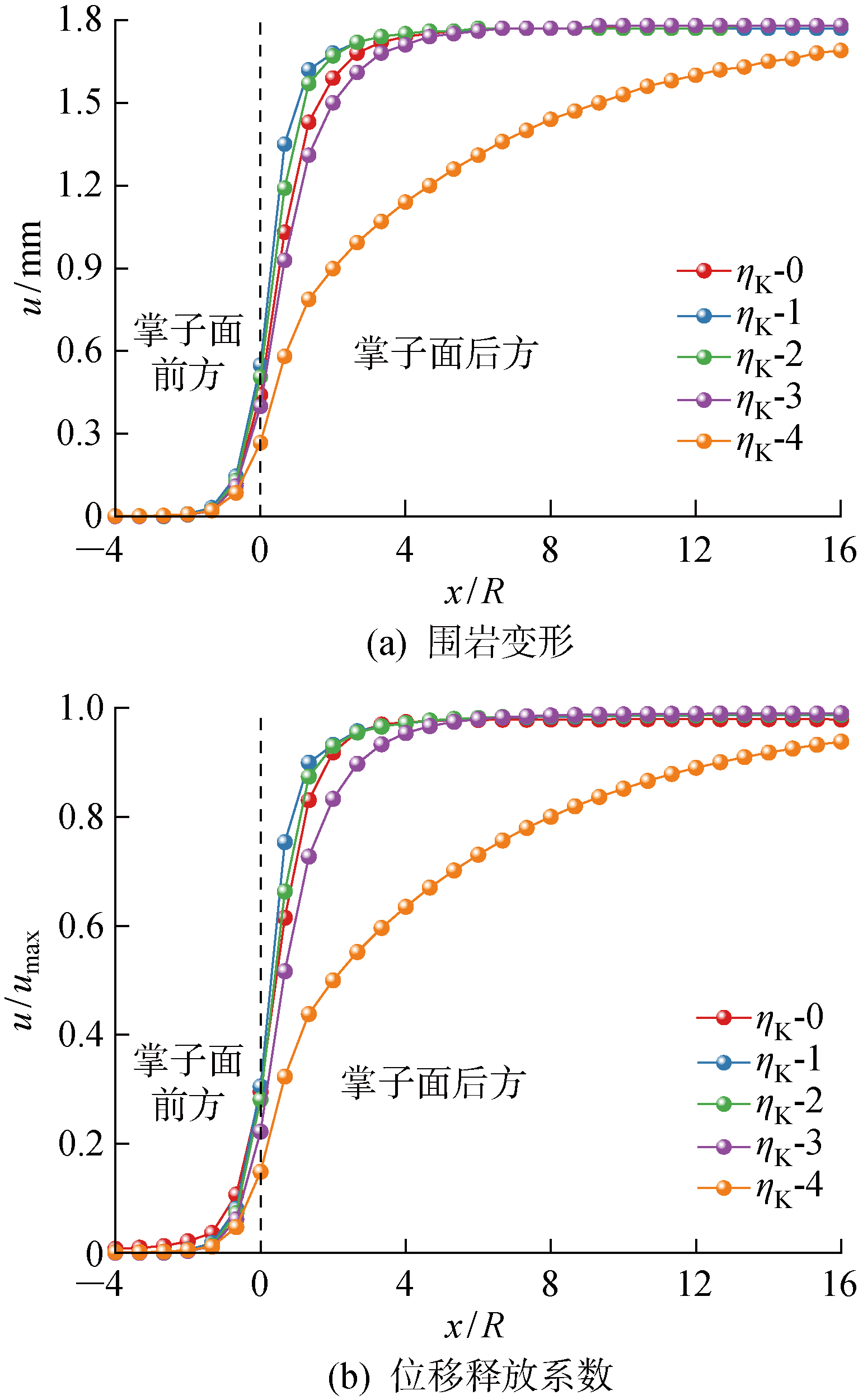

Tab.3
Calculation parameters of displacement release rate in Series 7
工况 | GK/GPa | ηK/(GPa·h) | GM/GPa | K/MPa | 工况 | GK/GPa | ηK/(GPa·h) | GM/GPa | K/MPa |
---|---|---|---|---|---|---|---|---|---|
K-1 | 12.61 | 286.20 | 22.54 | 18.63 | ηK-1 | 12.61 | 28.62 | 22.54 | 186.31 |
K-2 | 12.61 | 286.20 | 22.54 | 93.16 | ηK-2 | 12.61 | 143.10 | 22.54 | 186.31 |
K-3 | 12.61 | 286.20 | 22.54 | 279.47 | ηK-3 | 12.61 | 429.30 | 22.54 | 186.31 |
K-4 | 12.61 | 286.20 | 22.54 | 1 863.10 | ηK-4 | 12.61 | 28620 | 22.54 | 186.31 |

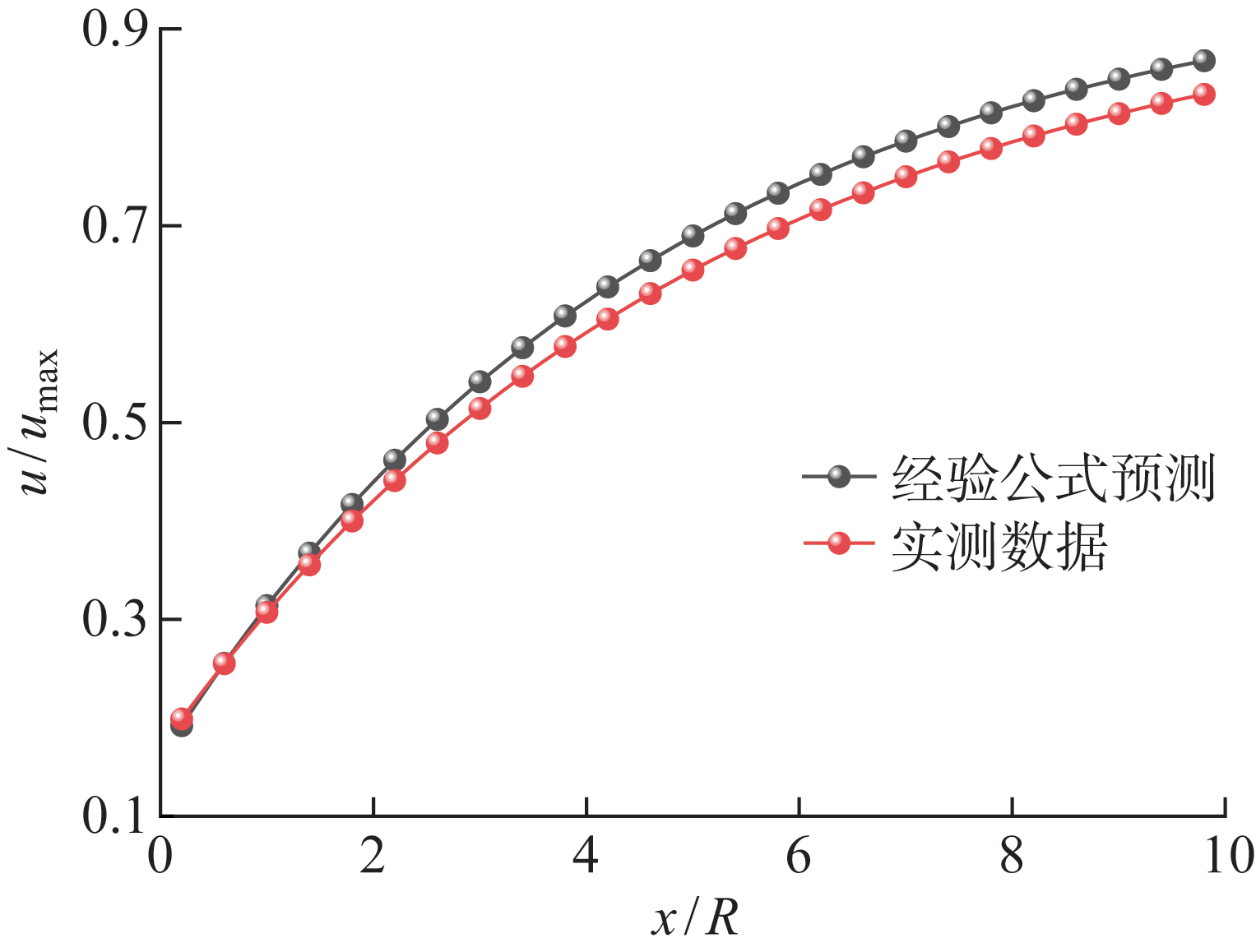

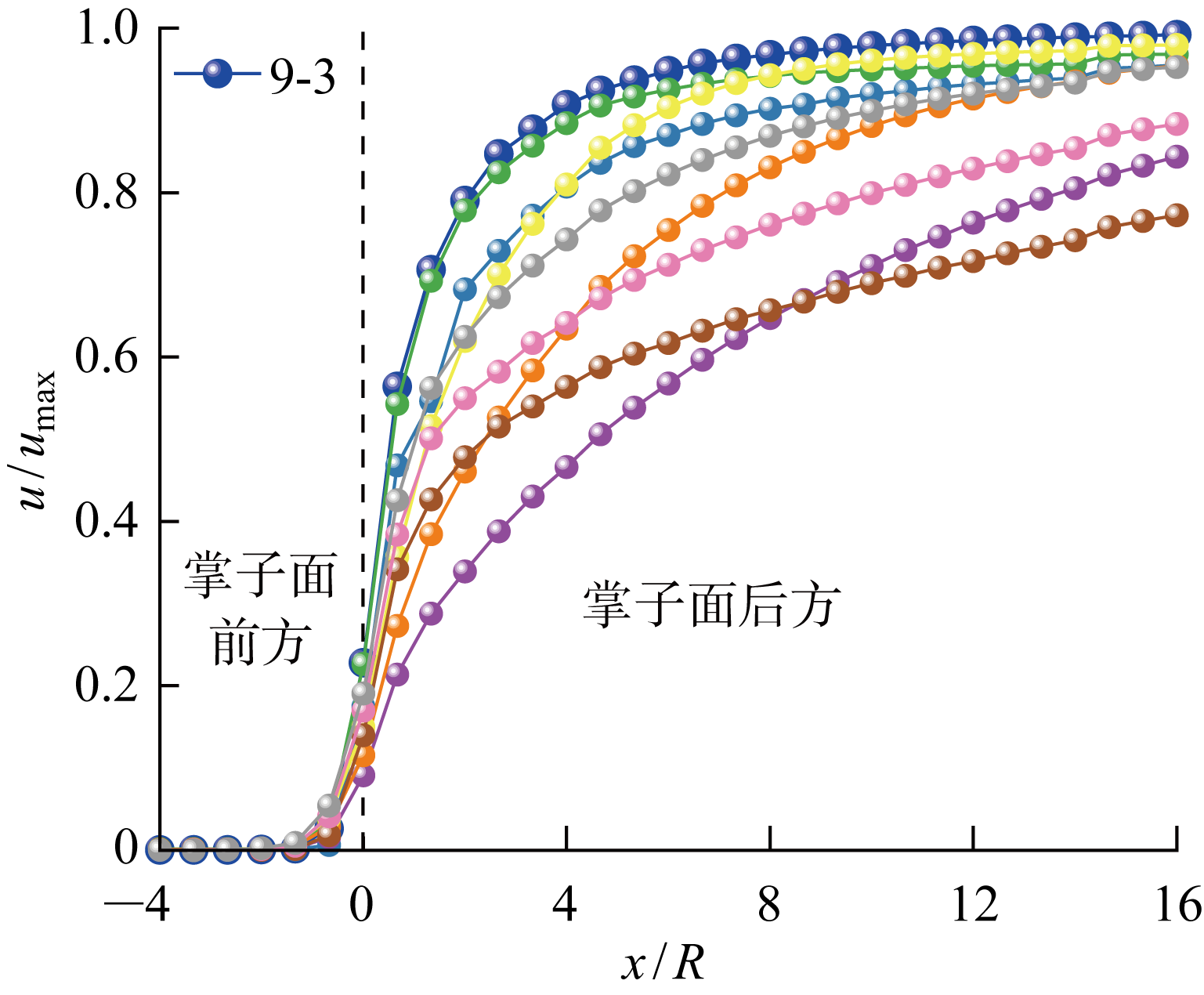

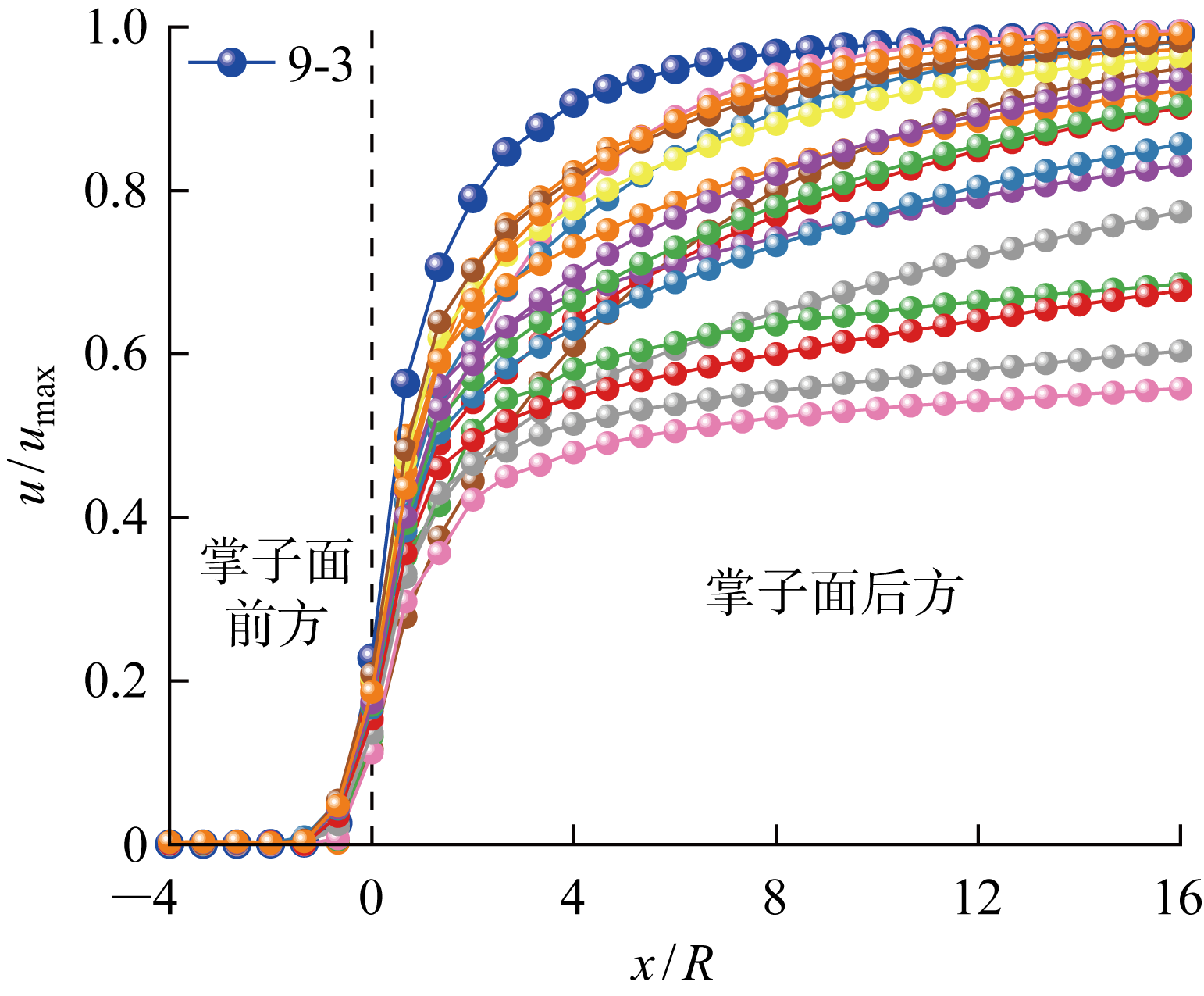

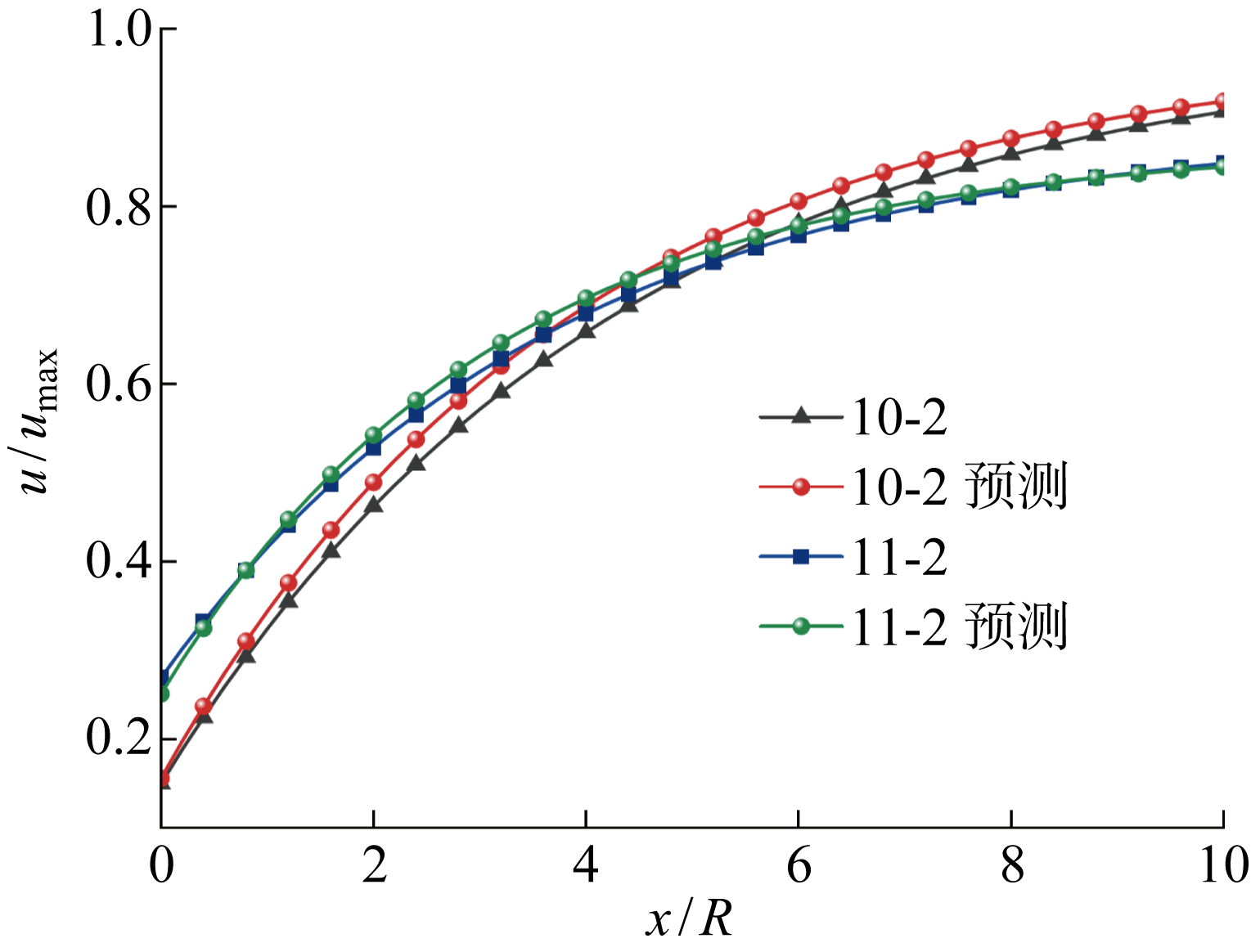

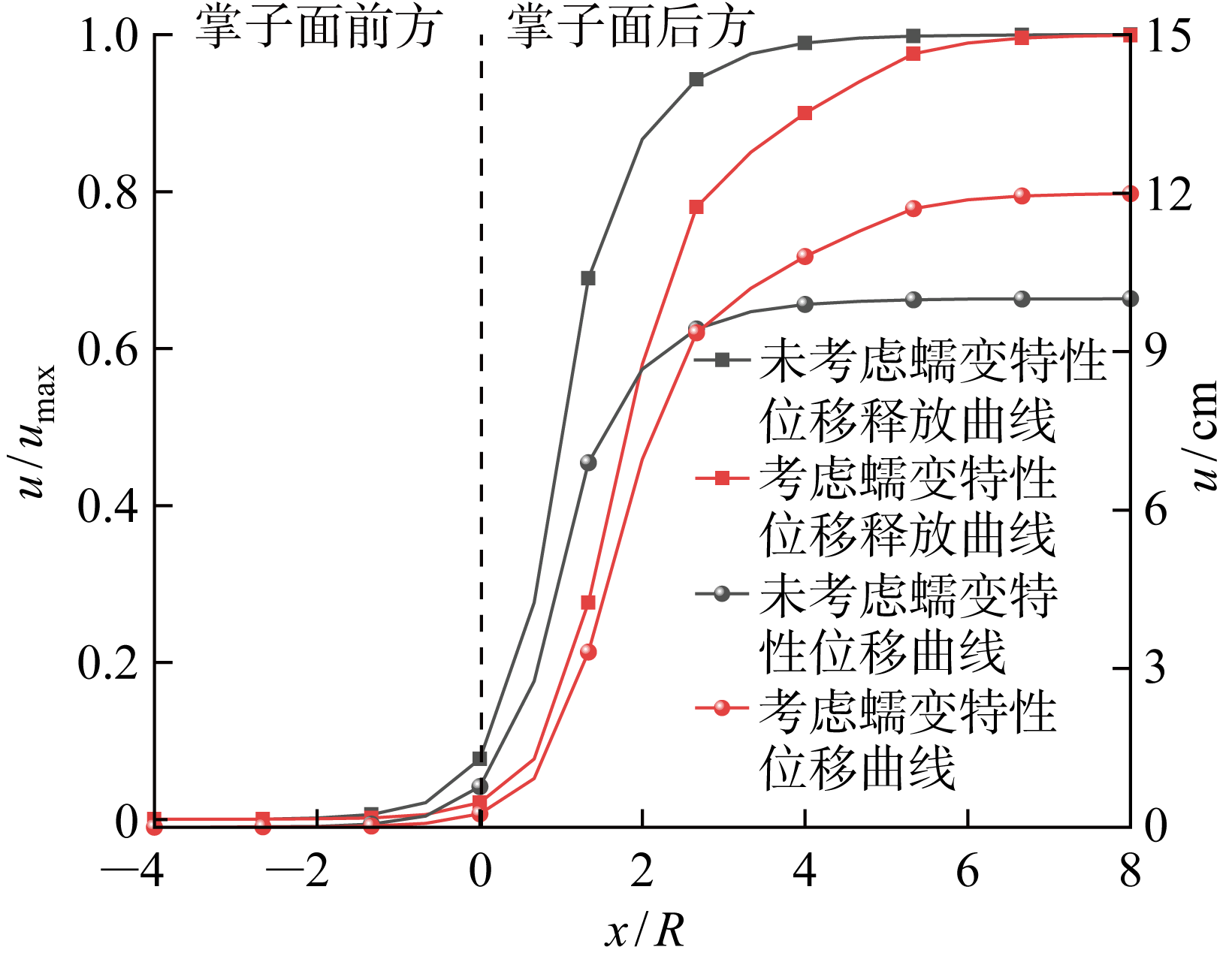

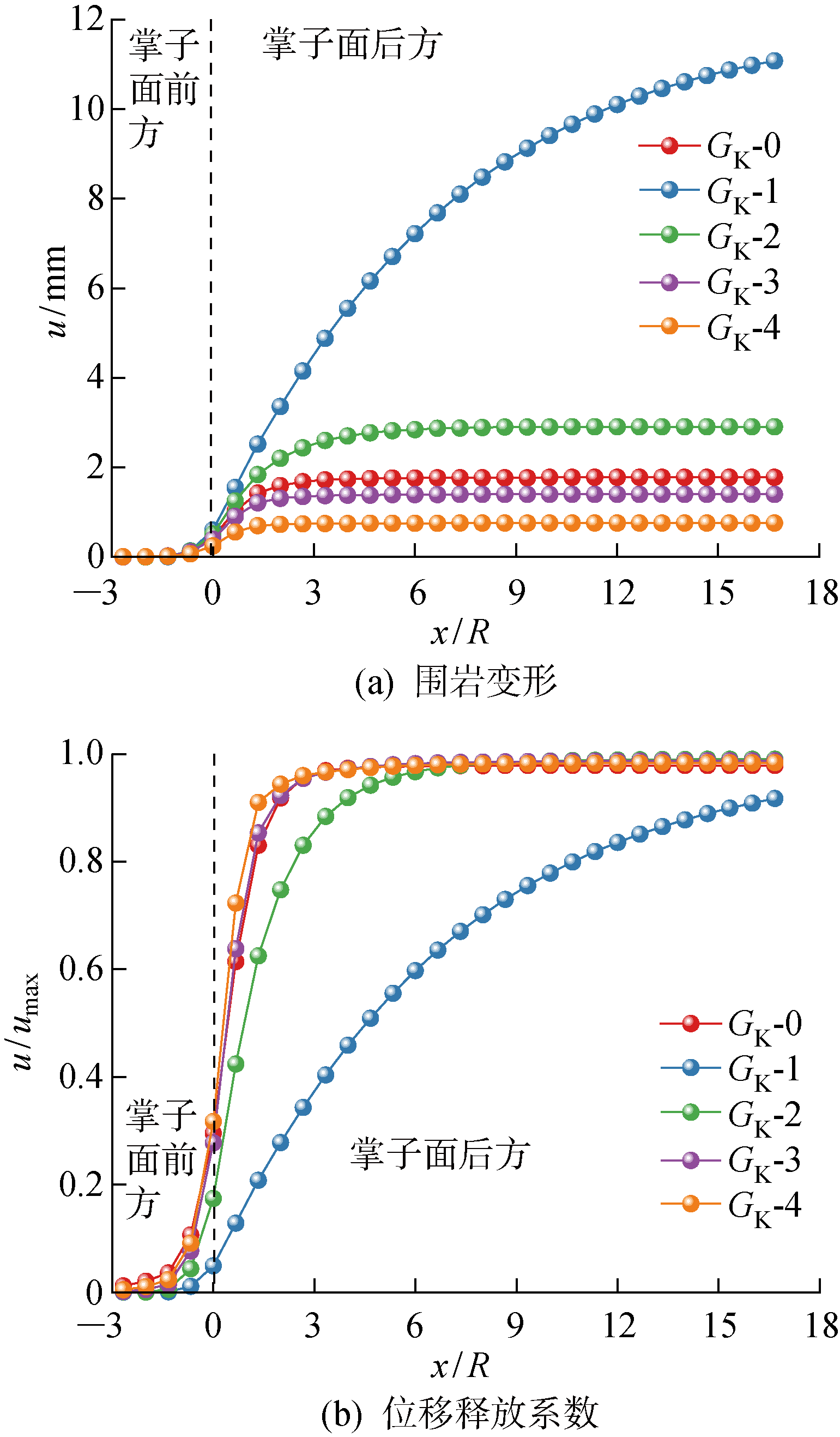

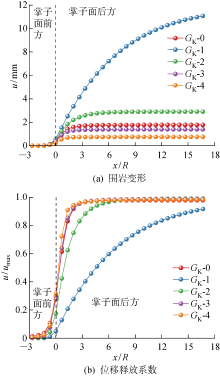

GK-1 | 1.261 | 286.20 | 22.54 | 186.31 | GM-1 | 12.61 | 286.20 | 2.254 | 186.31 |
GK-2 | 6.31 | 286.20 | 22.54 | 186.31 | GM-2 | 12.61 | 286.20 | 11.27 | 186.31 |
GK-3 | 18.92 | 286.20 | 22.54 | 186.31 | GM-3 | 12.61 | 286.20 | 33.81 | 186.31 |
GK-4 | 126.10 | 286.20 | 22.54 | 186.31 | GM-4 | 12.61 | 286.20 | 225.40 | 186.31 |
[1] | 侯公羽, 李晶晶. 弹塑性变形条件下围岩-支护相互作用全过程解析[J]. 岩土力学, 2012, 33(4): 961-970. |
HOU Gongyu, LI Jingjing. Analysis of complete process of interaction of surrounding rock and support under elastioplastic deformation condition[J]. Rock and Soil Mechanics, 2012, 33(4): 961-970. | |
[2] | WANG Y, WANG J C, PENG F. Study on the characteristics of surrounding rock and design of backfill material parameters for tunnels passing through giant caverns and underground rivers[J]. Applied Sciences, 2022, 12(8): 3906. |
[3] | DO D P, TRAN N T, MAI V T, et al. Time-dependent reliability analysis of deep tunnel in the viscoelastic burger rock with sequential installation of liners[J]. Rock Mechanics and Rock Engineering, 2020, 53(3): 1259-1285. |
[4] | EUGIE K, MURAT K, EMMANUEL K C. Time-dependent solution for non-circular tunnels considering the elasto-viscoplastic rockmass[J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 133: 104395. |
[5] | ZHAO N, SHAO Z, WU K, et al. Time-dependent solutions for lined circular tunnels considering rockbolts reinforcement and face advancement effects[J]. International Journal of Geomechanics, 2021, 21(10): 04021179. |
[6] | GU S C, HE H W, HUANG R B. Stress-strain calculation method of composite lining considering the creep characteristics of tunnel surrounding rock[J]. Advances in Civil Engineering, 2021, 21(10): 7521435. |
[7] | WANG H N, SONG F, ZHAO T, et al. Solutions for lined circular tunnels sequentially constructed in rheological rock subjected to non-hydrostatic initial stresses[J]. European Journal of Environmental and Civil Engineering, 2022, 26(5): 1834-1866. |
[8] | ZENG G S, WANG H N, JIANG M J, et al. Analytical solution of displacement and stress induced by the sequential excavation of noncircular tunnels in viscoelastic rock[J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 134: 104429. |
[9] | CHU Z, WU Z, LIU Q, et al. Analytical solution for lined circular tunnels in deep viscoelastic burgers rock considering the longitudinal discontinuous excavation and sequential installation of liners[J]. Journal of Engineering Mechanics, 2021, 147(4): 04021009. |
[10] | ALI R K, HADI H, NIMA B. Time-dependent analysis of stress components around lined tunnels with circular configuration considering tunnel advancing rate effects[J]. International Journal of Rock Mechanics and Mining Sciences, 2020, 133: 104422. |
[11] | 苏永华, 邹宇恒. 基于Hoek-Brown软化模型的支护结构稳定性分析[J]. 中南大学学报(自然科学版), 2020, 51(2): 453-463. |
SUN Yonghua, ZOU Yuheng. Stability analysis of support structure based on Hoek-Brown strain-softening model[J]. Journal of Central South University(Science and Technology), 2020, 51(2): 453-463. | |
[12] | 谭代明, 漆泰岳, 莫阳春. 考虑时空效应的软弱围岩隧道施工稳定性研究[J]. 水文地质工程地质, 2009, 36(4): 85-89. |
TAN Daiming, QI Taiyue, MO Yangchun. Study on construction stability of soft surrounding rock tunnel considering time-space effect[J]. Hydrogeology and Engineering Geology, 2009, 36(4): 85-89. | |
[13] | 霍晓龙, 陈寿根, 张小明. 唐家山隧道施工特性及时空效应研究[J]. 施工技术, 2012, 41(19): 79-83. |
HUO Xiaolong, CHEN Shougen, ZHANG Xiao-ming. Study on construction characteristic and temporal-spatial effect of Tangjiashan tunnel[J]. Construction Technology, 2012, 41(19): 79-83. | |
[14] | LIU C, ZHANG D, ZHANG S, et al. Interaction analysis between composite supports and rheological rock considering progressive hardening characteristic of shotcrete[J]. Construction and Building Materials, 2023, 374: 130876. |
[15] | LIU C, ZHANG D, ZHANG S, et al. Long-term mechanical analysis of tunnel structures in rheological rock considering the degradation of primary lining[J]. Underground Space, 2023, 10: 217-232. |
[16] | LIU C, ZHANG S, ZHANG D, et al. Model tests on progressive collapse mechanism of a shallow subway tunnel in soft upper and hard lower composite strata[J]. Tunnelling and Underground Space Technology, 2023, 131: 104824. |
[17] | 王嘉琛, 张顶立, 孙振宇, 等. 水平互层围岩隧道破坏机理及其范围预测模型[J]. 力学学报, 2022, 54(10): 2835-2849. |
WANG Jiachen, ZHANG Dingli, SUN Zhenyu, et al. Failure mechanism and scope prediction model of horizontal interbedded surrounding rock tunnel[J]. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(10): 2835-2849. | |
[18] | 卢伟. 断层破碎带隧道洞周变形时空效应研究[J]. 结构工程师, 2019, 35(3): 236-242. |
LU Wei. Research on the space-time effect of the fault fracture zone with tunnel surrounding rock deformation[J]. Structural Engineers, 2019, 35(3): 236-242. | |
[19] | 左清军, 吴友银, 闫天玺. 特大断面板岩隧道施工期围岩变形时空效应分析[J]. 防灾减灾工程学报, 2018, 38(2): 233-243. |
ZUO Qingjun, WU Youyin, YAN Tianxi. Analysis of time-space effect for surrounding rock deformation in super-large cross section slate tunnel during construction period[J]. Journal of Disaster Prevention and Mitigation Engineering, 2018, 38(2): 233-243. | |
[20] | 王建, 袁枫斌, 袁龙. 特大断面砂质板岩隧道V级围岩变形时空效应[J]. 科学技术与工程, 2020, 20(5): 2048-2052. |
WANG Jian, YUAN Fengbin, YUAN Long. Temporal and spatial effects of V-type surrounding rock deformation in extra large section sandy slate tunnel[J]. Science Technology and Engineering, 2020, 20(5): 2048-2052. | |
[21] | 杨成忠, 吴宇健, 王威, 等. 大断面软岩隧道开挖空间效应影响分析[J]. 地下空间与工程学报, 2021, 17(2): 511-519. |
YANG Chengzhong, WU Yujian, WANG Wei, et al. Analysis on influence of spacial effect on excavation of soft rock tunnel with large cross section[J]. Chinese Journal of Underground Space and Engineering, 2021, 17(2): 511-519. | |
[22] | PANET M, GUENOT A. Analysis of convergence behind the face of a tunnel[C]// Tunnelling 82, Proceedings of the 3rd International Symposium. Brighton, UK: IMM, 1982: 197-204. |
[23] | CORBETTA F, BERNAUD D, MINH D N. Contribution à la méthode convergence-confinement par le principe de la similitude[J]. Revue Française de Géotechnique, 1991(54): 5-11. |
