Effect of Potential Distribution of Main Shield on Internal Insulation Performance of Vacuum Interrupter

doi:10.16183/j.cnki.jsjtu.2023.553

Abstract

Abstract:

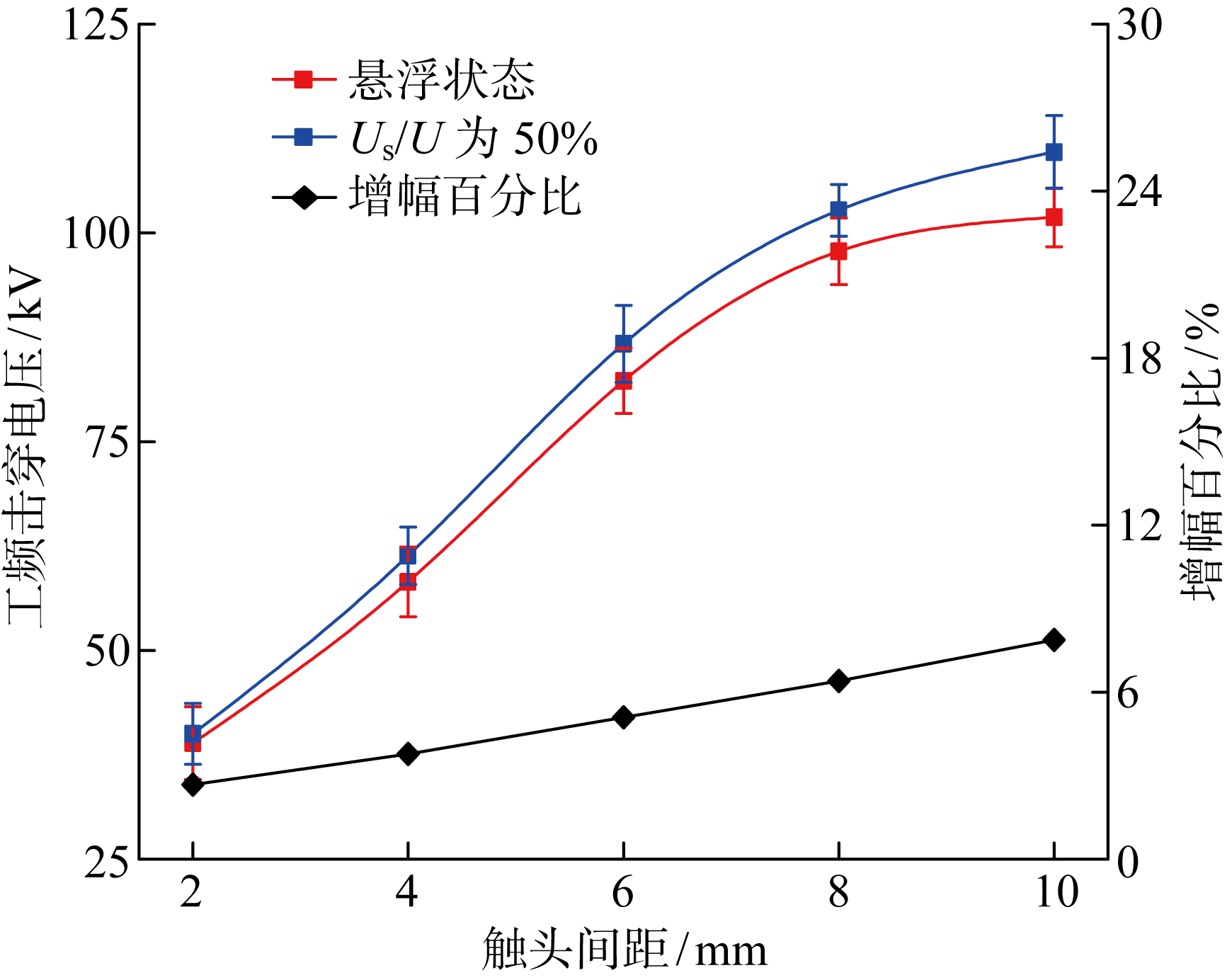

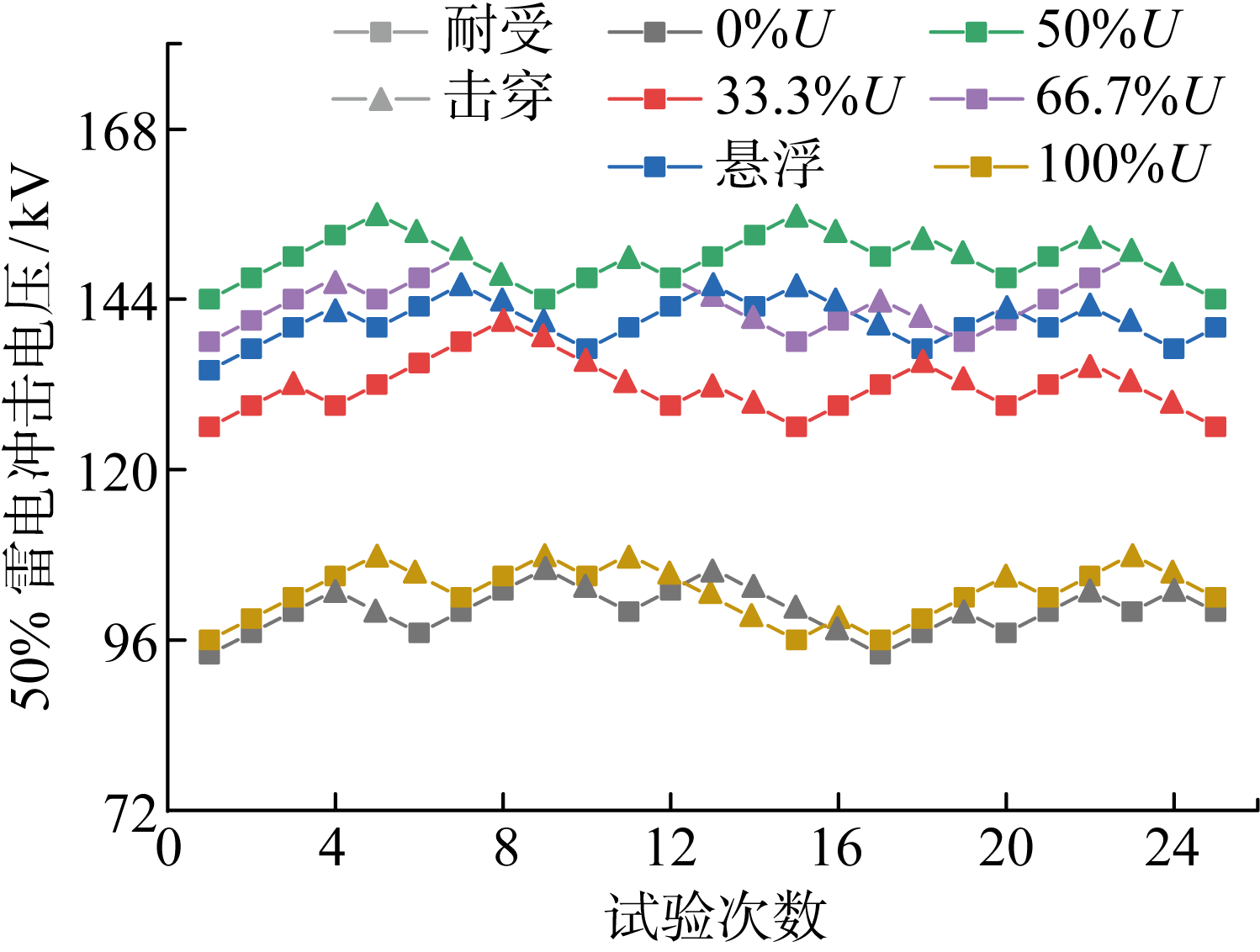

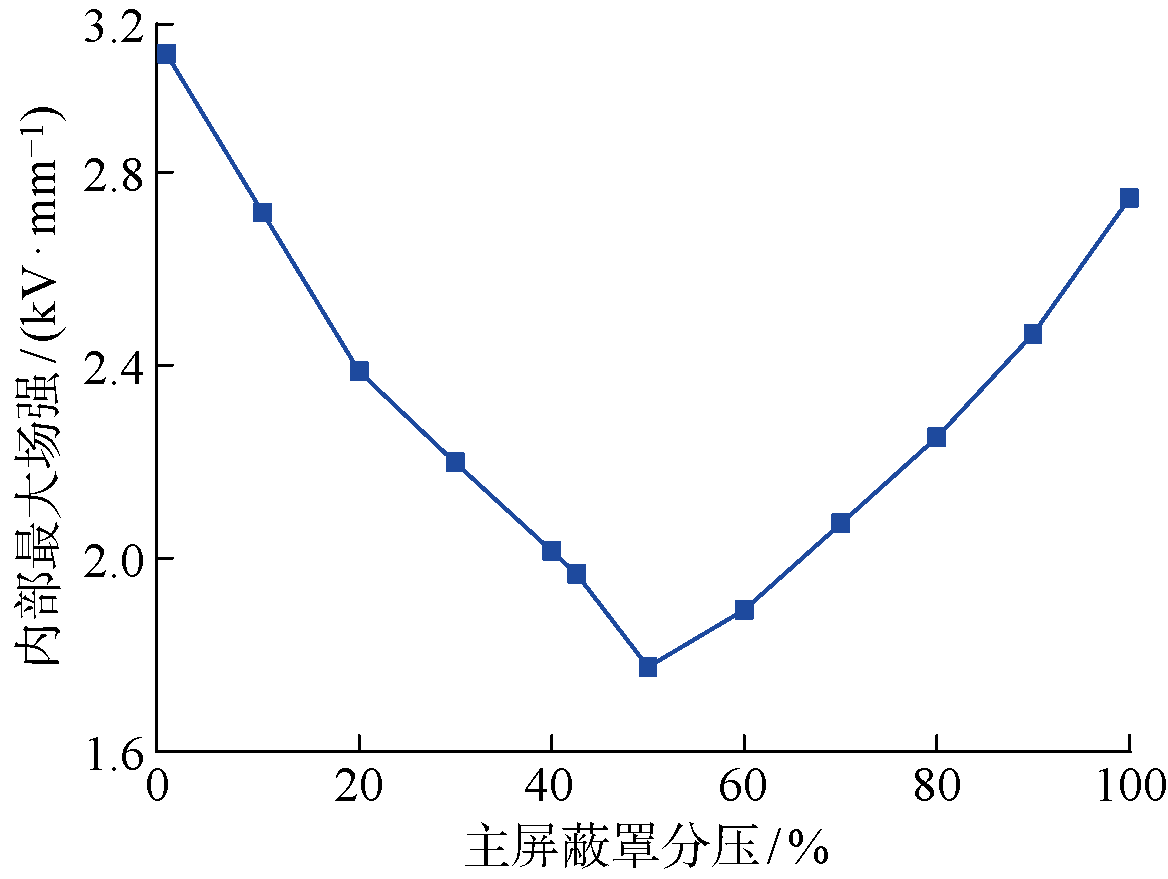

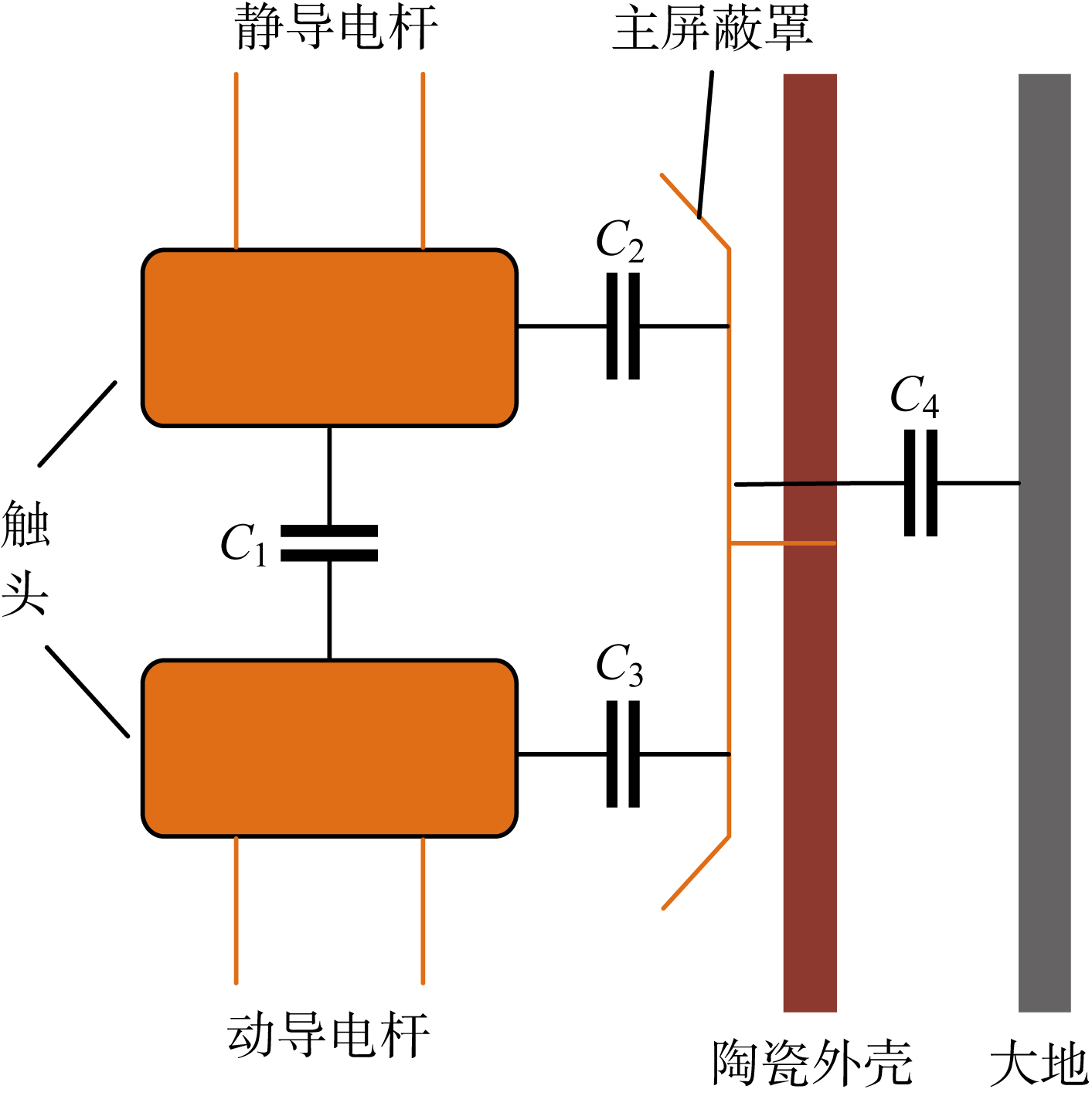

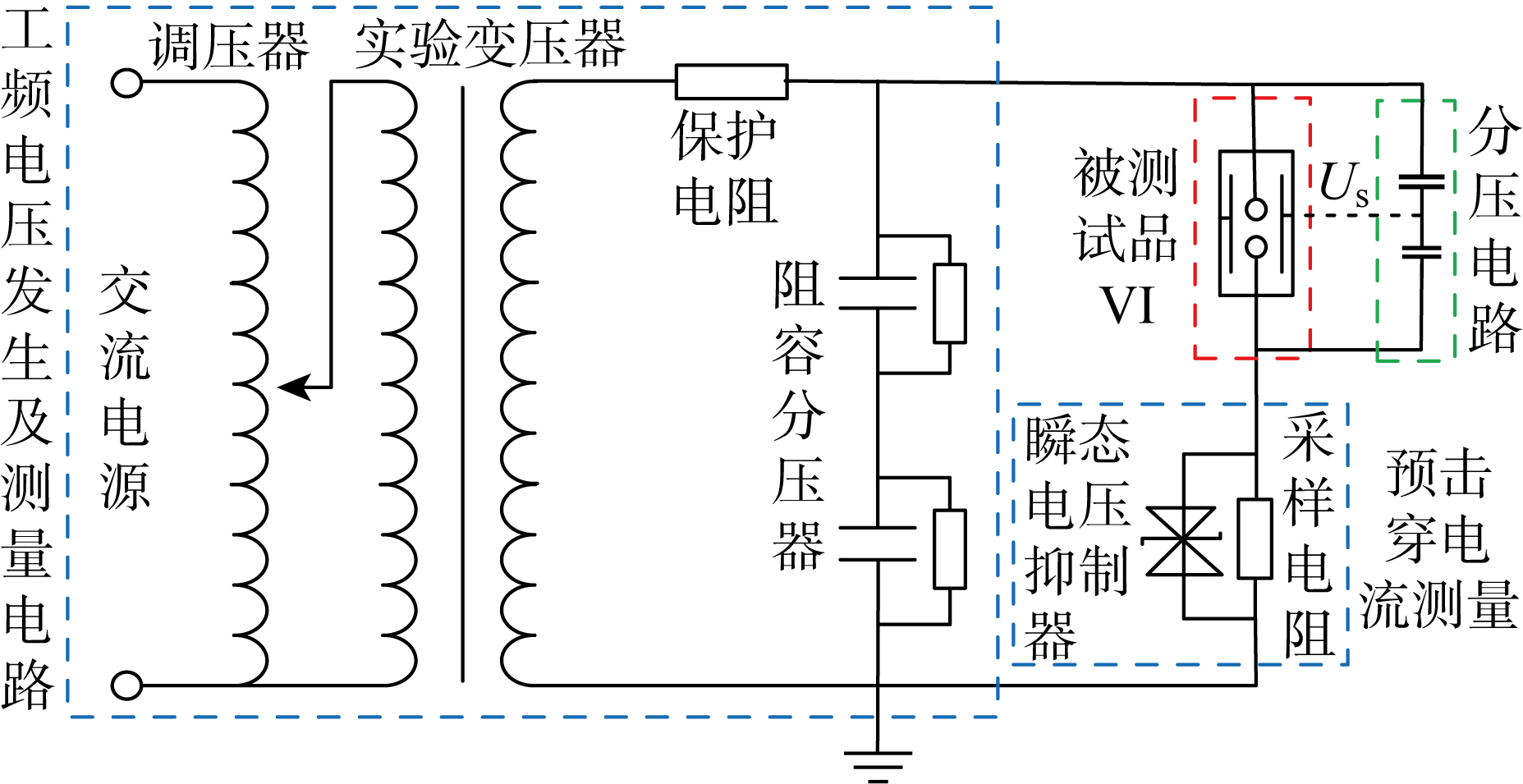

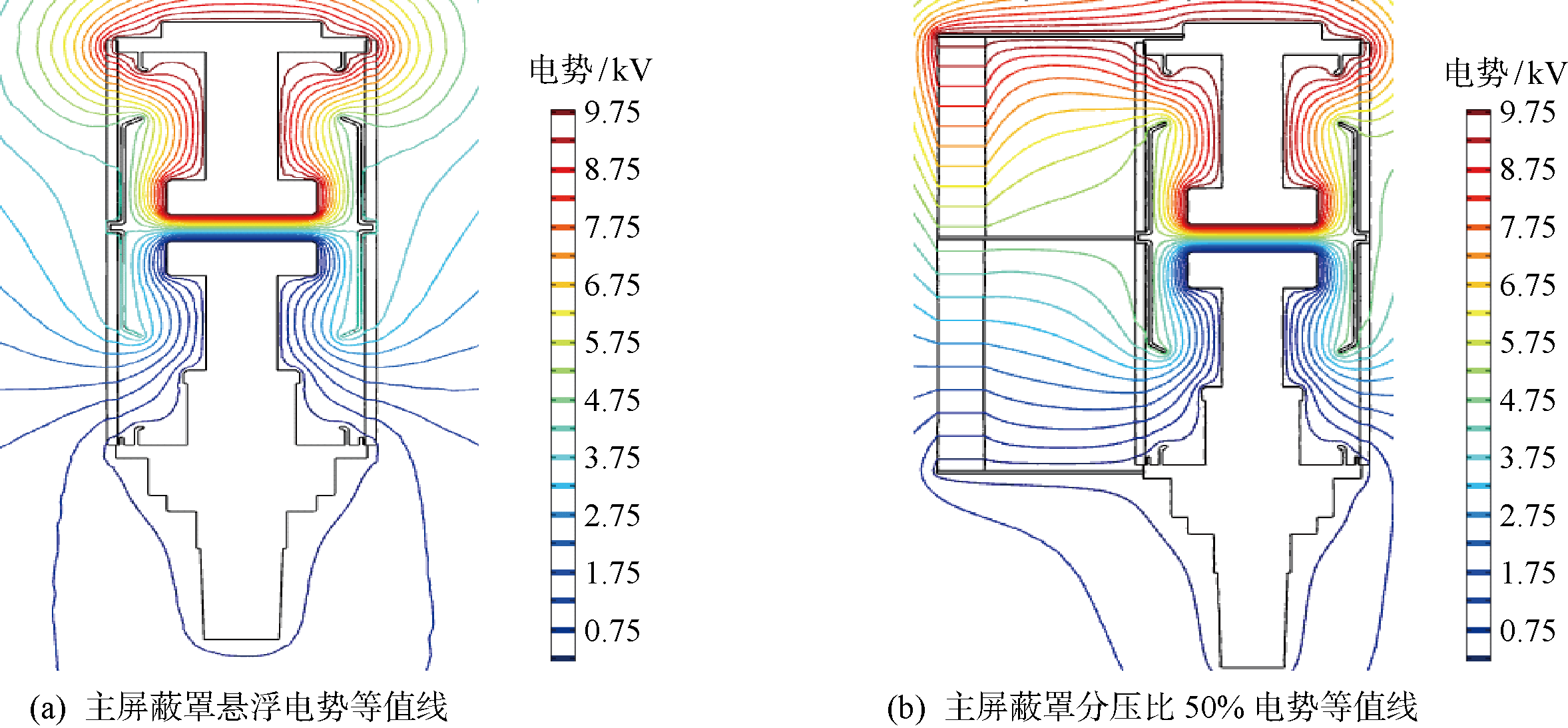

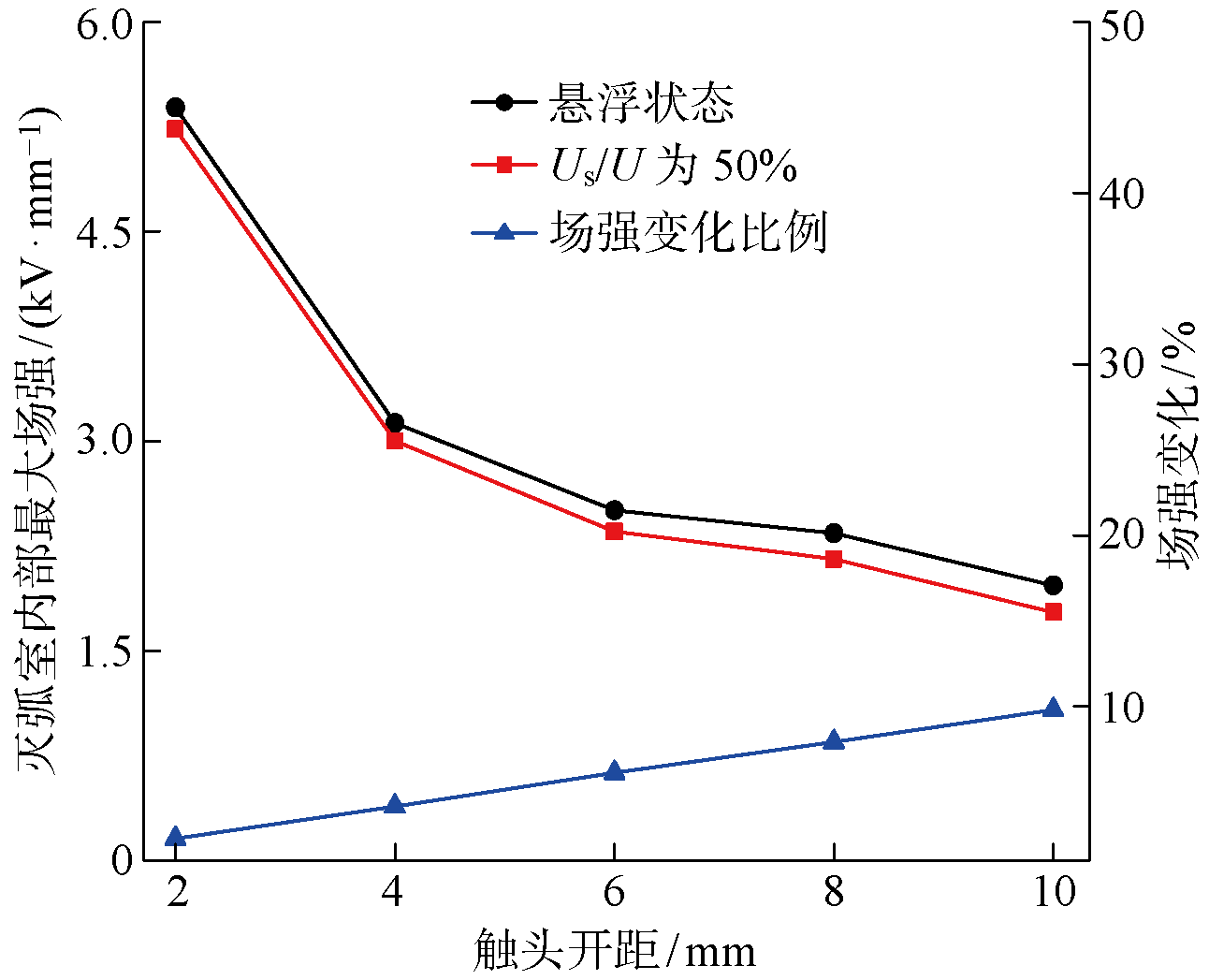

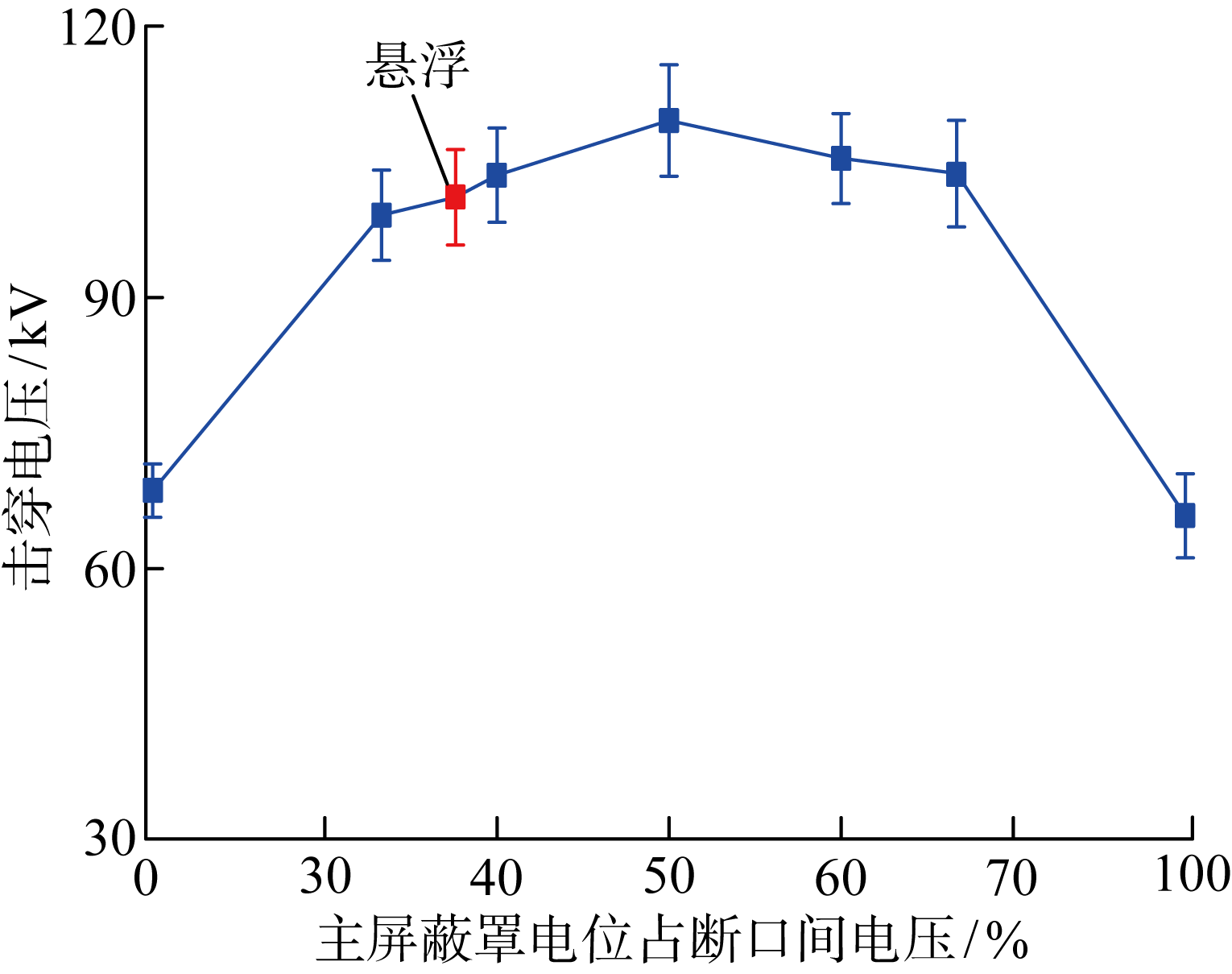

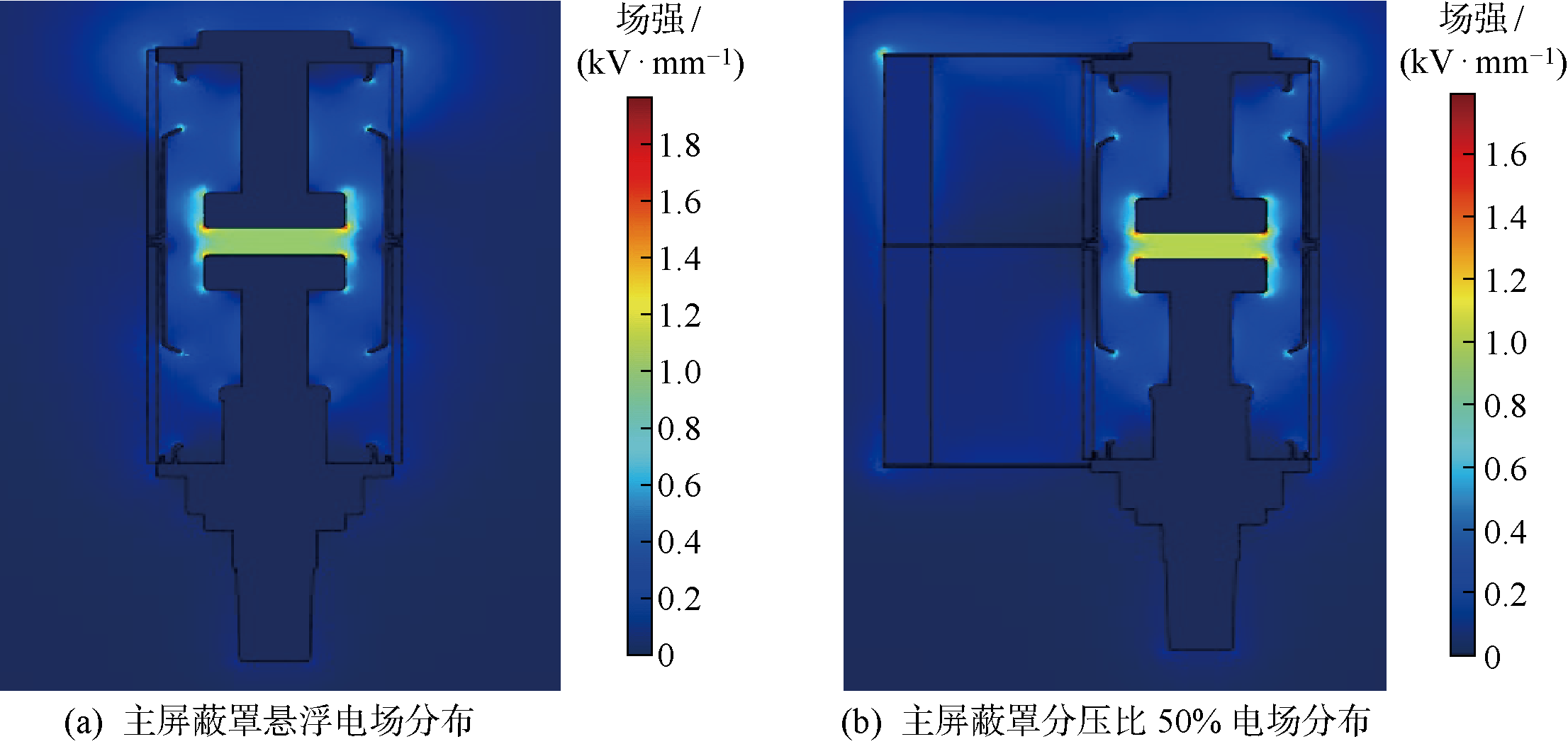

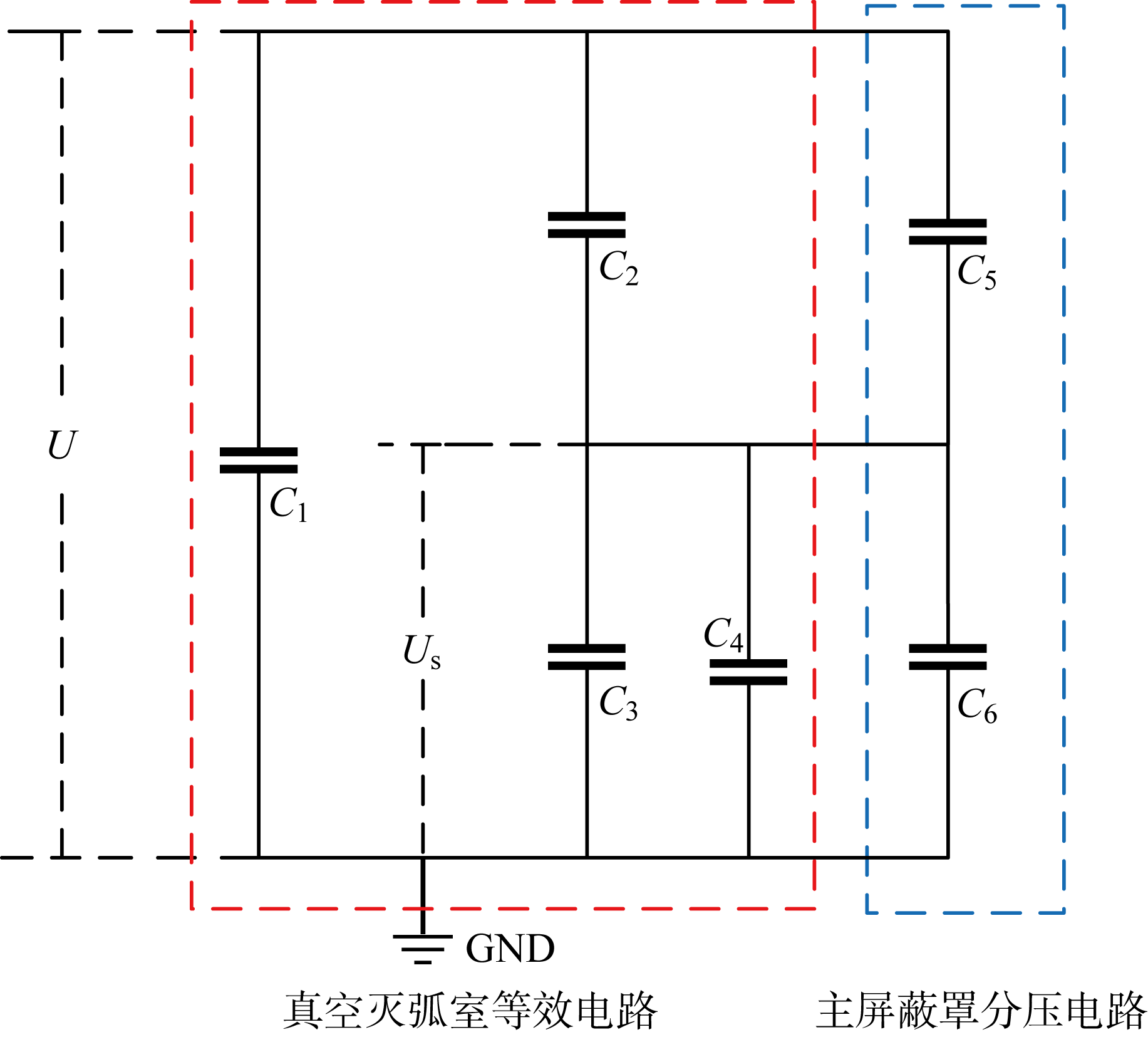

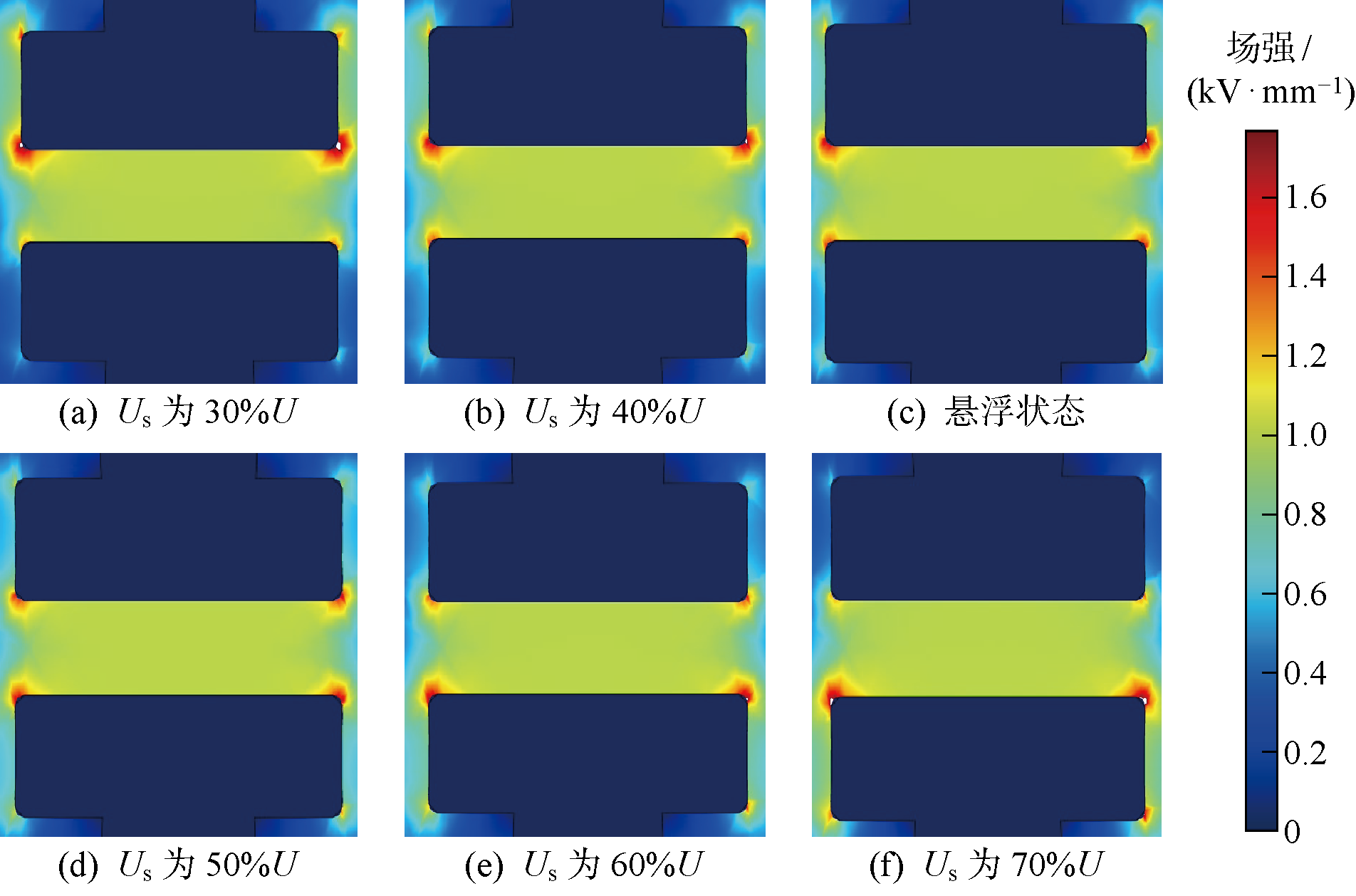

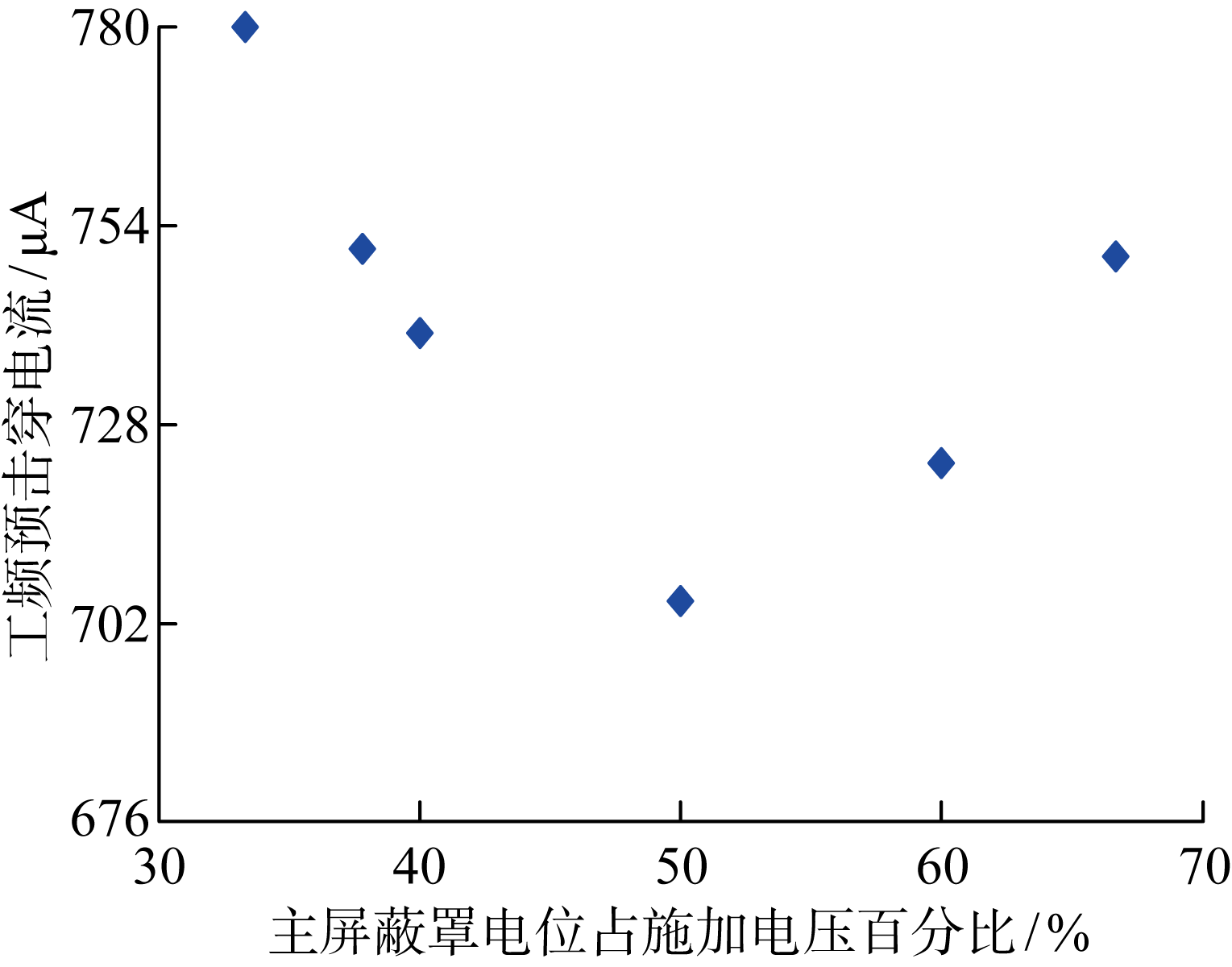

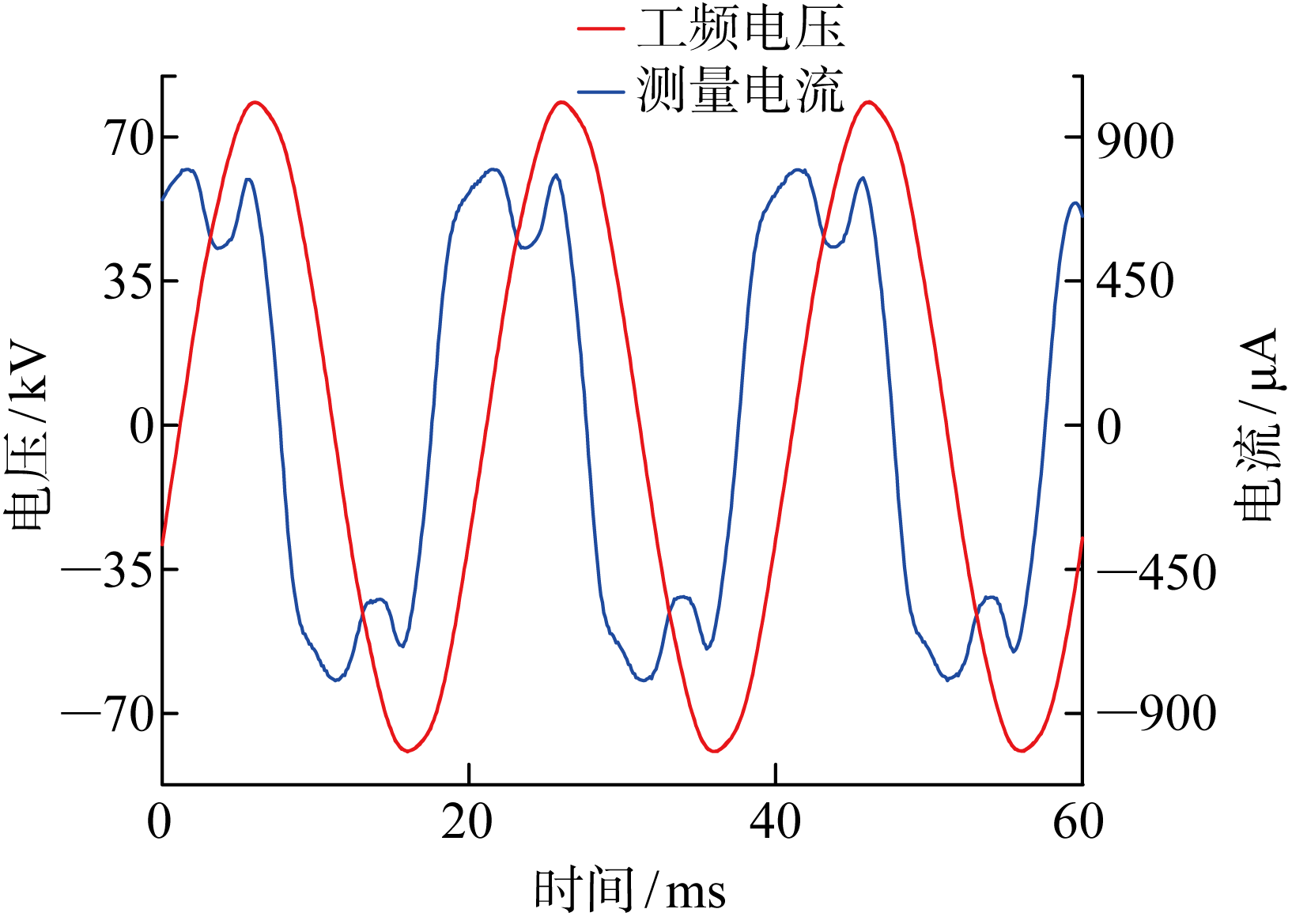

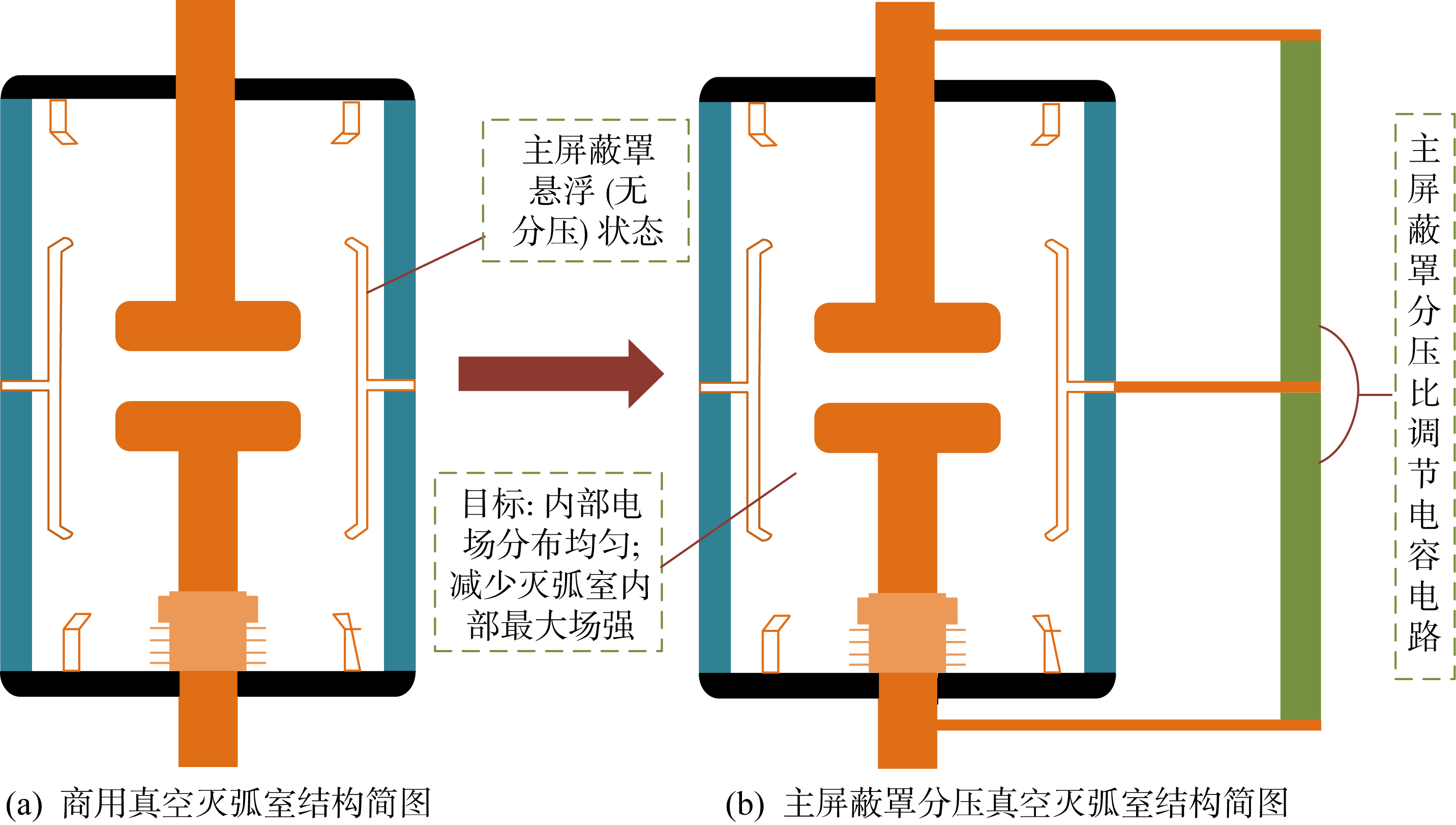

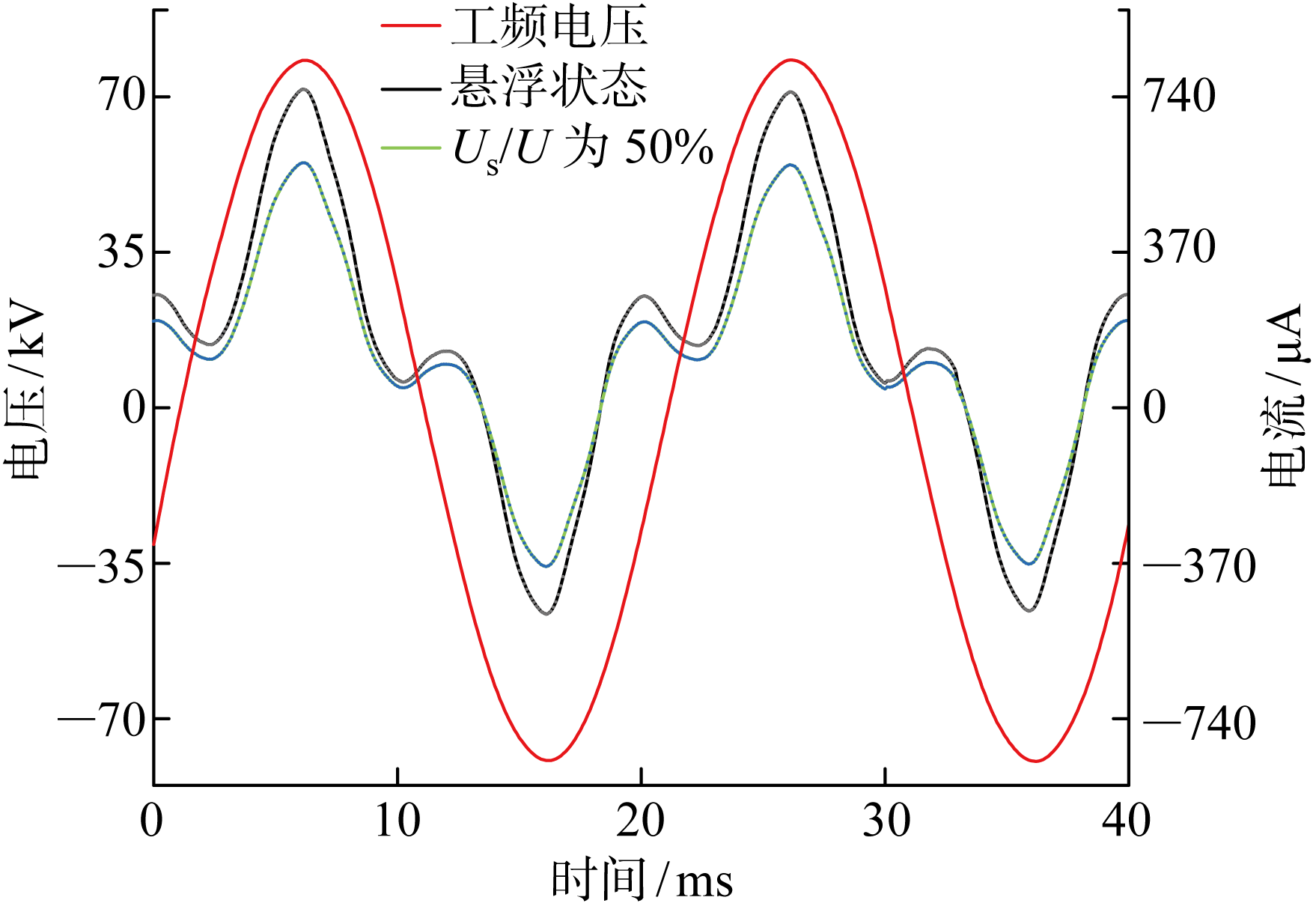

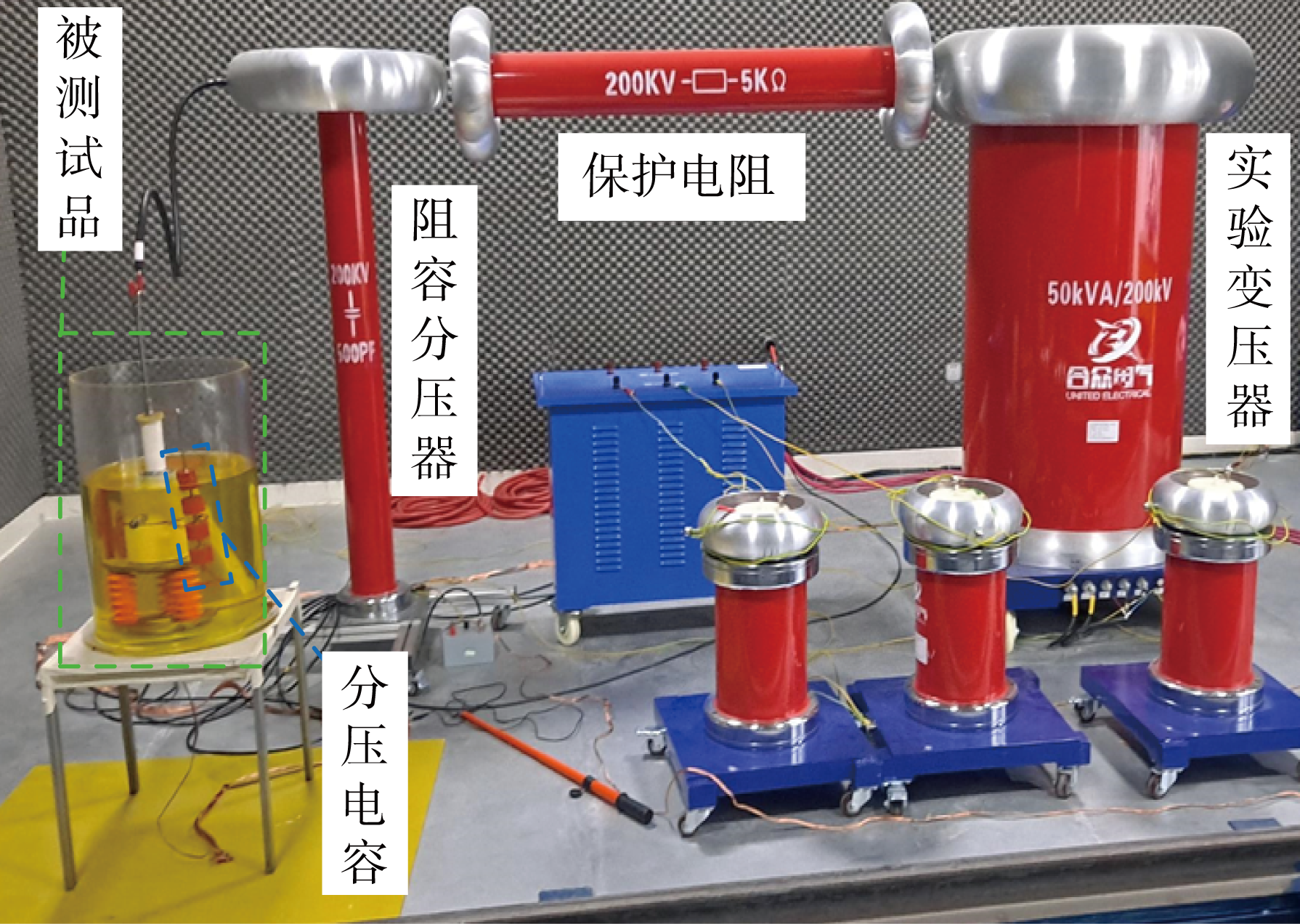

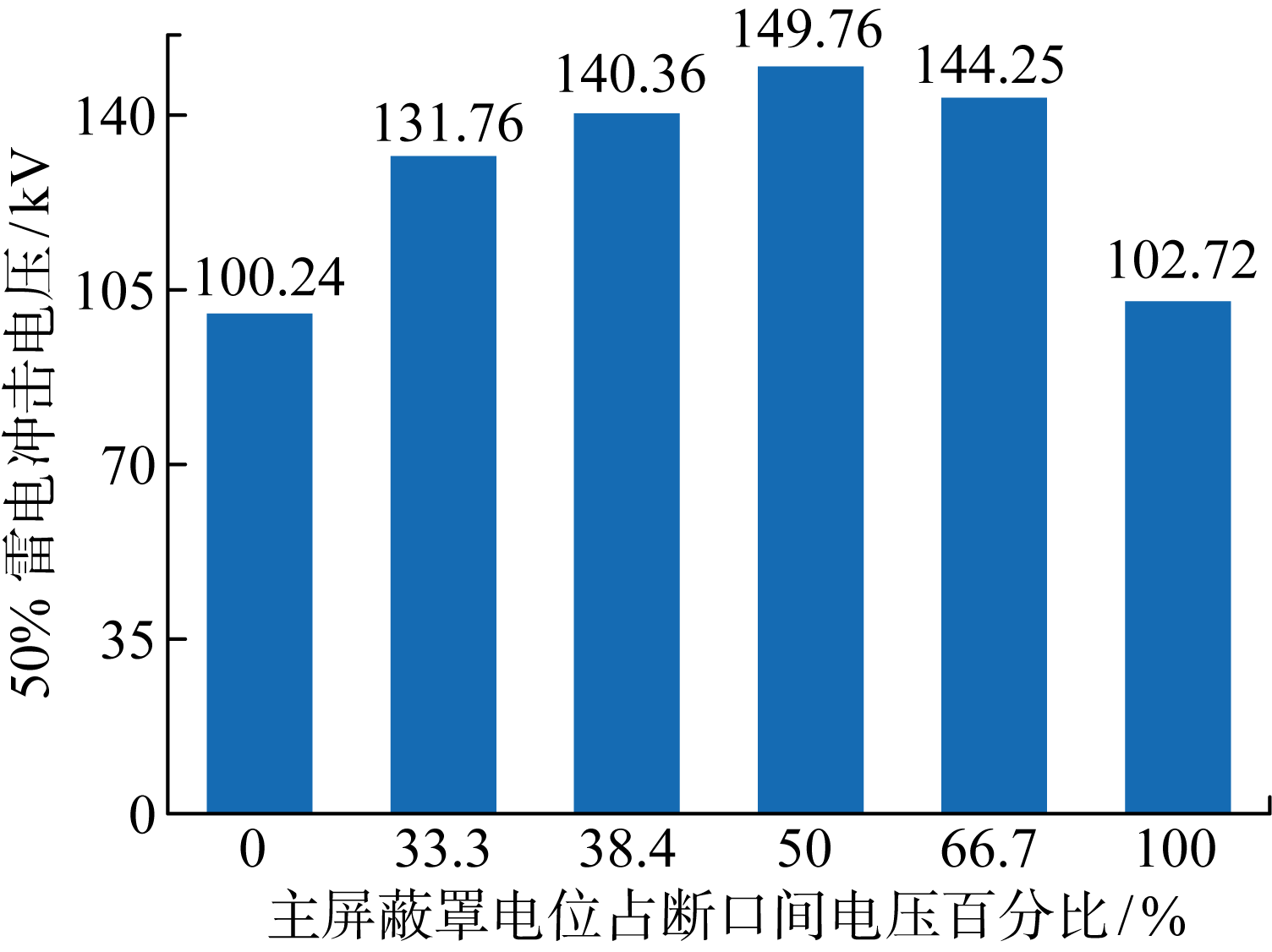

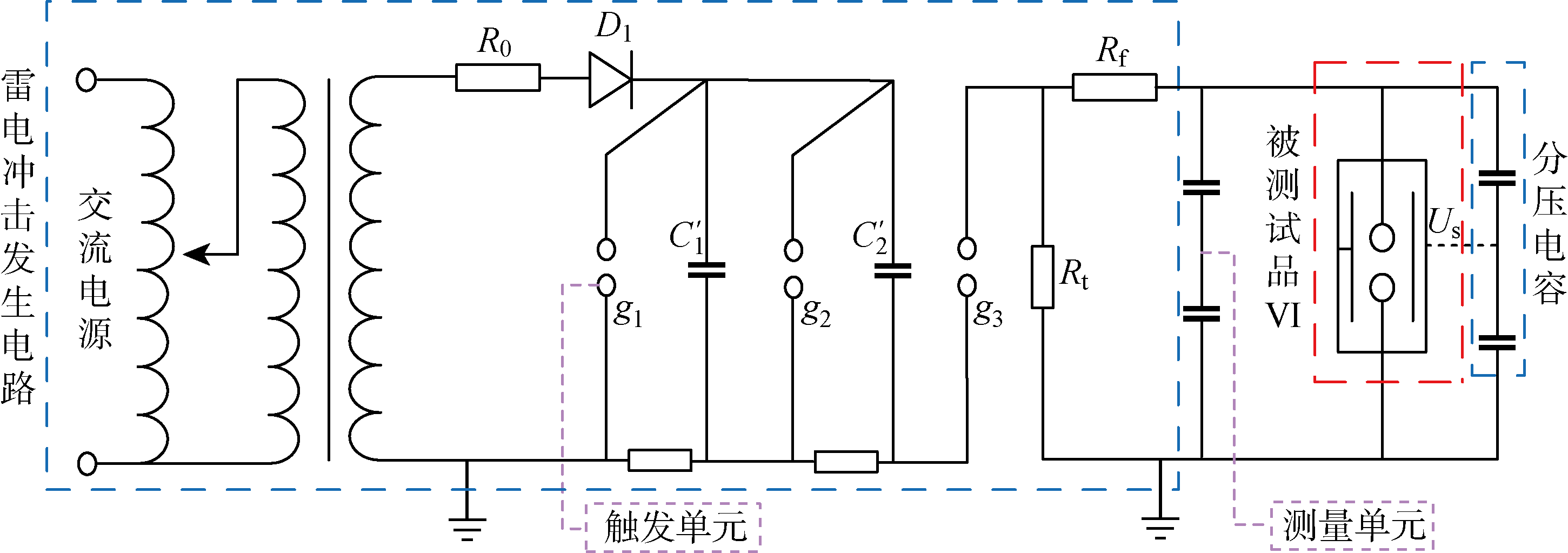

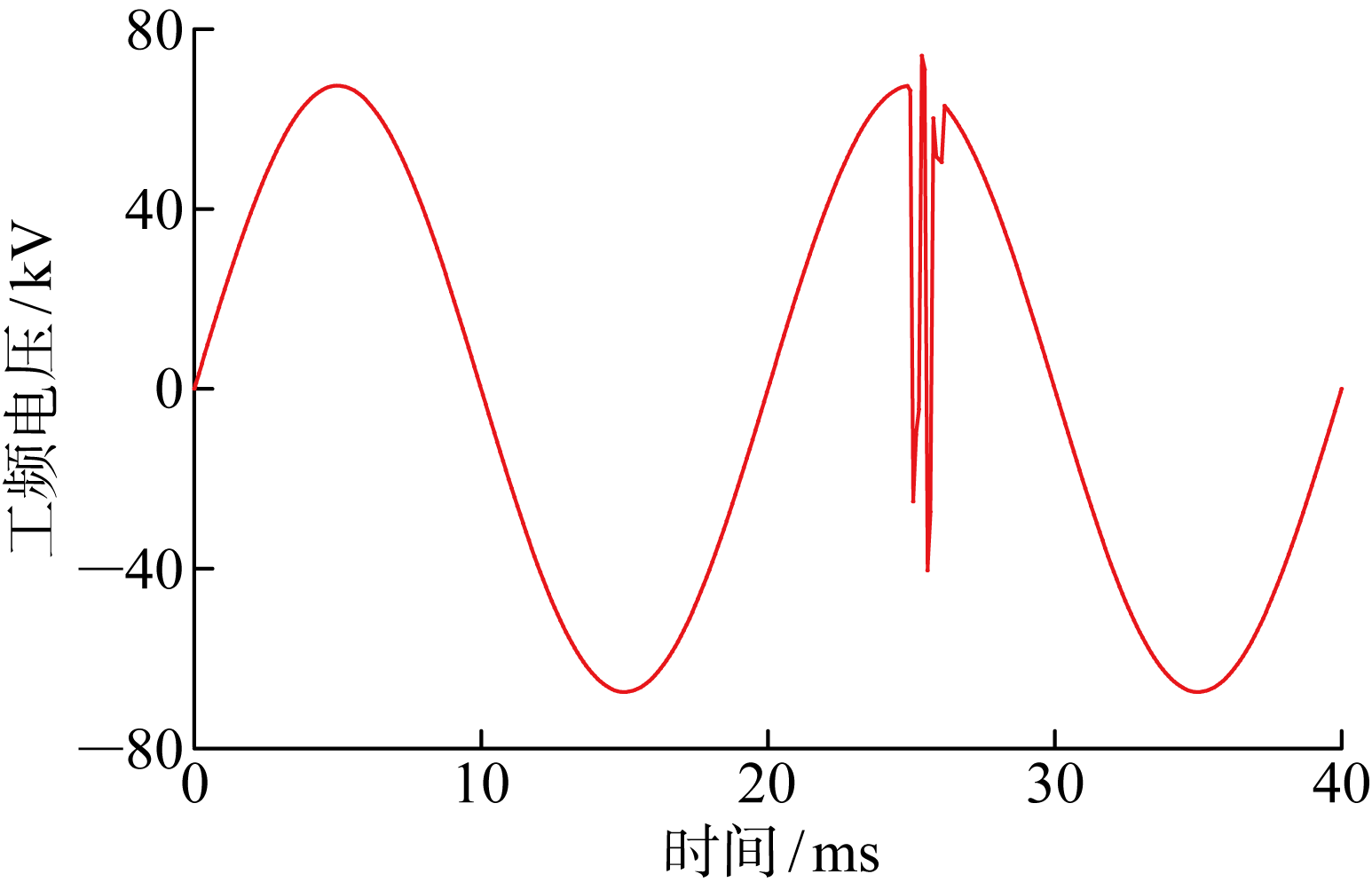

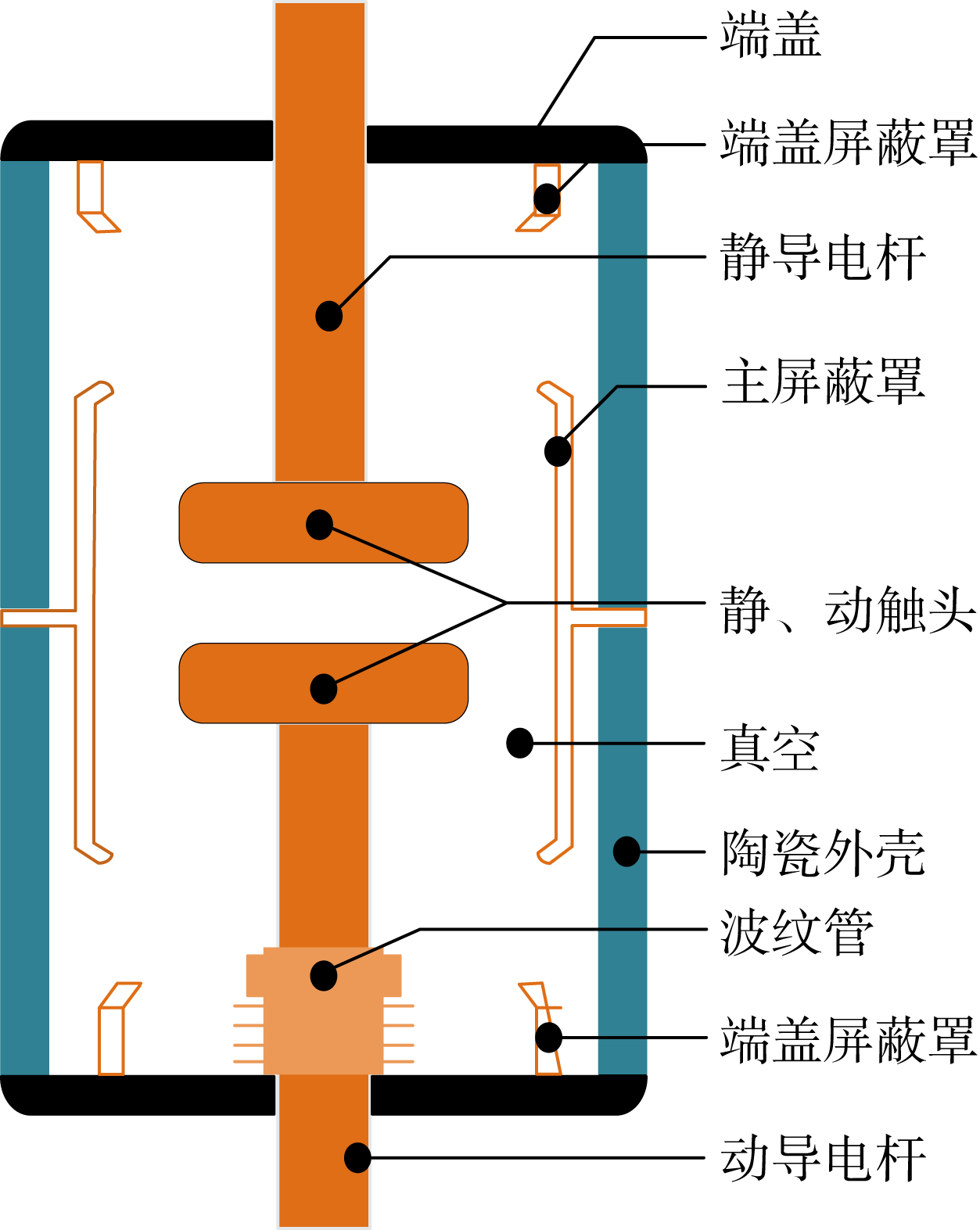

As an environmentally friendly switchgear technology, vacuum circuit breakers have a wide range of application prospects. However, both single and break vacuum circuit breakers face the issues of uneven potential distribution in the main shielding case of the vacuum arc extinguishing chamber, with more prominent potential imbalance in the tank structure. To study the effect of the potential distribution of the main shielding cover on the internal insulation performance of a vacuum interrupter, a partial voltage model of the main shielding case of a vacuum interrupter is established. The COMSOL software is used to calculate and analyze the effect of the main shielding case potential change on the internal electric field by placing an external capacitor around the vacuum interrupter to adjust the share of the main shielding case potential in the inter-fracture potential. Based on the simulation results, power frequency and lightning impulse withstand voltage experiments are conducted on a 10 kV vacuum arc extinguishing chamber at different main shielding case voltages. The results show that the internal electric field strength decreases and then increases as the main shielding case potential rises, with the minimum peak field strength inside the vacuum interrupter occurring at 50% main shielding voltage. The simulation and experimental results are basically consistent. At a contact distance of 6 mm, the power frequency breakdown voltage increases by 5.4% and the lightning impulse voltage increases by 6.7% when the potential of the main shielding case is 50% of the inter fracture potential. This study provides reference for improving the internal insulation performance of vacuum arc extinguishing chambers and for the application of higher voltage level vacuum circuit breakers.

Key words: vacuum interrupter, main shield potential, electric field simulation, insulation performance

CLC Number:

TM561

CHENG Xian, LI Guanjun, GE Guowei, DU Shuai, ZHANG Wanlong. Effect of Potential Distribution of Main Shield on Internal Insulation Performance of Vacuum Interrupter[J]. Journal of Shanghai Jiao Tong University, 2025, 59(10): 1546-1557.

Figures/Tables 21

Fig.1

Fig.2

Tab.1

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Fig.17

Fig.18

Fig.19

Fig.20

References 25

[1]	王建华, 张国钢, 闫静, 等. 高压开关电器发展前沿技术[M]. 北京: 机械工业出版社, 2020.
	WANG Jianhua, ZHANG Guogang, YAN Jing, et al. Frontier technology of high voltage switchgear development[M]. Beijing: China Machine Press, 2020.
[2]	钟建英, 陈刚, 谭盛武, 等. 高压开关设备关键技术及发展趋势[J]. 高电压技术, 2021, 47(8): 2769-2782.
	ZHONG Jianying, CHEN Gang, TAN Shengwu, et al. Key technology and development trend of high-voltage switchgear[J]. High Voltage Engineering, 2021, 47(8): 2769-2782.
[3]	李德军, 沈威, KUSCHEL M, 等. 一种采用洁净空气绝缘和真空灭弧技术的环境友好型GIS的研究和应用[J]. 高压电器, 2019, 55(2): 21-30.
	LI Dejun, SHEN Wei, KUSCHEL M, et al. Development and application of environment-friendly GIS combined clean air and vacuum interruption technology[J]. High Voltage Apparatus, 2019, 55(2): 21-30.
[4]	王建华, 耿英三, 刘志远. 输电等级单断口真空断路器理论及其技术[M]. 北京: 机械工业出版社, 2017.
	WANG Jianhua, GENG Yingsan, LIU Zhiyuan. The theory and technology on electrical transmission voltage level single break vacuum interrupter[M]. Beijing: China Machine Press, 2017.
[5]	KÜHN B, GENTSCH D, WEBER B, et al. Recent developments of field grading for high voltage vacuum circuit breakers[C]// The 21 st International Symposium on High Voltage Engineering. Cham, Switzerland: Springer International Publishing, 2019: 1265-1275.
[6]	KATO K, KANEKO S, OKABE S, et al. Optimization technique for electrical insulation design of vacuum interrupters[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2008, 15(5): 1456-1463.
[7]	王文成, 张朋, 李秀峰, 等. 12 kV真空断路器灭弧室结构对电场分布影响的仿真研究[J]. 真空科学与技术学报, 2021, 41(11): 1031-1038.
	WANG Wencheng, ZHANG Peng, LI Xiufeng, et al. The influence of 12 kV vacuum interrupter structure on electric field distribution: A simulation study[J]. Chinese Journal of Vacuum Science & Technology, 2021, 41(11): 1031-1038.
[8]	邱志斌, 黄道春, 阮江军. 72.5 kV真空灭弧室电位和电场分布研究[J]. 高压电器, 2012, 48(11): 36-42.
	QIU Zhibin, HUANG Daochun, RUAN Jiangjun. Potential and electric field distributions of 72.5 kV vacuum interrupter[J]. High Voltage Apparatus, 2012, 48(11): 36-42.
[9]	齐大翠, 薛从军, 李小钊, 等. 72.5 kV真空灭弧室绝缘水平提升技术研究[J]. 广东电力, 2021, 34(10): 89-94.
	QI Dacui, XUE Congjun, LI Xiaozhao, et al. Research on insulation level improvement technology for 72.5 kV vacuum arc extinguishing chamber[J]. Guangdong Electric Power, 2021, 34(10): 89-94.
[10]	程显, 杜帅, 葛国伟, 等. 环保型罐式多断口真空断路器均压配置研究[J]. 电工技术学报, 2021, 36(15): 3154-3162.
	CHENG Xian, DU Shuai, GE Guowei, et al. Study on voltage-sharing configuration of environment-friendly tank type multi-break vacuum circuit breakers[J]. Transactions of China Electrotechnical Society, 2021, 36(15): 3154-3162.
[11]	NAKANO Y, SURGES B, HINRICHSEN V. Increasing the internal field strength of vacuum interrupters with vapor shield potential control[J]. IEEE Transactions on Power Delivery, 2018, 33(6): 3155-3161.
[12]	程显, 田小倩, 葛国伟, 等. 环保型罐式多断口真空断路器电场分析与优化[J]. 高电压技术, 2021, 47(9): 3200-3207.
	CHENG Xian, TIAN Xiaoqian, GE Guowei, et al. Electric field analysis and optimization of 126 kV environmental protection gas insulated tank circuit breakers[J]. High Voltage Engineering, 2021, 47(9): 3200-3207.
[13]	何俊佳, 邹积岩, 张汉明, 等. 真空灭弧室耐压水平的改进和提高[J]. 高电压技术, 1996, 22(2): 50-53.
	HE Junjia, ZOU Jiyan, ZHANG Hanming, et al. Improvement of voltage withstand level of vacuum interrupters[J]. High Voltage Engineering, 1996, 22(2): 50-53.
[14]	阮江军, 舒胜文, 黄道春, 等. 串联真空灭弧室工频预击穿电流的自均压作用[J]. 高电压技术, 2010, 36(6): 1353-1358.
	RUAN Jiangjun, SHU Shengwen, HUANG Daochun, et al. Self-voltage sharing effects of power frequency prebreakdown current flowing through vacuum interrupters in series[J]. High Voltage Engineering, 2010, 36(6): 1353-1358.
[15]	廖敏夫, 段雄英, 邹积岩. 单断口和三断口串联真空灭弧室绝缘击穿统计特性[J]. 中国电机工程学报, 2007, 27(12): 97-102.
	LIAO Minfu, DUAN Xiongying, ZOU Jiyan. Dielectric strength and statistical property of single and triple breaks vacuum interrupters in series[J]. Proceedings of the CSEE, 2007, 27(12): 97-102.
[16]	谢春峰. 铜触头短间隙真空电击穿特性研究[D]. 哈尔滨: 哈尔滨工业大学, 2022.
	XIE Chunfeng. Study on the characteristics of copper contacts short gap vacuum electrical breakdown[D]. Harbin: Harbin Institute of Technology, 2022.
[17]	ZIOMEK W, MOSCICKA-GRZESIAK H. Relation of breakdown voltage and prebreakdown microdischarge parameters in vacuum[J]. IEEE Transactions on Electrical Insulation, 1993, 28(4): 481-487.
[18]	YU Y X, WANG J H, YANG H, et al. Asymmetrical AC field emission current characteristics of vacuum interrupters subjected to inrush current[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2016, 23(1): 49-57.
[19]	LI S M, GENG Y S, LIU Z Y, et al. A breakdown mechanism transition with increasing vacuum gaps[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2017, 24(6): 3340-3346.
[20]	王卫斌, 杨兰均, 冯允平. 真空灭弧室工频预击穿电流的测量[J]. 高压电器, 1999, 35(5): 8-11.
	WANG Weibin, YANG Lanjun, FENG Yunping. The measurement of power-frequency breakdown current for vacuum interrupter[J]. High Voltage Apparatus, 1999, 35(5): 8-11.
[21]	王卫斌, 杨兰均, 冯允平. 真空灭弧室工频预击穿特性研究[J]. 高电压技术, 2000, 26(2): 51-53.
	WANG Weibin, YANG Lanjun, FENG Yunping. Study on the prebreakdown characteristics of vacuum interrupters under ac voltage[J]. High Voltage Engineering, 2000, 26(2): 51-53.
[22]	丁培, 丁健刚, 姚晓飞, 等. 雷电冲击电压下串联空气球隙击穿特性[J]. 高电压技术, 2021, 47(11): 4072-4077.
	DING Pei, DING Jiangang, YAO Xiaofei, et al. Breakdown characteristics of series connected ball air gaps under lightening impulse voltage[J]. High Voltage Engineering, 2021, 47(11): 4072-4077.
[23]	KONG F, KOJIMA H, HAYAKAWA N, et al. Discharge pattern discrimination in vacuum interrupter with non-contact measurement of shield potential[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2017, 24(5): 3265-3269.
[24]	KOJIMA H, DONEN T, KIMURA T, et al. Diagnosis of discharge pattern in vacuum interrupter by shield potential measurement[C]// 2020 8th International Conference on Condition Monitoring and Diagnosis. Phuket, Thailand: IEEE, 2020: 206-209.
[25]	KONG F, NAKANO Y, KOJIMA H, et al. Discharge characteristics for various discharge patterns under negative lightning impulse voltage in vacuum[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2016, 23(2): 813-818.

电极	1	2	3	4
1	0.4273	5.9527	1.4195	1.0710
2	5.9527	0.7127	5.8175	1.9235
3	1.4195	5.8175	0.6031	1.8482
4	1.0709	1.9234	1.8484	10.0531
