Fast Prediction for Roll Motion of a Damaged Ship Based on SVR

doi:10.16183/j.cnki.jsjtu.2023.431

Abstract

Abstract:

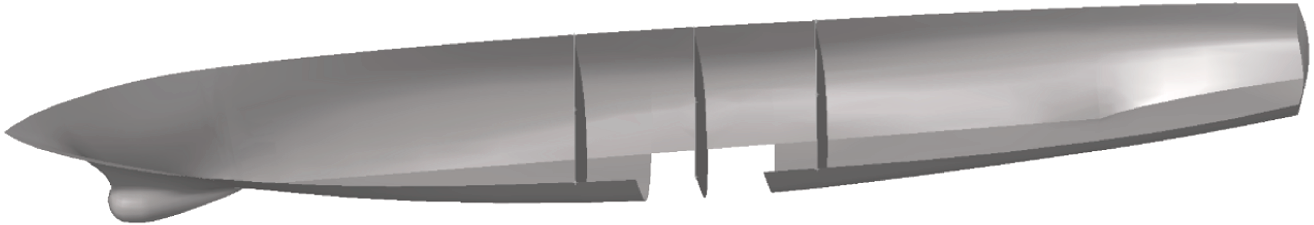

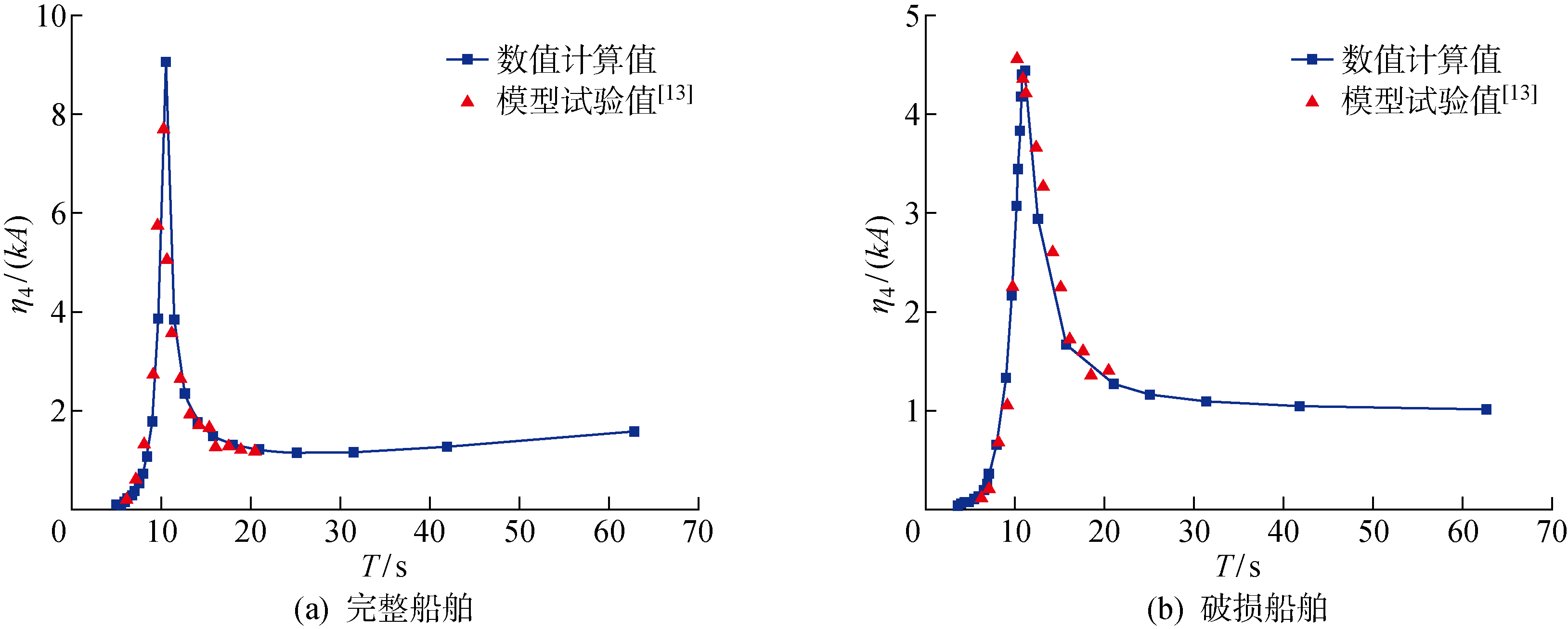

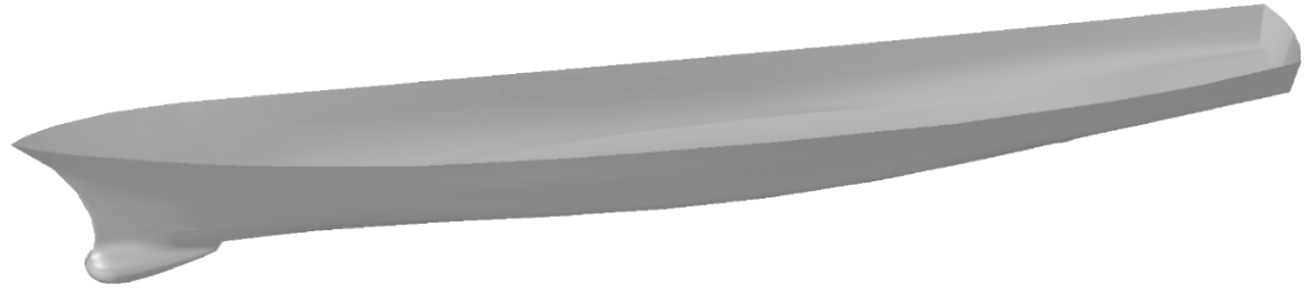

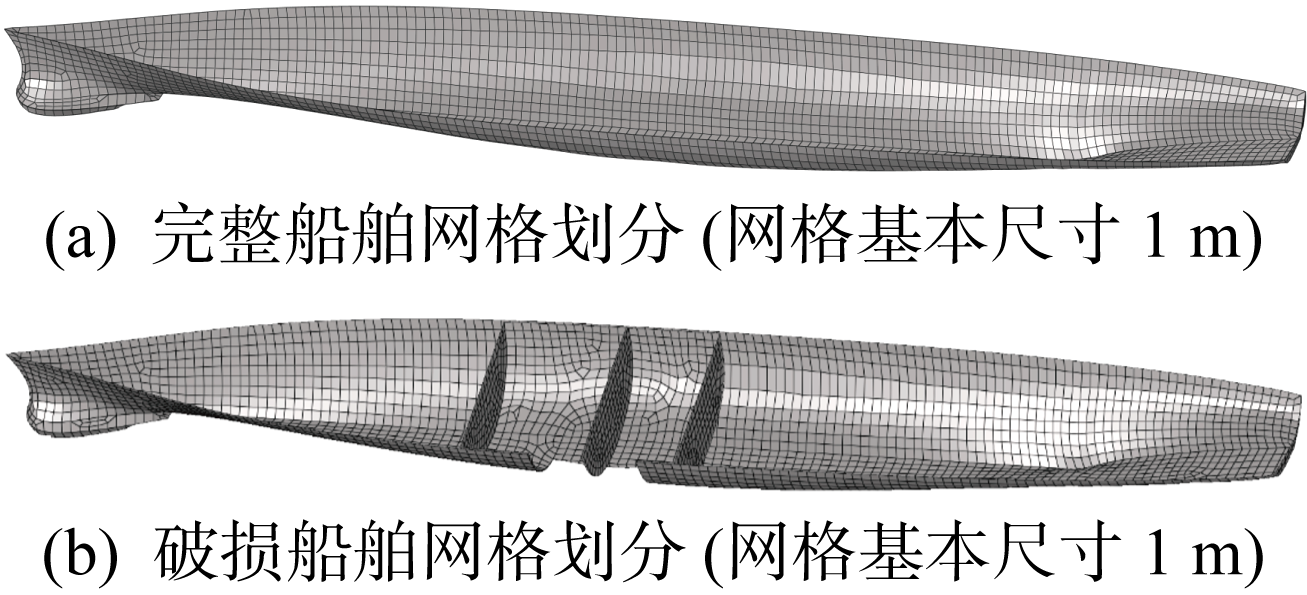

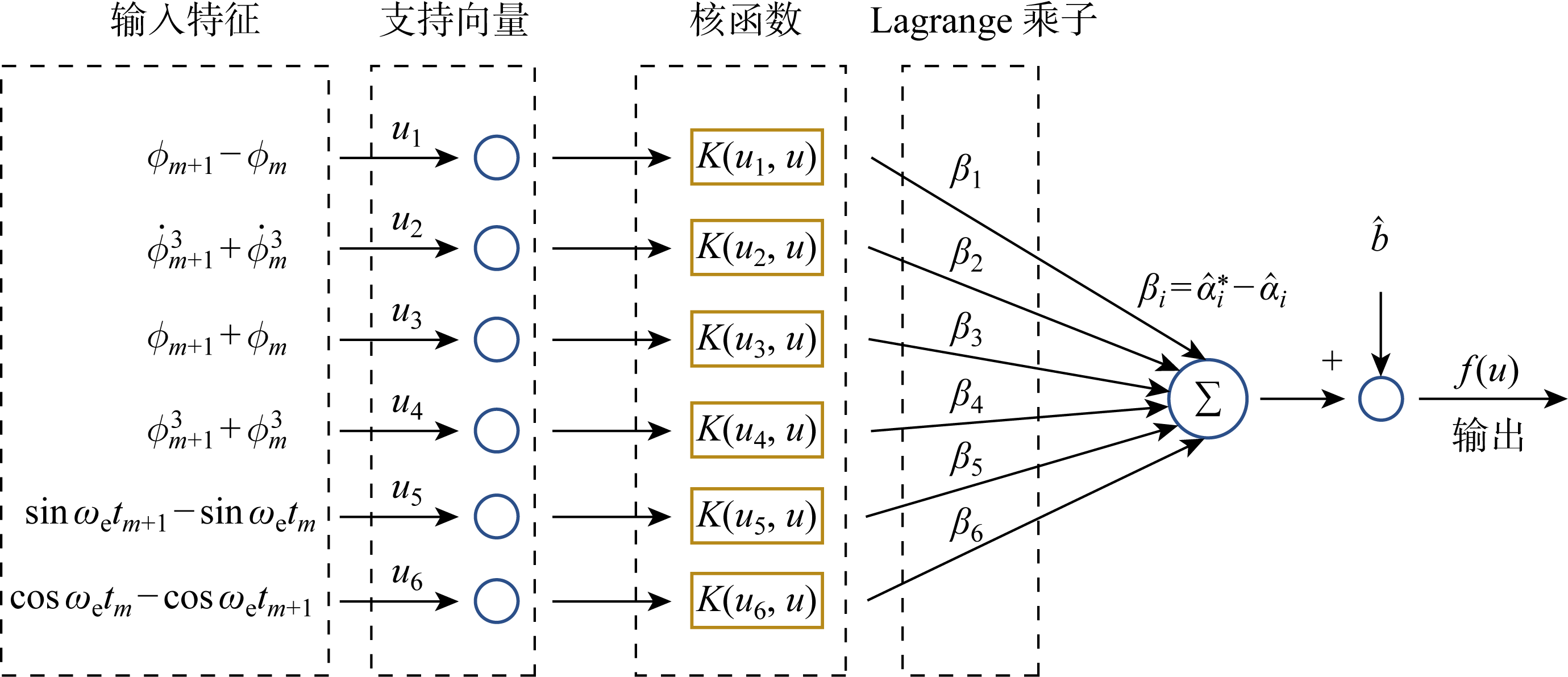

ANSYS-AQWA is applied to analyze the rolling motion response of the damaged ship DTMB5415 under various working conditions. The results are compared with those in exiting literature to validate the practicality of the hydrodynamic model. Additionly, the rolling motion response database for the damaged ship is constructed. The support vector regression (SVR) algorithm is used to model the rolling motion database for identification, exploring the relationship between the operating condition factors and coefficients in the equation of roll motion. Finally, a fast prediction model for rolling motion is constructed and validated, offering a significant improvement in the prediction efficiency compared with traditional computational fluid dynamics models.

Key words: fast prediction, support vector regression (SVR), damaged ship, rolling motion

CLC Number:

U661

LIU Han, SU Yan, ZHANG Guoqiang. Fast Prediction for Roll Motion of a Damaged Ship Based on SVR[J]. Journal of Shanghai Jiao Tong University, 2025, 59(7): 1041-1049.

Figures/Tables 14

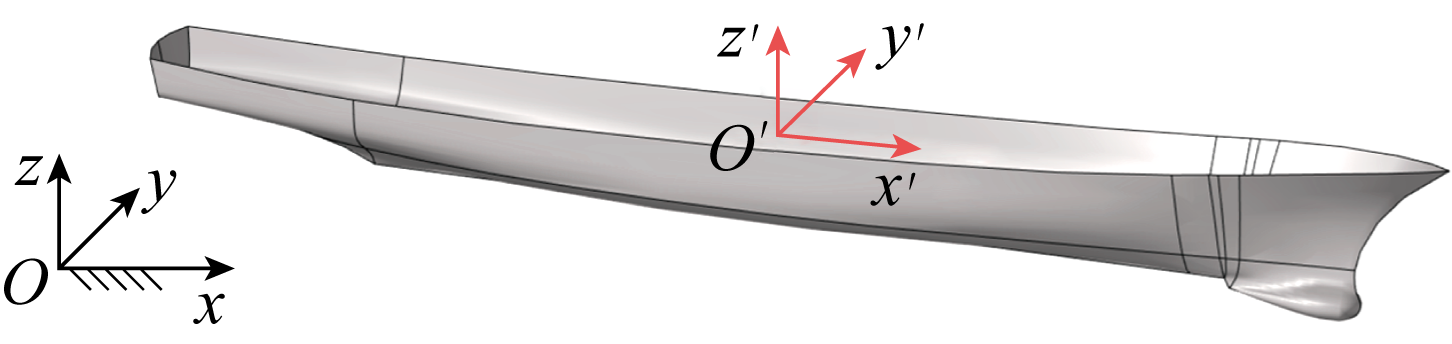

Fig.1

Tab.1

Fig.2

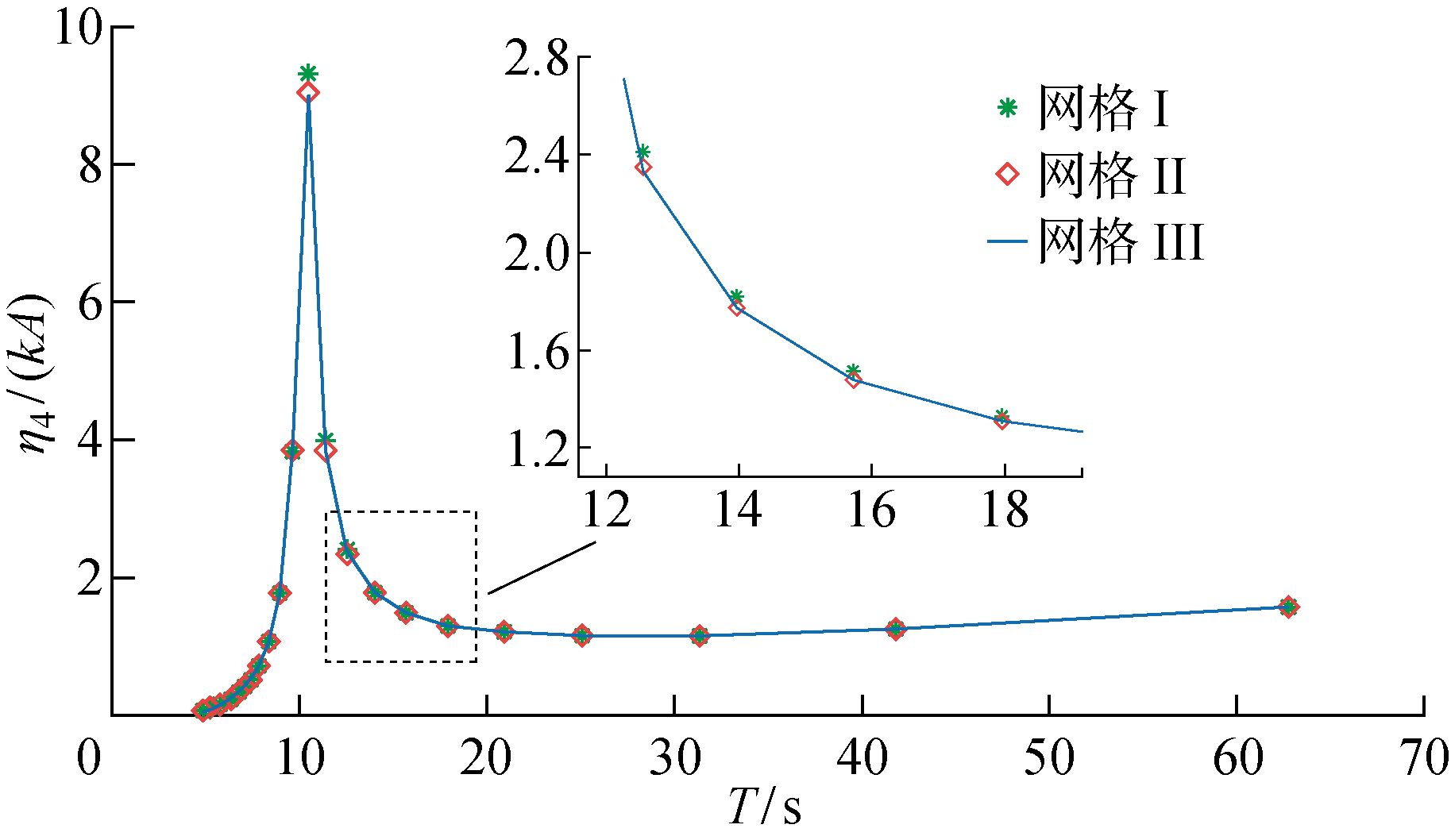

Fig.3

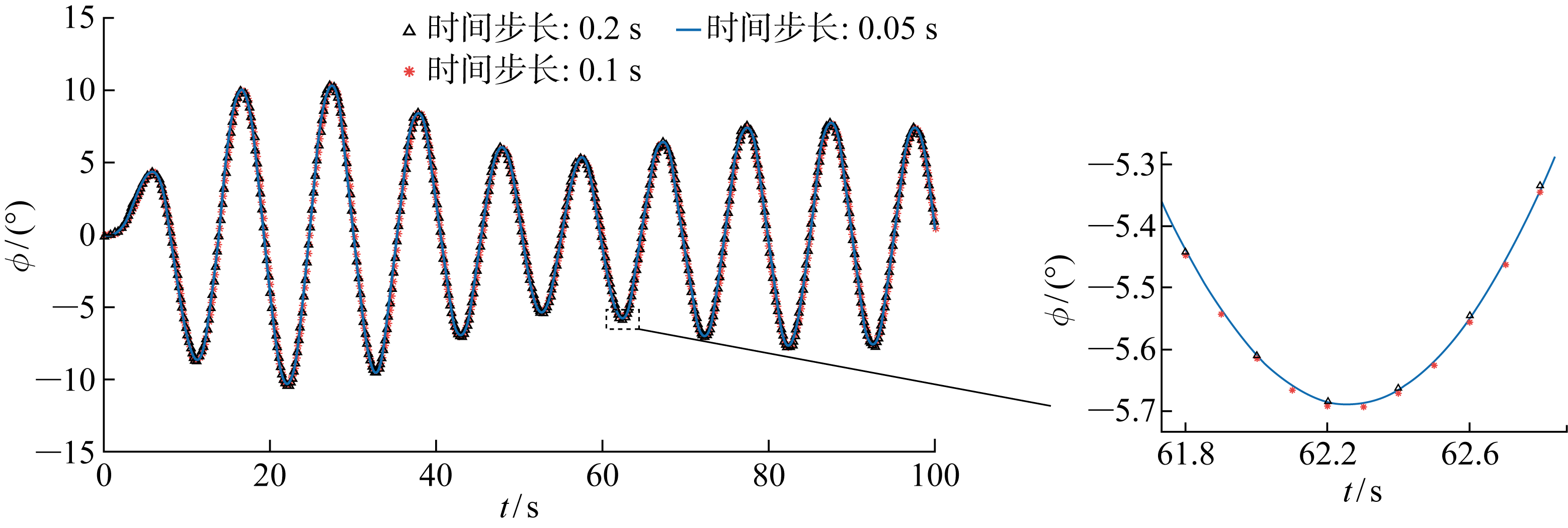

Fig.4

Fig.5

Fig.6

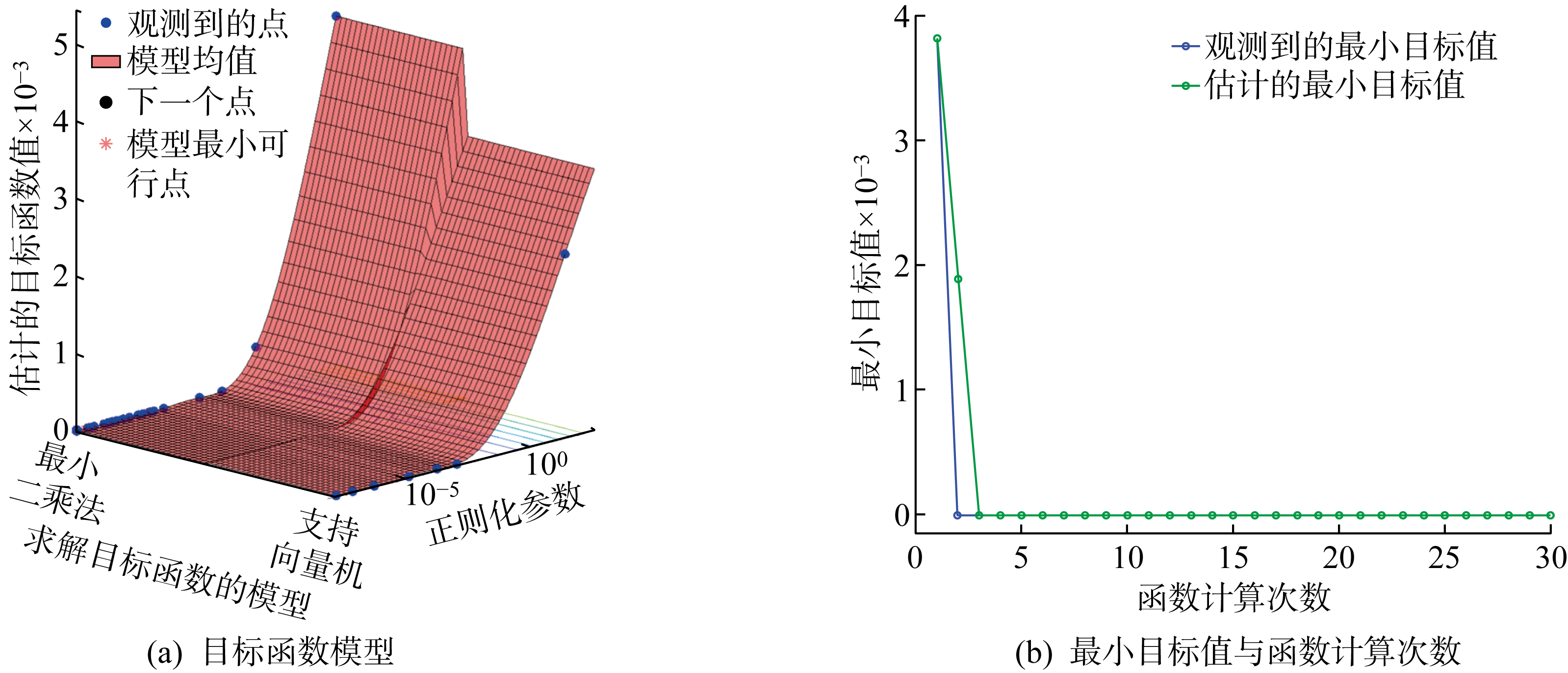

Fig.7

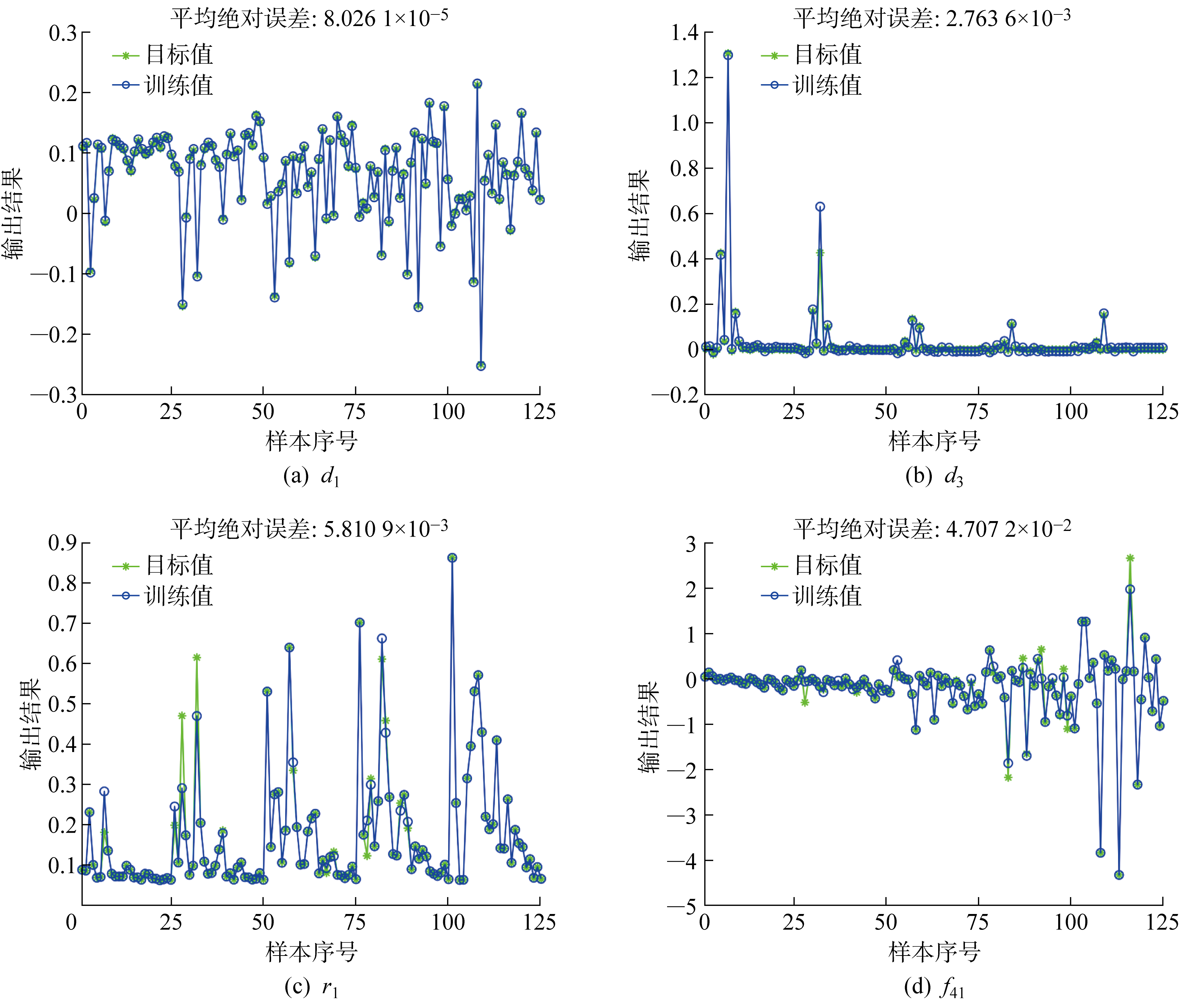

Fig.8

Fig.9

Tab.2

Tab.3

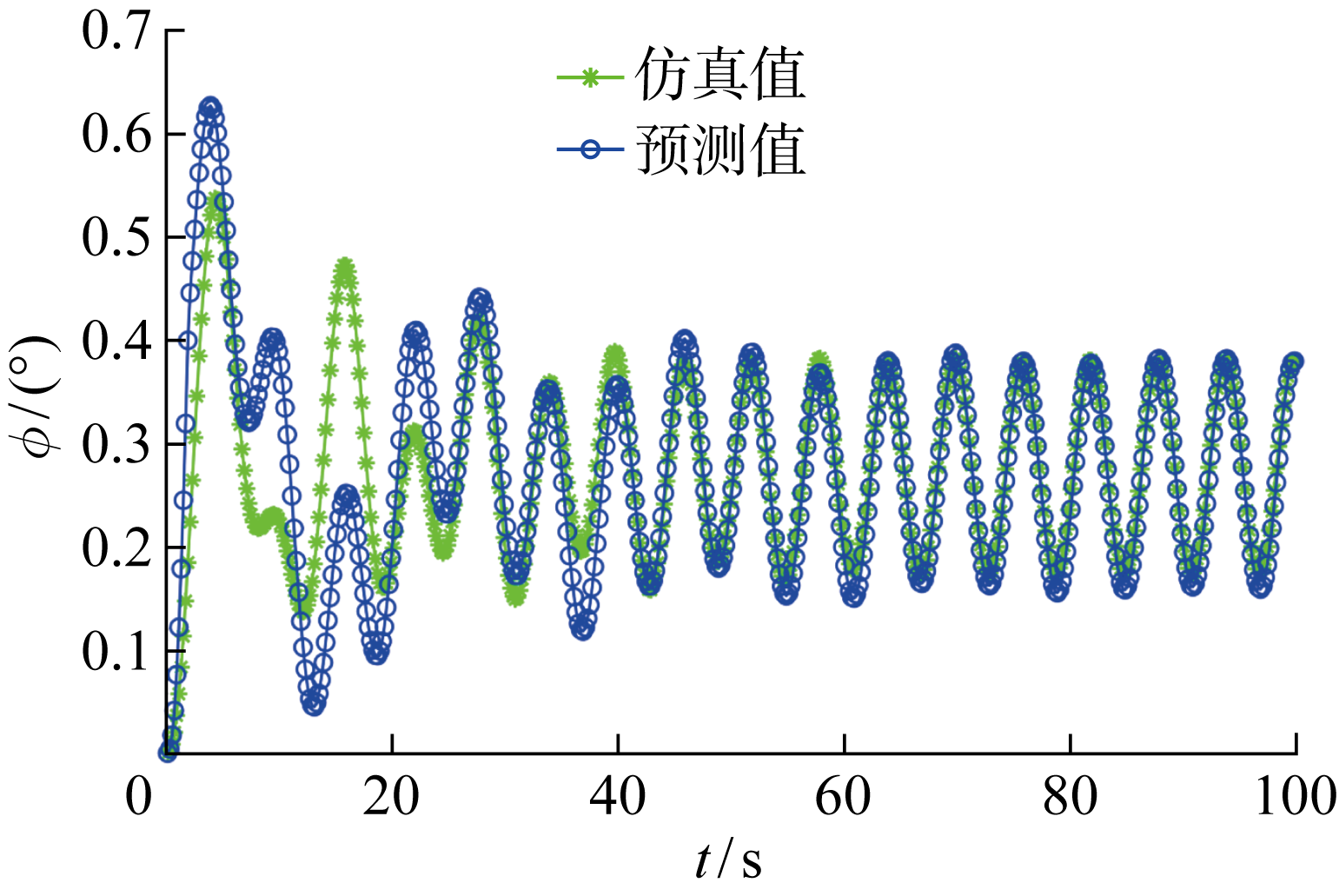

Fig.10

Fig.11

References 16

[1]	XU S, GAO Z, XUE W. CFD database method for roll response of damaged ship during quasi-steady flooding in beam waves[J]. Applied Ocean Research, 2022, 126: 103282.
[2]	欧珊, 毛筱菲, 刘祖源, 等. 基于OpenFOAM的破损船舶横摇阻尼[J]. 上海交通大学学报, 2019, 53(3): 305-314. doi: 10.16183/j.cnki.jsjtu.2019.03.007
	OU Shan, MAO Xiaofei, LIU Zuyuan, et al. Roll damping of damaged ship based on OpenFOAM[J]. Journal of Shanghai Jiao Tong University, 2019, 53(3): 305-314.
[3]	The Stability in Waves Committee. Final report and recommendations to the 28th ITTC[C]// Proceedings of the 28th ITTC. Wuxi, China: International Towing Tank Conference, 2017(III):275-335.
[4]	The Specialist Committee on Stability in Waves. Final report and recommendations to the 25th ITTC[C]// Proceedings of the 25th ITTC. Fukuoka, Japan: International Towing Tank Conference, 2008(II):605-639.
[5]	ACANFORA M, BEGOVIC E, DE LUCA F. A fast simulation method for damaged ship dynamics[J]. Journal of Marine Science and Engineering, 2019, 7(4): 111-119.
[6]	MENG Y, ZHANG X, ZHU J. Parameter identification of ship motion mathematical model based on full-scale trial data[J]. International Journal of Naval Architecture and Ocean Engineering, 2022, 14: 100437.
[7]	CHEN H, LI Q, WANG Z. Improved maximum likelihood method for ship parameter identification[C]// 2018 37th Chinese Control Conference. Wuhan, China: IEEE, 2018: 1614-1621.
[8]	ZHENG J, YAN M, LI Y, et al. An online identification approach for a nonlinear ship motion model based on a receding horizon[J]. Transactions of the Institute of Measurement and Control, 2021, 43(13): 3000-3012.
[9]	徐锋, 邹早建, 宋鑫. 基于支持向量机的水下运载器平面操纵运动建模[J]. 上海交通大学学报, 2012, 46(3): 358-362.
	XU Feng, ZOU Zaojian, SONG Xin. Modeling of underwater vehicles’ planar maneuvering motion based on support vector machines[J]. Journal of Shanghai Jiao Tong University, 2012, 46(3): 358-362.
[10]	张心光. 基于支持向量回归机的船舶操纵运动在线辨识建模[J]. 船舶工程, 2019, 41(3): 98-101.
	ZHANG Xinguang. Online identification modeling of ship manoeuvring motion using support vector regression[J]. Ship Engineering, 2019, 41(3): 98-101.
[11]	WANG Z, XU H, XIA L, et al. Kernel-based support vector regression for nonparametric modeling of ship maneuvering motion[J]. Ocean Engineering, 2020, 216: 107994.
[12]	ZHU M, WEN Y, SUN W, et al. A novel adaptive weighted least square support vector regression algorithm-based identification of the ship dynamic model[J]. IEEE Access, 2019, 7: 128910-128924.
[13]	BEGOVIC E, DAY A H, INCECIK A. An experimental study of hull girder loads on an intact and damaged naval ship[J]. Ocean Engineering, 2017, 133: 47-65.
[14]	黄柏刚, 邹早建. 基于固定网格小波神经网络的不规则波中船舶横摇运动在线预报[J]. 船舶力学, 2020, 24(6): 693-705.
	HUANG Baigang, ZOU Zaojian. Online prediction of ship roll motion in irregular waves using a fixed grid wavelet network[J]. Journal of Ship Mechanics, 2020, 24(6): 693-705.
[15]	沈文君, 赵志娟, 刘利琴, 等. 波浪周期对小型船舶动力响应的影响研究[J]. 船舶力学, 2022, 26(3): 342-352.
	SHEN Wenjun, ZHAO Zhijuan, LIU Liqin, et al. Research of wave period effect on the dynamic response characteristics of a small ship[J]. Journal of Ship Mechanics, 2022, 26(3): 342-352.
[16]	HAN H, WANG W. A hybrid BPNN-GARF-SVR prediction model based on EEMD for ship motion[J]. CMES-Computer Modeling in Engineering & Sciences, 2023, 134(2): 1353-1370.

参数	实船数据	参数	实船数据
总长,L_OA/m	153.3	棱形系数,C_P	0.616
垂线间长,L_PP/m	142.2	中横剖面系数,C_M	0.815
设计水线宽,B_WL/m	19.082	重心纵向位置,L_CG/m	70.137
型深,D/m	12.47	横摇惯性半径,K_xx/m	6.932
吃水,d/m	6.15	纵摇惯性半径,K_yy/m	36.802
排水量,Δ/t	8635	艏摇惯性半径,K_zz/m	36.802
方形系数,C_B	0.505

组别	工况			超参数
组别	H/m	T/s	β/rad	BoxConstraint	KernelScale	Epsilon
1	1	7	0	957.411 1	39.963 6	0.000 5
2	1	8	0	80.412 5	3.440 8	0.003 5
3	1	9	π/4	391.721 7	31.774 4	0.003 2
4	1	10	π/4	863.240 9	560.921 6	0.001 3
5	1	9	π/2	692.254 4	16.115 8	0.000 9
6	1.5	6	π/4	998.172 2	78.043 7	0.006 9
7	1.5	9	π	593.945 7	51.515 5	0.000 4
8	1.5	10	π	876.905 7	850.494 3	0.055 9

组别	工况			辨识建模结果
组别	H/m	T/s	β/rad	d₁	d₃	r₁	r₃	f₄₁	f₄₂
1	1	7	0	0.099 9	0.003 1	0.056 9	0.007 6	-0.159 1	0.283 3
2	1	8	0	0.099 4	0.001 9	0.066 2	-0.001 3	-0.352 3	0.128 8
3	1	9	π/4	0.118 5	0.000 0	0.067 2	0.000 0	-0.634 8	0.719 7
4	1	10	π/4	0.071 6	0.000 0	0.061 6	0.000 0	-0.572 1	1.192 8
5	1	9	π/2	0.021 2	0.000 0	0.042 0	0.001 4	1.279 9	1.522 9
6	1.5	6	π/4	0.404 3	-0.003 2	0.105 8	-0.000 8	-0.202 9	1.428 4
7	1.5	9	π	0.076 7	0.000 1	0.063 4	0.000 0	-0.473 7	-0.405 6
8	1.5	10	π	0.074 1	0.000 0	0.056 5	0.000 0	-0.821 0	-0.590 9
