Behavior of High Strength Steel Butt Joints at Arctic Low Temperatures

doi:10.16183/j.cnki.jsjtu.2023.386

Abstract

Abstract:

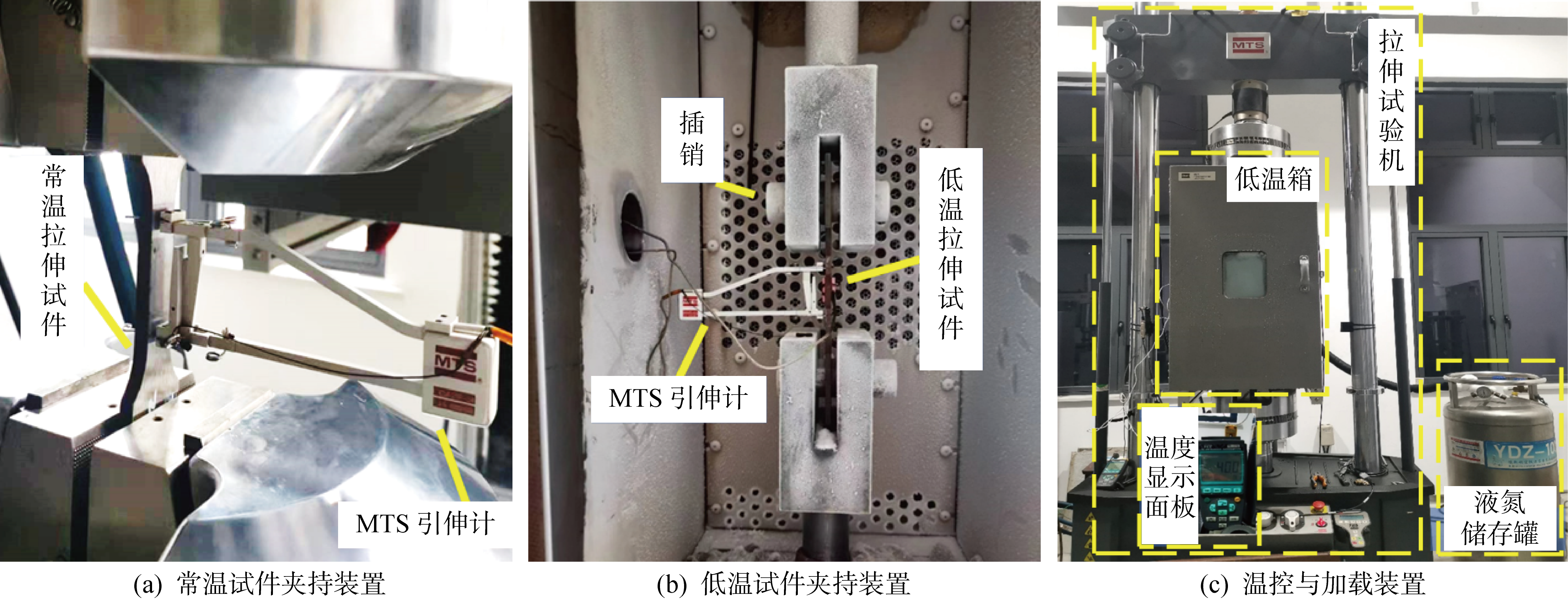

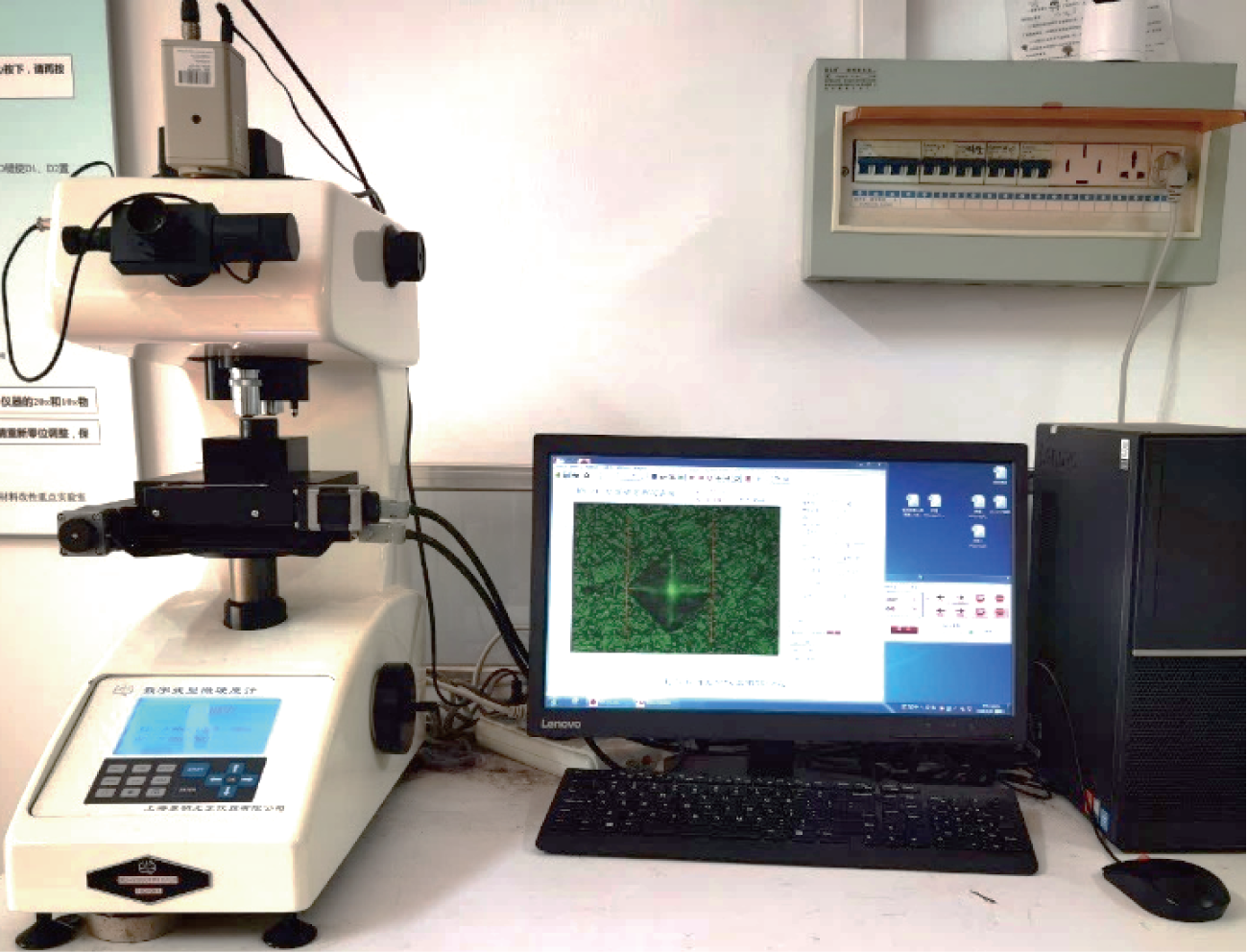

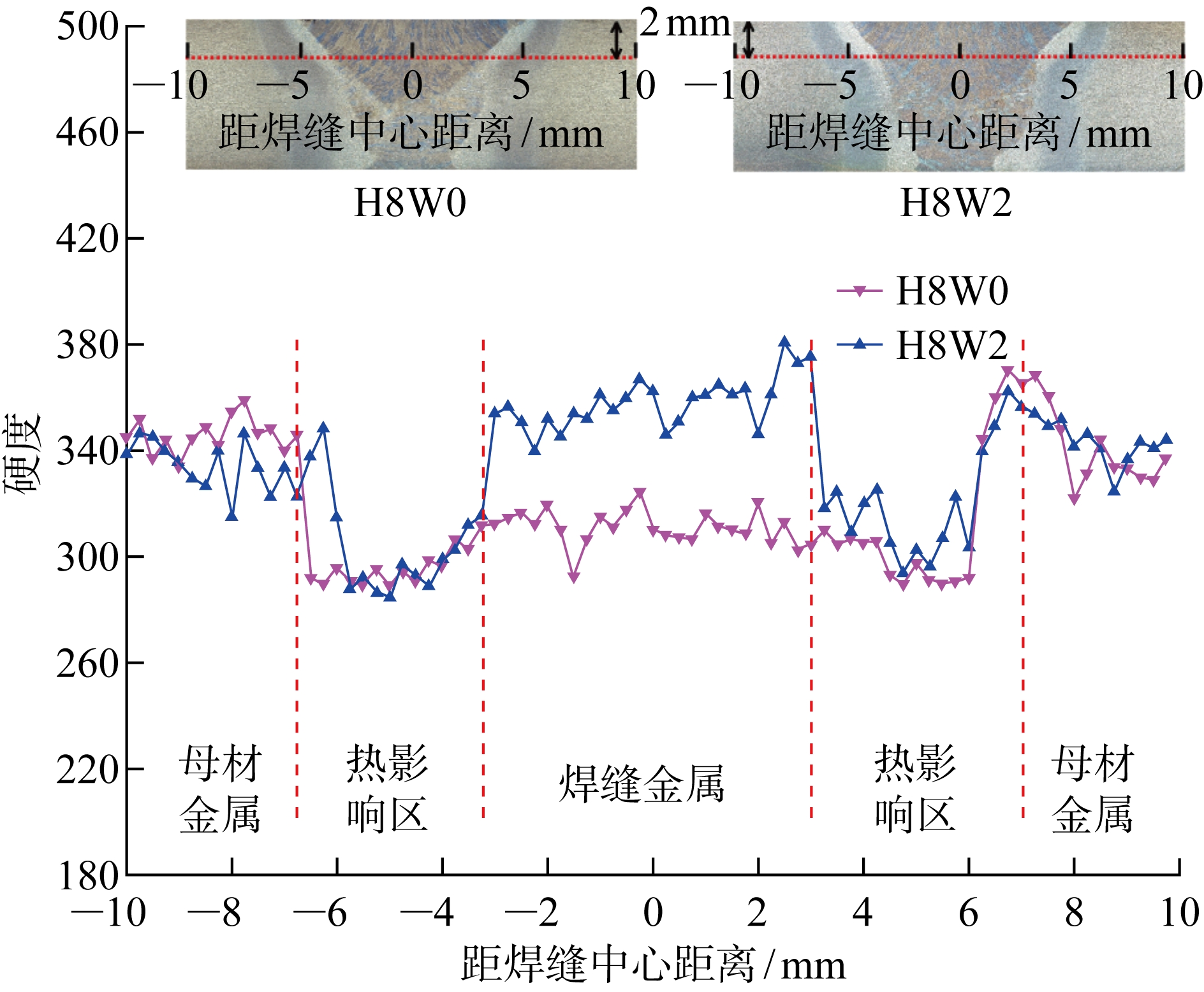

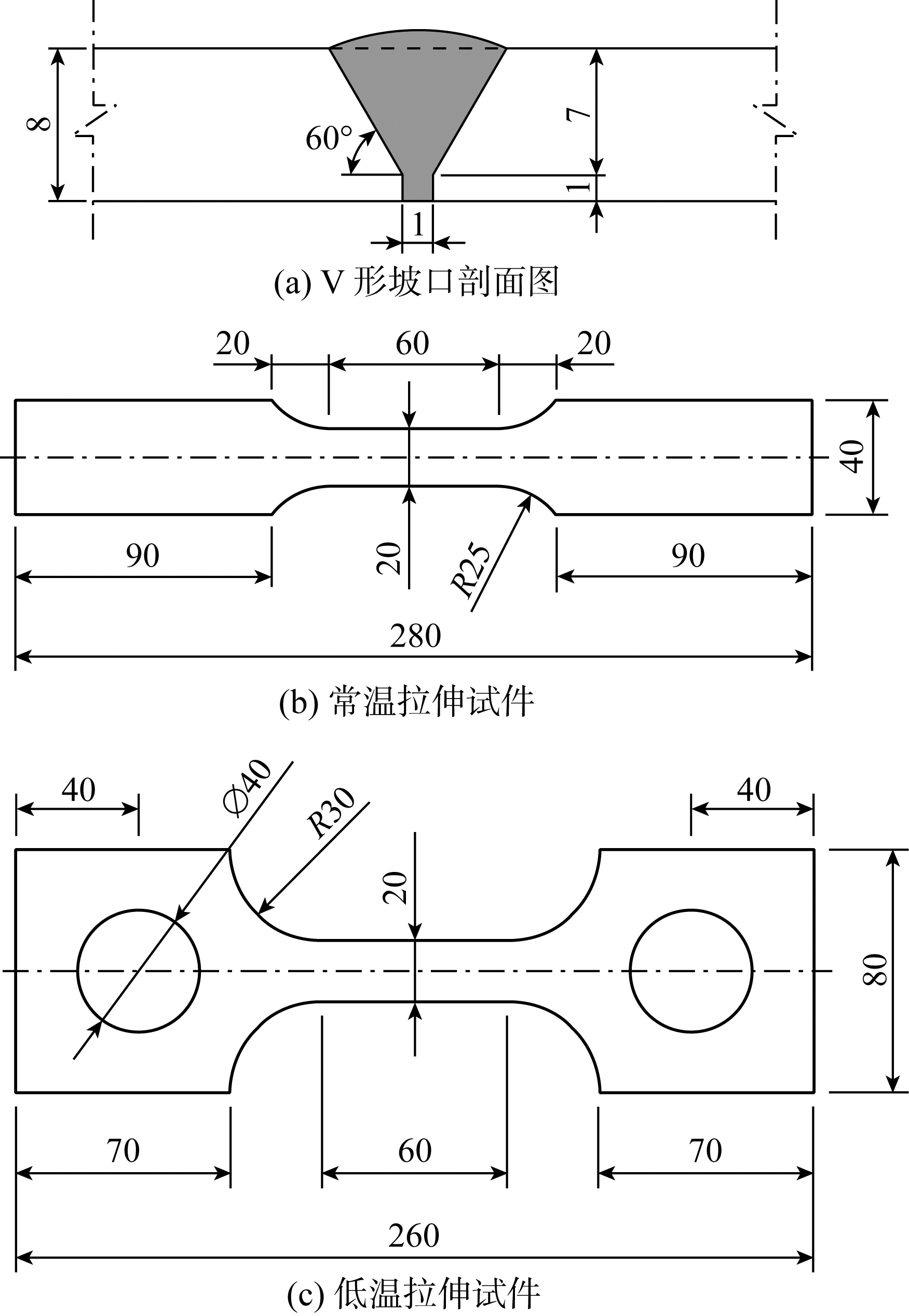

To study the effect of Arctic low temperatures on the behavior of HG785 high strength steel butt joints, the microstructure observation, hardness distribution tests, and uniaxial tensile tests were performed on the butt joints fabricated by using two types of weld metals with exposure to five ambient and low temperatures. The results show that the butt joints possess a coherent metallographic structure and exhibit good fusion between weld metal and base metal. Only a softening heat affected zone is observed in the weld joint samples under two matching conditions. The butt joint tensile specimens exposed to Arctic low temperatures possess higher strengths compared to those at ambient temperatures. The ductility improvement due to low-temperature exposure for equal-matching welded butt joint is substantial, whilst that for over-matching welded butt joints is negligible. All butt joint tensile specimens fail in a ductile manner. The findings provide a scientific basis for the engineering applications of high strength steel structures in Arctic low-temperature regions.

Key words: high strength steel, butt joint, microstructure observation, hardness test, low temperature mechanical properties

CLC Number:

TU391

CAO Huan, CAI Ao, CHEN Yangyu, ZUO Wenkang, CHEN Mantai. Behavior of High Strength Steel Butt Joints at Arctic Low Temperatures[J]. Journal of Shanghai Jiao Tong University, 2025, 59(4): 533-540.

Figures/Tables 11

Tab.1

Tab.2

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Tab.3

Fig.8

References 22

[1]	石永久, 魏晨熙, 王元清. 高强度钢材钢结构焊缝连接性能的研究现状[C]// 天津大学.第十一届全国现代结构工程学术研讨会论文集. 天津: 《工业建筑》杂志社有限公司, 2011: 782-788.
	SHI Yongjiu, WEI Chenxi, WANG Yuanqing. Research status of weld joint performance of high-strength steel structures[C]// Tianjin University. Proceedings of the 11th National Symposium on Modern Structural Engineering. Tianjin,China: Industrial Construction Magazine Co., Ltd., 2011: 782-788.
[2]	李国强. 高强结构钢连接研究进展[J]. 钢结构(中英文), 2020, 35(6): 1-40.
	LI Guoqiang. Research progress of high strength structural steel connection[J]. Steel Structure (Chinese and English), 2020, 35(6): 1-40.
[3]	张建兴, 施刚, 王元清, 等. 桥梁用高强度钢材及焊缝连接的疲劳研究现状[C]// 中国钢协结构稳定与疲劳分会.中国钢协结构稳定与疲劳分会第12届(ASSF-2010)学术交流会暨教学研讨会论文集. 宁波: 钢结构, 2010: 42-51.
	ZHANG Jianxing, SHI Gang, WANG Yuanqing, et al. Research status of fatigue of high-strength steel and weld joints for bridges[C]// Institute of Structural Stability and Fatigue China Steel Construction Society. Proceedings of the 12th Academic Exchange and Teaching Seminar of the Structural Stability and Fatigue Branch of the China Steel Association (ASSF-2010) Ningbo, China: Steel Construction, 2010: 42-51.
[4]	XI R, XIE J, YAN J B. Mechanical properties of Q690E/Q960E high-strength steels at low and ultra-low temperatures: Tests and full-range constitutive models[J]. Thin-Walled Structures, 2023, 185: 110579.
[5]	XIE J, XI R, TONG C L, et al. Mechanical properties of Q235-Q460 mild steels at low temperatures[J]. Construction and Building Materials, 2023, 363: 129850.
[6]	郭宏超, 郝李鹏, 李炎隆, 等. 高强度钢材对接焊缝拉伸性能试验研究[J]. 应用力学学报, 2018, 35(1): 172-177.
	GUO Hongchao, HAO Lipeng, LI Yanlong, et al. Experimental study on tensile properties of butt welds of high-strength steels[J]. Chinese Journal of Applied Mechanics, 2018, 35(1): 172-177.
[7]	郭小农, 刘晓, 罗永峰, 等. Q690高强钢焊缝连接承载力试验研究[J]. 工业建筑, 2016, 46(7): 52-56.
	GUO Xiaonong, LIU Xiao, LUO Yongfeng, et al. Experimental study on weld joint bearing capacity of Q690 high strength steel[J]. Industrial Building, 2016, 46(7): 52-56.
[8]	SUN F F, RAN M M, LI G Q, et al. Experimental and numerical study of high-strength steel butt weld with softened HAZ[J]. Structures and Buildings, 2018, 171(8): 583-597.
[9]	RAN M M, SUN F F, LI G Q, et al. Experimental study on the behavior of mismatched butt welded joints of high strength steel[J]. Journal of Constructional Steel Research, 2019, 153: 196-208.
[10]	郝李鹏. 高强度钢材焊缝连接接头静力和疲劳性能试验研究[D]. 西安: 西安理工大学, 2018.
	HAO Lipeng. Experimental study on static and fatigue properties of high-strength steel welded joint[D]. Xi’an: Xi’an University of Technology, 2018.
[11]	施刚, 王飞, 戴国欣, 等. Q460C高强度钢材焊缝连接循环加载试验研究[J]. 建筑结构学报, 2012, 33(3): 15-21.
	SHI Gang, WANG Fei, DAI Guoxin, et al. Cyclic loading test of Q460C high strength steel welded joint[J]. Journal of Building Structures, 2012, 33(3): 15-21.
[12]	王元清, 刘希月, 石永久. 960 MPa高强度钢材及其焊缝低温冲击韧性试验研究[J]. 建筑材料学报, 2014, 17(5): 915-919.
	WANG Yuanqing, LIU Xiyue, SHI Yongjiu. Experimental study on low temperature impact toughness of 960 MPa high strength steel and its welds[J]. Journal of Building Materials, 2014, 17(5): 915-919.
[13]	蔡骜, 陈满泰, 左文康, 等. 高强度钢材低温力学性能试验研究与预测模型[J]. 上海交通大学学报, 2024, 58(11): 1707-1715. doi: 10.16183/j.cnki.jsjtu.2022.526
	CAI Ao, CHEN Mantai, ZUO Wenkang, et al. Experimental study and prediction model of low temperature mechanical properties of high strength steel[J]. Journal of Shanghai Jiao Tong University, 2024, 58(11): 1707-1715.
[14]	CHEN M T, CAI A, PANDEY M, et al. Mechanical properties of high strength steels and weld metals at arctic low temperatures[J]. Thin-Walled Structures, 2023, 185: 110543.
[15]	AWS.Structural welding code-steel: AWS D1.1/D1.1M[S]. Miami, USA: American Welding Society, 2020.
[16]	AWS.Standard methods for mechanical testing of welds: AWS B4.0[S]. Miami,USA: American Welding Society, 2016.
[17]	BSI.Metallic materials—Vickers hardness test—Part 1. Test method:BS EN ISO 6507-1, 2005[S]. London,UK: BSI, 2005.
[18]	ASTM. Standard test method for Knoop and Vickers hardness of materials:ASTM E384-11[S]. West Conshohocken, PA, USA: ASTM, 2011.
[19]	BSI. Metallic materials—Vickers hardness test—Part 4. Tab.s of hardness values:BS EN ISO 6507-4, 2005[S]. London, UK: BSI, 2005.
[20]	CHEN M T, ZHANG T Y, GONG Z C, et al. Mechanical properties and microstructure characteristics of wire arc additively manufactured high-strength steels[J]. Engineering Structures, 2024, 300: 117092.
[21]	CHEN M T, GONG Z C, ZHANG T Y, et al. Mechanical behavior of austenitic stainless steels produced by wire arc additive manufacturing[J]. Thin-Walled Structures, 2024, 196: 111455.
[22]	中华人民共和国住房和城乡建设部.钢结构焊接规范: GB 50661—2011[S]. 北京: 中国建筑工业出版社, 2011.
	Ministry of Housing and Urban-Rural Development of the People’s Republic of China.Welding specification for steel structure: GB 50661—2011 [S]. Beijing: China Building and Construction Press, 2011.

化学成分	质量分数/%	化学成分	质量分数/%
C	0.09	Nb	—
Si	0.07	Ti	—
Mn	1.81	V	—
S	0.001	Ni	0.01
P	0.01	Al	—
Cr	0.13	Cu	—
Mo	0.17

化学成分	质量分数/%
化学成分	ER100S-G	ER120S-G
C	0.070	0.079
S	0.007	0.004
Mn	1.54	1.74
Si	0.59	0.70
P	0.011	0.011
Cr	0.66	0.40
Ni	0.27	2.24
Mo	0.13	0.57
Cu	0.10	0.09
Ti	0.200	0.085

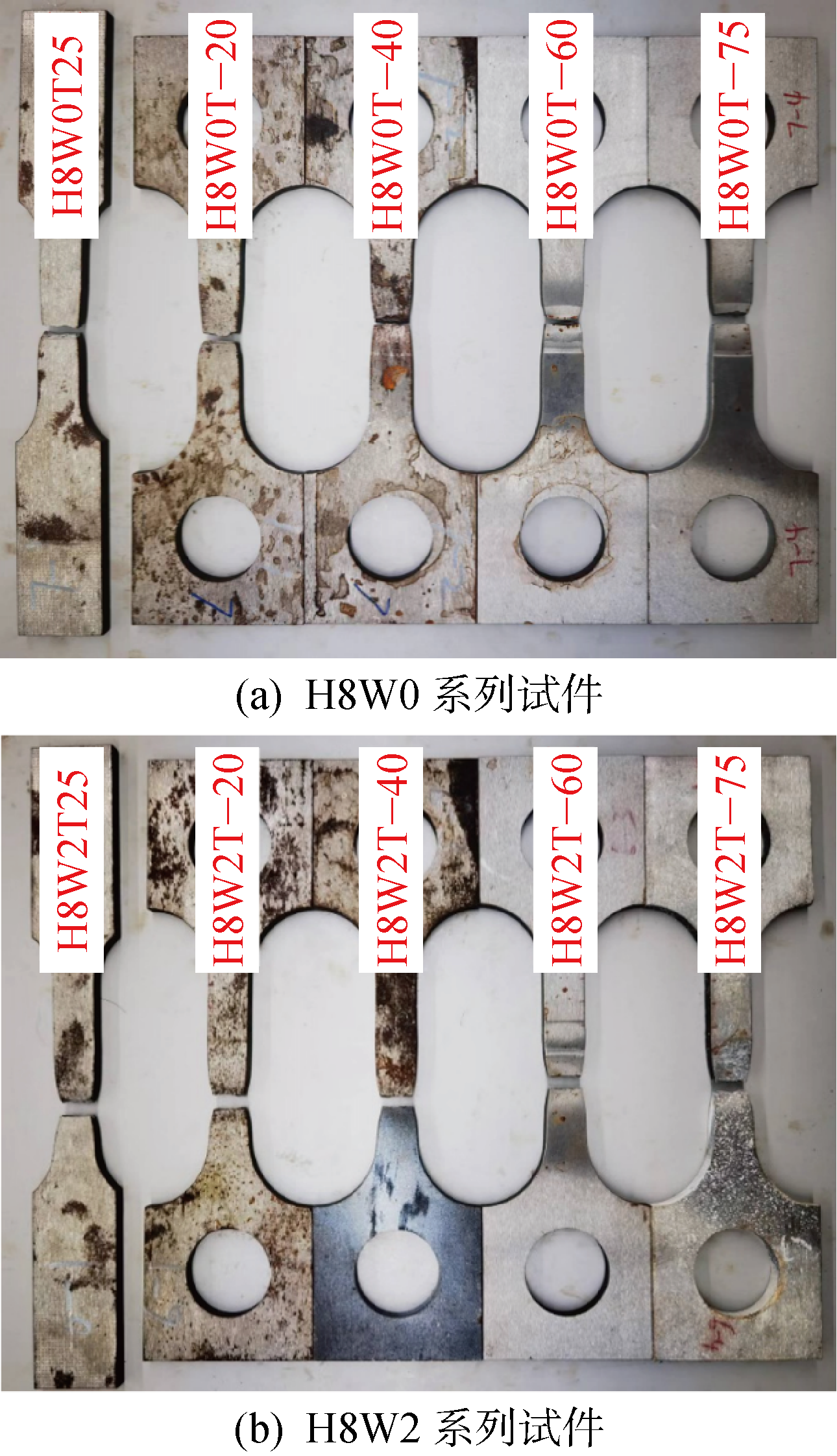

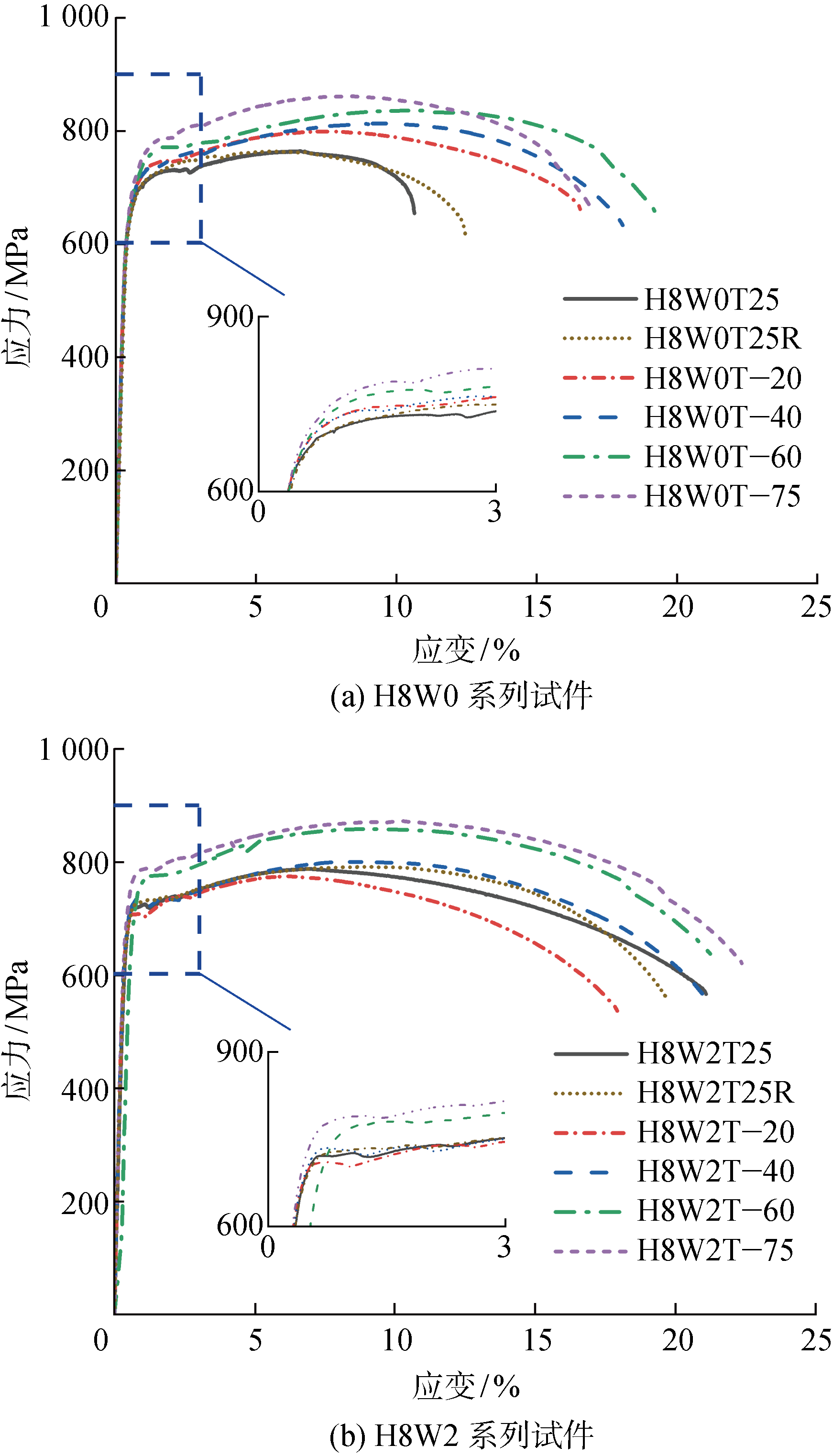

试件	σ_0.2/MPa	σ_u/MPa	ε_f/%	$σ 0.2 σ 0.2, B$	$σ u σ u, B$	$ε f ε f, B$	$σ 0.2 σ 0.2, W$	$σ u σ u, W$	$ε f ε f, W$	$σ 0.2 σ 0.2, a$	$σ u σ u, a$	$ε f ε f, a$
H8W0T25	653.6	764.6	10.6	1.04	1.09	0.55	0.91	0.97	0.46	1.00	1.00	1.00
H8W0T25R	655.8	765.3	12.4	1.05	1.09	0.64	0.92	0.97	0.54	1.00	1.00	1.00
H8W0T-20	662.2	799.8	16.5	0.97	1.00	0.67	0.91	0.94	0.69	1.01	1.05	1.43
H8W0T-40	661.8	815.2	18.1	1.02	1.09	0.76	0.90	0.95	0.70	1.01	1.07	1.57
H8W0T-60	664.9	836.7	19.3	1.00	1.06	0.80	0.90	0.96	0.69	1.02	1.09	1.68
H8W0T-75	678.8	861.9	16.9	0.93	1.00	0.66	0.91	0.96	0.70	1.04	1.13	1.47
H8W2T25	708.0	788.0	21.1	1.13	1.12	1.09	0.86	0.82	1.20	1.00	1.00	1.00
H8W2T25R	704.2	786.5	19.8	1.12	1.12	1.02	0.86	0.81	1.13	1.00	1.00	1.00
H8W2T-20	699.9	775.1	17.9	1.02	0.97	0.72	0.84	0.77	0.97	0.99	0.98	0.88
H8W2T-40	706.6	801.8	21.2	1.09	1.08	0.89	0.85	0.77	1.18	1.00	1.02	1.04
H8W2T-60	726.3	858.8	21.0	1.10	1.09	0.87	0.84	0.81	1.15	1.03	1.09	1.03
H8W2T-75	741.5	873.0	22.4	1.02	1.01	0.88	0.86	0.81	1.24	1.05	1.11	1.10
