Multi-Objective Optimization Design of Ship Propulsion Shafting Based on Response Surface Methodology and Genetic Algorithm

doi:10.16183/j.cnki.jsjtu.2023.318

Abstract

Abstract:

In order to reduce the power loss of the transmission equipment, enhance the transmission efficiency of the propulsion shafting, and improve the vibration performance of the shafting, a multi-objective optimization design of a ship shafting experimental platform is performed based on the response surface model and genetic algorithm. The central composite design (CCD) method is used to select appropriate experimental points in the optimized design space, and the response surface model is developed with minimum total power consumption and vibration response amplitude. Based on the genetic algorithm, the Pareto optimal solution of response surface model regression function is solved through MATLAB software. The optimal design scheme is obtained by comparing and analyzing several groups of optimization results. The results show that the combined method can reduce the power loss of shafting by approximate 7.10% and reduce the vibration amplitude of shafting by 2.30%, while significantly improving the shafting transmission efficiency and effectively suppressing the vibration problem of propulsion shafting. The fiudings validate the feasibility of the multi-objective optimization method for the ship propulsion shafting.

Key words: propulsion shafting, transfer efficiency, response surface methodology, genetic algorithm

CLC Number:

U664.21

ZHANG Cong, SHU Bingnan, ZHANG Jiangtao, JIN Yong. Multi-Objective Optimization Design of Ship Propulsion Shafting Based on Response Surface Methodology and Genetic Algorithm[J]. Journal of Shanghai Jiao Tong University, 2025, 59(4): 466-475.

Figures/Tables 20

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Tab.1

Tab.2

Tab.3

Fig.7

Tab.4

Tab.5

Tab.6

Tab.7

Fig.8

Fig.9

Tab.8

Tab.9

Tab.10

Tab.11

References 19

[1]	龙周, 陈松坤, 王德禹. 基于SMOTE算法的船舶结构可靠性优化设计[J]. 上海交通大学学报, 2019, 53(1): 26-34. doi: 10.16183/j.cnki.jsjtu.2019.01.004
	LONG Zhou, CHEN Songkun, WANG Deyu. Ship structural reliability optimization design based on SMOTE algorithm[J]. Journal of Shanghai Jiao Tong University, 2019, 53 (1): 26-34.
[2]	夏国清, 刘彩云, 陈兴华, 等. 基于NSGA-II 的DP船舶推力分配方法研究[J]. 华中科技大学学报(自然科学版), 2019, 47(5): 101-104.
	XIA Guoqing, LIU Caiyun, CHEN Xinghua, et al. Research on DP ship thrust distribution method based on NSGA-II[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2019, 47(5): 101-104.
[3]	陆金铭, 周海港, 顾卫俊, 等. 船舶轴系优化校中[J]. 船海工程, 2010, 39(3): 51-54.
	LU Jinming, ZHOU Haigang, GU Weijun, et al. Optimizing alignment of ship shafting[J]. Ship and Ocean Engineering, 2010, 39(3): 51-54.
[4]	王建午, 楼京俊, 李欣一, 等. 考虑减轻轴系弯曲振动的船舶轴系双向校中优化[J]. 舰船科学技术, 2020, 42(1): 140-145.
	WANG Jianwu, LOU Jingjun, LI Xinyi, et al. Bidirectional alignment optimization of ship shafting considering reducing bending vibration[J]. Ship Science and Technology, 2020, 42(1): 140-145.
[5]	肖能齐, 周瑞平, 林晞晨. 基于层次分析法轴系校中多目标优化研究[J]. 造船技术, 2014 (6): 11-15.
	XIAO Nengqi, ZHOU Ruiping, LIN Xichen. Multi-objective optimization of shafting alignment based on analytic hierarchy process[J]. Ship-building Technology, 2014 (6): 11-15.
[6]	STEUER R E. Multiple criteria optimization: Theory, computation and application[J]. Journal of the Operational Research Society, 1988, 39(9): 879.
[7]	OLIVER J M, KIPOUROS T, SAVILL A M. A self-adaptive genetic algorithm applied to multi-objective optimization of an airfoil[J]. Springer International Publishing, 2013(3): 261-276.
[8]	YAZICI S, TANACAN L. A study towards interdisciplinary research: A material-based integrated computational design model(MICD-m) in architecture[J]. Architecture Science Review, 2018, 61(1/2): 68-82.
[9]	杨观赐, 李少波, 璩晶磊, 等. 基于Pareto最优原理的混合动力汽车多目标优化[J]. 上海交通大学学报, 2012, 46(8): 1297-1303.
	YANG Guanci, LI Shaobo, QU Jinglei, et al. Based on principle of Pareto optimal hybrid multi-objective optimization[J]. Journal of Shanghai Jiao Tong University, 2012, 46 (8): 1297-1303.
[10]	何小二, 王德禹, 夏利娟. 基于粒子群算法的多用途船结构优化[J]. 上海交通大学学报, 2013, 47(6): 928-931.
	HE Xiaoer, WANG Deyu, XIA Lijuan. Multi-purpose ship structure optimization based on particle swarm algorithm[J]. Journal of Shanghai Jiao Tong University, 2013, 47 (6): 928-931.
[11]	曾漾, 周俊, 沈志远, 等. 基于响应面法的复合材料舱壁结构优化设计[J]. 重庆大学学报, 2020, 43(6): 82-89.
	ZENG Yang, ZHOU Jun, SHEN Zhiyuan, et al. Optimal design of composite bulkhead structure based on response surface method[J]. Journal of Chongqing University, 2020, 43(6): 82-89.
[12]	卢熹, 陈之炎. 多维空间网格划分在船舶轴系合理校中的应用[J]. 船舶力学, 2002, 6(5): 66-69.
	LU Xi, CHEN Zhiyan. The application of multidimensional space grid division in reasonable calibration of ship shafting[J]. Ship Mechanics, 2002, 6 (5): 66-69.
[13]	周瑞. 舰船推进轴系校中的多目标优化计算方法[J]. 中国舰船研究, 2013, 8(3): 73-77.
	ZHOU Rui. A multi-objective optimization calculation method for ship propulsion shaft alignment[J]. Chinese Ship Research, 2013, 8 (3): 73-77.
[14]	BOX G, WILSON K B. On the experimental attainment of optimum conditions[J]. Journal of the Royal Statistical Society Series B: Statistical Methodology, 1951(1): 1-45.
[15]	李莉, 张赛, 何强, 等. 响应面法在实验设计与优化中的应用[J]. 实验室研究与探索, 2015, 34(8): 41-45.
	LI Li, ZHANG Sai, HE Qiang, et al. Application of response surface method in experimental design and optimization[J]. Laboratory Research and Exploration, 2015, 34(8): 41-45.
[16]	郁磊, 史峰, 王辉, 等. Matlab智能算法30个案例分析[M]. 北京: 北京航空航天大学出版社, 2011: 7-23.
	YU Lei, SHI Feng, WANG Hui, et al. Matlab intelligent algorithm 30 cases analysis[M]. Beijing: Beijing University of Aeronautics and Astronautics Press, 2011: 7-23.
[17]	朱学军, 攀登, 王安麟, 等. 混合变量多目标优化设计的Pareto遗传算法实现[J]. 上海交通大学学报, 2020, 34(3): 411-414.
	ZHU Xuejun, PAN Deng, WANG Anlin, et al. Mixed variable multi-objective optimization design of Pareto genetic algorithm[J]. Journal of Shanghai Jiao Tong University, 2020, 34(3): 411-414.
[18]	KONAK A, COIT D W, SMITH A E. Multi-objective optimization using genetic algorithms: A tutorial[J]. Reliability Engineering and System Safety, 2006, 91(9): 992-1007.
[19]	李学斌, 朱学康. 潜艇耐压圆柱壳的多目标优化设计[J]. 中国造船, 2009, 50(1): 10-18.
	LI Xuebin, ZHU Xuekang. Multi-objective optimization of submarine pressure cylindrical shell[J]. Ship-building of China, 2009, 50(1): 10-18.

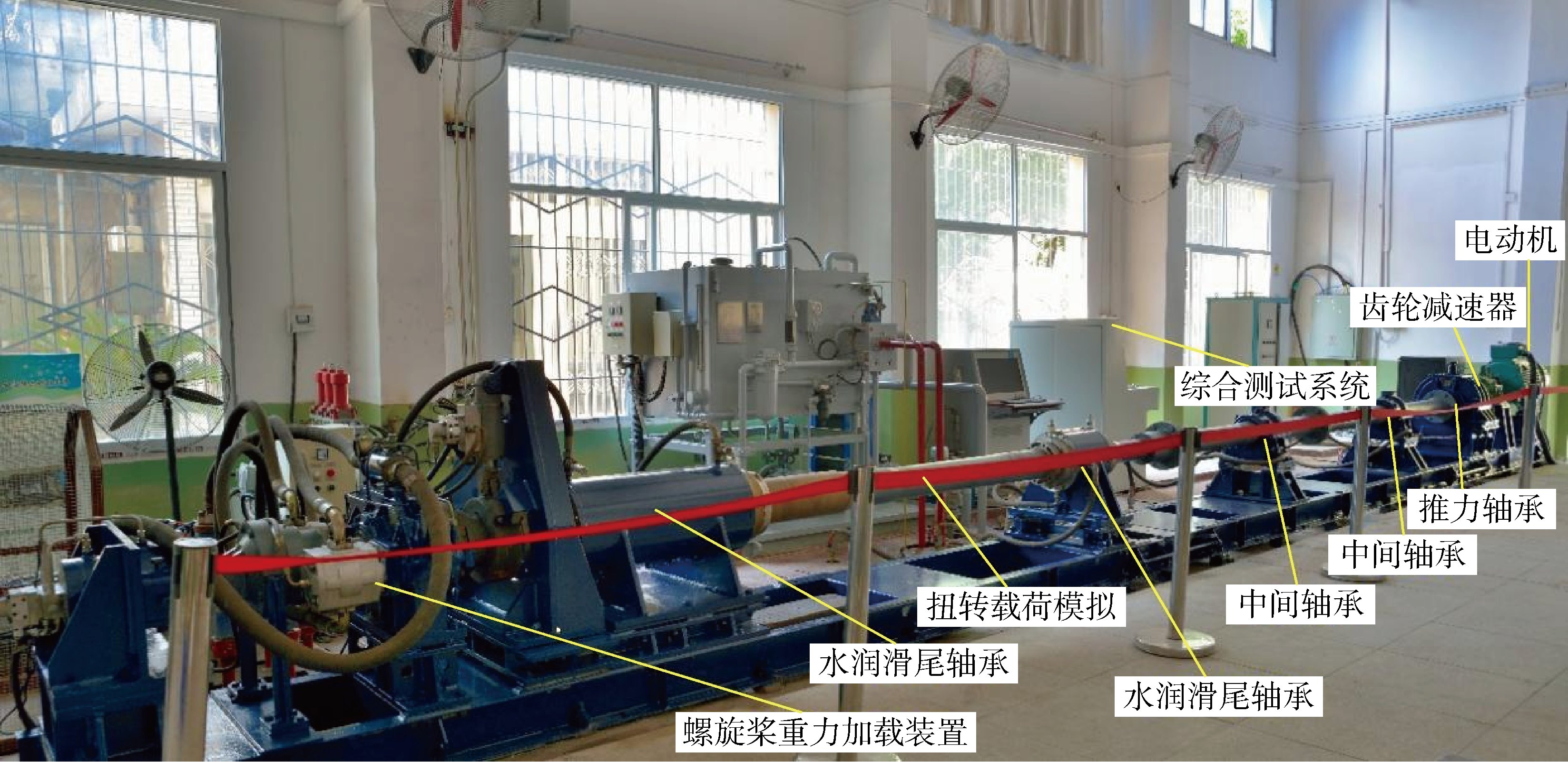

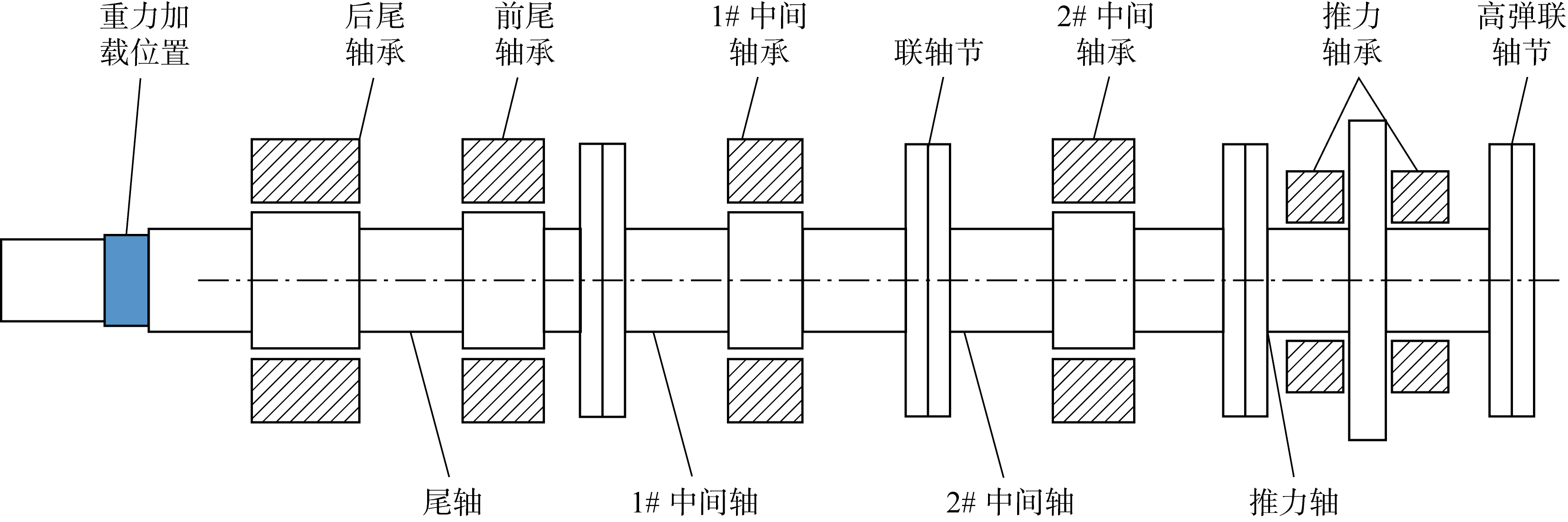

轴段	内径/mm	长度/mm	润滑介质
艉轴	185	740	水
1#中间轴	165	730	油
2#中间轴	145	1 275	油
推力轴	125	1 200	油

轴承	内径/mm	长度/mm	润滑介质
后艉轴承	186	555	水
前尾轴承	150	156	油
中间轴承	160.5	130	油
推力径向轴承	160	101	油

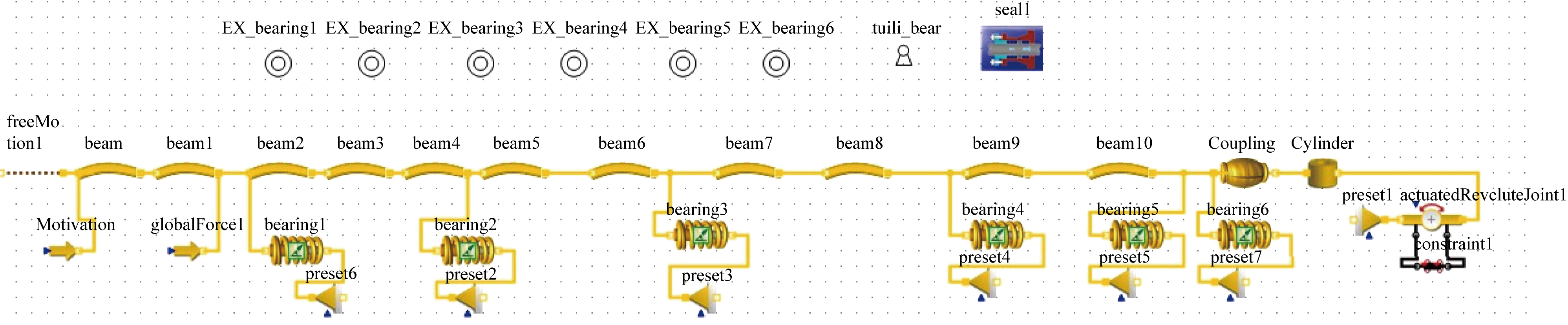

轴承编号	坐标位置/mm
1	1 360
2	4 048.75
3	6 180
4	8 380
5	9 725
6	10 060

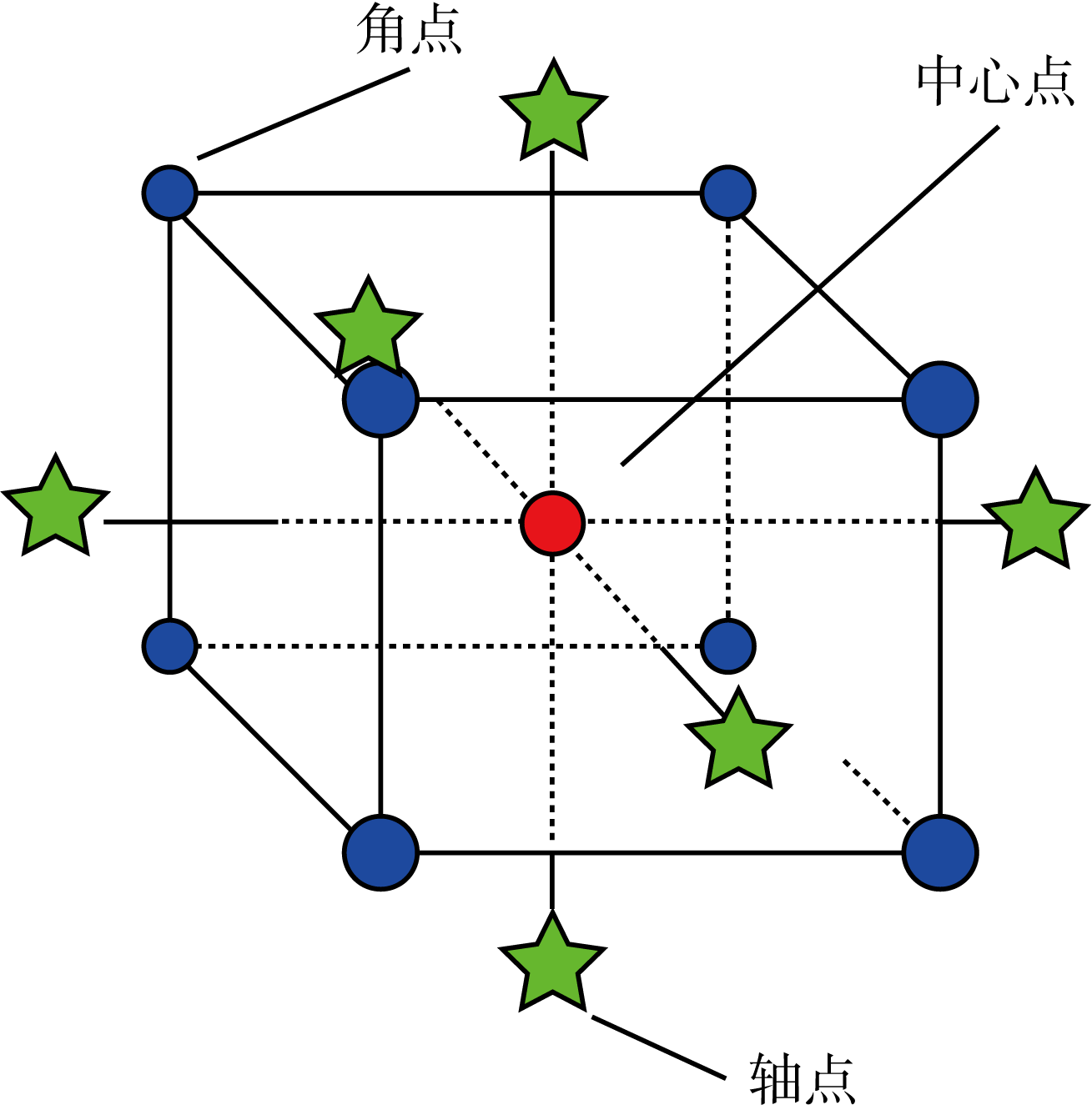

因素	水平
因素	-1	0	1
x₁/mm	144	160	176
x₂	0.45	0.70	0.95
x₃/mm	-269	0	269

序号	x₁/mm	x₂	x₃/mm	y₁/W	y₂/μm
1	133	0.7	0	2 068.2	1.838 8
2	144	1.0	-269	2 166.5	1.903 7
3	144	1.0	269	2 165.1	1.810 0
4	176	0.5	-269	2 225.2	1.914 4
5	187	0.7	0	2 438.8	1.840 5
6	160	0.7	0	2 207.3	1.856 1
7	160	1.1	0	2 343.9	1.855 5
8	160	0.3	0	2 088.8	1.856 7
9	144	0.5	269	2 067.5	1.811 7
10	176	1.0	-269	2 450.3	1.913 1
11	144	0.5	-269	2 071.1	1.904 6
12	176	1.0	269	2 449.8	1.808 3
13	160	0.7	452	2 205.4	1.788 6
14	160	0.7	-452	2 209.8	1.944 7
15	176	0.5	269	2 221.6	1.809 4
16	160	0.7	0	2 209.1	1.846 1
