Multi-Objective Robustness of Integrated Energy System Considering Source-Load Uncertainty

doi:10.16183/j.cnki.jsjtu.2023.238

Abstract

Abstract:

Under the construction of a new power system, the integrated energy system with electricity-thermal-hydrogen interconnection will become one of the important development directions, but its whole life cycle operation economy and energy supply reliability are affected by the initial equipment capacity and daily operation scheme of the system. Therefore, a multi-objective two-stage robust optimization method is proposed, taking into account the source-load uncertainty. A grid-connected electric-thermal-hydrogen operation model including fuel cells and electrolytic cells is developed, and the source-load uncertainty is added by using the hierarchical Latin hypercube sampling and Euclidean distance scenario reduction methods, and solved by a two-stage robust optimization algorithm. The results show that the proposed method can effectively mitigate the impact of source-load uncertainty on the configuration and operation planning of the integrated energy system, which is expected to provide new ideas for the construction and operation of integrated energy systems in the future.

Key words: source-load uncertainty, integrated energy system, two-stage robust optimization, hydrogen energy, fuel cell

CLC Number:

TM732

LI Jianlin, ZHANG Zedong, LIANG Ce, ZENG Fei. Multi-Objective Robustness of Integrated Energy System Considering Source-Load Uncertainty[J]. Journal of Shanghai Jiao Tong University, 2025, 59(2): 175-185.

Figures/Tables 15

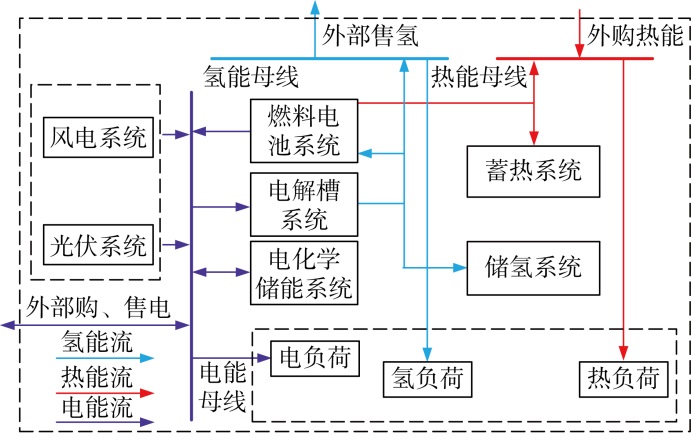

Fig.1

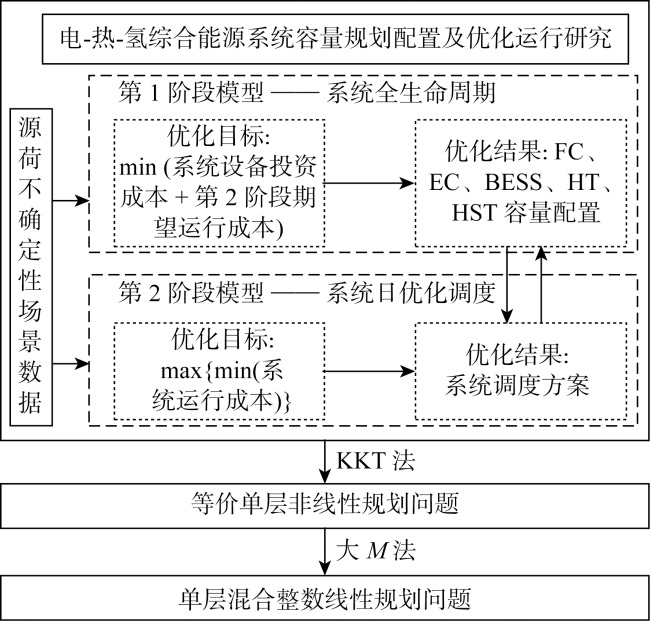

Fig.2

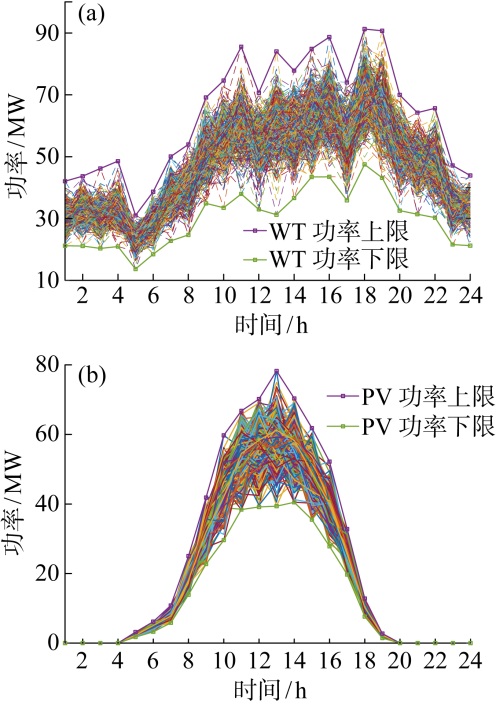

Fig.3

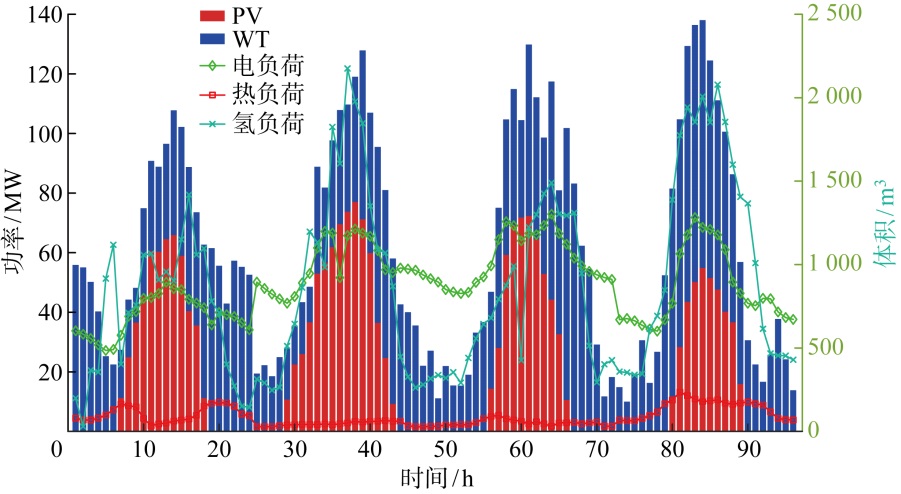

Fig.4

Tab.1

Tab.2

Tab.3

Tab.4

Tab.5

Tab.6

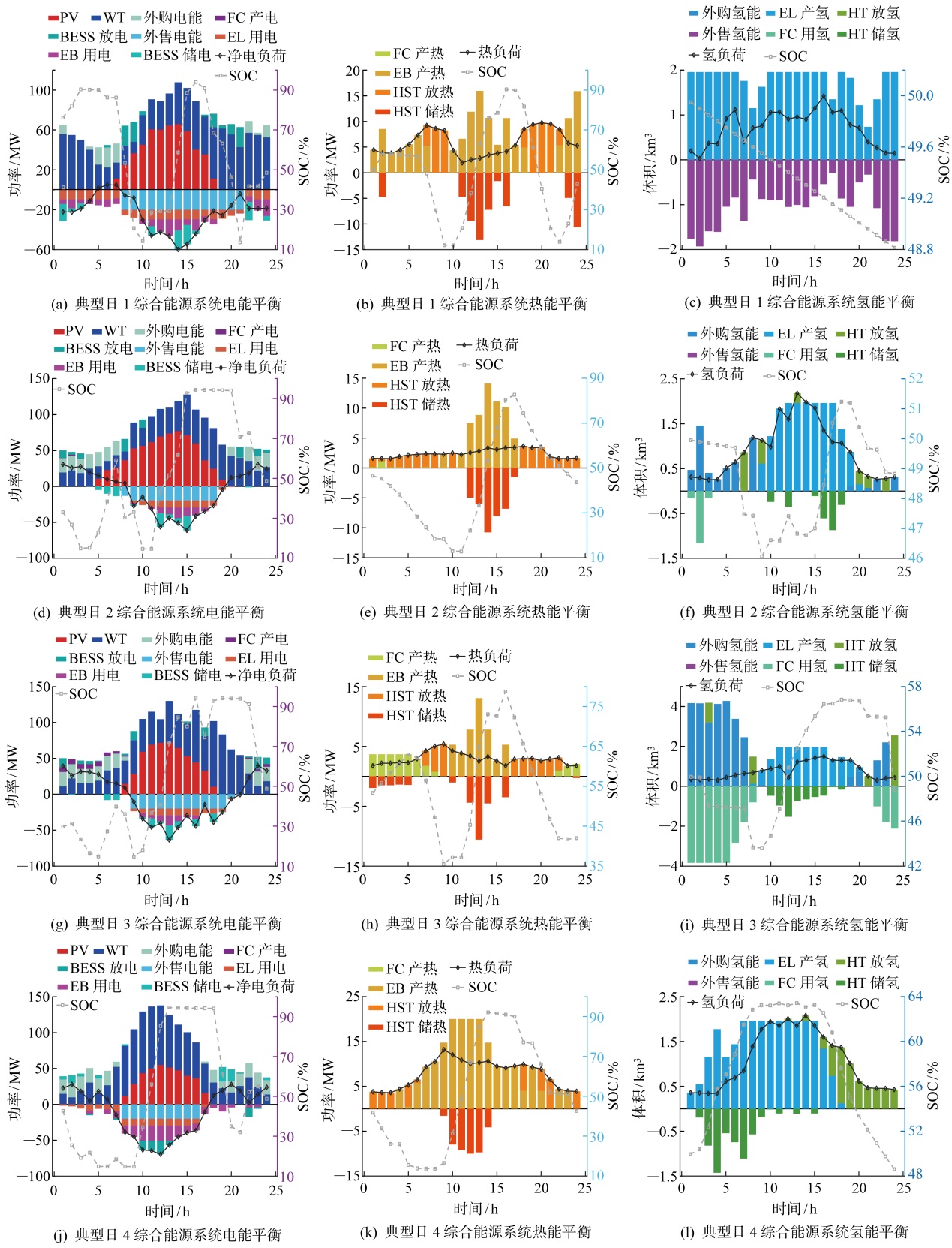

Fig.5

Fig.6

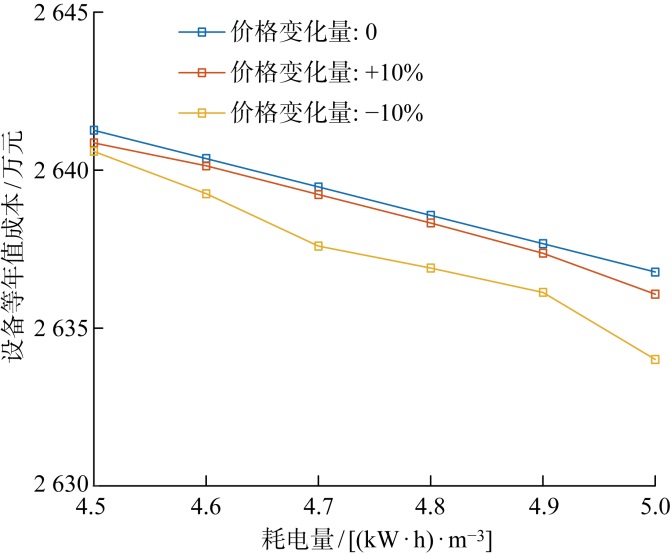

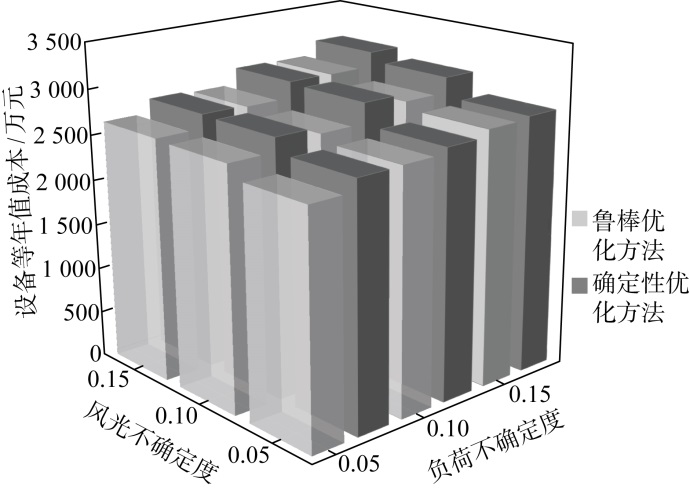

Annual cost of equipment versus $\tilde{\omega}$ and ω

Fig.6

Fig.7

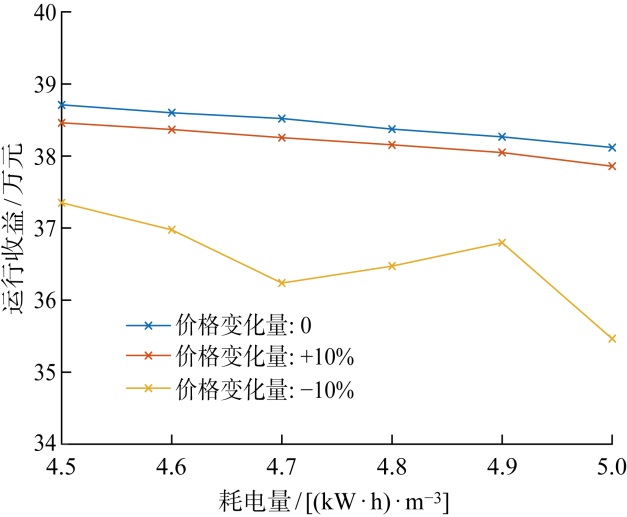

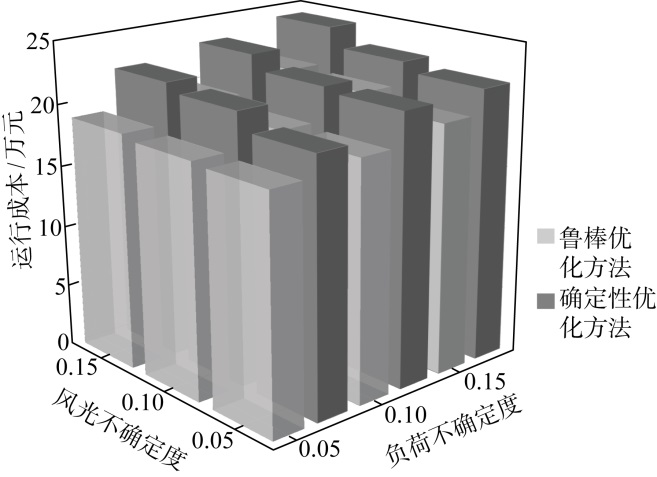

Operating income versus $\tilde{\omega}$ and ω

Fig.7

Fig.8

Fig.9

References 15

[1]	李建林, 张则栋, 李光辉, 等. 基于模型层级分析的质子交换膜电解槽建模研究进展[J]. 高电压技术, 2023, 49(3): 1105-1117.
	LI Jianlin, ZHANG Zedong, LI Guanghui, et al. Research on modeling of proton exchange membrane electrolyzer based on model hierarchical analysis[J]. High Voltage Technology, 2023, 49(3): 1105-1117.
[2]	杨龙, 张沈习, 程浩忠, 等. 区域低碳综合能源系统规划关键技术与挑战[J]. 电网技术, 2022, 46(9): 3290-3304.
	YANG Long, ZHANG Shenxi, CHENG Haozhong, et al. Regional low-carbon integrated energy system planning: Key technologies and challenges[J]. Power System Technology, 2022, 46 (9): 3290-3304.
[3]	张笑演, 熊厚博, 王楚通, 等. 基于最优出力区间和碳交易的园区综合能源系统灵活经济调度[J]. 电力系统自动化, 2022, 46(16): 72-83.
	ZHANG Xiaoyan, XIONG Houbo, WANG Chutong, et al. Flexible economic dispatch of park integrated energy system based on optimal output interval and carbon trading[J]. Automation of Electric Power Systems, 2022, 46(16): 72-83.
[4]	李建林, 李光辉, 马速良, 等. 碳中和目标下制氢关键技术进展及发展前景综述[J]. 热力发电, 2021, 50(6): 1-8.
	LI Jianlin, LI Guanghui, MA Suliang, et al. Review of key technologies for hydrogen production under carbon neutrality and development prospects[J]. Thermal Power Generation, 2021, 50(6): 1-8.
[5]	李建林, 梁忠豪, 李光辉, 等. 太阳能制氢关键技术研究[J]. 太阳能学报, 2022, 43(3): 2-11. doi: 10.19912/j.0254-0096.tynxb.2022-0037
	LI Jianlin, LIANG Zhonghao, LI Guanghui, et al. Research on key technologies of solar hydrogen production[J]. Acta Energiae Solaris Sinica, 2022, 43(3): 2-11. doi: 10.19912/j.0254-0096.tynxb.2022-0037
[6]	TAN J S, WU Q W, HU Q R, et al. Adaptive robust energy and reserve co-optimization of integrated electricity and heating system considering wind uncertainty[J]. Applied Energy, 2020, 11(260): 114230-114243.
[7]	BAZMOHAMMADI N, TAHSIRI A, ANVARI-MOGHADDAM A, et al. A hierarchical energy management strategy for interconnected microgrids considering uncertainty[J]. International Journal of Power and Energy Systems, 2019, 109(7): 597-608.
[8]	席俊烨, 童晓阳, 李智, 等. 考虑风电不确定性的交直流配电网低碳分布鲁棒优化调度[J]. 电力自动化设备, 2023, 43(11): 59-66.
	XI Junye, TONG Xiaoyang, LI Zhi, et al. Low-carbon distributionally robust optimal scheduling for AC/DC distribution network considering wind power uncertainty[J]. Electric Power Automation Equipment, 2023, 43(11): 59-66.
[9]	AHN H, RIM D, PAVLAK G S, et al. Uncertainty analysis of energy and economic performances of hybrid solar photovoltaic and combined cooling, heating, and power systems using a Monte-Carlo method[J]. Applied Energy, 2019, 255(12): 113753.1-113753.13.
[10]	刘一欣, 郭力, 王成山. 微电网两阶段鲁棒优化经济调度方法[J]. 中国电机工程学报, 2018, 38(14): 4013-4022.
	LIU Yixin, GUO Li, WANG Chengshan. Economic dispatch of microgrid based on two stage robust optimization[J]. Proceedings of the CSEE, 2018, 38(14): 4013-4022.
[11]	司杨, 陈来军, 陈晓弢, 等. 基于分布鲁棒的风-氢混合系统氢储能容量优化配置[J]. 电力自动化设备, 2021, 41(10): 3-10.
	SI Yang, CHEN Laijun, CHEN Xiaotao, et al. Optimal capacity allocation of hydrogen energy storage in wind-hydrogen hybrid system based on distributionally robust[J]. Electric Power Automation Equipment, 2021, 41 (10): 3-10.
[12]	孙毅, 谷家训, 郑顺林, 等. 考虑广义储能和LCA碳排放的综合能源系统低碳优化运行策略[J]. 上海交通大学学报, 2024, 58(5): 647-658. doi: 10.16183/j.cnki.jsjtu.2022.350
	SUN Yi, GU Jiaxun, ZHENG Shunlin, et al. Low-carbon optimal operation strategy of integrated energy system considering generalized energy storage and LCA carbon emissions[J]. Journal of Shanghai Jiao Tong University, 2024, 58(5): 647-658.
[13]	范宏, 杨忠权, 夏世威. 考虑阶梯式碳交易机制的混氢天然气综合能源系统低碳经济运行[J]. 上海交通大学学报, 2024, 58(5): 624-635. doi: 10.16183/j.cnki.jsjtu.2022.377
	FAN Hong, YANG Zhongquan, XIA Shiwei. Low carbon economic operation of hydrogen enriched compressed natural gas integrated energy system considering step carbon trading mechanism[J]. Journal of Shanghai Jiao Tong University, 2024, 58(5): 624-635.
[14]	YU H, CHUNG C Y, WONG K P, et al. Probabilistic load flow evaluation with hybrid Latin hypercube sampling and Cholesky decomposition[J]. IEEE Transactions on Power Systems, 2009, 24(5): 661-667.
[15]	ZENG B, ZHAO L. Solving two-stage robust optimization problems using a column-and-constraint generation method[J]. Operations Research Letters: A Journal of the Operations Research Society of America, 2013(5): 457-461.

方案	考虑因素
方案	碳交易	源-荷极端环境	燃料电池电能	燃料电池热能
1	-	-	-	-
2	√	-	-	-
3	√	√	√	-
4	√	√	√	√

储能类型	自损耗率/%	最大充能速率	最大放能速率	充能效率/%	放能效率/%	SOC 最大值/%	SOC 最小值/%	初始投资费用	折现时间/a	运行维护费用
电储能	0.1	0.32 $C B E S S B$	0.32 $C B E S S B$	97	98	95	10	1 600元/kW	12	0.035元/(kW·h)
热储能	0.6	0.4 $C H S T B$	0.4 $C H S T B$	94	95	95	10	450元/kW	20	0.028元/kW
氢储能	0.1	0.45 $C H T B$	0.45 $C H T B$	98	99	95	10	313元/m³	18	0.056元/m³

电源设备	产电效率/%	产热效率/%	产氢效率/%	最大运行功率/kW	最大爬坡约束/ (kW·h^-1)	初始投资费用/ (元·kW^-1)	折现时间/a	运行维护费用/ (元·kW^-1)
燃料电池	58	22	-	0.95 $C F C B$	0.25 $C F C B$	4 000	21	0.102
电解槽	-	-	60	0.96 $C E L B$	0.3 $C E L B$	6 000	15	0.122
电锅炉	-	95	-	0.95 $C E B B$	0.25 $C E B B$	550	15	0.096

时段	购电电价	售电电价
0:00—7:00, 10:00—12:00, 21:00—24:00	0.38	0.33
7:00—8:00, 12:00—14:00, 16:00—21:00	0.96	0.83
8:00—10:00, 14:00—16:00	1.30	1.13

方案	光伏电池/kW	风电机组/kW	燃料电池/kW	电解槽/m³	电锅炉/kW	电储能/ (kW·h)	热储能/ (kW·h)	氢储能/ m³
S1	59 800	70 230	0	5 212	23 950	59 500	45 500	32 620
S2	62 500	70 650	0	5 320	24 250	61 220	45 000	34 620
S3	69 800	90 230	7 002	2 025	22 850	62 600	51 000	39 800
S4	70 000	90 740	7 017	2 041	21 060	62 500	50 000	40 000
