Multi-Agent Coordinated Dispatch of Power Grid and Pumped Hydro Storage with Embedded Market Game Model

doi:10.16183/j.cnki.jsjtu.2023.354

Abstract

Abstract:

In the context of large-scale energy storage stations, such as pumped storage, participating in both spot trading and grid scheduling, it is difficult for the grid to directly access the consumption of renewable energy in the spot market. In this regard, the influence of spot electricity trading on the pumped storage scheduling is considered and a multi-agent scheduling method with an embedded market game model is proposed. First, combined with the power spot market clearing model, with the objective of maximizing the benefits of the pumped storage power station in the spot market, a strategy for the pumped storage power station to participate in the spot trading of electric energy is developed. Then, combined with the two-part electricity price policy, the capacity allocation and power dispatching strategy of the grid operator about the pumped storage is formulated to minimize grid operating costs and the amount of renewable energy discarded in the entire grid. To formulate the proposed scheduling strategy, a bi-level optimization problem with an embedded game model is solved: the decision-making problem of the pumped storage power station participating in the electric energy spot market, and the optimization with the embedded marketing game model of capacity allocation and power scheduling strategy about pumped storage. The decision-making problem of pumped storage in the spot market follows a Stackelberg game model, which is integrated into the optimization problem of pumped storage capacity allocation and power scheduling strategy via the strong dual theory. The embedded bi-objective problem is solved by using the NSGA-II algorithm. Finally, based on the data from a pumped storage power station in East China, a simulation model is built to verify the effectiveness of the proposed method. The test results show that the proposed method can effectively coordinate the decision-making of direct grid dispatching and pumped storage participation in the electric energy spot market, enhancing the economic benefits of pumped storage, reducing the operating cost of the grid, and improving the consumption of renewable energy.

Key words: spot market, two-part power price, Stackelberg game, pumped-hydro storage, coordinated dispatch

CLC Number:

LOU Wei, HU Rong, YU Jinming, ZHANG Xipeng, FAN Feilong, LIU Songyuan. Multi-Agent Coordinated Dispatch of Power Grid and Pumped Hydro Storage with Embedded Market Game Model[J]. Journal of Shanghai Jiao Tong University, 2025, 59(3): 365-375.

Figures/Tables 12

Fig.1

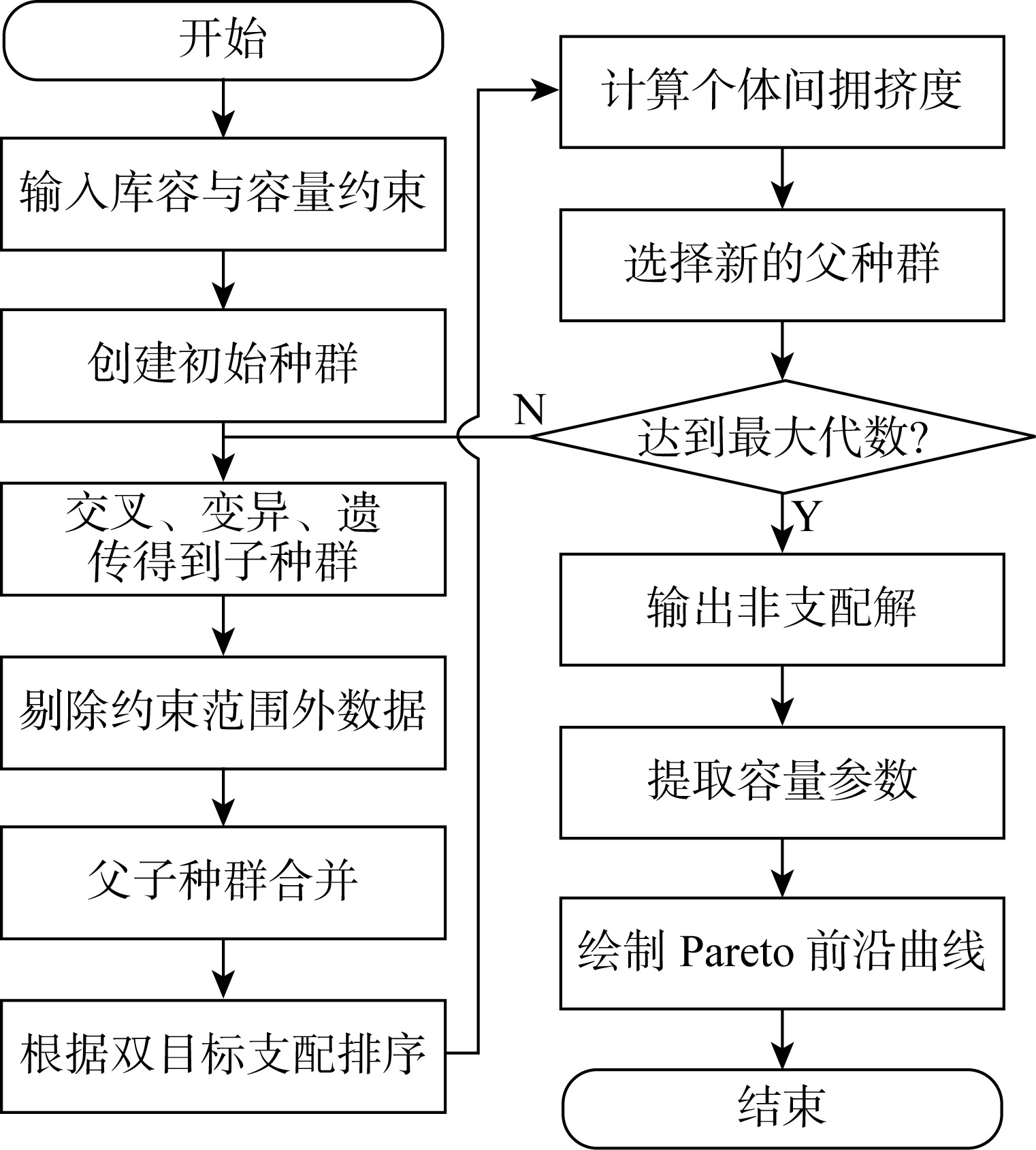

Fig.2

Tab.1

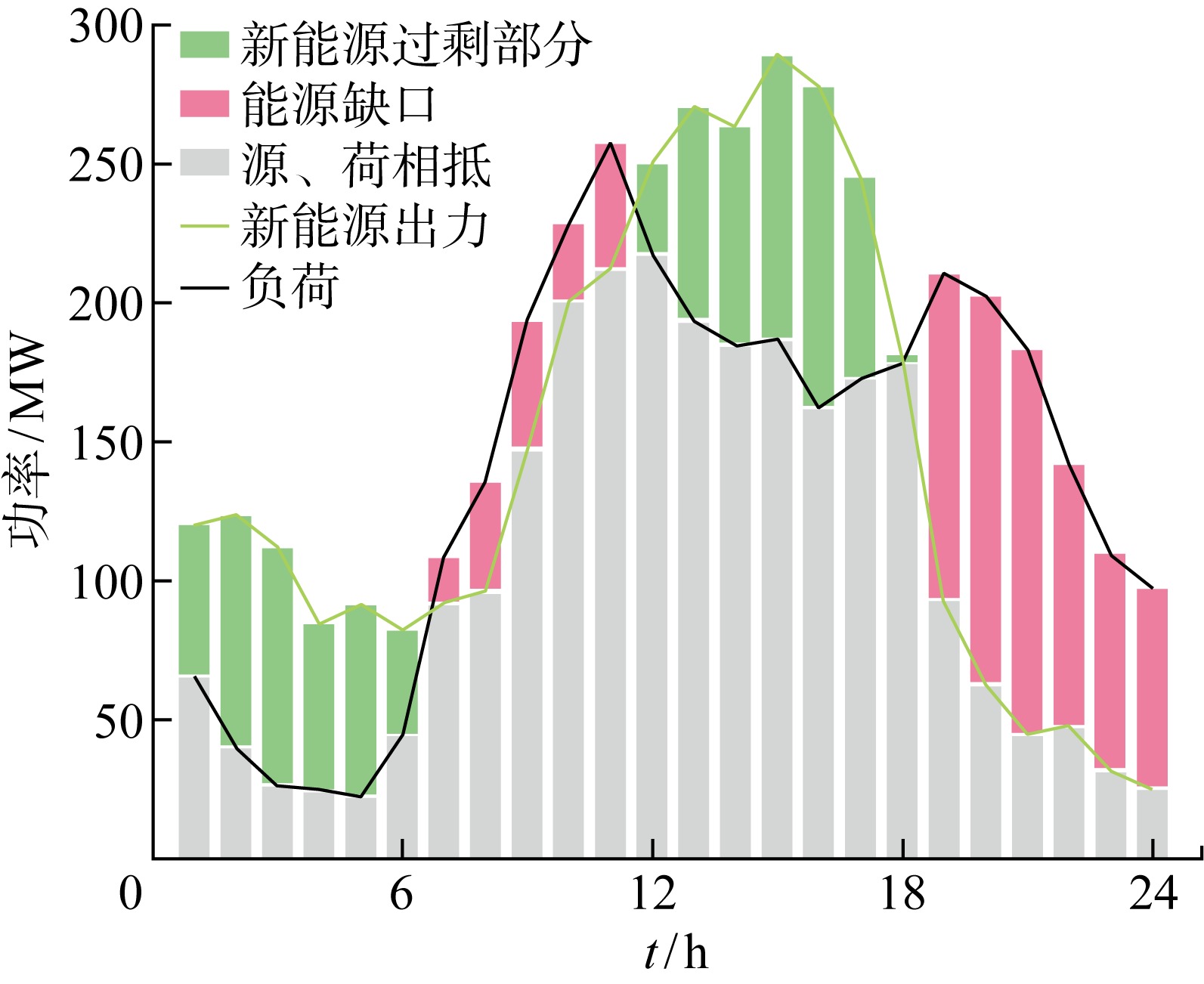

Fig.3

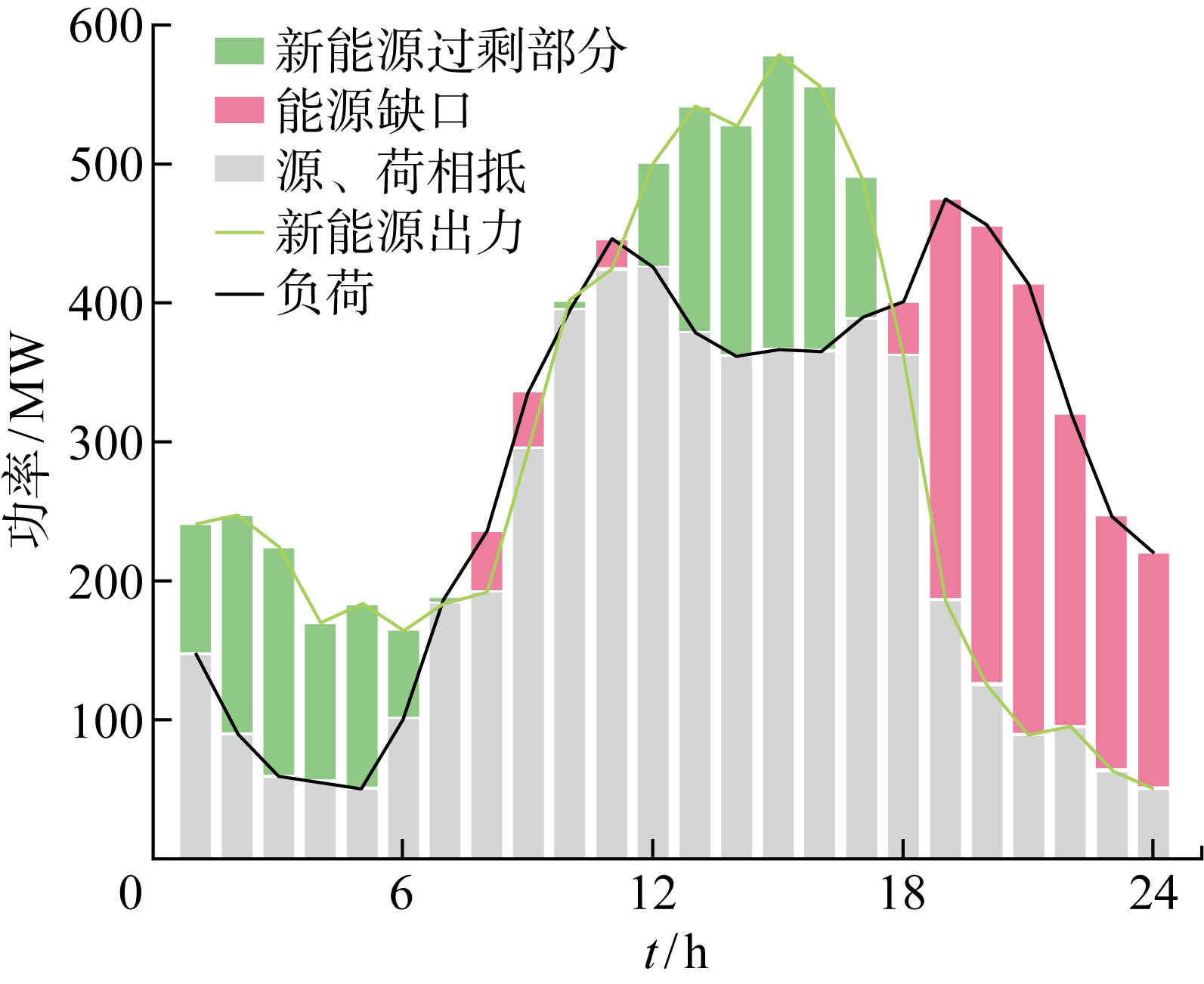

Fig.4

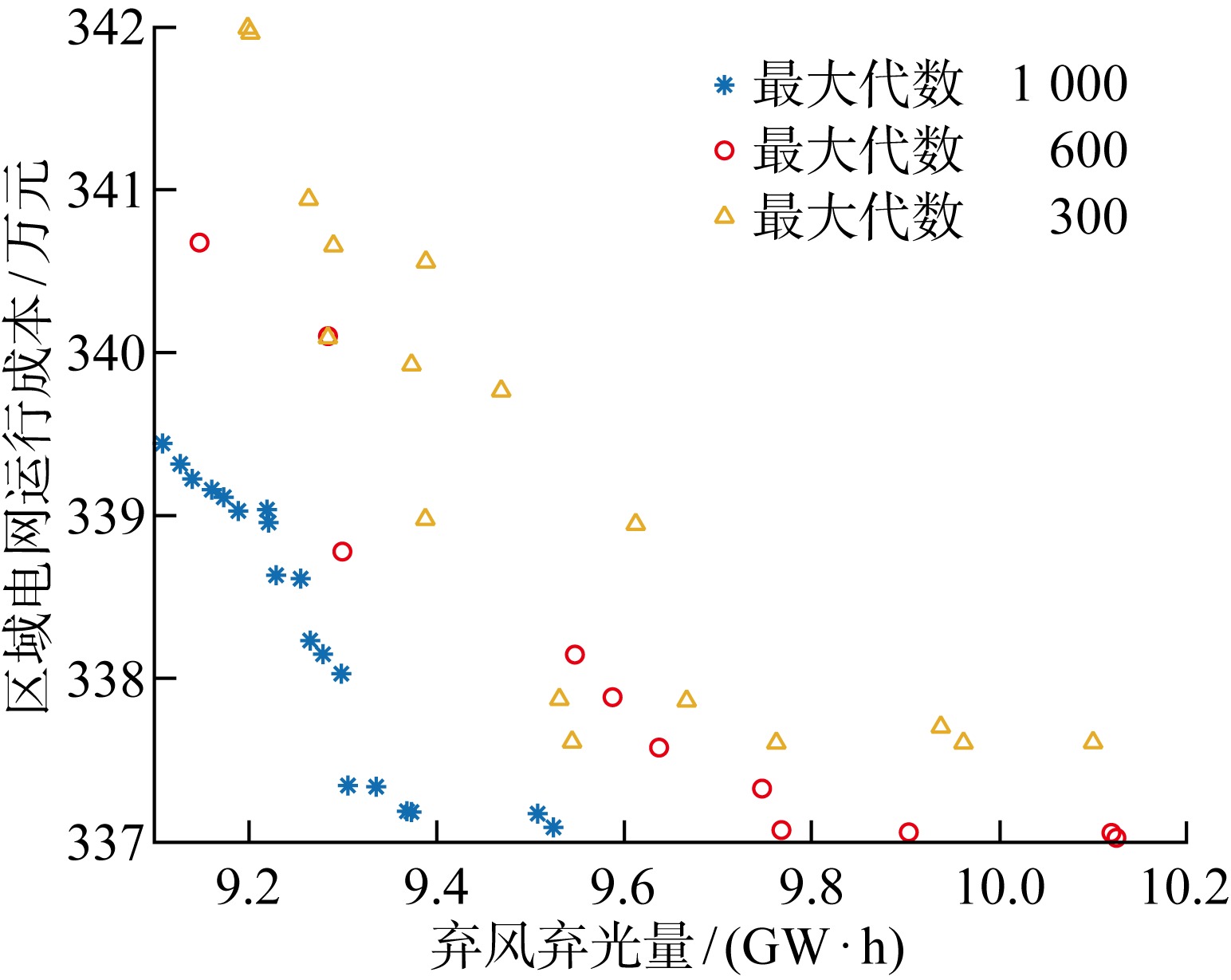

Fig.5

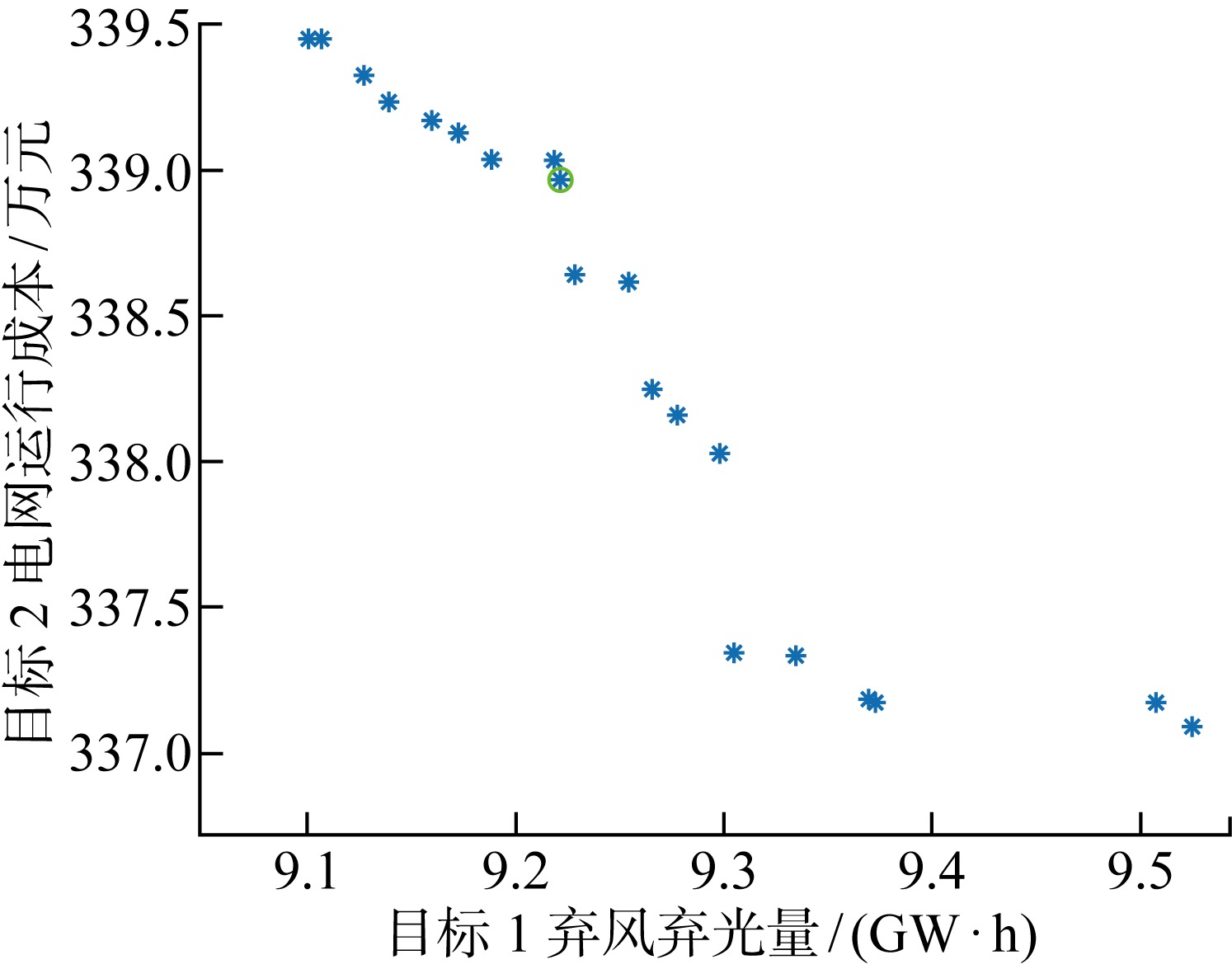

Fig.6

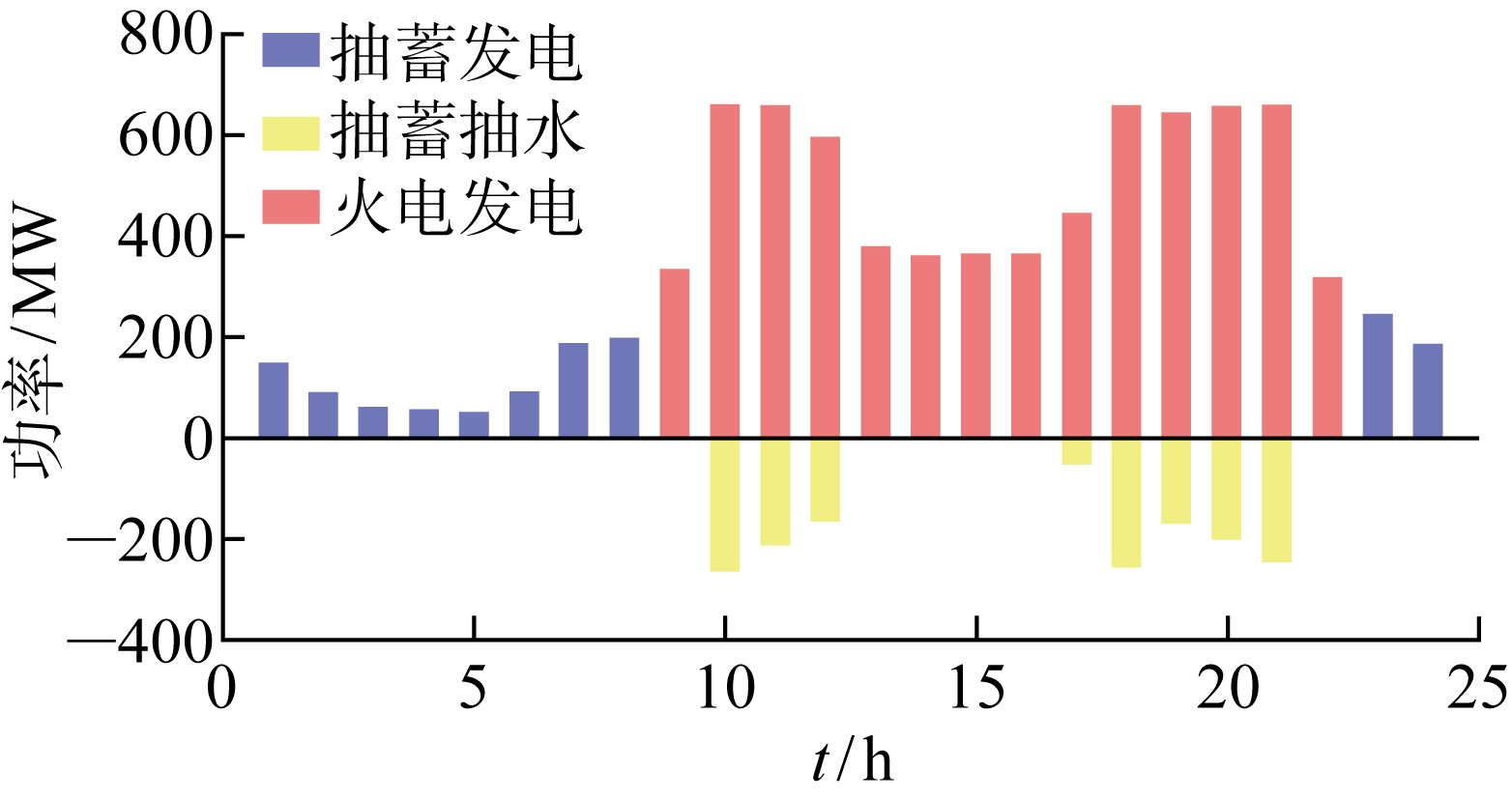

Fig.7

Fig.8

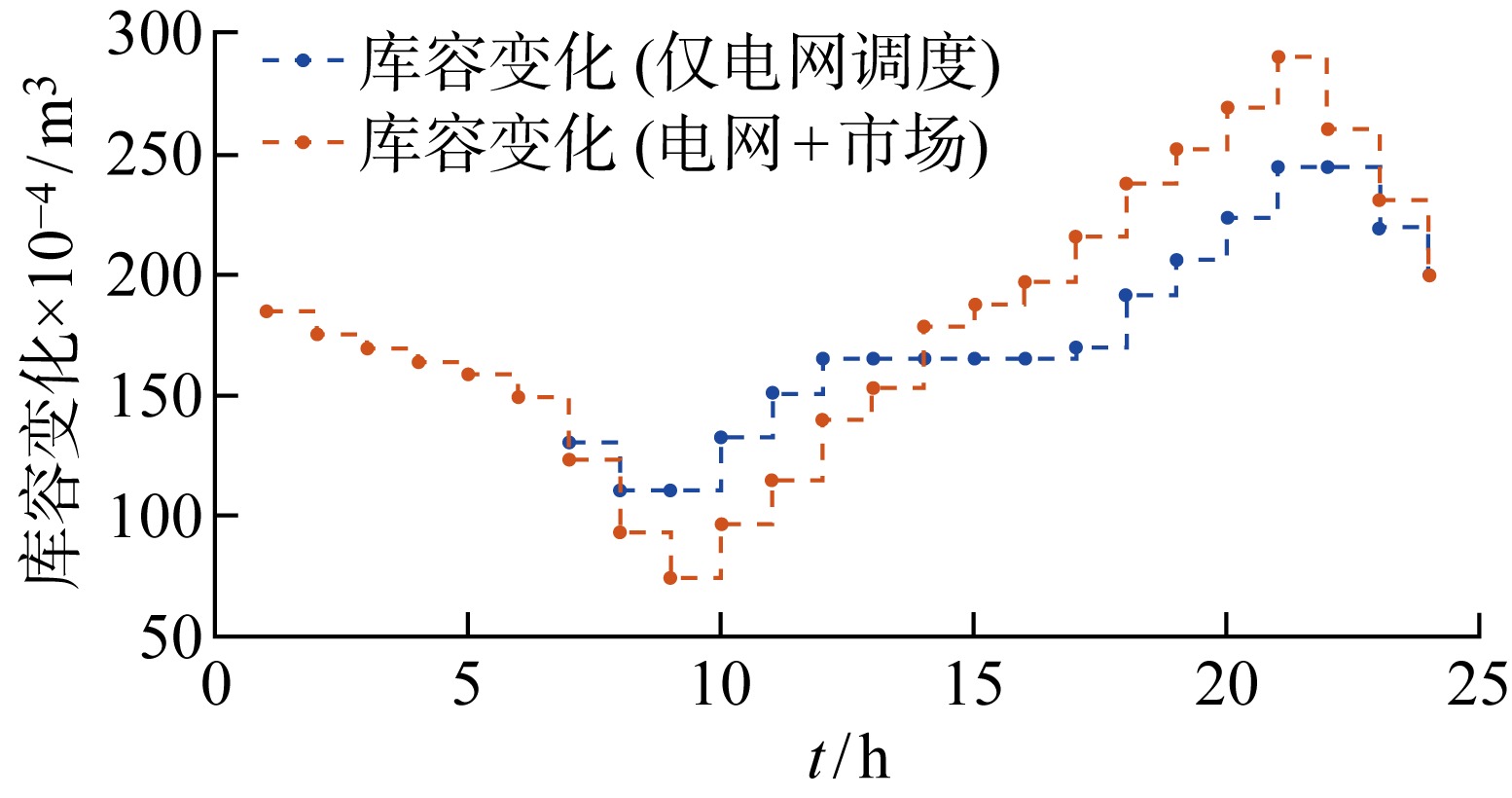

Fig.9

Tab.2

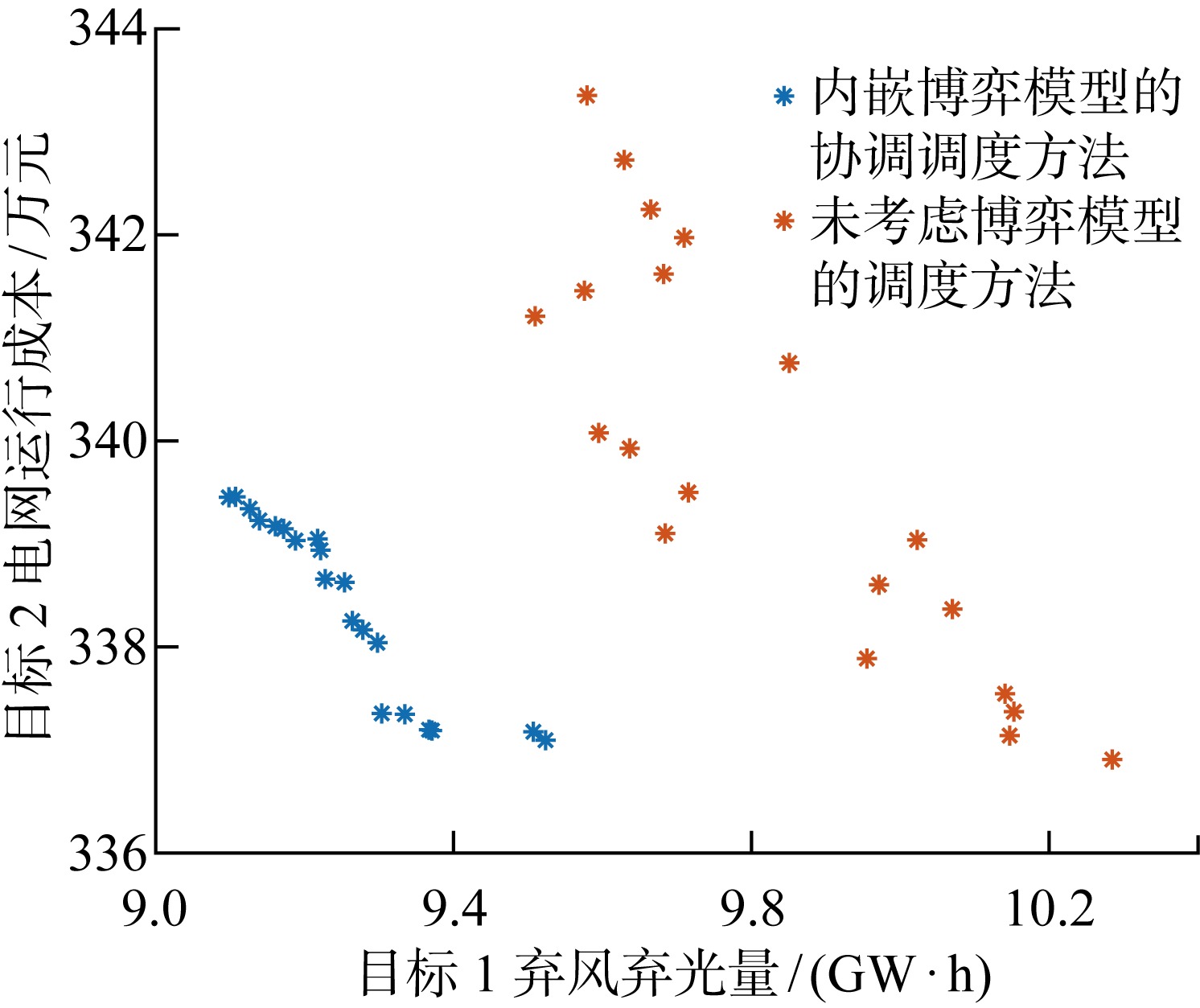

Fig.10

References 32

[1]	石文辉, 屈姬贤, 罗魁, 等. 高比例新能源并网与运行发展研究[J]. 中国工程科学, 2022, 24(6): 52-63. doi: 10.15302/J-SSCAE-2022.07.006
	SHI Wenhui, QU Jixian, LUO Kui, et al. Grid-integration and operation of high-proportioned new energy[J]. Strategic Study of CAE, 2022, 24(6): 52-63. doi: 10.15302/J-SSCAE-2022.07.006
[2]	李明节, 陈国平, 董存, 等. 新能源电力系统电力电量平衡问题研究[J]. 电网技术, 2019, 43(11): 3979-3986.
	LI Mingjie, CHEN Guoping, DONG Cun, et al. Research on power balance of high proportion renewable energy system[J]. Power System Technology, 2019, 43(11): 3979-3986.
[3]	LALEMAN R, ALBRECHT J. Nuclear and old fossil phase out scenarios: Assessment of shortages, surpluses and the load factor of flexible assets with high renewable generation targets—A Belgian case study[J]. International Journal of Electrical Power & Energy Systems, 2016, 1(74): 338-347.
[4]	邱燕超. 推动抽水蓄能装备制造业向高端迈进[N]. 中国电力报, 2023-04-28(003).
	QIU Yanchao. Promote the high-end development of pumped storage equipment manufacturing industry[N]. China Electric Power News, 2023-04-28(003).
[5]	郝军. “双碳”目标下抽水蓄能发展思考[J]. 西北水电, 2022, 199(6): 138-143.
	HAO Jun. Thinking on the development of pumped storage power stations under the “carbon peak and neutrality” targets[J]. Northwest Hydropower, 2022, 199(6): 138-143.
[6]	刘奕彤, 艾欣. 基于主从博弈的独立储能系统参与日前现货联合市场的交易策略研究[J]. 现代电力, 2023, 40(5): 751-759.
	LIU Yitong, AI Xin. Research on trading strategy of independent energy storage system participating in day ahead spot joint market based on master-slave game[J]. Modern Electric Power, 2023, 40(5): 751-759.
[7]	陈中瑶, 林凯颖, 王蓓蓓, 等. 单侧放开市场中基于Stackelberg均衡分析的最低效率损失需求响应激励机制设计[J]. 电网技术, 2022, 46(5): 1790-1800.
	CHEN Zhongyao, LIN Kaiying, WANG Beibei, et al. Design of demand response incentive mechanism considering lowest efficiency loss based on Stackelberg equilibrium analysis in unilateral liberalization market[J]. Power System Technology, 2022, 46(5): 1790-1800.
[8]	卢治霖, 尚楠, 张妍, 等. 发电企业参与容量市场的纳什-主从博弈模型[J]. 电力系统自动化, 2023, 47(16): 94-102.
	LU Zhilin, SHANG Nan, ZHANG Yan, et al. Nash-Stackelberg game model for power generation enterprises participating in capacity market[J]. Automation of Electric Power Systems, 2023, 47(16): 94-102.
[9]	李亚鹏, 赵麟, 王祥祯, 等. 不确定碳-电耦合市场下梯级水电双层竞价模型[J]. 电力系统自动化, 2023, 47(20): 83-94.
	LI Yapeng, ZHAO Lin, WANG Xiangzhen, et al. Bi-level bidding model for cascaded hydropower under uncertain carbonelectricity coupled market[J]. Automation of Electric Power Systems, 2023, 47(20): 83-94.
[10]	李迁, 姜欣, 张钧钊, 等. 规模化储能参与电力现货市场的商业模式[J]. 上海交通大学学报, 2023, 57(12): 1543-1558. doi: 10.16183/j.cnki.jsjtu.2022.187
	LI Qian, JIANG Xin, ZHANG Junzhao, et al. Business models for large-scale energy storage systems to participate in electricity spot market[J]. Journal of Shanghai Jiao Tong University, 2023, 57(12): 1543-1558.
[11]	ANTWEILER W. A two-part feed-in-tariff for intermittent electricity generation[J]. Energy Economics, 2017, 65: 458-470.
[12]	姚丛霄. 参与电网宽时间尺度调节的抽/储电站综合效能评估研究[D]. 北京: 华北电力大学(北京), 2022.
	YAO Congxiao. Research on the comprehensive performance evaluation of pumping/storage station participiating in serving power grids in wide time scale[D]. Beijing: North China Electric Power University (Beijing), 2022.
[13]	刘军, 李凌阳, 吴梦凯, 等. 分布式抽水蓄能电站与新能源发电联合参与现货市场的两阶段优化运行策略[J]. 浙江电力, 2023, 42(2): 50-58.
	LIU Jun, LI Lingyang, WU Mengkai, et al. A two-stage optimal operation strategy of distributed pumped storage power plant and new energy power generation jointly participating in spot market[J]. Zhejiang Electric Power, 2023, 42(2): 50-58.
[14]	王凯, 延肖何, 刘念. 基于投资组合理论的风光储场站参与多时间尺度电力现货市场的出力分配优化方法[J]. 工程科学与技术, 2023, 55(1): 101-109.
	WANG Kai, YAN Xiaohe, LIU Nian. Output allocation optimization method for the wind photovoltaic energy storage power station in the multi-time-scale electricity spot market under portfolio theory[J]. Advanced Engineering Sciences, 2023, 55(1): 101-109.
[15]	孟繁林, 钟海旺, 夏清. 高比例可再生能源电力系统中电量约束型机组参与现货市场的机制[J]. 电网技术, 2023, 47(3): 1047-1055.
	MENG Fanlin, ZHONG Haiwang, XIA Qing. Spot market mechanism for energy constrained generation units in high proportion renewable energy power system[J]. Power System Technology, 2023, 47(3): 1047-1055.
[16]	GARCIA-GONZALEZ J, DE LA MUELA R M R, SANTOS L M, et al. Stochastic joint optimization of wind generation and pumped-storage units in an electricity market[J]. IEEE Transactions on Power Systems. 2008, 23(2): 460-468.
[17]	SOUSA J, TEIXEIRA F, FAIAS S. Impact of a price-maker pumped storage hydro unit on the integration of wind energy in power systems[J]. Energy, 2014, 69: 3-11.
[18]	PARASTEGARI M, HOOSHMAND R-A, KHODABAKHSHIAN A, et al. Joint operation of wind farms and pump-storage units in the electricity markets: Modeling, simulation and evaluation[J]. Simulation Modelling Practice and Theory, 2013, 37: 56-69.
[19]	BARBOUR E, WILSON I.A. G, RADCLIFFE J, et al. A review of pumped hydro energy storage development in significant international electricity markets[J]. Renewable and Sustainable Energy Reviews, 2016, 61: 421-32.
[20]	国家发改委. 关于进一步完善抽水蓄能价格形成机制的意见[EB/OL]. (2021-04-30)[2023-06-28]. https://www.gov.cn/zhengce/zhengceku/2021-05/08/content_5605367.htm.
	The National Development and Reform Commission. Opinions on further improving the price formation mechanism of pumped storage energy[EB/OL]. (2021-04-30)[2023-06-28]. https://www.gov.cn/zhengce/zhengceku/2021-05/08/content_5605367.htm.
[21]	KONG Y G, KONG Z G, LIU Z Q, et al. Pumped storage power stations in China: The past, the present, and the future[J]. Renewable and Sustainable Energy Reviews, 2017, 71: 720-731.
[22]	姚俊伟, 汪萌, 赵红生, 等. 考虑成本回收的地方电网抽蓄容量优化配置[J]. 水电能源科学, 2022, 40(11): 208-211.
	YAO Junwei, WANG Meng, ZHAO Hongsheng, et al. Optimal allocation of pumped storage capacity of local power grid considering cost recovery[J]. Water Resources Science, 2022, 40(11): 208-211.
[23]	李华, 郑洪纬, 周博文, 等. 综合智慧能源系统中抽水蓄能电站两部制电价研究[J]. 综合智慧能源, 2022, 44(7): 10-18. doi: 10.3969/j.issn.2097-0706.2022.07.002
	LI Hua, ZHENG Hongwei, ZHOU Bowen, et al. Two-part tariff for pumped storage power plants in an integrated intelligent energy system[J]. Integrated Intelligent Energy, 2022, 44(7): 10-18. doi: 10.3969/j.issn.2097-0706.2022.07.002
[24]	LI H, ZHENG H W, ZHOU B W, et al. Two-part tariff of pumped storage power plants for wind power accommodation[J]. Sustainability, 2022, 14(9): 5603.
[25]	丁涛, 孙嘉玮, 黄雨涵, 等. 储能参与容量市场的国内外现状及机制思考[J]. 电力系统自动化, 2024, 48(6): 226-239.
	DING Tao, SUN Jiawei, HUANG Yuhan, et al. Domestic and foreign present situation of capacity market with energy storage and reflection on its mechanism[J]. Automation of Electric Power Systems, 2024, 48(6): 226-239.
[26]	李红军, 李成仁, 王卫军. 当前抽水蓄能电站电价疏导问题分析[J]. 能源技术经济, 2010, 22(9): 38-42.
	LI Hongjun, LI Chengren, WANG Weijun. Analysis on current tariff-sharing issues for pumped-storage powerplants[J]. Energy Technology and Economics, 2010, 22(9): 38-42.
[27]	刘飞, 车琰瑛, 田旭, 等. 新型电力系统下的抽水蓄能电站成本疏导机制:综述与展望[J]. 上海交通大学学报, 2023, 57(7): 757-768. doi: 10.16183/j.cnki.jsjtu.2021.516
	LIU Fei, CHE Yanying, TIAN Xu, et al. Cost sharing mechanisms of pumped storage stations in the new-type power system: Review and prospect[J]. Journal of Shanghai Jiao Tong University, 2023, 57(7): 757-768.
[28]	尹积军, 吴文传. 浙江构建新型电力系统的技术路径与实践[J]. 中国电机工程学报, 2023, 43(14): 5404-5415.
	YIN Jijun, WU Wenchuan. Technical path and practice for constructing the new type power system in Zhejiang Province[J]. Proceedings of the CSEE, 2023, 43(14): 5404-5415.
[29]	乔洪奎, 张义晗, 高美婷, 等. 关于新型电力系统中抽水蓄能电价机制的思考[J]. 水电与抽水蓄能, 2021, 7(6): 24-27.
	QIAO Hongkui, ZHANG Yihan, GAO Meiting, et al. Thinking about the price mechanism of pumped storage in new power systems[J]. Hydropower and Pumped Storage, 2021, 7(6): 24-27.
[30]	肖健, 钏星, 彭依明, 等. 基于主从博弈的配电网分布式电源电能定价[J]. 电力系统及其自动化学报, 2022, 34(10): 32-41.
	XIAO Jian, CHUAN Xing, PENG Yiming, et al. Electricity pricing of distribution network with distributed generations based on Stackelberg game[J]. Proceedings of the CSU-EPSA, 2022, 34(10): 32-41.
[31]	张衡, 张沈习, 程浩忠, 等. Stackelberg博弈在电力市场中的应用研究综述[J]. 电工技术学报, 2022, 37(13): 3250-3262.
	ZHANG Heng, ZHANG Shenxi, CHENG Hao-zhong, et al. A state-of-the-art review on Stackelberg game and its applications in power market[J]. Transactions of China Electrotechnical Society, 2022, 37(13): 3250-3262.
[32]	CHEN Z P, FAN F L, TAI N L, et al. Multi-objective voltage/VAR control for integrated port energy system considering multi-network integration[J]. Electrical Power and Energy Systems, 2023, 150: 109092.

参与者	参数	取值
火力发电厂1	最大出力/MW	660
火力发电厂2	最大出力/MW	660
抽水蓄能电站	最大出力/MW	300
	平均运行水头/m	400
	抽水工况能量转换效率	0.92
	发电工况能量转换效率	0.90
	上水库库容/m³	4×10⁶

参数	取值	是否利用抽水蓄能
新能源弃用量/(MW·h)	9 305	是
	9 846	否
电网运行成本/万元	337.3	是
	349.5	否
