SOC Balancing Strategy for Distributed Energy Storage Units in Isolated DC Microgrids Considering Capacity Differences

doi:10.16183/j.cnki.jsjtu.2023.271

Abstract

Abstract:

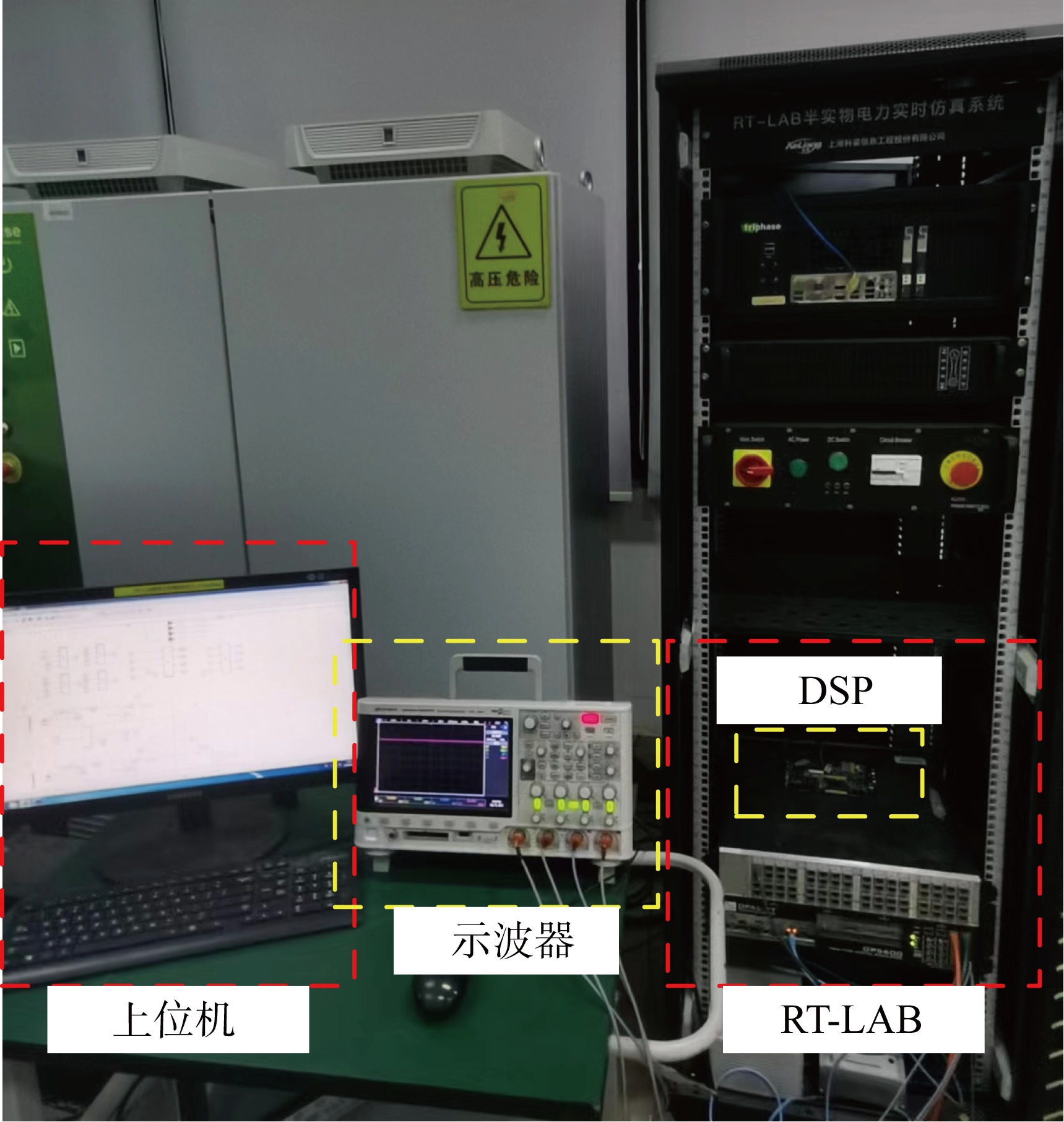

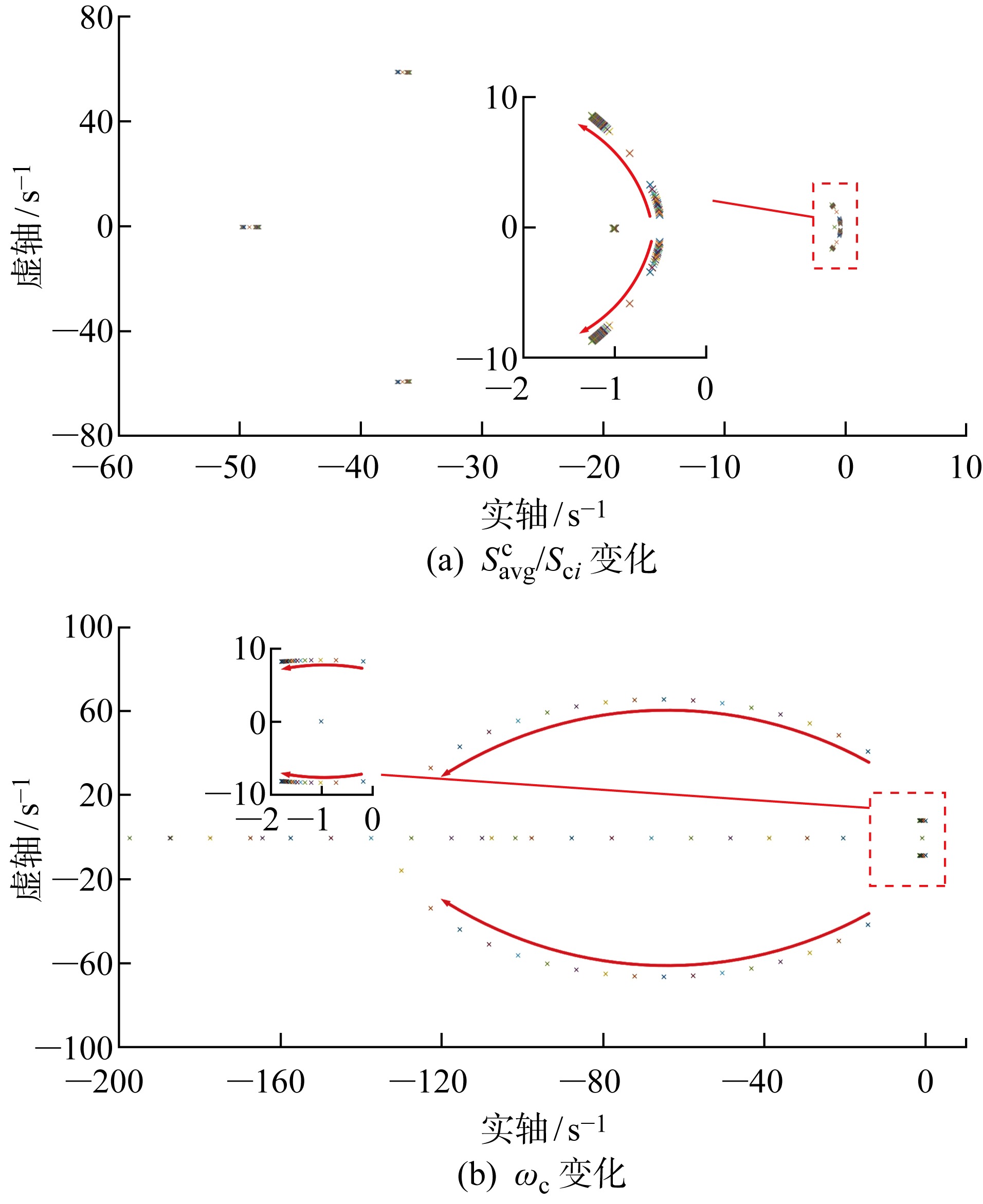

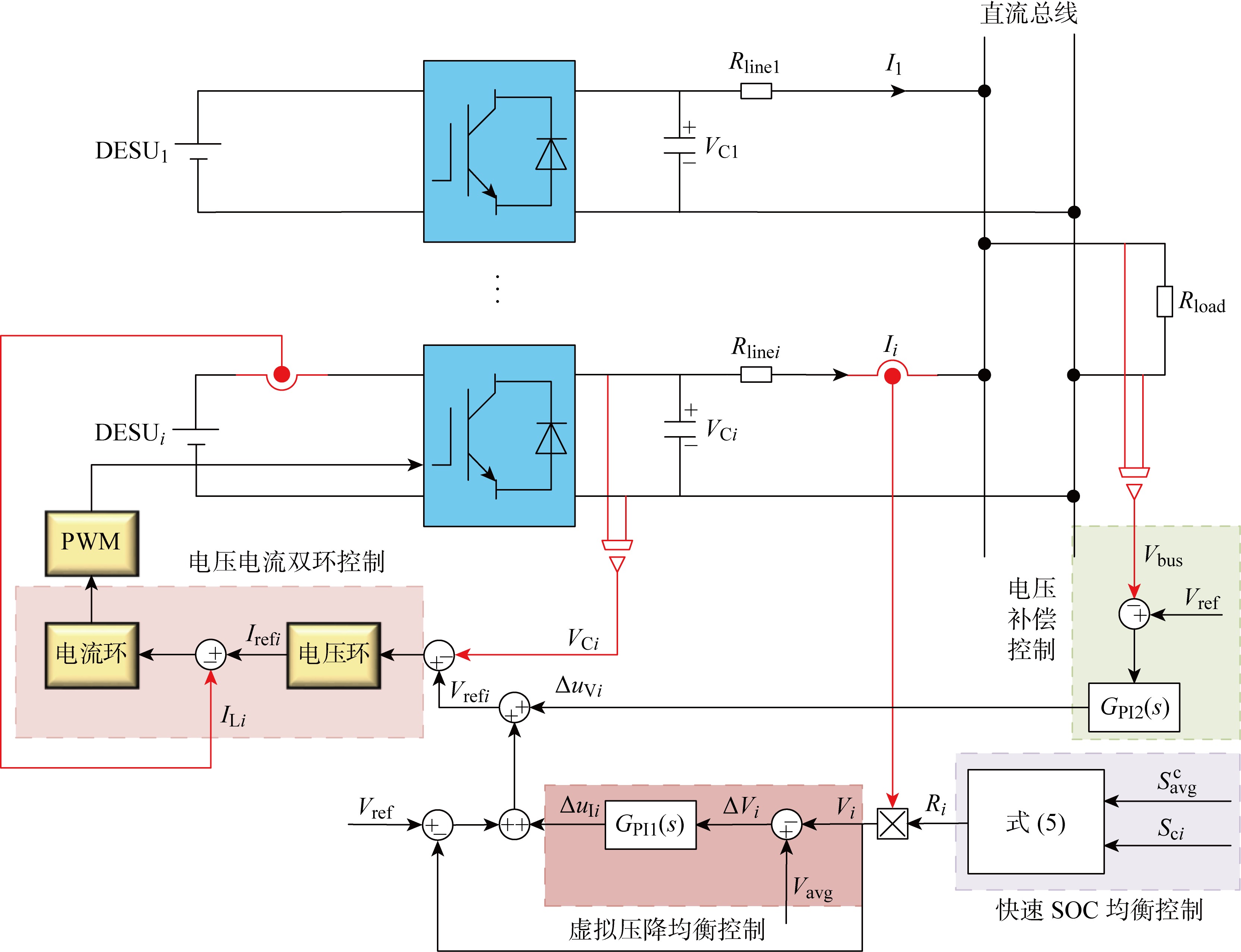

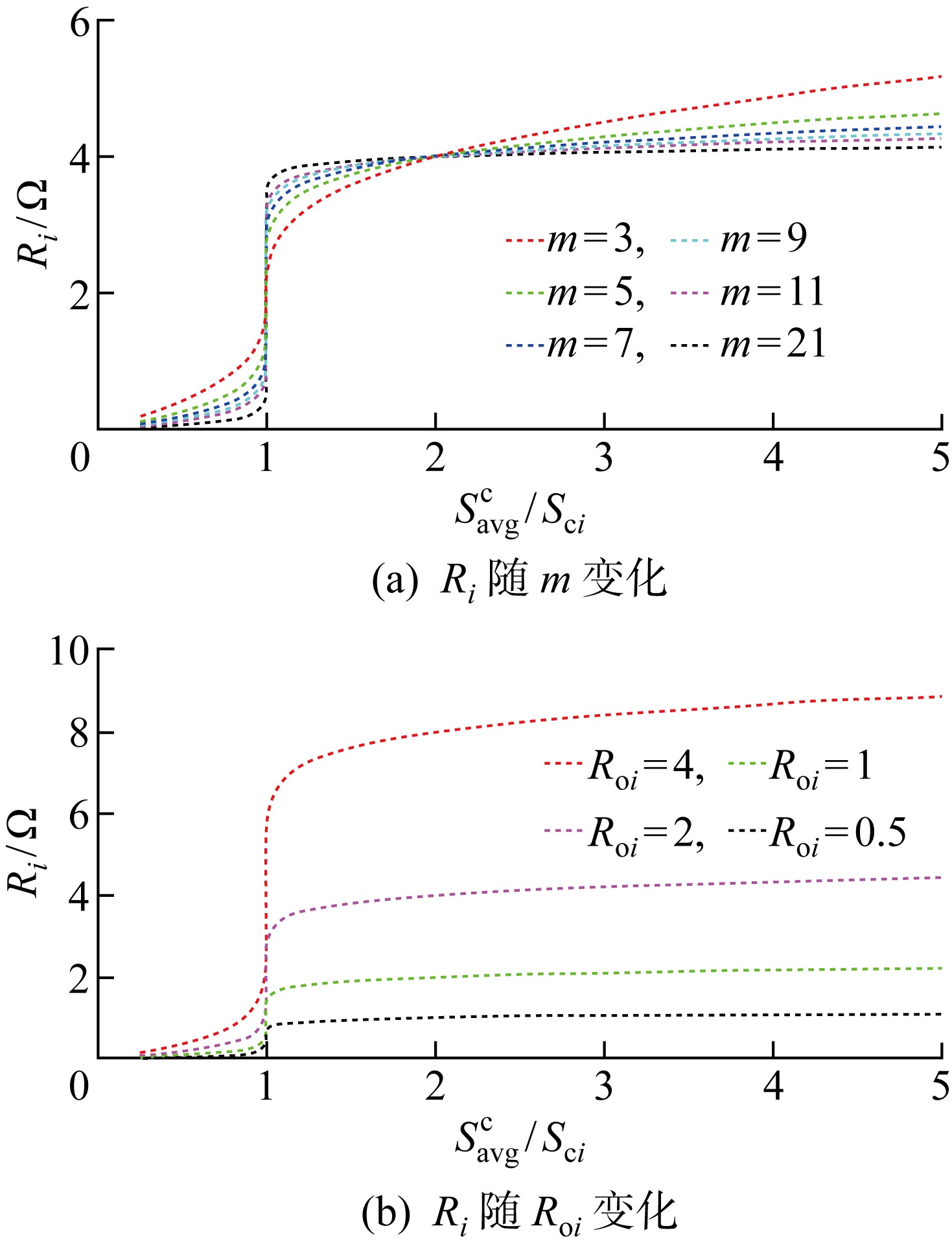

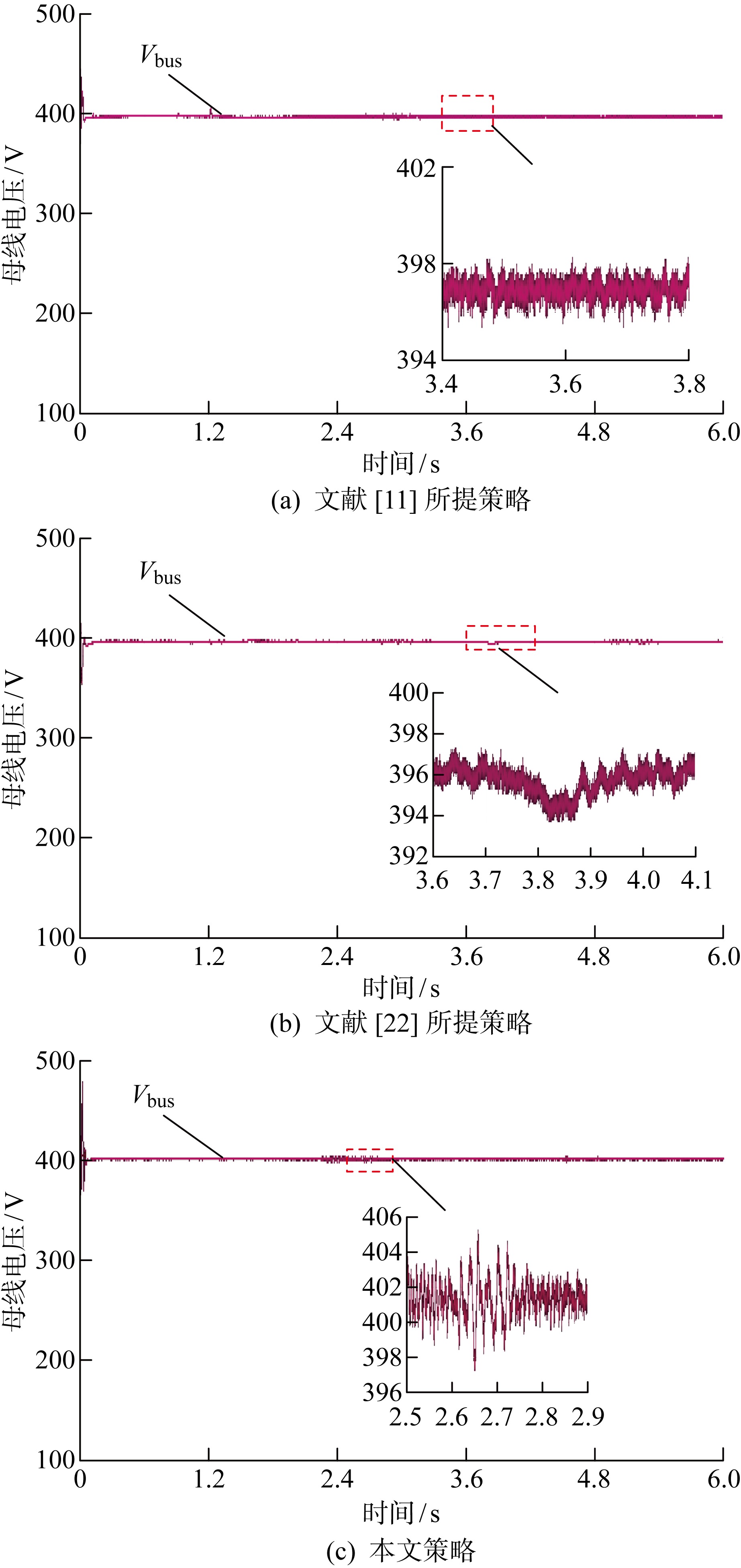

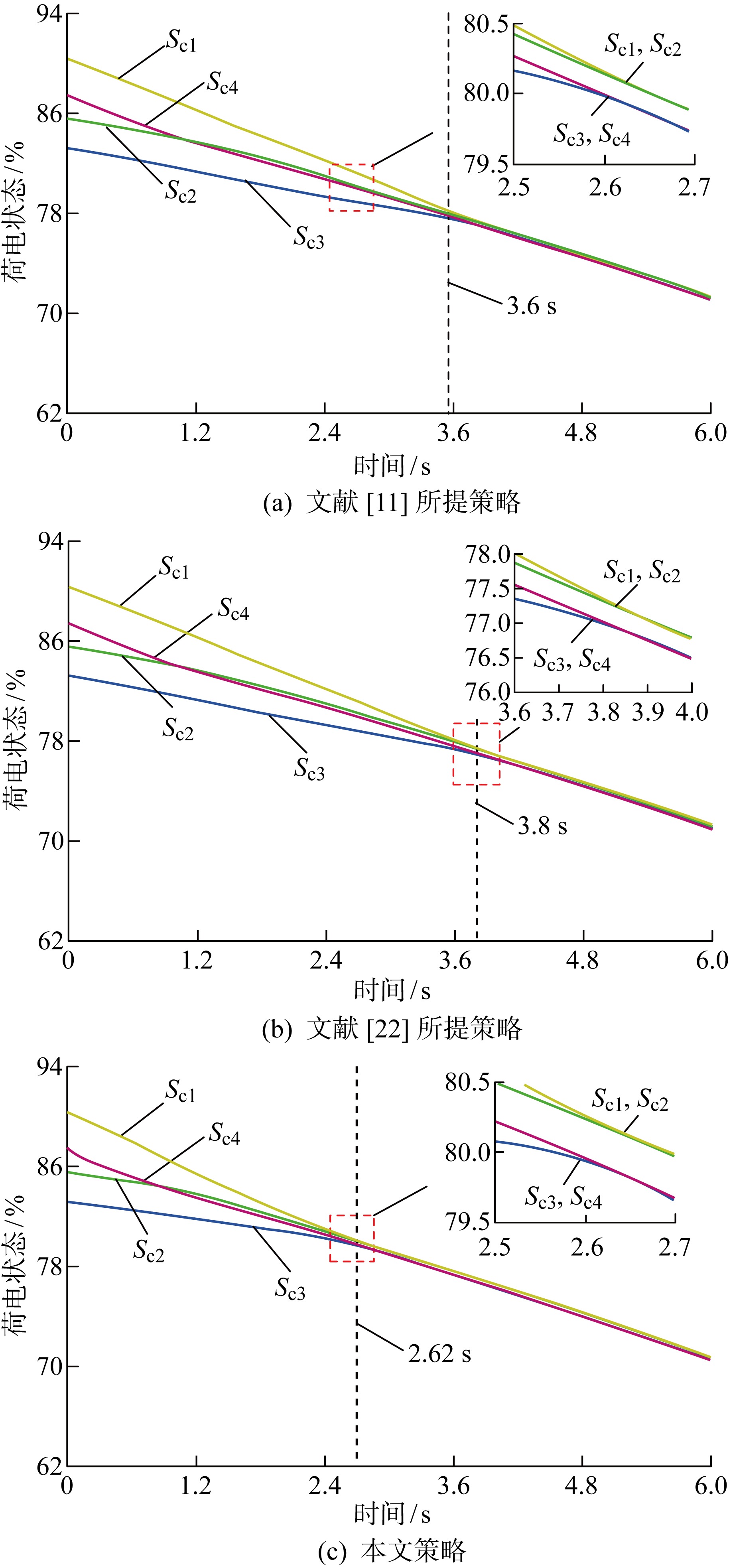

In an islanded DC microgrid, there is a problem of slow state of charge (SOC) equalization between distributed energy storage units (DESUs) with different capacities. To address this issue, a fast SOC equalization strategy for DESUs, which accounts for capacity differences, is proposed. First, the SOC equalizer constructs a relationship between the droop coefficient and SOC using a power function. By selecting appropriate equalization adjustment coefficients, the droop coefficient can be adaptively controlled, thereby accelerating SOC equalization. Then, the virtual droop equalizer is introduced to mitigate the impact of line impedance on current distribution accuracy by simply adjusting the PI controller, which improves the precision of current distribution. Additionly, the selection range of control parameters for this strategy is determined by using a system stability analysis. Finally, a DC microgrid hardware-in-the-loop experimental platform is developed. The experimental results, compared with those from existing literature under various operating conditions, demonstrate that the proposed control strategy improves the speed of SOC equalization and realizes the rapid recovery of bus voltage.

Key words: direct current (DC) microgrid, distributed energy storage system, state of charge (SOC), voltage equalization, voltage compensation

CLC Number:

TM732

WEI Maohua, YANG Ling, WENG Liangtao, YANG Jipei, CHEN Yongqiao. SOC Balancing Strategy for Distributed Energy Storage Units in Isolated DC Microgrids Considering Capacity Differences[J]. Journal of Shanghai Jiao Tong University, 2025, 59(3): 376-387.

Figures/Tables 16

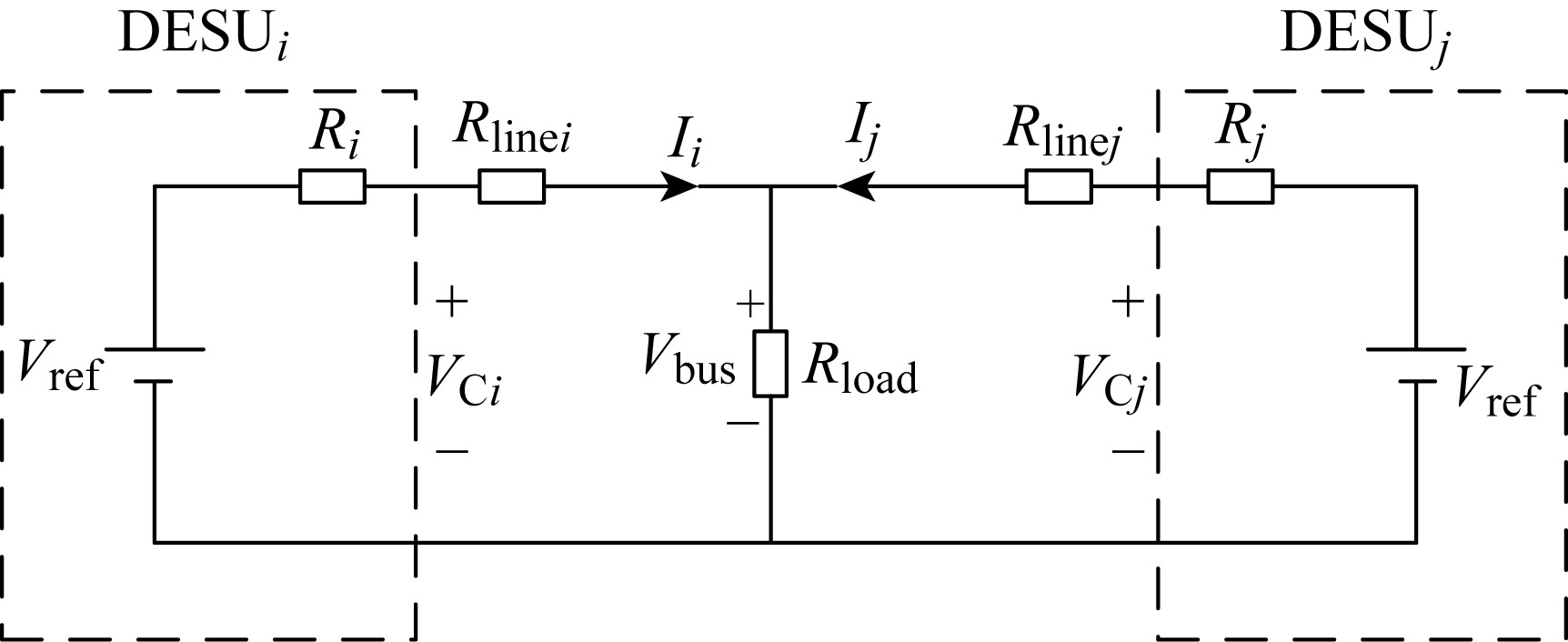

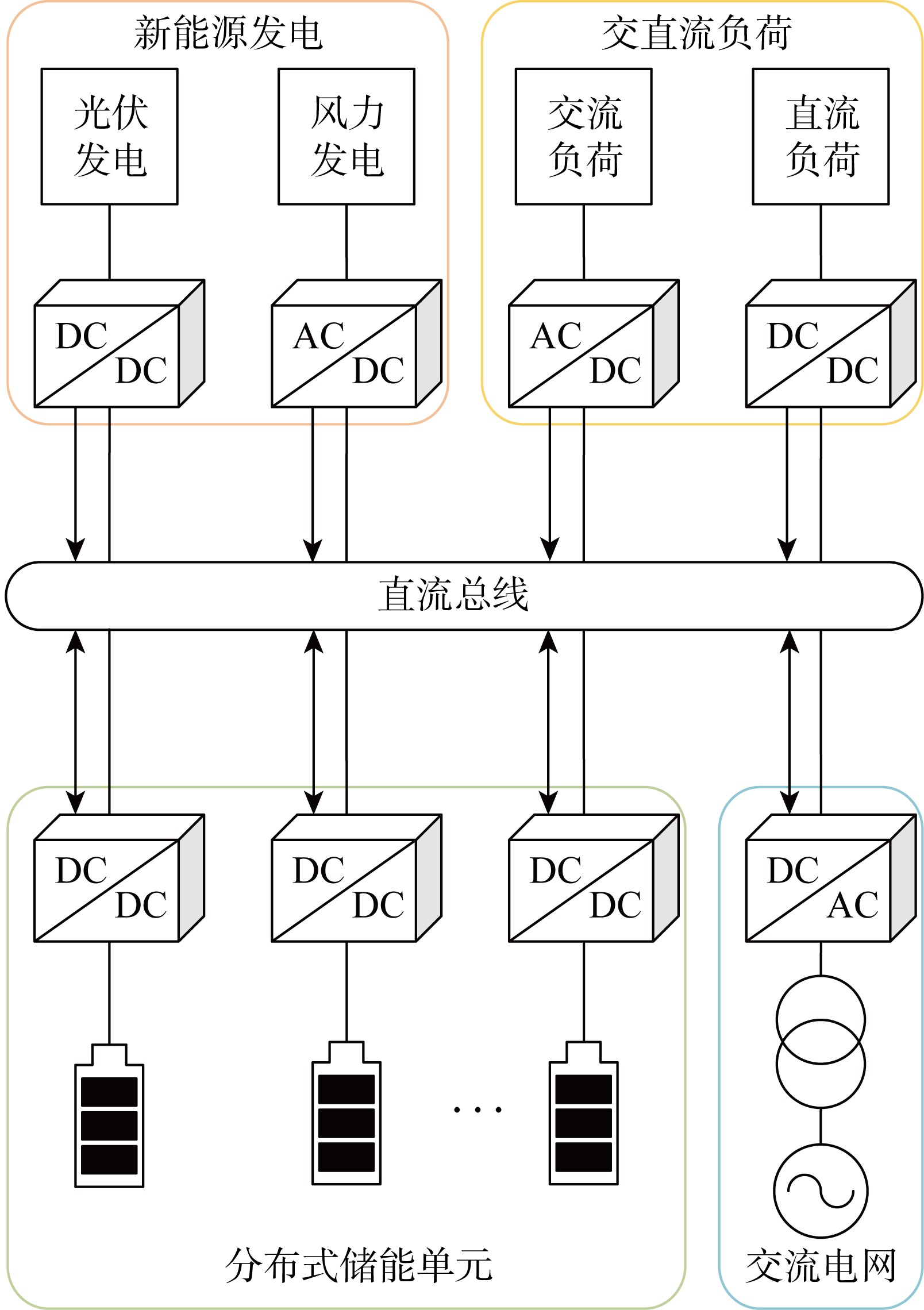

Fig.1

Fig.2

Fig.3

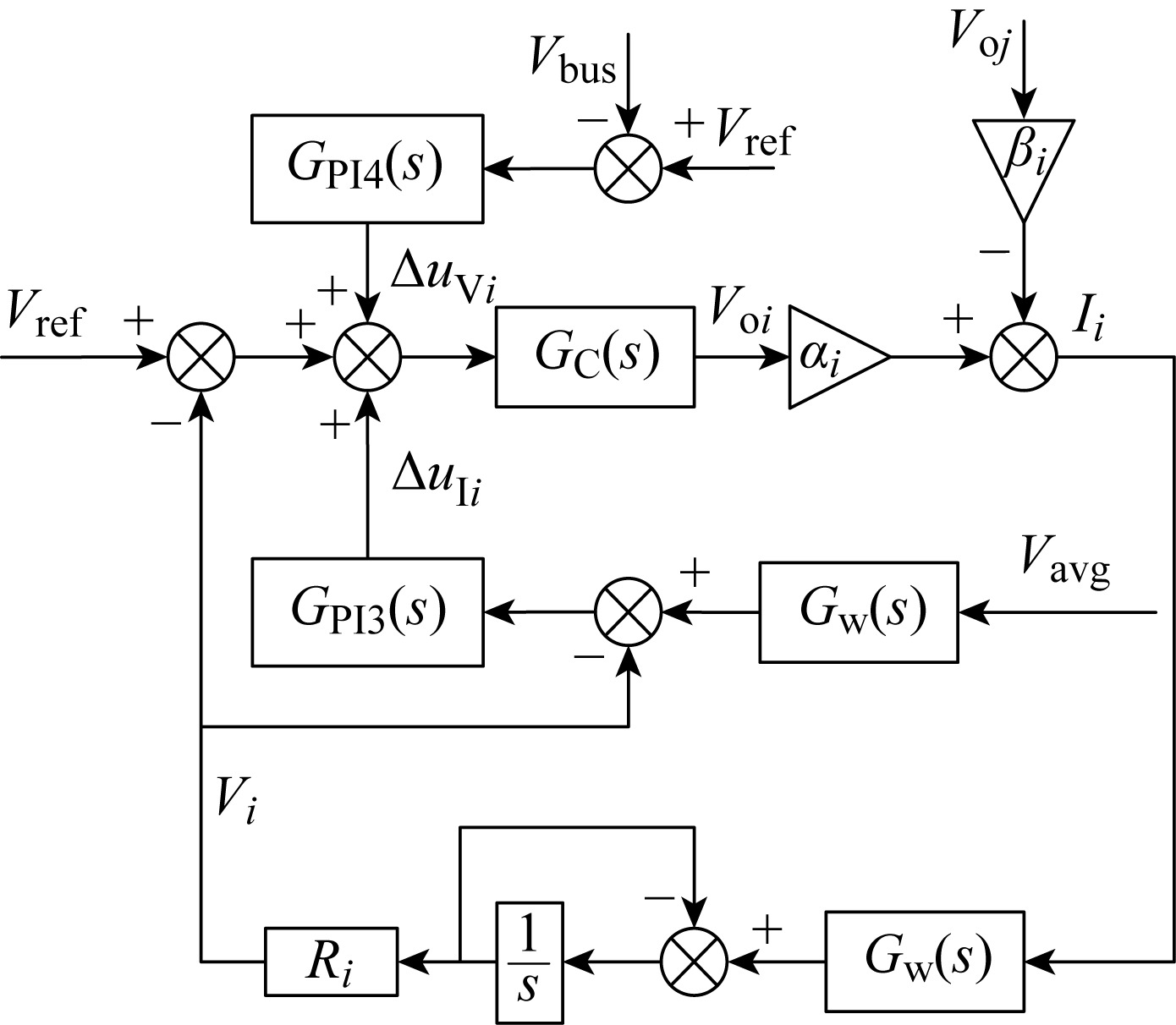

Fig.4

Fig.5

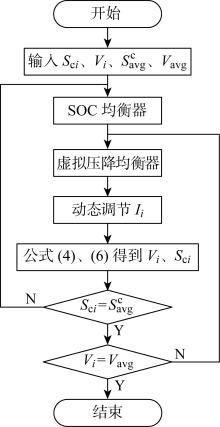

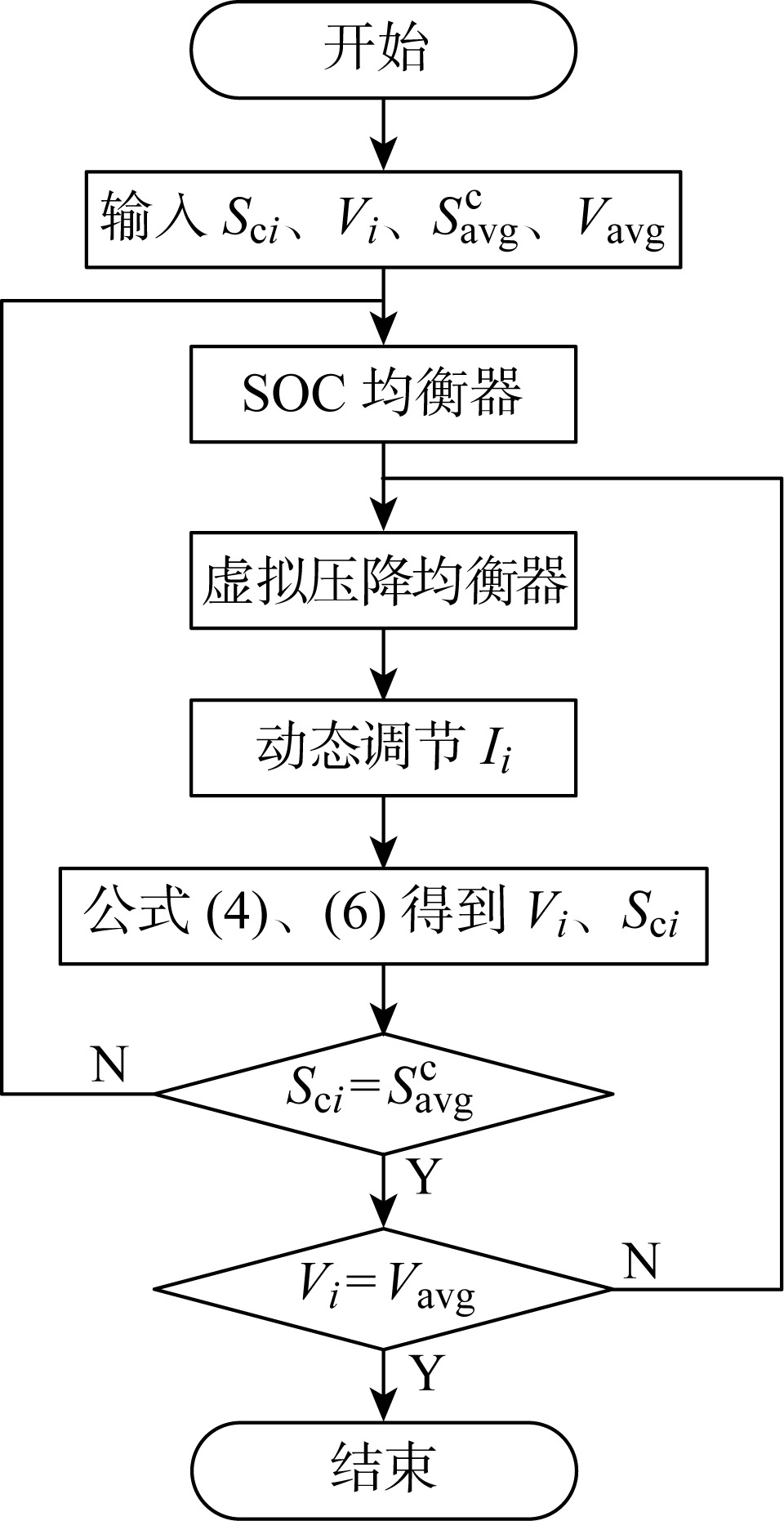

Fig.6

Tab.1

Fig.7

Fig.8

Tab.2

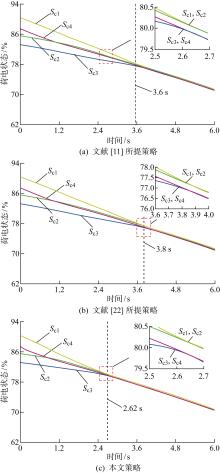

Fig.9

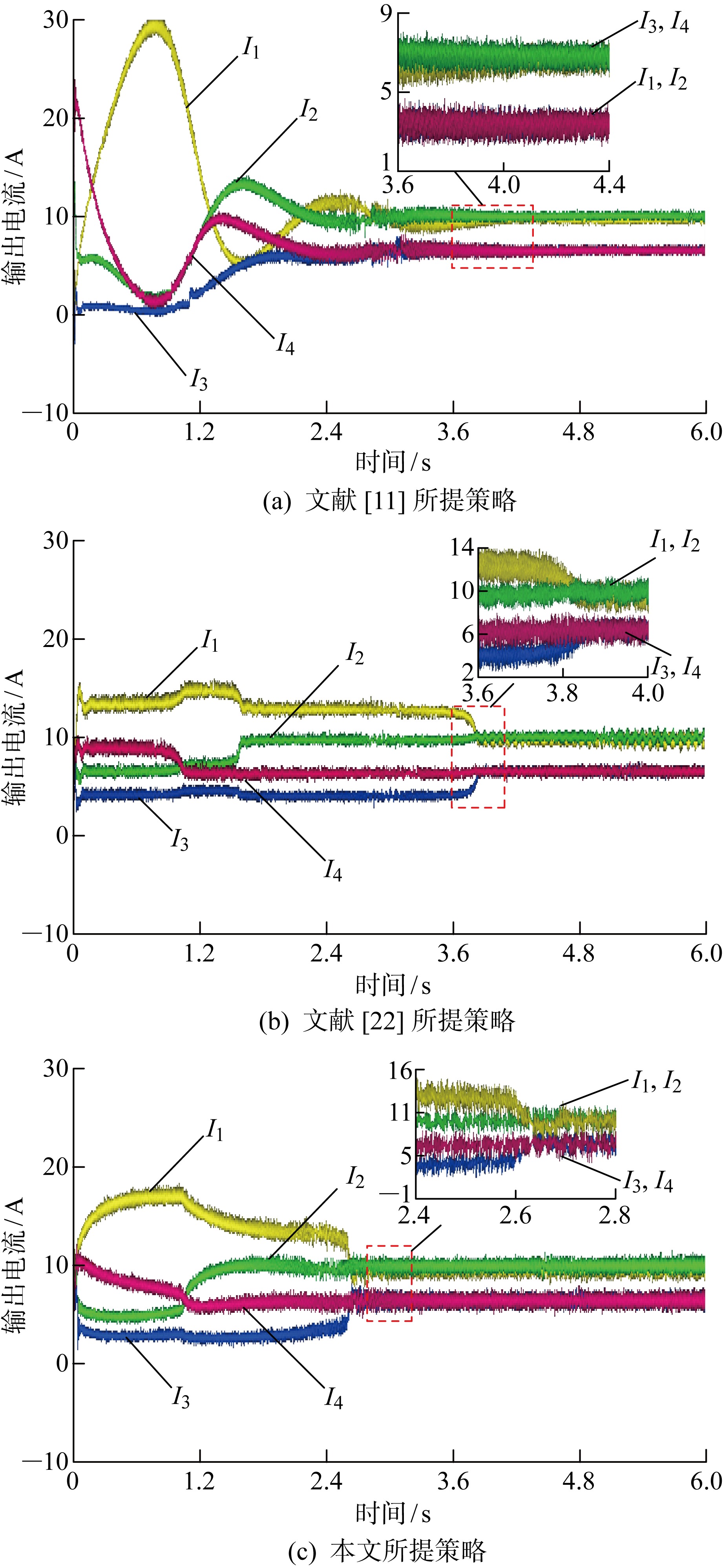

Fig.10

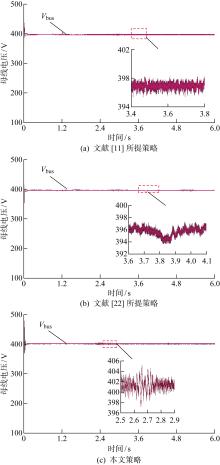

Fig.11

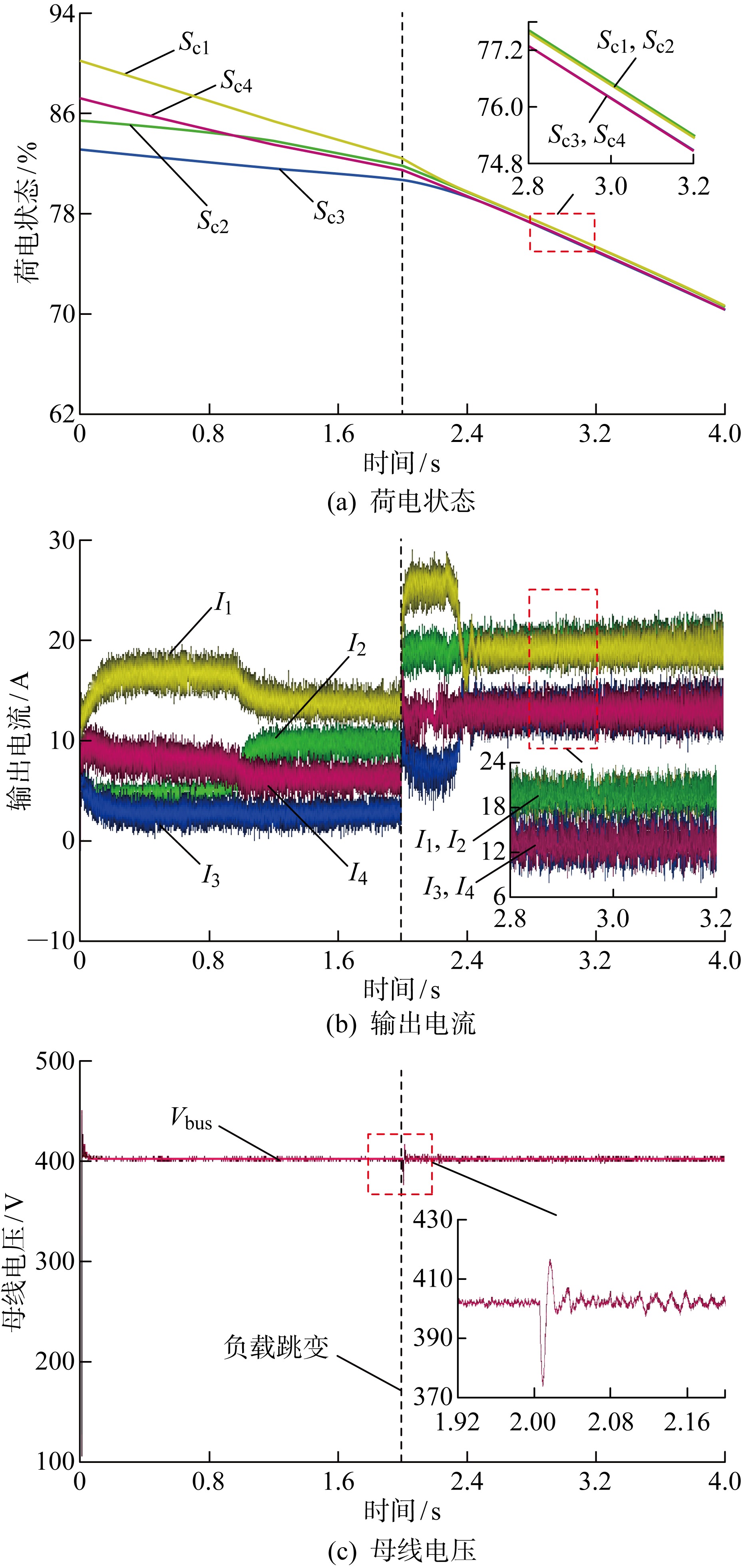

Fig.12

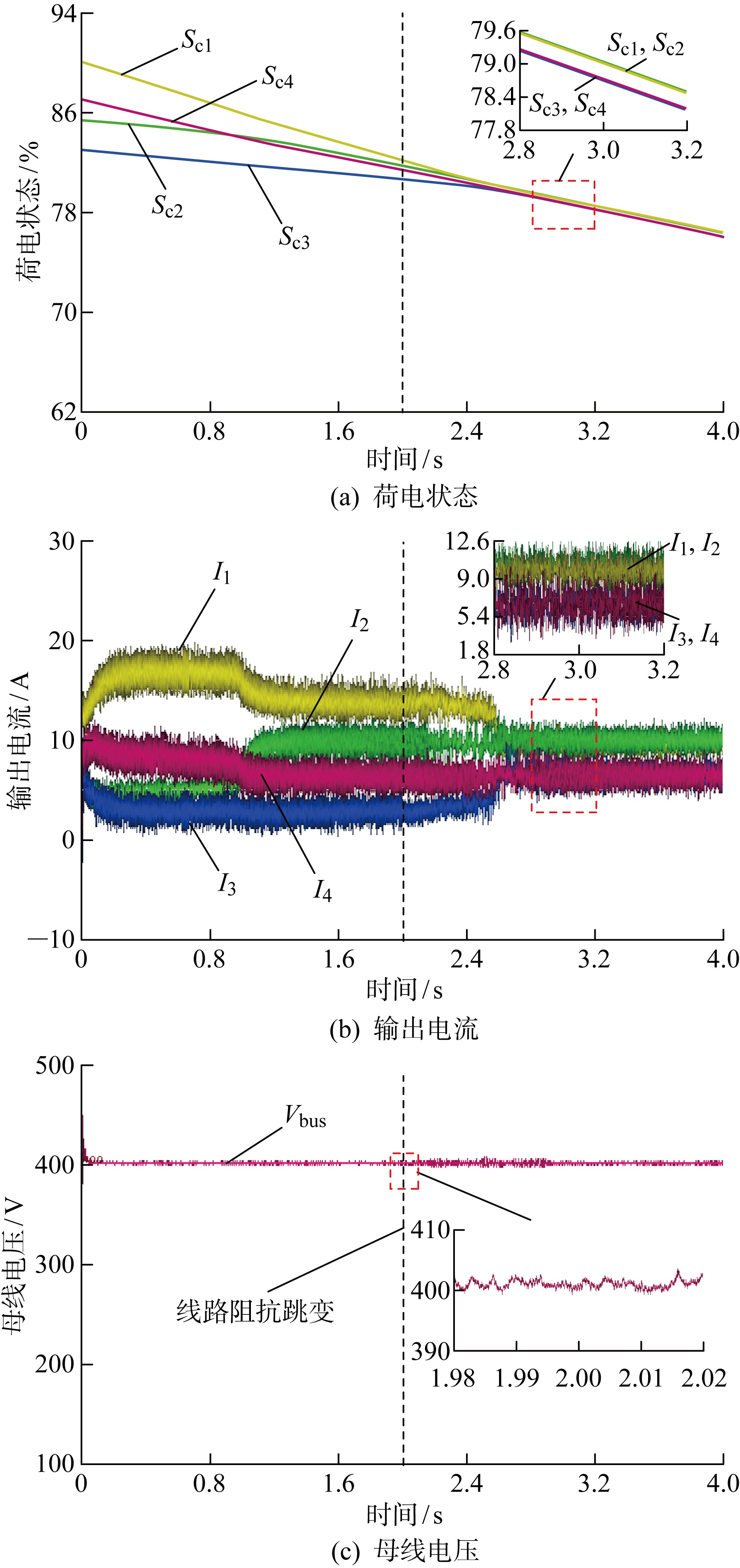

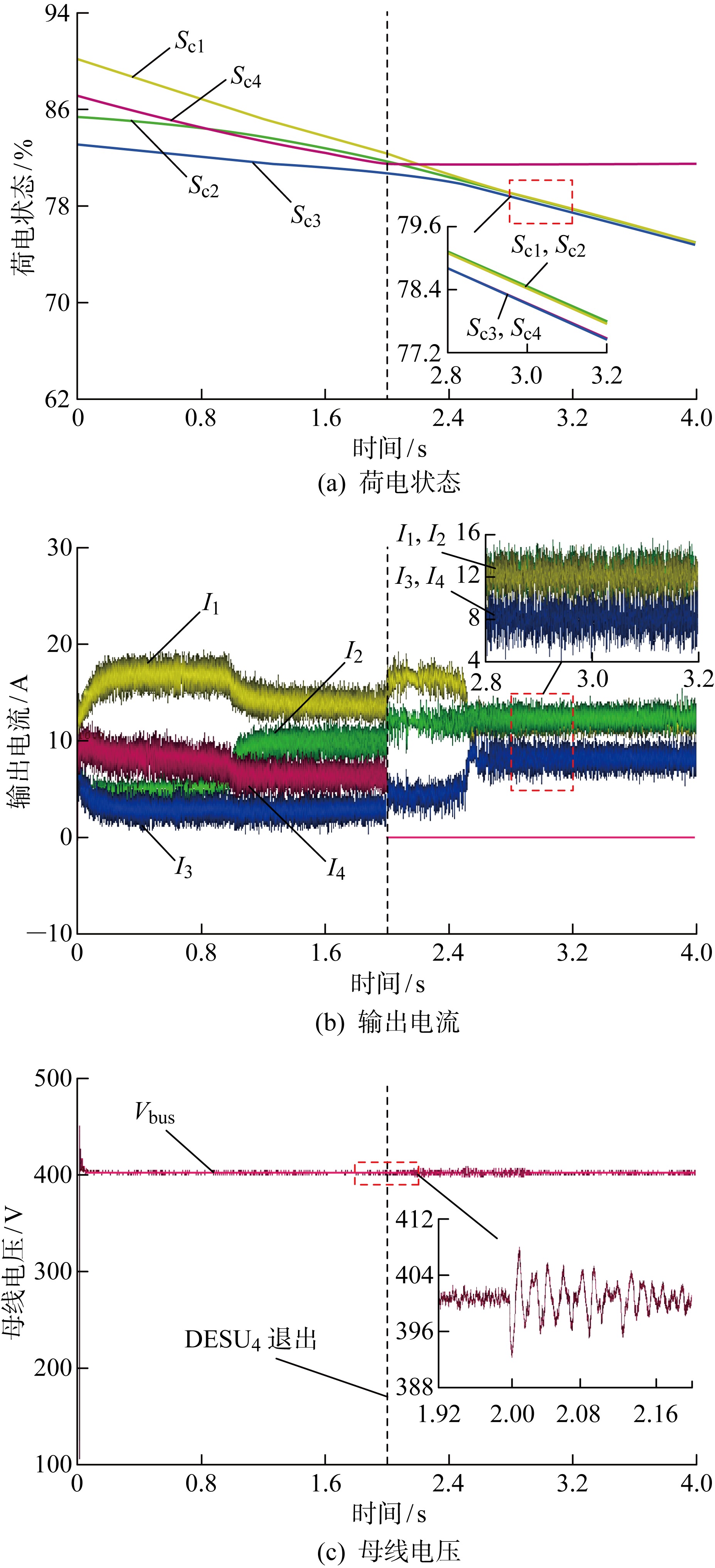

Fig.13

Fig.14

References 22

[1]	柴秀慧, 张纯江, 柴建国, 等. 分布式储能变调节因子SOC下垂控制及功率调节[J]. 太阳能学报, 2021, 42(9): 477-482.
	CHAI Xiuhui, ZHANG Chunjiang, CHAI Jianguo, et al. Variable adjustment factor soc droop control and power regulation in distributed energy storage[J]. Acta Energiae Solaris Sinica, 2021, 42(9): 477-482.
[2]	陆秋瑜, 于珍, 杨银国, 等. 考虑源荷功率不确定性的海上风力发电多微网两阶段优化调度[J]. 上海交通大学学报, 2022, 56(10): 1308-1316. doi: 10.16183/j.cnki.jsjtu.2021.409
	LU Qiuyu, YU Zhen, YANG Yinguo, et al. Two-stage optimal schedule of offshore wind-power-integrated multi-microgrid considering uncertain power of sources and loads[J]. Journal of Shanghai Jiao Tong University, 2022, 56(10): 1308-1316.
[3]	郭慧, 汪飞, 顾永文, 等. 基于电压分层控制的直流微电网及其储能扩容单元功率协调控制策略[J]. 电工技术学报, 2022, 37(12): 3117-3131.
	GUO Hui, WANG Fei, GU Yongwen, et al. Coordinated power control strategy for DC microgrid and storage expansion unit based on voltage hierarchical control[J]. Transactions of China Electrotechnical Society, 2022, 37(12): 3117-3131.
[4]	ZENG Y J, ZHANG Q J, LIU Y C, et al. State-of-charge dynamic balancing strategy for distributed energy storage system in DC shipboard microgrid[J]. International Journal of Electrical Power & Energy Systems, 2021, 133: 107094.
[5]	王强, 冉鹏. 孤网储能系统电流均分与直流母线电压稳定的控制策略[J]. 电力系统及其自动化学报, 2023, 35(6): 132-140.
	WANG Qiang, RAN Peng. Control strategy for current equalization of energy storage systems and voltage stability of DC bus in isolated microgrid[J]. Proceedings of the CSU-EPSA, 2023, 35(6): 132-140.
[6]	胡超, 张兴, 石荣亮, 等. 分布式电源并联系统中基于荷电状态均衡的改进型下垂控制策略[J]. 太阳能学报, 2019, 40(3): 809-816.
	HU Chao, ZHANG Xing, SHI Rongliang, et al. Improved droop control based on state of charge balance in parallel distributed generation systems[J]. Acta Energiae Solaris Sinica, 2019, 40(3): 809-816.
[7]	HAN Y, NING X, YANG P, et al. Review of power sharing, voltage restoration and stabilization techniques in hierarchical controlled DC microgrids[J]. IEEE Access, 2019, 7: 149202-149223.
[8]	ZHOU J Y, SHI M X, CHEN Y, et al. A novel secondary optimal control for multiple battery energy storages in a DC microgrid[J]. IEEE Transactions on Smart Grid, 2020, 11(5): 3716-3725.
[9]	BI K T, SUN L, AN Q T, et al. Active SOC balancing control strategy for modular multilevel super capacitor energy storage system[J]. IEEE Transactions on Power Electronics, 2019, 34(5): 4981-4992.
[10]	柴秀慧, 张纯江, 柴建国, 等. 改进互联通信荷电状态下垂控制及功率均衡优化[J]. 电工技术学报, 2021, 36(16): 3365-3374.
	CHAI Xiuhui, ZHANG Chunjiang, CHAI Jianguo, et al. Improved interconnected communication state of charge droop control and power balance optimization[J]. Transactions of China Electrotechnical Society, 2021, 36(16): 3365-3374.
[11]	米阳, 陈鑫, 季亮, 等. 基于虚拟额定电流的直流微电网分布式储能单元精确电流分配研究[J]. 电网技术, 2020, 44(3): 823-835.
	MI Yang, CHEN Xin, JI Liang, et al. Accurate Current sharing of distributed energy storage units in DC microgrid based on virtual rated current[J]. Power System Technology, 2020, 44(3): 823-835.
[12]	郑丽君, 王子鹏, 吕世轩, 等. 基于荷电状态的直流微电网中多储能分级运行控制方法[J]. 电网技术, 2021, 45(3): 1006-1015.
	ZHENG Lijun, WANG Zipeng, LÜ Shixuan, et al. Hierarchical operation control of multi-energy storage in DC microgrid based on state of charge[J]. Power System Technology, 2021, 45(3): 1006-1015.
[13]	LU X N, GUERRERO J M, SUN K, et al. An improved droop control method for DC microgrids based on low bandwidth communication with DC bus voltage restoration and enhanced current sharing accuracy[J]. IEEE Transactions on Power Electronics, 2014, 29(4): 1800-1812.
[14]	OLIVEIRA T R, GONÇALVES SILVA W W A, DONOSO-GARCIA P F. Distributed secondary level control for energy storage management in DC microgrids[J]. IEEE Transactions on Smart Grid, 2017, 8(6): 2597-2607.
[15]	米阳, 蔡杭谊, 袁明瀚, 等. 直流微电网分布式储能系统电流负荷动态分配方法[J]. 电力自动化设备, 2019, 39(10): 17-23.
	MI Yang, CAI Hangyi, YUAN Minghan, et al. Dynamic distribution method of current load for distributed energy storage system in DC microgrid[J]. Electric Power Automation Equipment, 2019, 39(10): 17-23.
[16]	LIU C, ZHAO J B, WANG S S, et al. Active identification method for line resistance in DC microgrid based on single pulse injection[J]. IEEE Transactions on Power Electronics, 2018, 33(7): 5561-5564.
[17]	杨捷, 金新民, 吴学智, 等. 一种适用于直流微电网的改进型电流负荷分配控制策略[J]. 中国电机工程学报, 2016, 36(1): 59-67.
	YANG Jie, JIN Xinmin, WU Xuezhi, et al. An improved load current sharing control method in DC microgrids[J]. Proceedings of the CSEE, 2016, 36(1): 59-67.
[18]	李鹏程, 张纯江, 袁然然, 等. 改进SOC下垂控制的分布式储能系统负荷电流分配方法[J]. 中国电机工程学报, 2017, 37(13): 3746-3754.
	LI Pengcheng, ZHANG Chunjiang, YUAN Ranran, et al. Load Current sharing method of distributed energy storage systems by improved SOC drooping control[J]. Proceedings of the CSEE, 2017, 37(13): 3746-3754.
[19]	HOANG K D, LEE H H. Accurate power sharing with balanced battery state of charge in distributed DC microgrid[J]. IEEE Transactions on Industrial Electronics, 2019, 66(3): 1883-1893.
[20]	米阳, 蔡杭谊, 宋根新, 等. 考虑不匹配线阻的分布式储能单元荷电状态均衡研究[J]. 中国电机工程学报, 2019, 39(15): 4441-4451.
	MI Yang, CAI Hangyi, SONG Genxin, et al. State-of-charge balancing research of distributed energy storage units with unmatched line impedance[J]. Proceedings of the CSEE, 2019, 39(15): 4441-4451.
[21]	XU D Z, XU A J, YANG C S, et al. A novel double-quadrant SoC consistent adaptive droop control in DC microgrids[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2020, 67(10): 2034-2038.
[22]	ZHANG Q J, ZENG Y J, LIU Y C, et al. An improved distributed cooperative control strategy for multiple energy storages parallel in islanded DC microgrid[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2022, 10(1): 455-468.

参数	数值
G_PI3(s)、G_PI4(s)/s	1+50、0.5+100
R_line_i、R_line_j/Ω	0.5、1
R_load/Ω	12.5
ω_c/ (rad·s^-1)	50
m	7
R_o_i/Ω	0.5

参数	数值
S_c1、S_c2、S_c3、S_c4	0.90、0.85、0.83、0.87
C_rate1、C_rate2、C_rate3、C_rate4/(A·h)	3、3、2、2
R_line1、R_line2、R_line3、R_line4/Ω	0.50、0.60、0.54、0.40
R_o1、R_o2、R_o3、R_o4	1/3、1/3、0.5、0.5
V_ref/V	400
m	7
