Frequency-Domain Modeling and Synchronization Perspective Interaction Mechanism of GFL-GFM Converter System

doi:10.16183/j.cnki.jsjtu.2023.231

Abstract

Abstract:

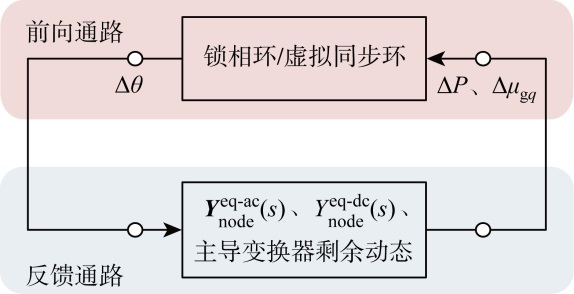

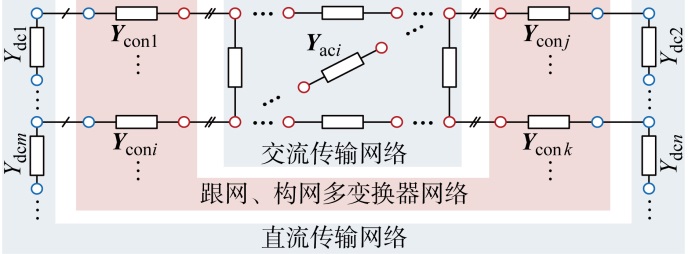

Aimed at the small-signal synchronization instability of grid-following (GFL) and grid-forming (GFM) converter system, a synchronization perspective frequency-domain modeling and analysis method is proposed, which can intuitively reveal mechanism and accurately judge multi-machine stability. Specifically, a node admittance matrix considering GFL, GFM converters, and the transmission network is established. Then, the frequency domain modal analysis (FMA) method is adopted to evaluate system instability characteristics. Afterwards, synchronization forward and feedback paths are partitioned at the oscillation source to formulate a synchronization perspective stability model incorporating dynamics of each converter and transmission network. Finally, the proposed method is validated by using a typical two-machine GFL-GFM system. With such method, the stability judgment failure caused by the feedback path aggregation is addressed, and the interaction mechanism between GFL and GFM synchronization dynamics as well as their parameter influences are revealed.

Key words: synchronization stability, grid-connected converter, grid-following (GFL) control, grid-forming (GFM) control, frequency domain modal analysis (FMA) method

CLC Number:

TM712

ZONG Haoxiang, ZHANG Chen, BAO Yanhong, WU Feng, CAI Xu. Frequency-Domain Modeling and Synchronization Perspective Interaction Mechanism of GFL-GFM Converter System[J]. Journal of Shanghai Jiao Tong University, 2025, 59(2): 151-164.

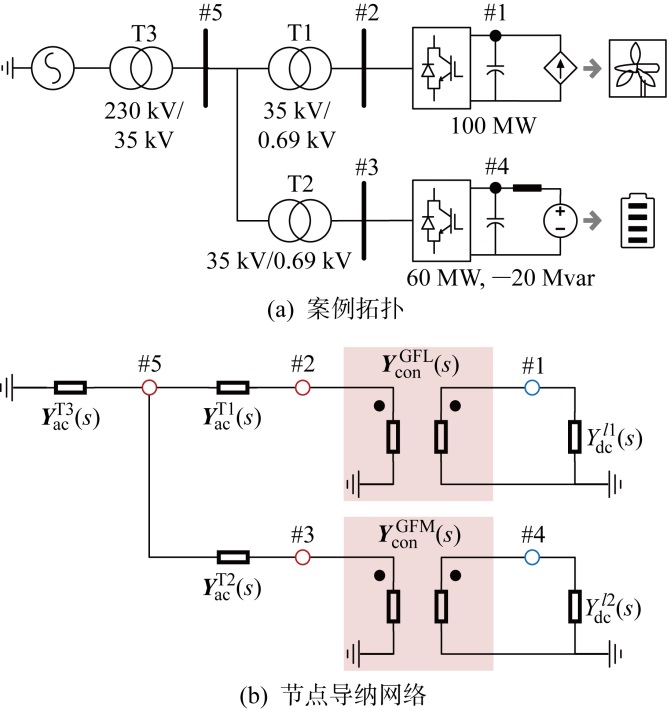

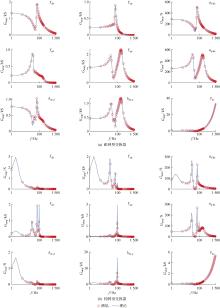

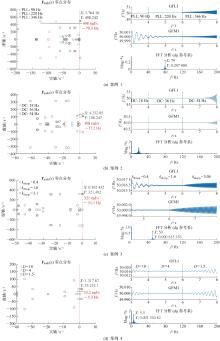

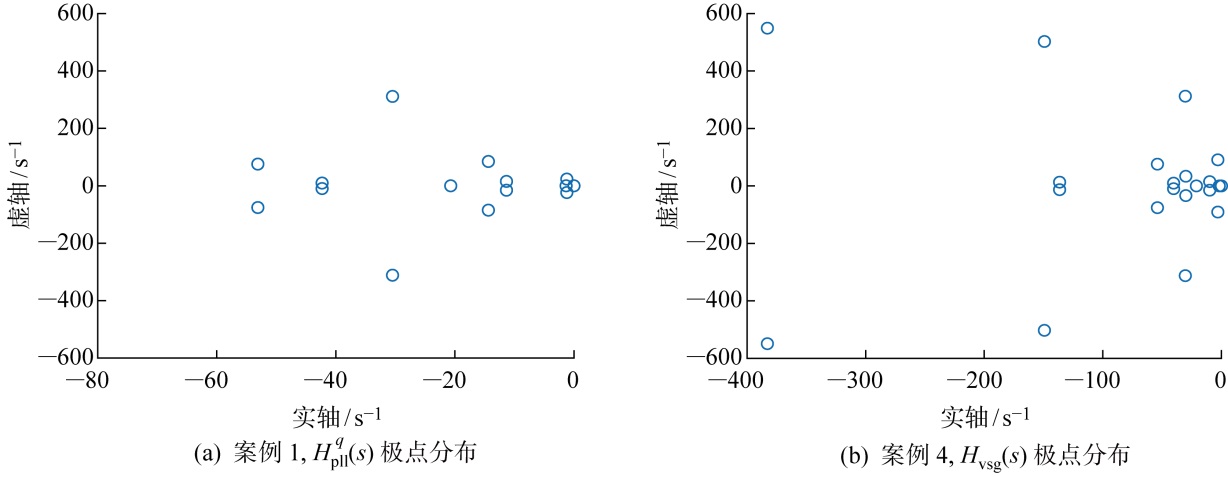

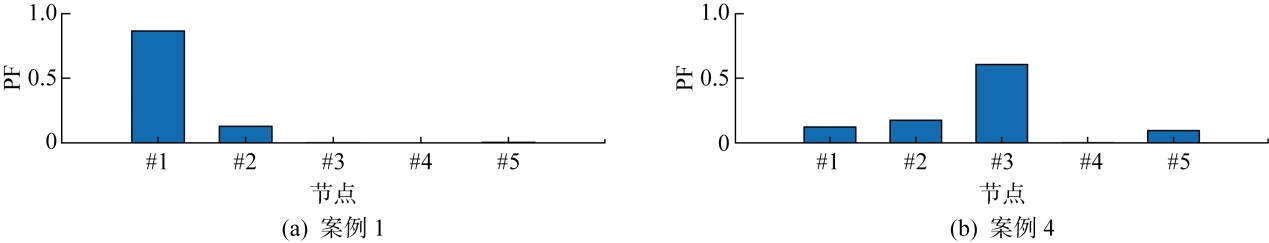

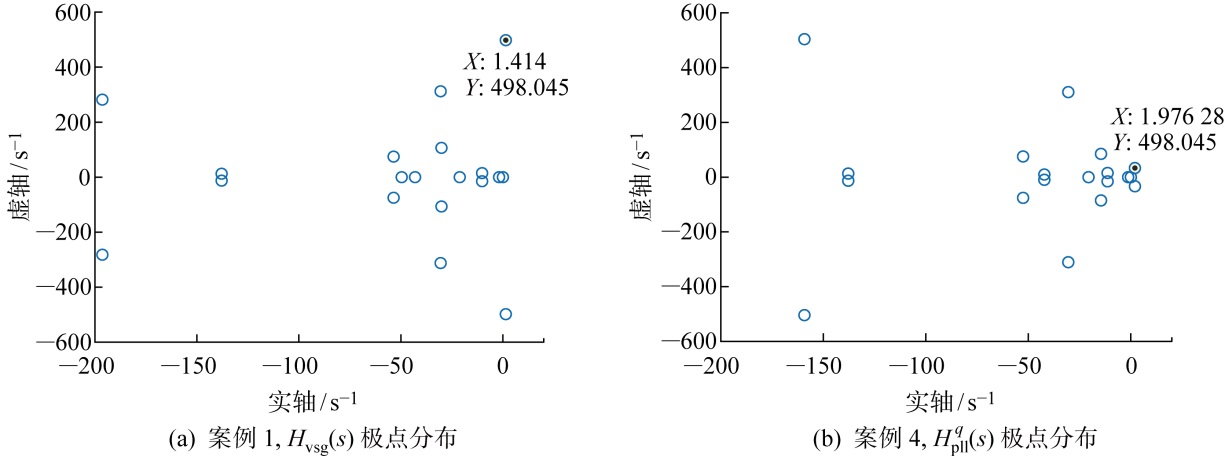

Figures/Tables 15

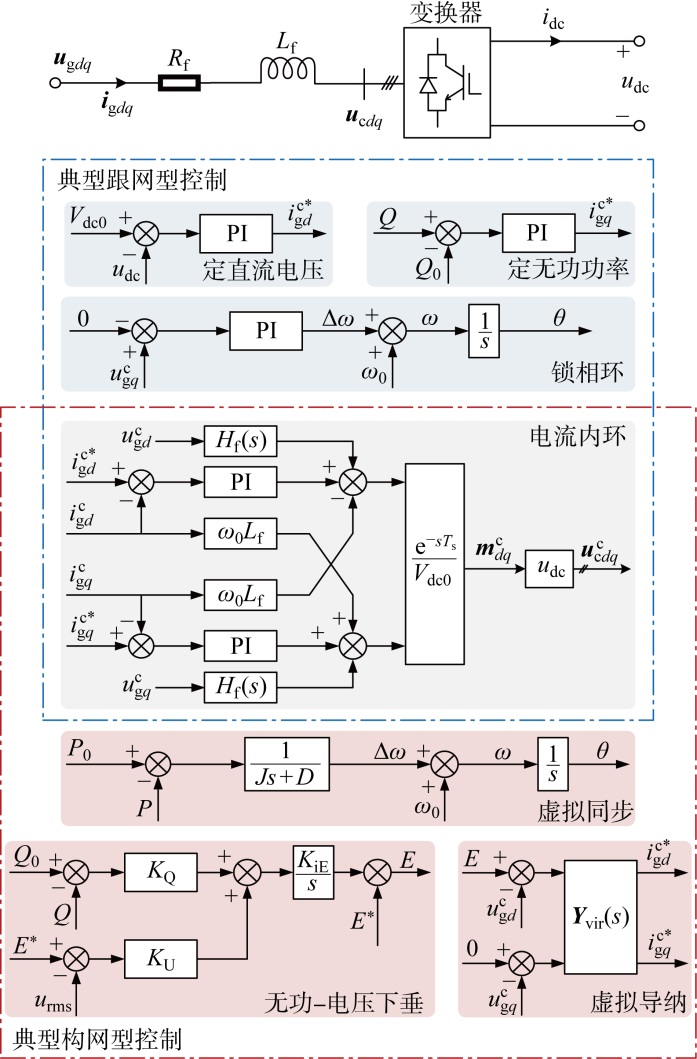

Fig.1

Fig.2

Fig.3

Fig.4

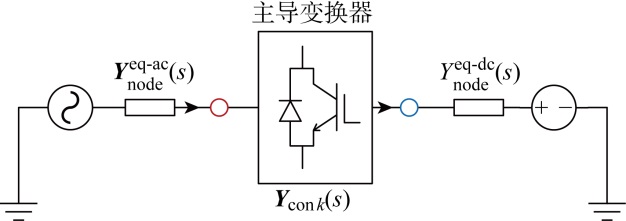

Fig.5

Tab.1

Fig.6

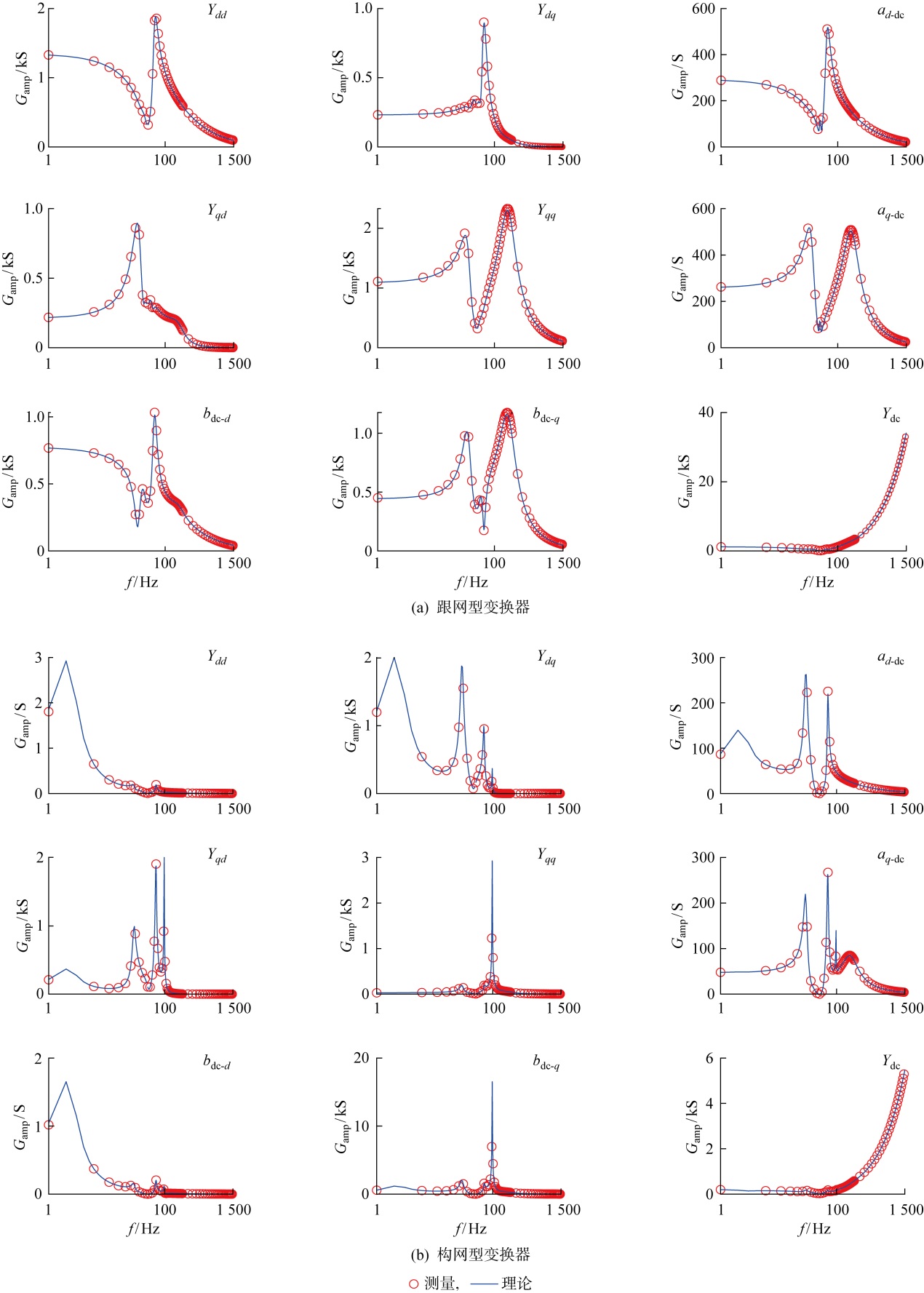

Fig.7

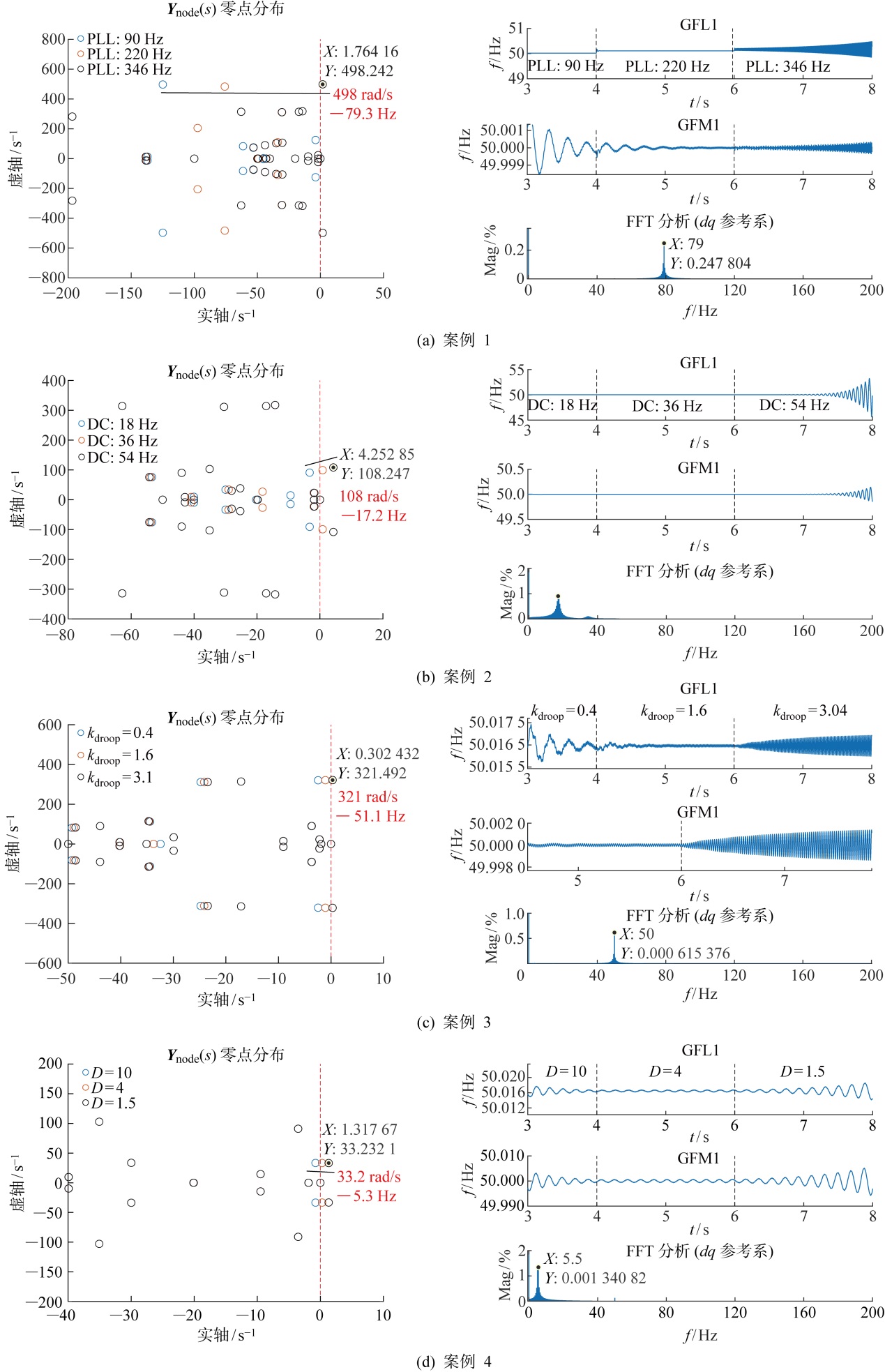

Fig.8

Fig.9

Fig.10

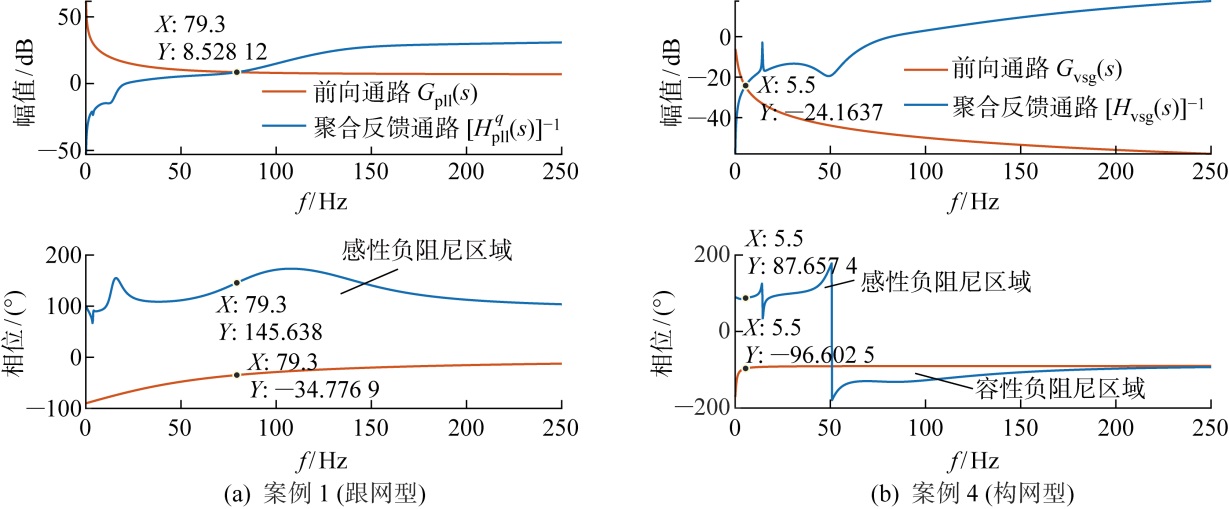

Fig.11

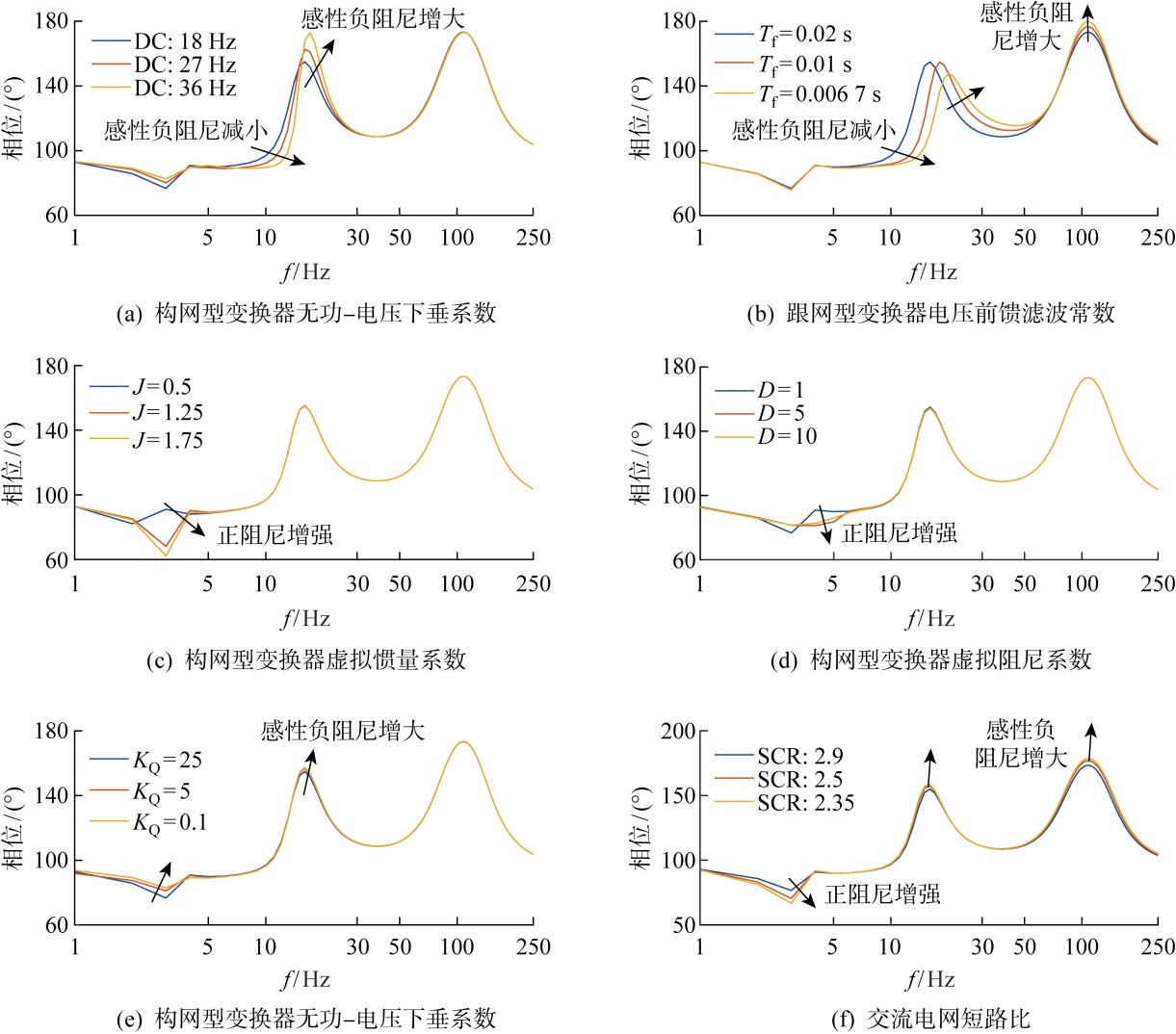

Fig.12

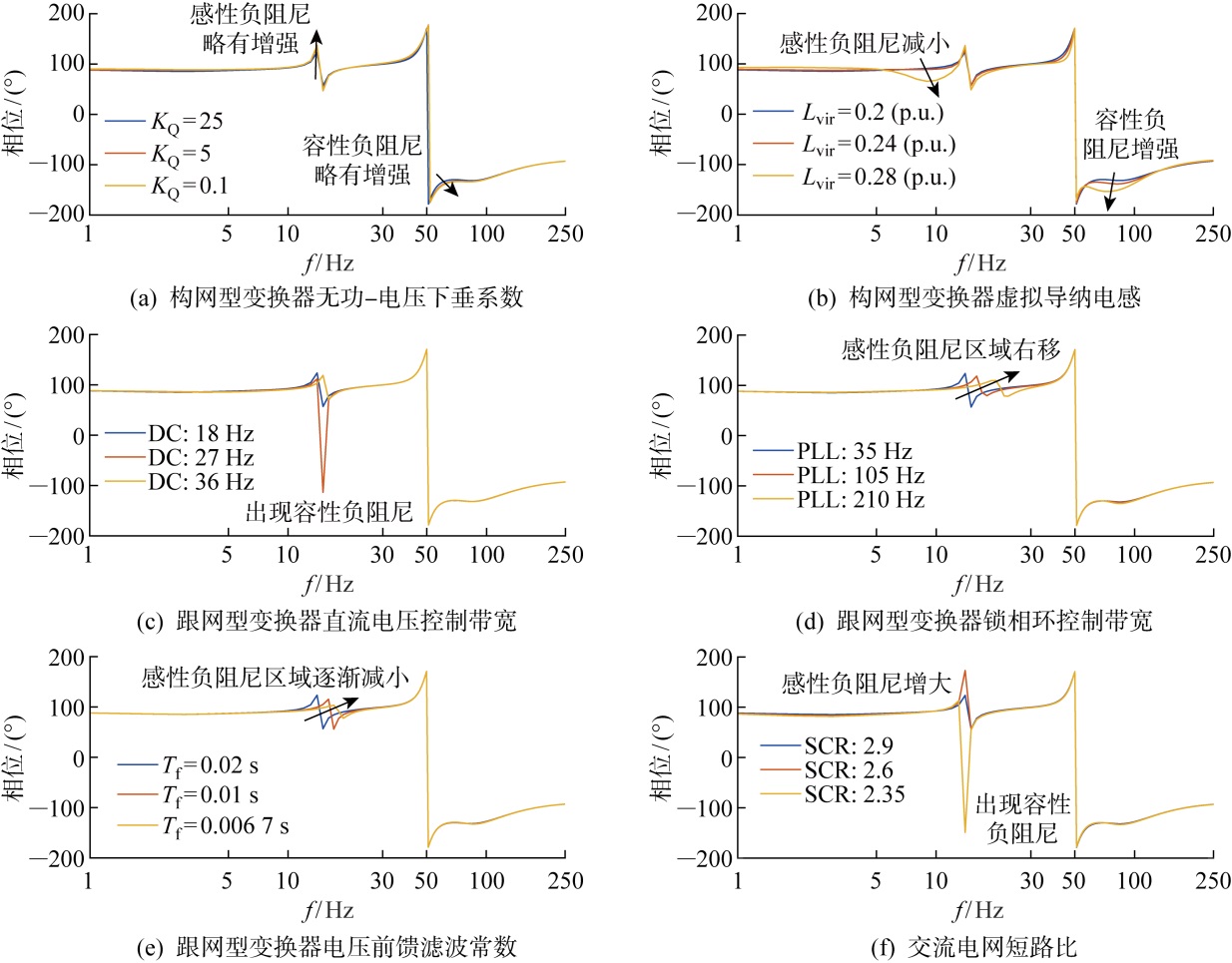

Fig.13

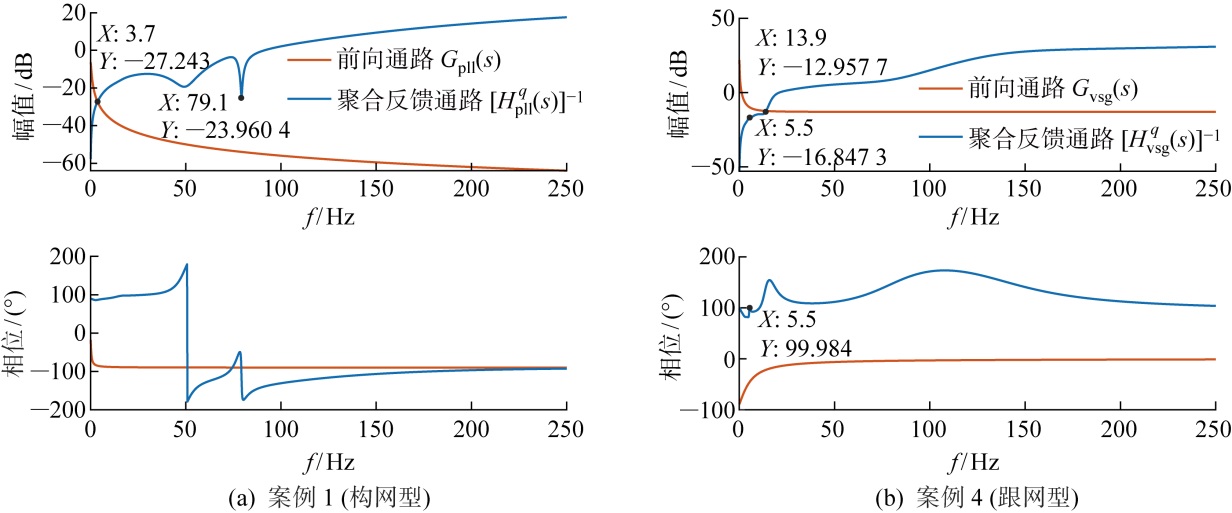

Fig.14

References 20

[1]	黄远明, 张玉欣, 夏赞阳, 等. 考虑需求响应资源和储能容量价值的新型电力系统电源规划方法[J]. 上海交通大学学报, 2023, 57(4): 432-441. doi: 10.16183/j.cnki.jsjtu.2021.477
	HUANG Yuanming, ZHANG Yuxin, XIA Zanyang, et al. Power system planning considering demand response resources and capacity value of energy storage[J]. Journal of Shanghai Jiao Tong University, 2023, 57(4): 432-441.
[2]	邓小宇, 刘牧阳, 常喜强, 等. 新型电力系统点对网惯性支撑能力在线监测方法[J]. 上海交通大学学报, 2024, 58(9): 1390-1399. doi: 10.16183/j.cnki.jsjtu.2023.029
	DENG Xiaoyu, LIU Muyang, CHANG Xiqiang, et al. On-line estimation method of the inertial support capacity of point-to-grid in power system[J]. Journal of Shanghai Jiao Tong University, 2024, 58(9): 1390-1399.
[3]	詹长江, 吴恒, 王雄飞, 等. 构网型变流器稳定性研究综述[J]. 中国电机工程学报, 2023, 43(6): 2339-2359.
	ZHAN Changjiang, WU Heng, WANG Xiongfei, et al. An overview of stability studies of grid-forming voltage source converters[J]. Proceedings of the CSEE, 2023, 43(6): 2339-2359.
[4]	刘新宇, 逯芯妍, 曾龙, 等. 双馈风电场并网抑制频率振荡控制策略[J]. 上海交通大学学报, 2022, 56(3): 303-311.
	LIU Xinyu, LU Xinyan, ZENG Long, et al. Control strategies for suppressing frequency oscillation of doubly-fed wind farms connected to grid[J]. Journal of Shanghai Jiao Tong University, 2022, 56(3): 303-311.
[5]	徐政. 电力系统广义同步稳定性的物理机理与研究途径[J]. 电力自动化设备, 2020, 40(9): 3-9.
	XU Zheng. Physical mechanism and research approach of generalized synchronous stability for power systems[J]. Electric Power Automation Equipment, 2020, 40(9): 3-9.
[6]	黄林彬, 辛焕海, 鞠平, 等. 电力电子并网装备的同步稳定分析与统一同步控制结构[J]. 电力自动化设备, 2020, 40(9): 10-25.
	HUANG Linbin, XIN Huanhai, JU Ping, et al. Synchronization stability analysis and unified synchronization control structure of grid-connected power electronic devices[J]. Electric Power Automation Equipment, 2020, 40(9): 10-25.
[7]	张琛, 蔡旭, 李征. 电压源型并网变流器的机-网电气振荡机理及稳定判据研究[J]. 中国电机工程学报, 2017, 37(11): 3174-3183.
	ZHANG Chen, CAI Xu, LI Zheng. Stability criterion and mechanisms analysis of electrical oscillations in the grid-tied VSC system[J]. Proceedings of the CSEE, 2017, 37(11): 3174-3183.
[8]	胡祺, 付立军, 马凡, 等. 弱电网下基于锁相控制并网变换器小扰动同步稳定分析[J]. 中国电机工程学报, 2021, 41(1): 98-108.
	HU Qi, FU Lijun, MA Fan, et al. Small signal synchronizing stability analysis of PLL-based VSC connected to weak AC grid[J]. Proceedings of the CSEE, 2021, 41(1): 98-108.
[9]	罗魁, 郭剑波, 王伟胜, 等. 跟网型新能源附加频率控制对频率稳定及小扰动同步稳定影响分析综述[J]. 中国电机工程学报, 2023, 43(4): 1262-1281.
	LUO Kui, GUO Jianbo, WANG Weisheng, et al. Analysis and summary of the influence of additional frequency control of grid-following new energy on frequency stability and small disturbance synchronous stability[J]. Proceedings of the CSEE, 2023, 43(4): 1262-1281.
[10]	李霞林, 李佳鑫, 朱琳, 等. 弱连接VSC在“外环-锁相环”时间尺度下的一类小扰动稳定性提升方法及等效性分析[J]. 电网技术, 2023, 47(4): 1632-1642.
	LI Xialin, LI Jiaxin, ZHU Lin, et al. Equivalence analysis of a class of small-signal stability enhancement for weak grid connected VSCs in “outer-loop & PLL” time-scale[J]. Power System Technology, 2023, 47(4): 1632-1642.
[11]	LI Y T, GU Y J, GREEN T C. Revisiting grid-forming and grid-following inverters: A duality theory[J]. IEEE Transactions on Power Systems, 2022, 37(6): 4541-4554.
[12]	李翼翔, 田震, 唐英杰, 等. 考虑构网型与跟网型逆变器交互的孤岛微电网小信号稳定性分析[J]. 电力自动化设备, 2022, 42(8): 11-18.
	LI Yixiang, TIAN Zhen, TANG Yingjie, et al. Small-signal stability analysis of island microgrid considering interaction between grid-forming converter and grid-following converter[J]. Electric Power Automation Equipment, 2022, 42(8): 11-18.
[13]	张志强, 李秋彤, 余浩, 等. 海上直驱风电经柔直并网系统的次/超同步振荡特性分析[J]. 上海交通大学学报, 2022, 56(12): 1572-1583. doi: 10.16183/j.cnki.jsjtu.2021.434
	ZHANG Zhiqiang, LI Qiutong, YU Hao, et al. Analysis of sub/super-synchronous oscillation of direct-drive offshore wind power grid-connected system via VSC-HVDC[J]. Journal of Shanghai Jiao Tong University, 2022, 56(12): 1572-1583.
[14]	胡宇飞, 田震, 查晓明, 等. 构网型与跟网型变流器主导孤岛微网阻抗稳定性分析及提升策略[J]. 电力系统自动化, 2022, 46(24): 121-131.
	HU Yufei, TIAN Zhen, ZHA Xiaoming, et al. Impedance stability analysis and promotion strategy of islanded microgrid dominated by grid-connected and grid-following converters[J]. Automation of Electric Power Systems, 2022, 46(24): 121-131.
[15]	ZOU Z X, TANG J, WANG X F, et al. Modeling and control of a two-bus system with grid-forming and grid-following converters[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2022, 10(6): 7133-7149.
[16]	YANG C R, HUANG L B, XIN H H, et al. Placing grid-forming converters to enhance small signal stability of PLL-integrated power systems[J]. IEEE Transactions on Power Systems, 2021, 36(4): 3563-3573.
[17]	HUANG L B, XIN H H, LI Z Y, et al. Grid-synchronization stability analysis and loop shaping for PLL-based power converters with different reactive power control[J]. IEEE Transactions on Smart Grid, 2020, 11(1): 501-516.
[18]	ZHANG C, MOLINAS M, RYGG A, et al. Impedance-based analysis of interconnected power electronics systems: Impedance network modeling and comparative studies of stability criteria[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2020, 8(3): 2520-2533.
[19]	宗皓翔, 张琛, 蔡旭. 电力电子主导的交直流混联电网振荡分析与评估[J]. 中国电机工程学报, 2023, 43(10): 3844-3856.
	ZONG Haoxiang, ZHANG Chen, CAI Xu. Oscillation analysis and evaluation of the power electronics-dominated hybrid AC/DC grid[J]. Proceedings of the CSEE, 2023, 43(10): 3844-3856.
[20]	ZHANG C, ZONG H X, CAI X, et al. On the relation of nodal admittance-and loop gain-model based frequency-domain modal methods for converters-dominated systems[J]. IEEE Transactions on Power Systems, 2023, 38(2): 1779-1782.

系统	参数	取值
跟网型变换器	交流滤波器电阻/μΩ	0.2
	交流滤波器电感/μH	3.24
	直流侧电容/mF	25
	控制延时/μs	100
构网型变换器	交流滤波器电阻/μΩ	0.33
	交流滤波器电感/μH	5.4
	直流侧电容/mF	41.8
	控制延时/μs	100
变压器T1	功率/MW	100
	电阻(p.u.)	0.02
	漏感(p.u.)	0.1
变压器T2	功率/MW	60
	电阻(p.u.)	0.02
	漏感(p.u.)	0.1
变压器T3	功率/MW	200
	电阻(p.u.)	0.02
	漏感(p.u.)	0.12
