Investigation on Steady-State Thermal Performance of Gear Box Based on Thermal-Fluid-Solid Coupling

doi:10.16183/j.cnki.jsjtu.2023.225

Abstract

Abstract:

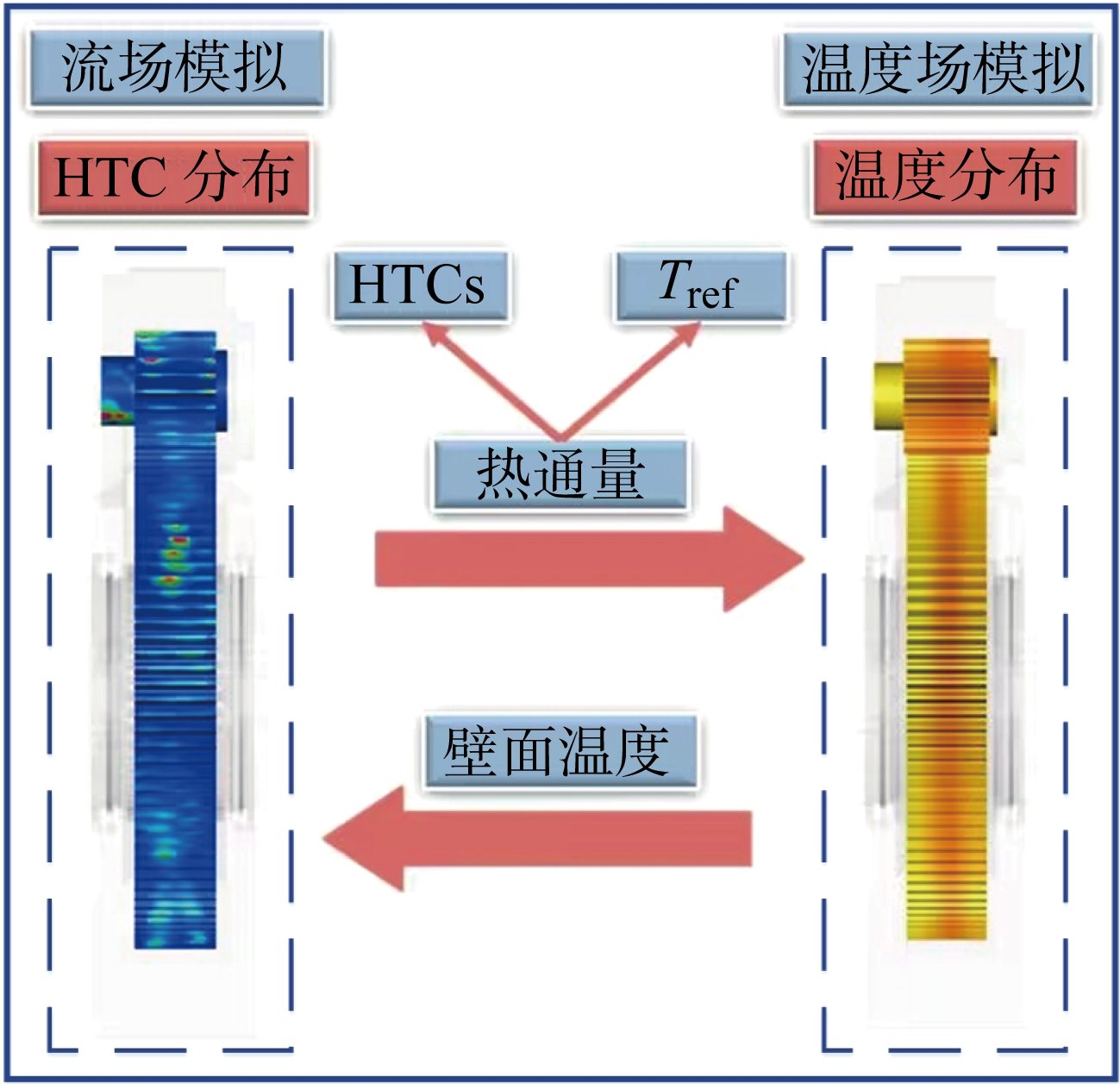

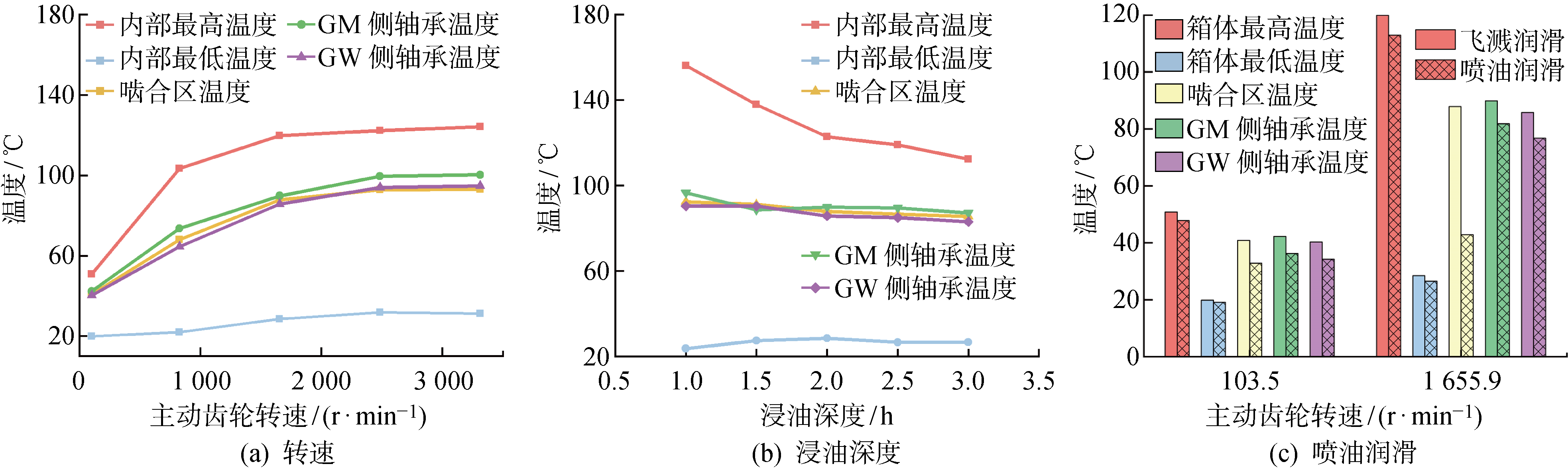

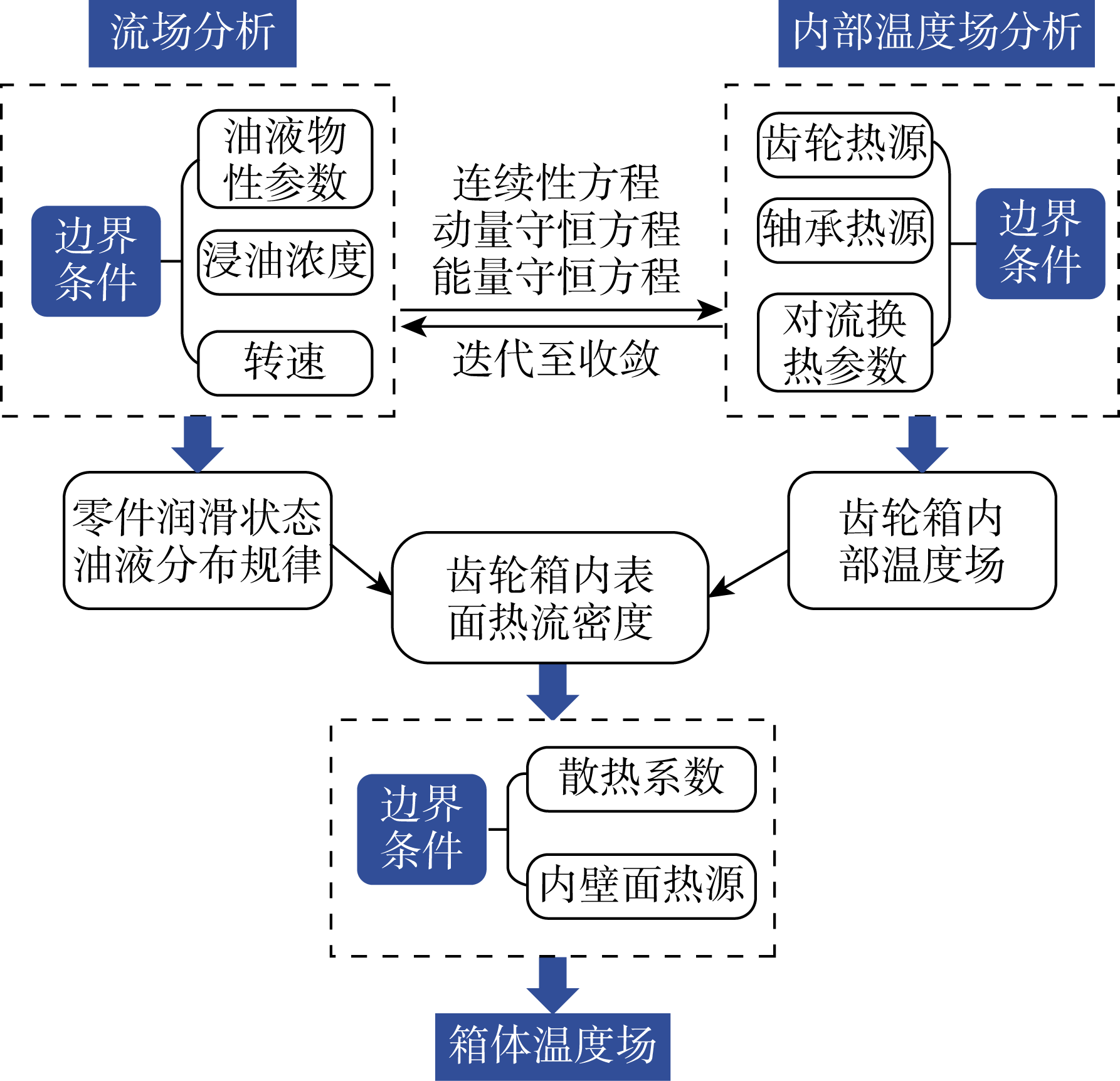

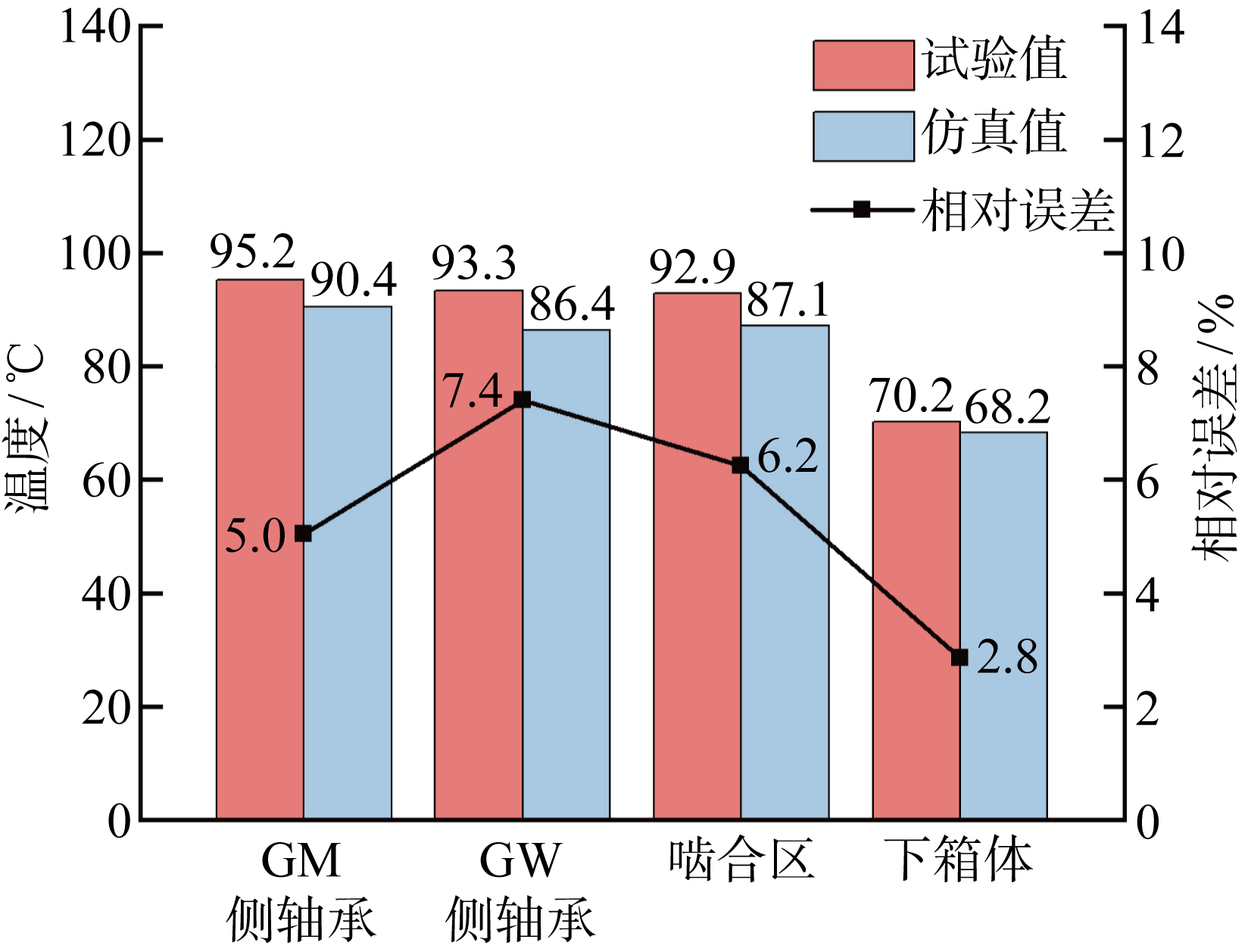

In order to accurately predict the temperature distribution of the gearbox of the rail transit transmission system, a mixed timescale coupling method based on computational fluid dynamics (CFD) was adopted to simulate the gearbox. The internal flow field and temperature field of the gearbox were simultaneously simulated, and the real-time two-way coupling between the flow field and temperature field was realized through data transmission. Finally, based on the calculation results of the internal temperature field, the temperature distribution of the gearbox was obtained by using the finite element method. In addition, the effects of rotational speed, immersion depth, injection lubrication, and other factors on the steady-state thermal performance of the gearbox were analyzed. The results show that the numerical model has a good performance in temperature prediction. Moreover, the maximum relative error between the simulation results and the experimental values is 7.4%. With the increase of rotational speed, the temperature of gear box rises accordingly. With the increase of oil immersion depth, except the fact that the bottom temperature of the lower box gradually increases, the temperature of other areas decreases. At the same speed, the maximum temperature of the box under oil injection lubrication can be reduced by up to 14% compared with splash lubrication. In addition, the rotational speed increases, the cooling effect becomes more apparent.

Key words: thermal-fluid-solid coupling, box temperature field, mixed timescale, lubrication mode, computational fluid dynamics (CFD)

CLC Number:

TH132.4

LIU Yi, ZHANG Kailin, SHAO Shuai, XIANG Hongxu. Investigation on Steady-State Thermal Performance of Gear Box Based on Thermal-Fluid-Solid Coupling[J]. Journal of Shanghai Jiao Tong University, 2025, 59(5): 666-674.

Figures/Tables 13

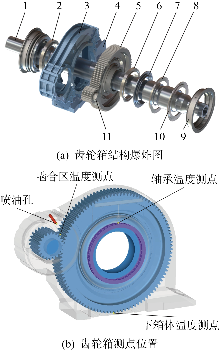

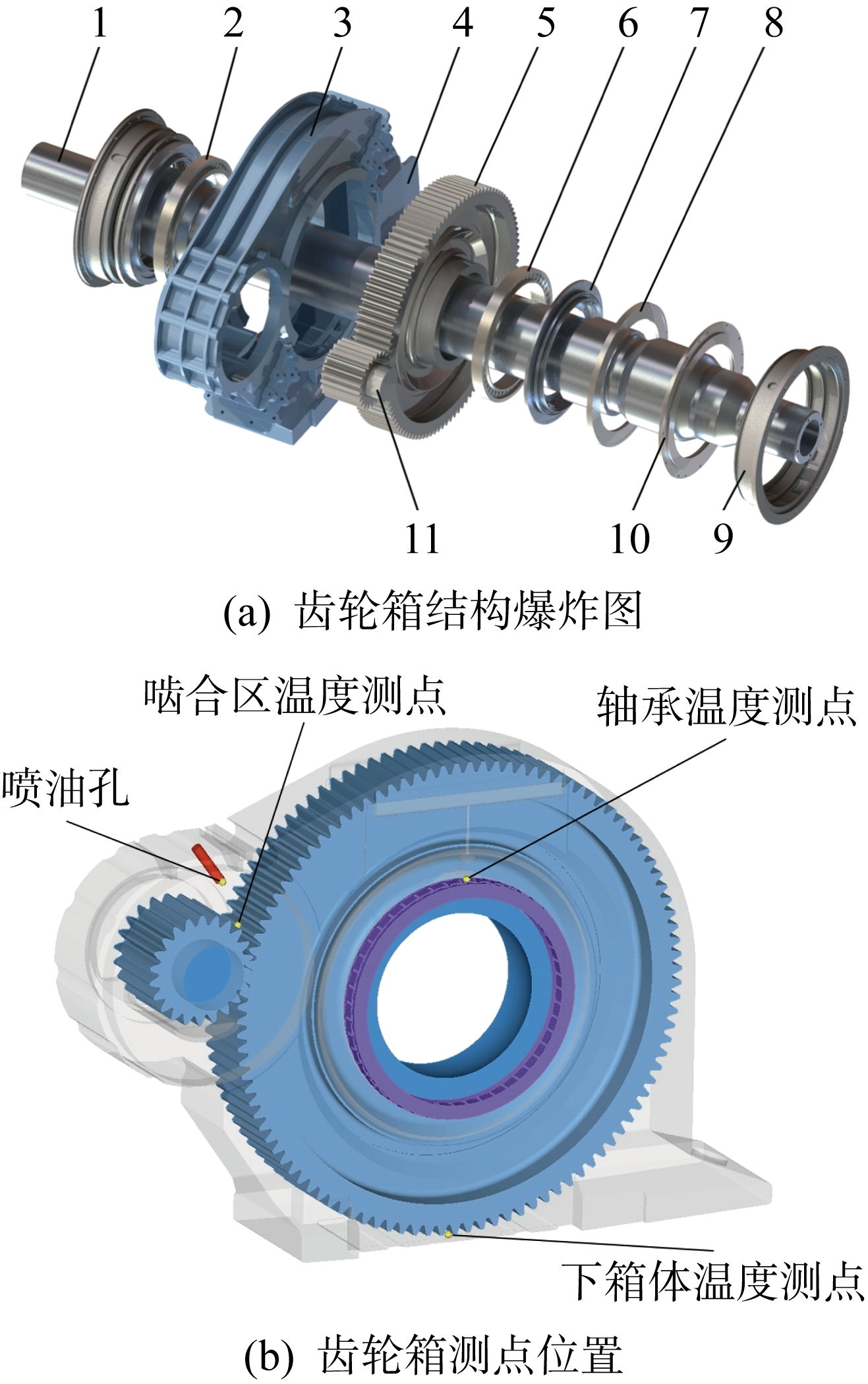

Fig.1

Fig.2

Tab.1

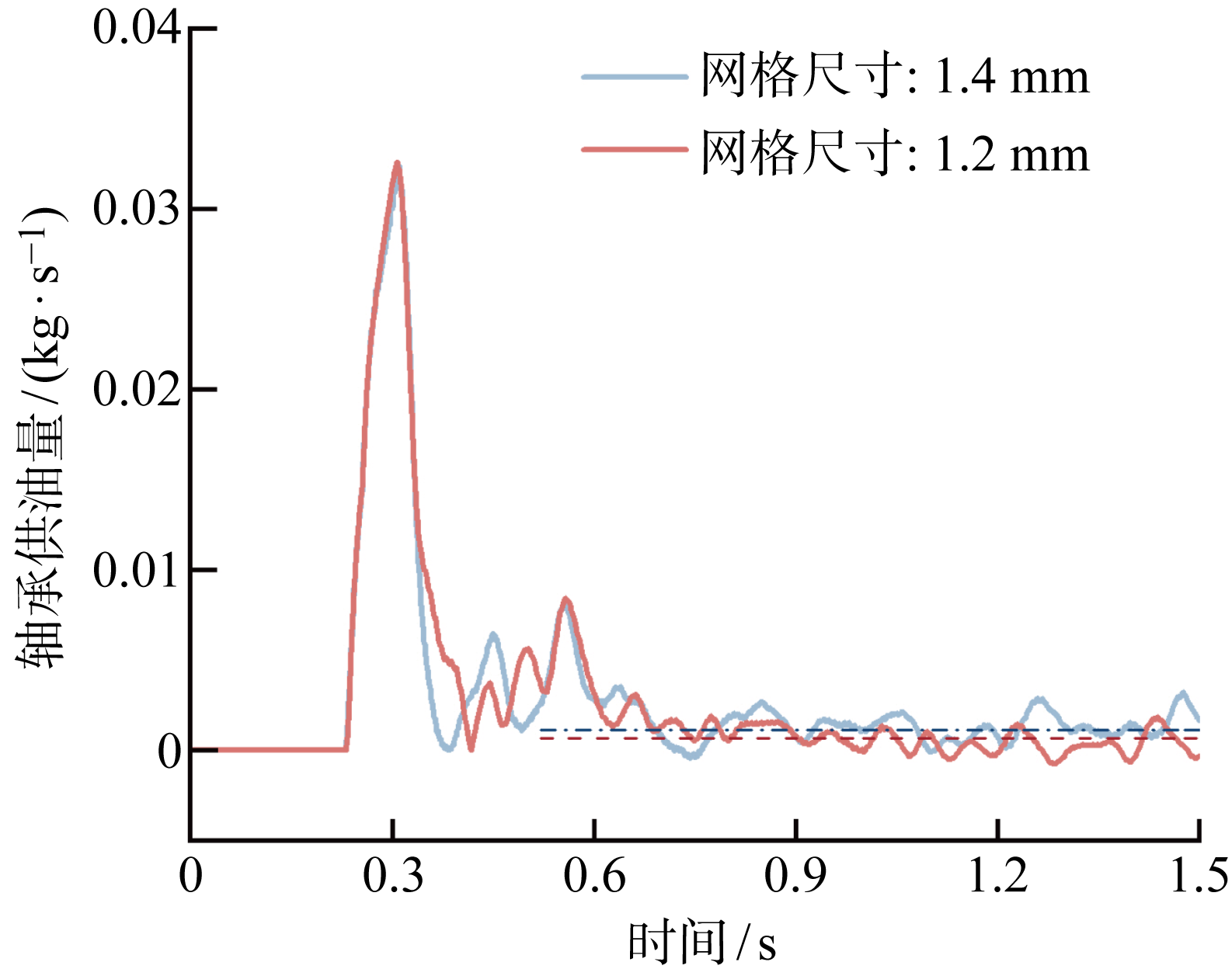

Fig.3

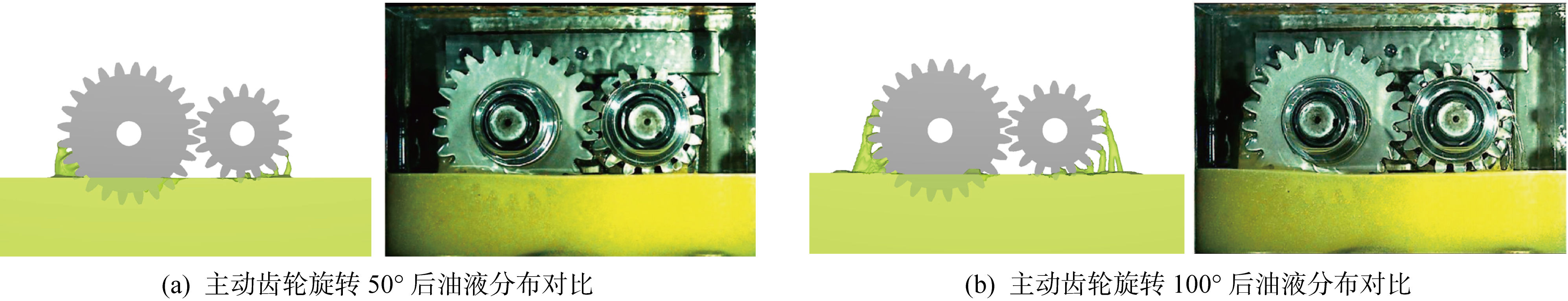

Fig.4

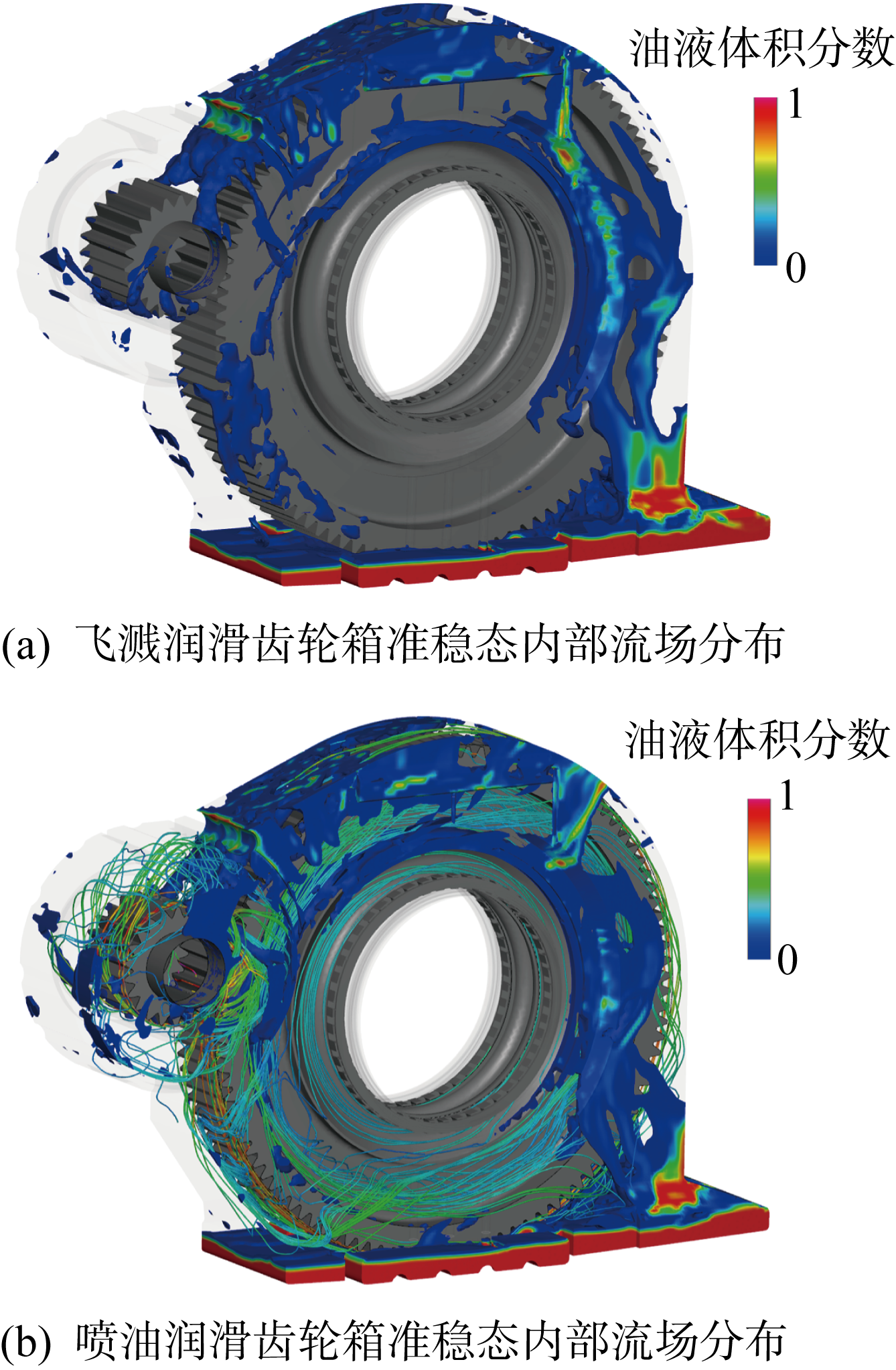

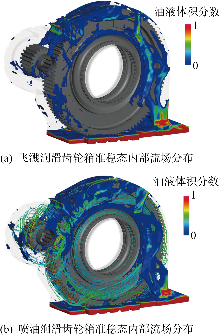

Fig.5

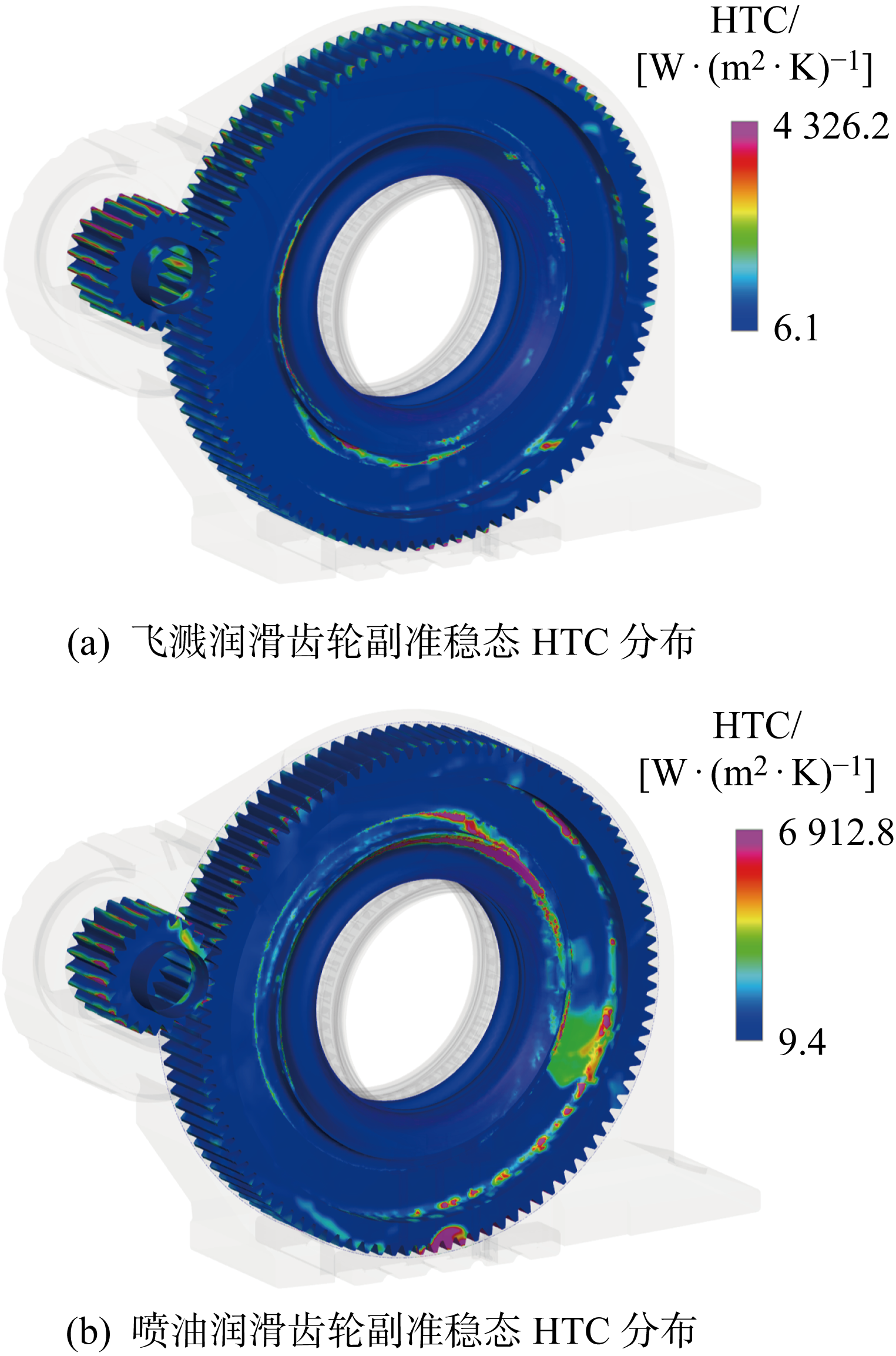

Fig.6

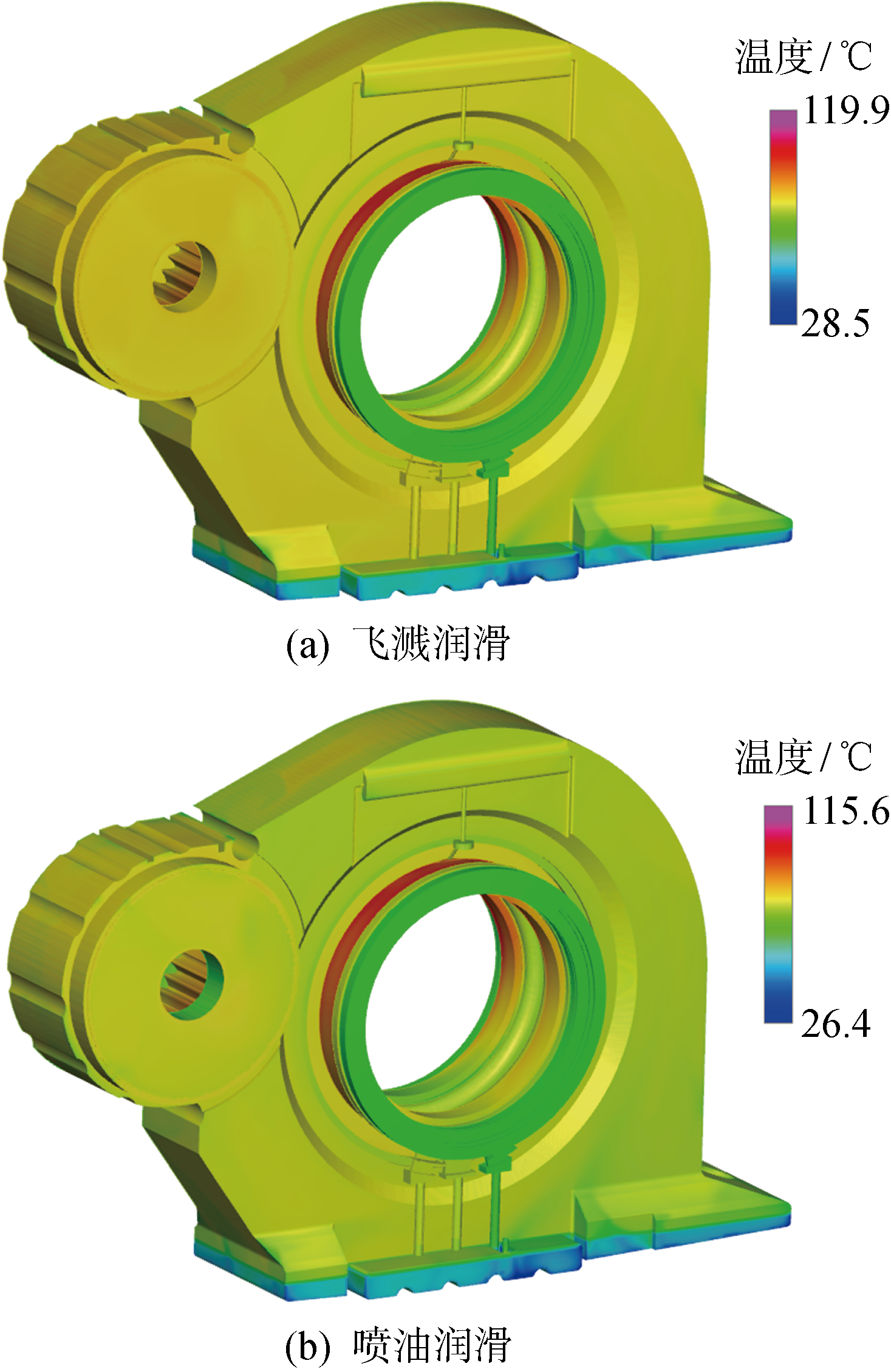

Fig.7

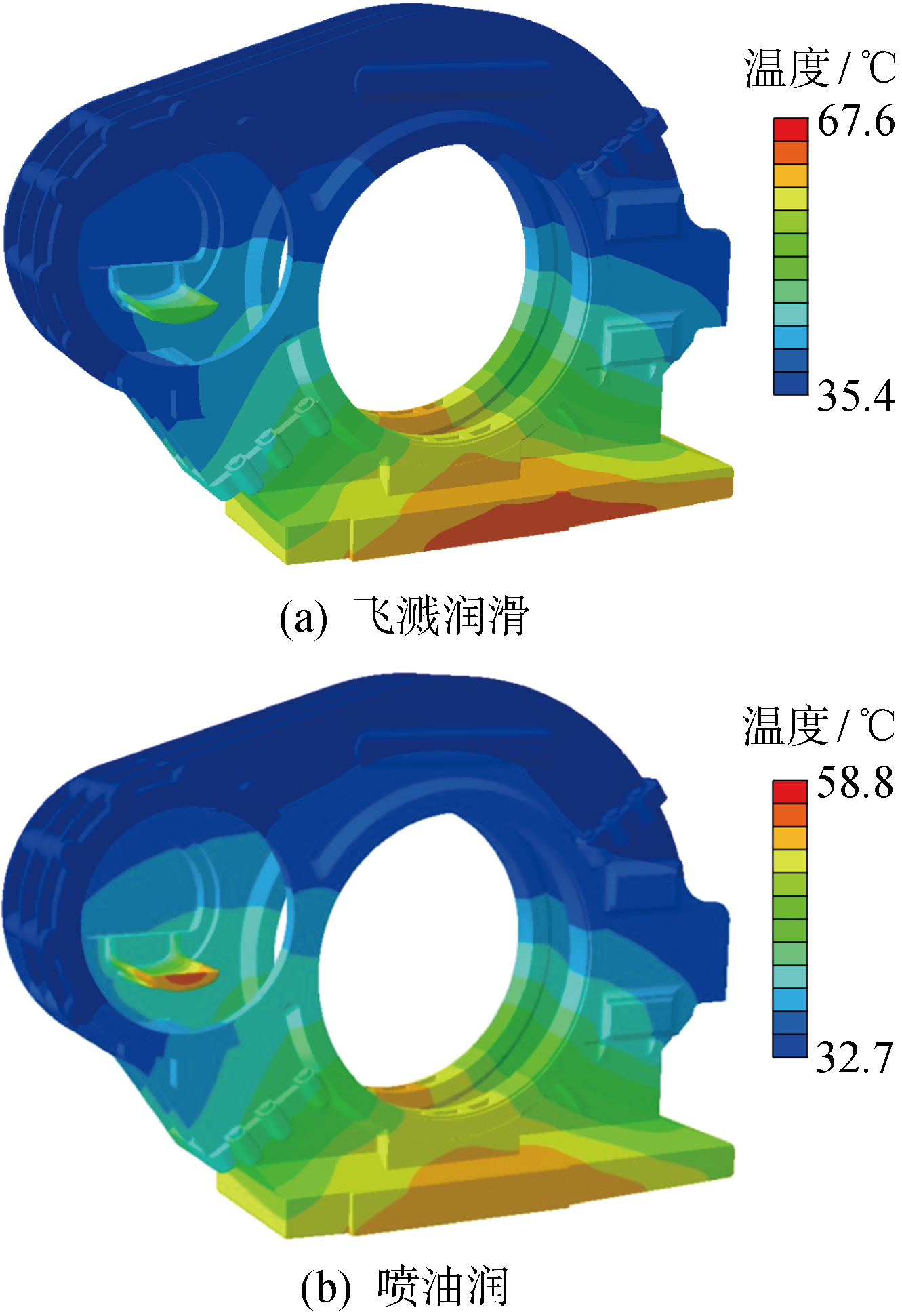

Fig.8

Fig.9

Fig.10

Fig.11

Fig.12

References 23

[1]	高超. 基于热流耦合高速列车齿轮箱温度场的数值研究[D]. 成都: 西南交通大学, 2019: 2-10.
	GAO Chao. Numerical study of temperature field of high speed train gearbox based on heat-fluid coupling[D]. Chengdu: Southwest Jiaotong University, 2019: 2-10
[2]	XUE H, XU H. Simulation calculation of temperature field of gearbox in straddle monorail train[J]. Journal of Physics: Conference Series, 2022, 2174(1): 012074.
[3]	陈晓玲, 张武高, 黄智勇, 等. 高速列车运行速度对传动齿轮箱平衡温度的影响[J]. 上海交通大学学报, 2007, 259(9): 1510-1513.
	CHEN Xiaoling, ZHANG Wugao, HUANG Zhiyong, et al. Influence of high-speed train running speed on transmission gear box equilibrium temperature[J]. Journal of Shanghai Jiao Tong University, 2007, 259(9): 1510-1513.
[4]	薛浩. 跨座式单轨列车齿轮箱温度场分析[D]. 北京: 北方工业大学, 2022.
	XUE Hao. Analysis of temperature field in gearbox of straddle monorail train[D]. Beijing: North China University of Technology, 2022.
[5]	徐宏海, 姜久林, 胡袁. 高铁驱动齿轮箱稳态温度场分析建模与仿真[J]. 润滑与密封, 2019, 44(9): 44-49.
	XU Honghai, JIANG Jiulin, HU Yuan. modeling and simulation of steady-state temperature field of high-speed rail drive gear box[J]. Lubrication Engineering, 2019, 44(9): 44-49.
[6]	鲍和云, 范永, 朱如鹏, 等. 齿轮箱浸油润滑流场及温度场仿真分析[J]. 中南大学学报(自然科学版), 2019, 50(8): 1840-1847.
	BAO Heyun, FAN Yong, ZHU Rupeng, et al. Simulation analysis of flow field and temperature field of gearbox immersed lubrication[J]. Journal of Central South University (Science and Technology), 2019, 50(8): 1840-1847.
[7]	LU F, WANG M, PAN W, et al. CFD-based investigation of lubrication and temperature characteristics of an intermediate gearbox with splash lubrication[J]. Applied Sciences, 2020, 11(1): 352.
[8]	林腾蛟, 黄河, 彭建涛, 等. 混合润滑条件下的星形人字齿轮系统温度场[J]. 航空动力学报, 2020, 35(5): 1066-1080.
	LIN Tengjiao, HUANG He, PENG Jiantao, et al. Temperature field of double helical star gear transmission system in mixed lubrication condition[J]. Journal of Aerospace Power, 2020, 35(5): 1066-1080.
[9]	DESHPANDE S, JOSHI H, MADHAVAN J, et al. Two-way coupled CFD approach for predicting gear temperature of oil jet lubricated transmissions[J]. SAE International Journal of Commercial Vehicles, 2018, 11: 163-170.
[10]	DENG X, WANG S, WANG S, et al. Lubrication mechanism in gearbox of high-speed railway trains[J]. Journal of Advanced Mechanical Design, Systems, and Manufacturing, 2020, 14(4): JAMDSM0054.
[11]	CHIRANTH S, YANG X, JEFF S, et al. Conjugate heat transfer CFD analysis of an oil cooled automotive electrical motor[J]. SAE International Journal of Advances and Current Practices in Mobility, 2020, 2(4): 1741-1753.
[12]	JIANG Y, HU X, HONG S, et al. Influences of an oil guide device on splash lubrication performance in a spiral bevel gearbox[J]. Tribology International, 2019, 136: 155-164.
[13]	HU X, WANG A, LI P, et al. Influence of dynamic attitudes on oil supply for bearings and churning power losses in a splash lubricated spiral bevel gearbox[J]. Tribology International, 2021, 159: 106951.
[14]	COY J, TOWNSEND D, ZARETSKY E. Dynamic capacity and surface fatigue life for spur and helical gears[J]. Journal of Tribology-Transactions of the ASME, 1989, 1: 355-359.
[15]	LUKE P, OLVER A V. A study of churning losses in dip-lubricated spur gears[J]. Journal of Aerospace Engineering, 1999, 213(5): 337-346.
[16]	CHANGENET C, VELEX P. A model for the prediction of churning losses in geared transmissions-preliminary results[J]. Journal of Mechanical Design, 2007, 129(1): 128-133.
[17]	ANDERSON N, LOEWENTHAL S. Design of spur gears for improved efficiency[J]. Journal of Mechanical Design, 1982, 104(4): 767-774.
[18]	The International Organization for Standardization. Gears-thermal capacity—Part 1: Rating gear drives with thermal equilibrium at 95 ℃ sump temperature: ISO/TR 14179-2[S]. Switzerland: ISO Copyright Office, 2001.
[19]	张雨. 城市轨道交通车辆齿轮箱内介质流动及其密封性能研究[D]. 成都: 西南交通大学, 2020.
	ZHANG Yu. Urban rail transit vehicle gear box medium flow and its sealing performance[D]. Chengdu: Southwest Jiaotong University, 2020.
[20]	HIDENORI A, HIDEYUKI I, MOTOHIKO N, et al. Computational fluid dynamics simulations and experiments for reduction of oil churning loss and windage loss in aeroengine transmission gears[J]. Journal of Engineering for Gas Turbines and Power, 2014, 136(9): 092604.
[21]	SHAO S, ZHANG K, YAO Y, et al. Investigations on lubrication characteristics of high-speed electric multiple unit gearbox by oil volume adjusting device[J]. Journal of Zhejiang University-SCIENCE A, 2023, 23(12): 1013-1026.
[22]	LIU H, THOMAS J, THOMAS L, et al. Determination of oil distribution and churning power loss of gearboxes by finite volume CFD method[J]. Tribology International, 2016, 109: 346-354.
[23]	LI W, PANG D. Investigation on temperature field of surrounding tooth domain with cracked tooth in gear system[J]. Mechanism and Machine Theory, 2018, 130: 523-538.

参数	取值
压力角,α/(°)	22.5
传动比,i	103/22
齿轮导热系数,k_gear/[W·(m·K)^-1]	40
齿轮模数,m/mm	9
齿轮齿宽,b/mm	150
比热容,c/[J·(kg·K)^-1]	9
齿轮中心距,a/mm	567
齿高,h/mm	20
