基于拟物算法的脐带缆截面布局自动填充优化设计方法

doi:10.16183/j.cnki.jsjtu.2023.588

上海交通大学学报 ›› 2025, Vol. 59 ›› Issue (8): 1103-1113.doi: 10.16183/j.cnki.jsjtu.2023.588

基于拟物算法的脐带缆截面布局自动填充优化设计方法

殷旭¹, 曹冬辉², 田庚², 杨志勋²(), 范志瑞¹, 王刚³, 陆俣丞², 汪慧²

1.大连理工大学工程力学系, 辽宁大连 116023
2.哈尔滨工程大学机电工程学院, 哈尔滨 150001
3.大连交通大学土木工程学院, 辽宁大连 116028

收稿日期:2023-11-20 修回日期:2023-12-26 接受日期:2024-01-12 出版日期:2025-08-28 发布日期:2025-08-26
通讯作者: 杨志勋 E-mail:yangzhixun@hrbeu.edu.cn
作者简介:殷旭(1997—),博士生,从事海洋柔性管缆结构优化设计.
基金资助:
国家自然科学基金(52001088);国家自然科学基金(52271269);国家自然科学基金(U1906233);黑龙江省自然科学基金(LH2021E050)

Automatic Filling Optimization Design of Filler Bodies in Umbilical Cross-Section Based on Quasi-Physical Algorithm

YIN Xu¹, CAO Donghui², TIAN Geng², YANG Zhixun²(), FAN Zhirui¹, WANG Gang³, LU Yucheng², WANG Hui²

1. Department of Engineering Mechanics, Dalian University of Technology, Dalian 116023, Liaoning, China
2. College of Mechanical and Electrical Engineering, Harbin Engineering University, Harbin 150001, China
3. School of Civil Engineering, Dalian Jiaotong University, Dalian 116028, Liaoning, China

Received:2023-11-20 Revised:2023-12-26 Accepted:2024-01-12 Online:2025-08-28 Published:2025-08-26
Contact: YANG Zhixun E-mail:yangzhixun@hrbeu.edu.cn

摘要/Abstract

摘要：

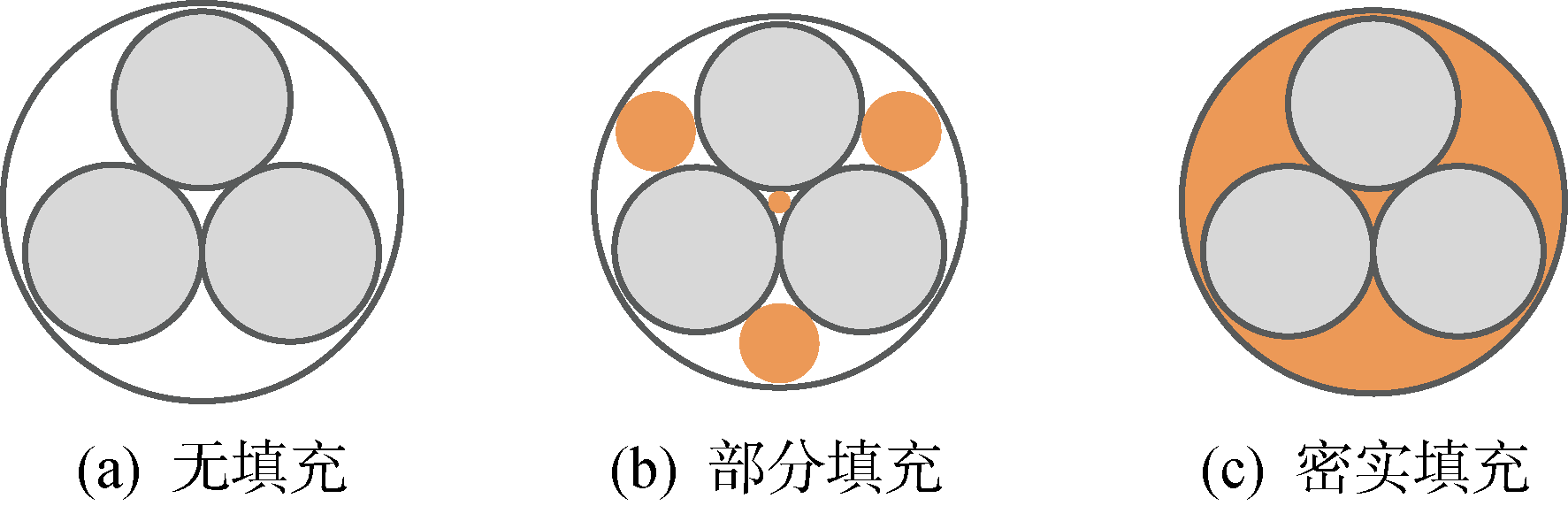

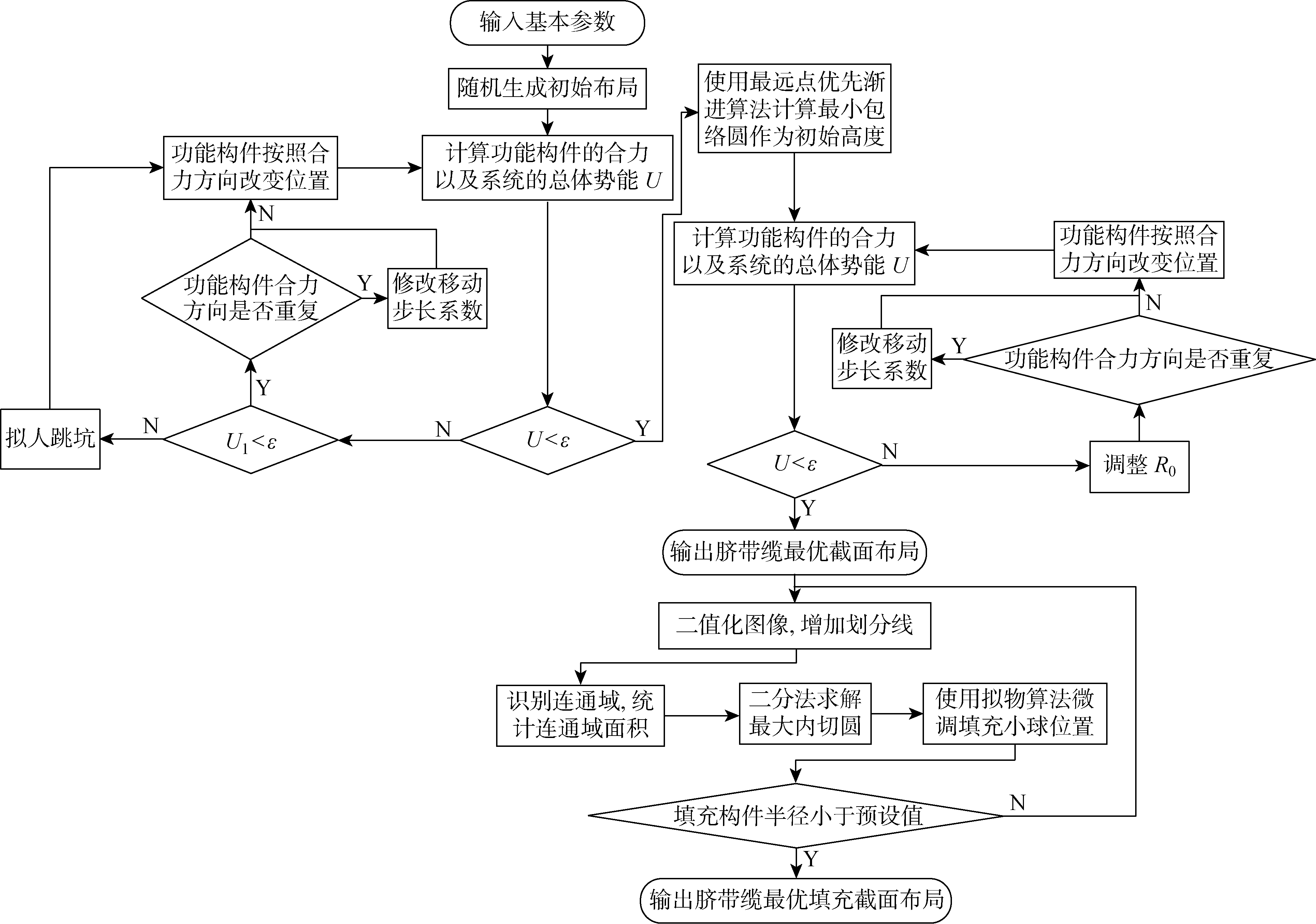

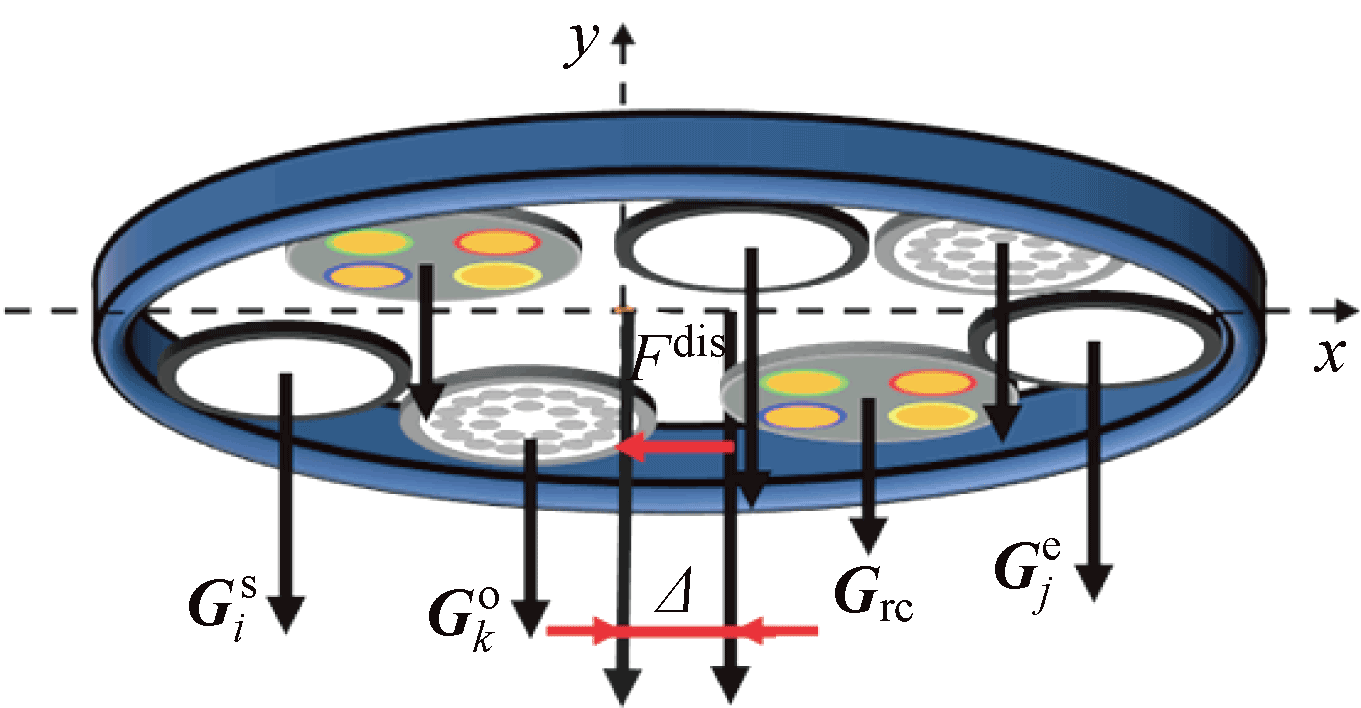

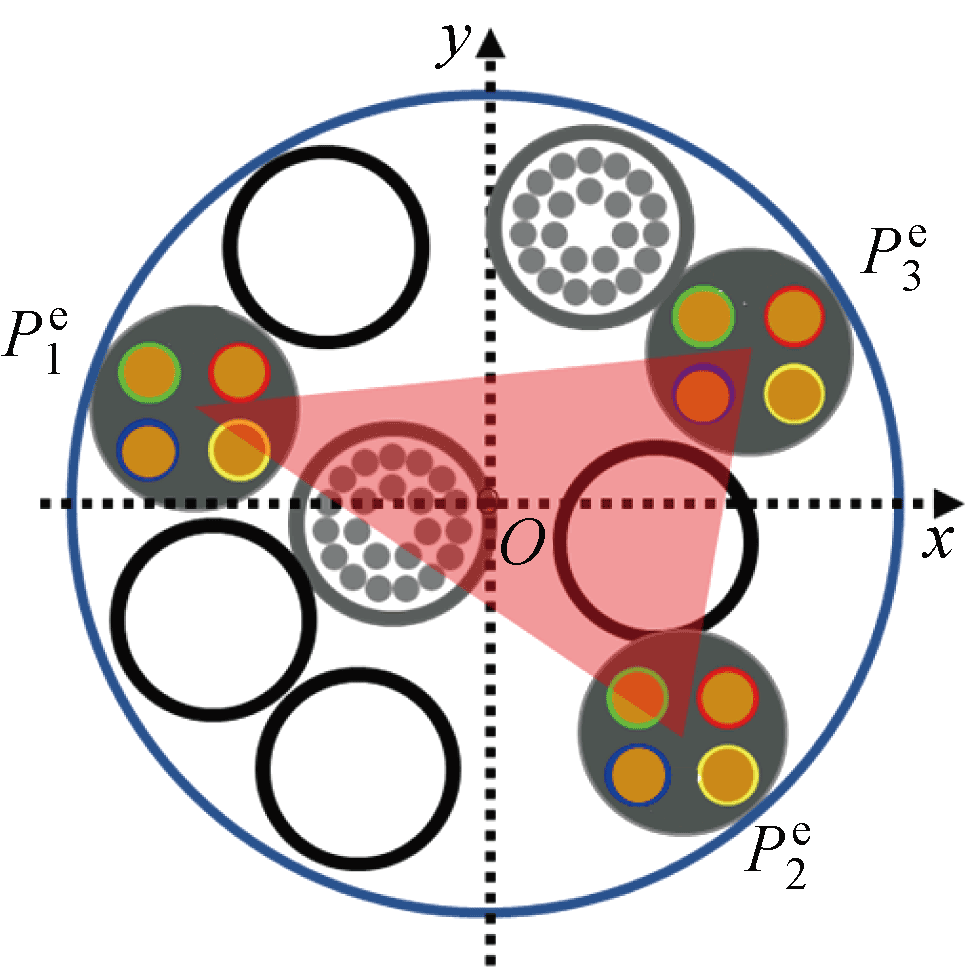

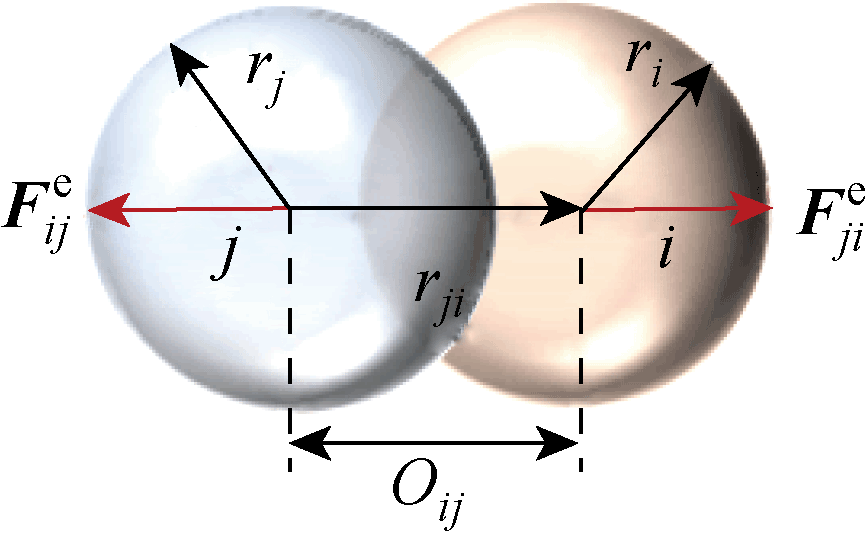

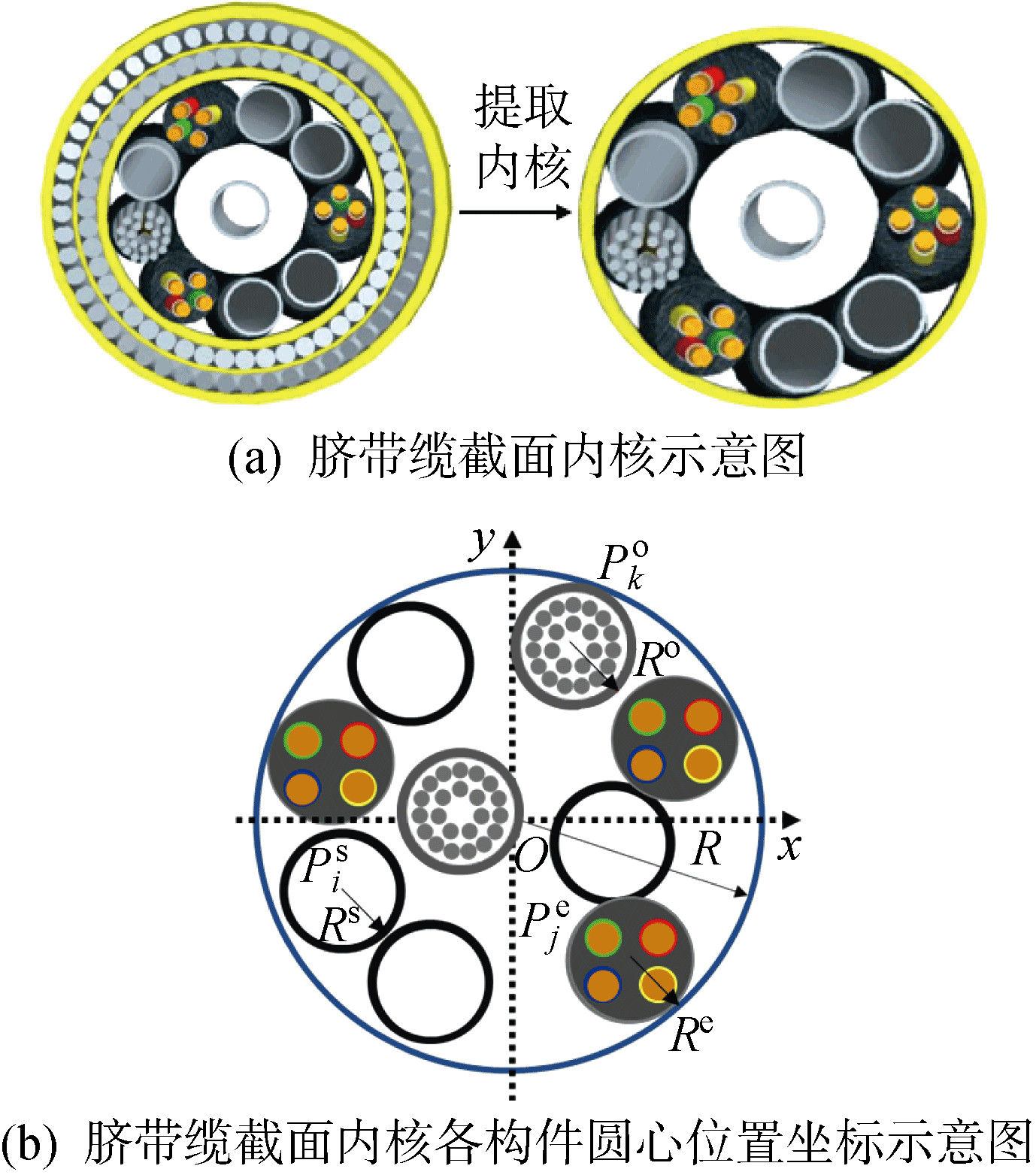

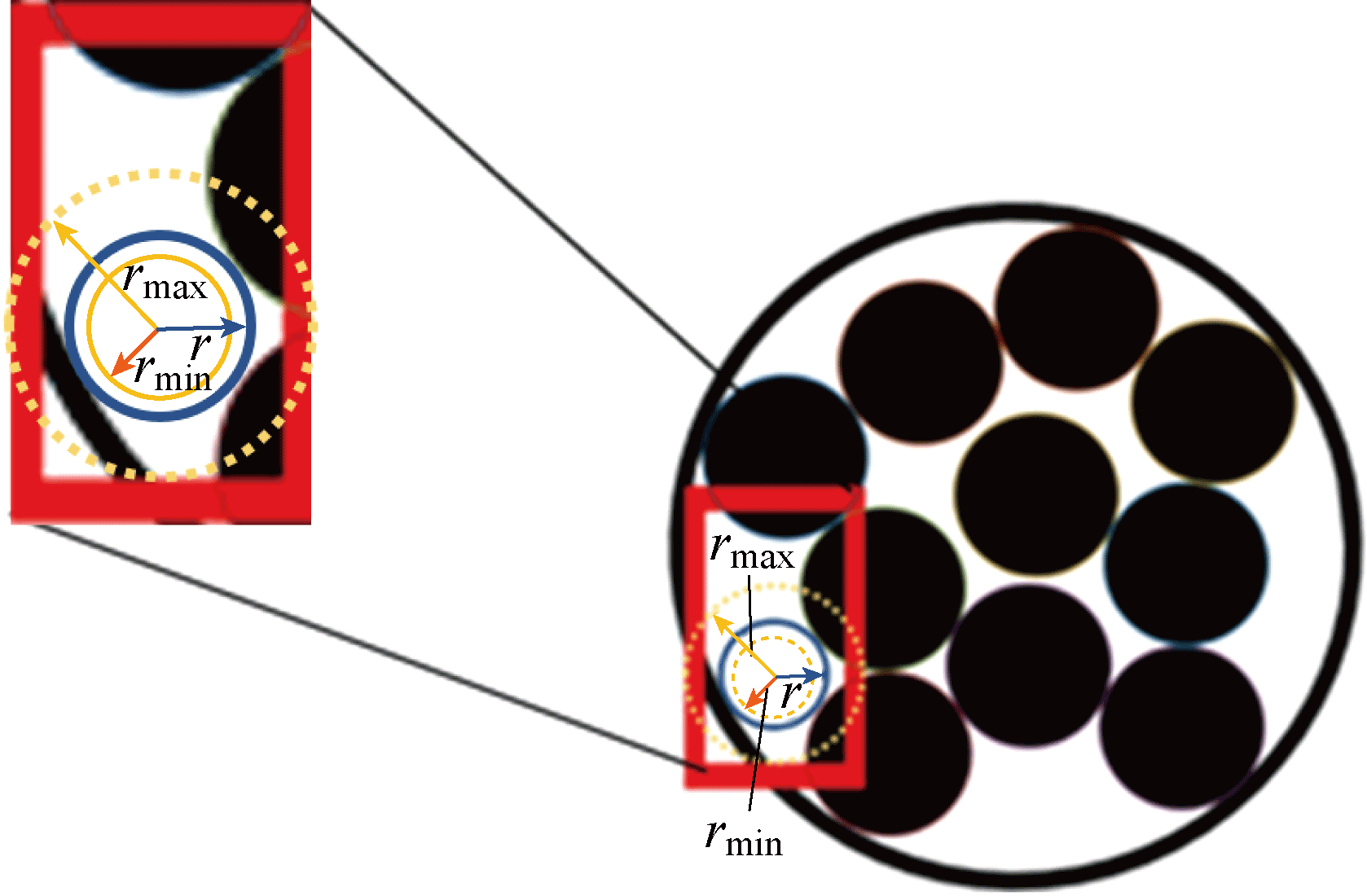

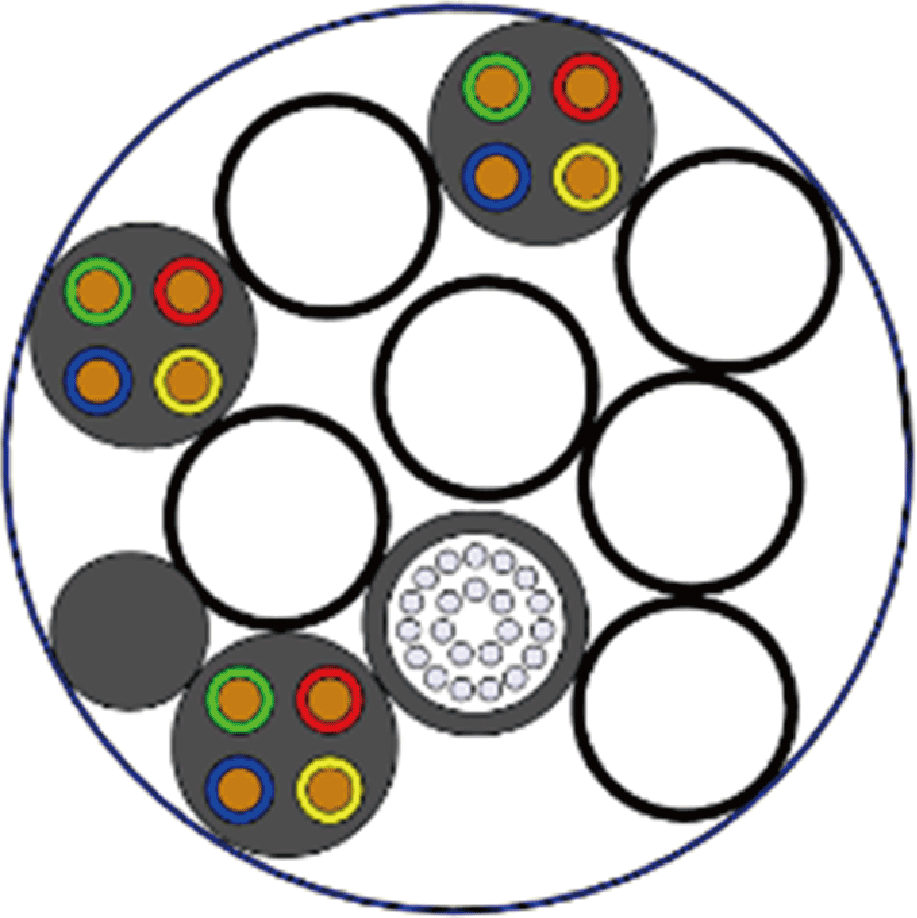

脐带缆是油气开采水下生产系统中的关键组成部分,其截面由光缆、电缆、钢管及填充材料等构成.由于构件的性能存在一定差异,所以其排布形式会使得脐带缆性能存在较大差距.综合考虑到截面紧凑性、平衡性和热源分散性,建立了多目标优化模型.基于该模型构建物理模型,并采用拟物算法对包含等径构件的脐带缆截面进行布局设计.前期研究表明,功能构件之间的相互约束会在优化后截面中产生空缺区域,为满足脐带缆设计规范中对截面布局密实的要求,提出基于图像识别的截面构件自动填充策略,并将其融入布局优化流程.最后,以一根脐带缆为例,通过拟物算法得到最优布局后,利用填充策略完成截面填充设计.通过与初始截面对比,验证了所提出的自动填充设计算法的有效性,为脐带缆截面填充设计提供有效参考.

关键词: 脐带缆, 截面布局, 拟物算法, 填充策略, 优化设计

Abstract:

As a key component in the subsea production system for oil and gas exploitation, a marine umbilical consists of optical cables, electrical cables, steel tubes, and filler bodies. The difference of materials and dimensions between the components leads to a great difference in their mechanical properties, and the different layouts cause a large gap in the performance of an umbilical. Considering the compactness, balance, and heat source dispersion of the cross-section, a multi-objective optimization model is established in this paper. Based on the quasi-physical algorithm, the layout design of cross-section of an umbilical containing equal-diameter components is conducted. Due to the mutual constraints between functional components, the optimized cross-section will have large gap. In order to meet the requirement of dense cross-sectional layout in the umbilical cable design specification, a strategy for automatically filling filler bodies based on image recognition is introduced, in combination with the layout optimization process. Finally, taking an umbilical as an example, the filling strategy is utilized to complete the design of cross-sectional filler bodies after obtaining the optimal layout through the quasi-physical algorithm. The algorithm is validated by comparison with the initial cross-sectional layout, demonstrating its effectiveness as a reference for the design of cross-sectional filler bodies of umbilicals.

Key words: umbilical, cross-sectional layout, quasi-physical algorithm, filling strategy, optimization design

中图分类号:

TE832

殷旭, 曹冬辉, 田庚, 杨志勋, 范志瑞, 王刚, 陆俣丞, 汪慧. 基于拟物算法的脐带缆截面布局自动填充优化设计方法[J]. 上海交通大学学报, 2025, 59(8): 1103-1113.

YIN Xu, CAO Donghui, TIAN Geng, YANG Zhixun, FAN Zhirui, WANG Gang, LU Yucheng, WANG Hui. Automatic Filling Optimization Design of Filler Bodies in Umbilical Cross-Section Based on Quasi-Physical Algorithm[J]. Journal of Shanghai Jiao Tong University, 2025, 59(8): 1103-1113.

图/表 19

图1

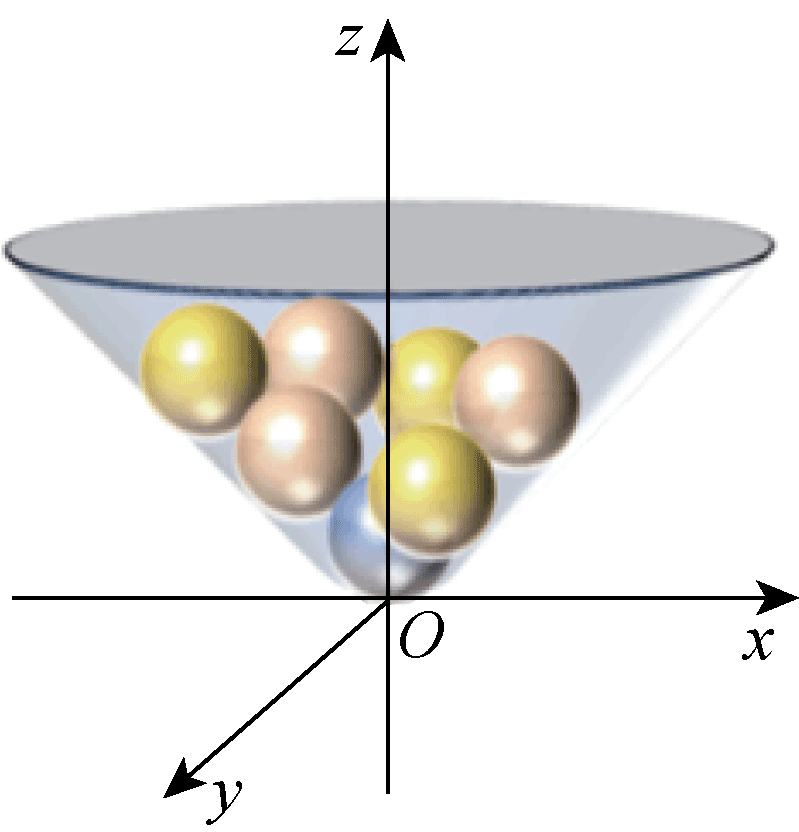

图2

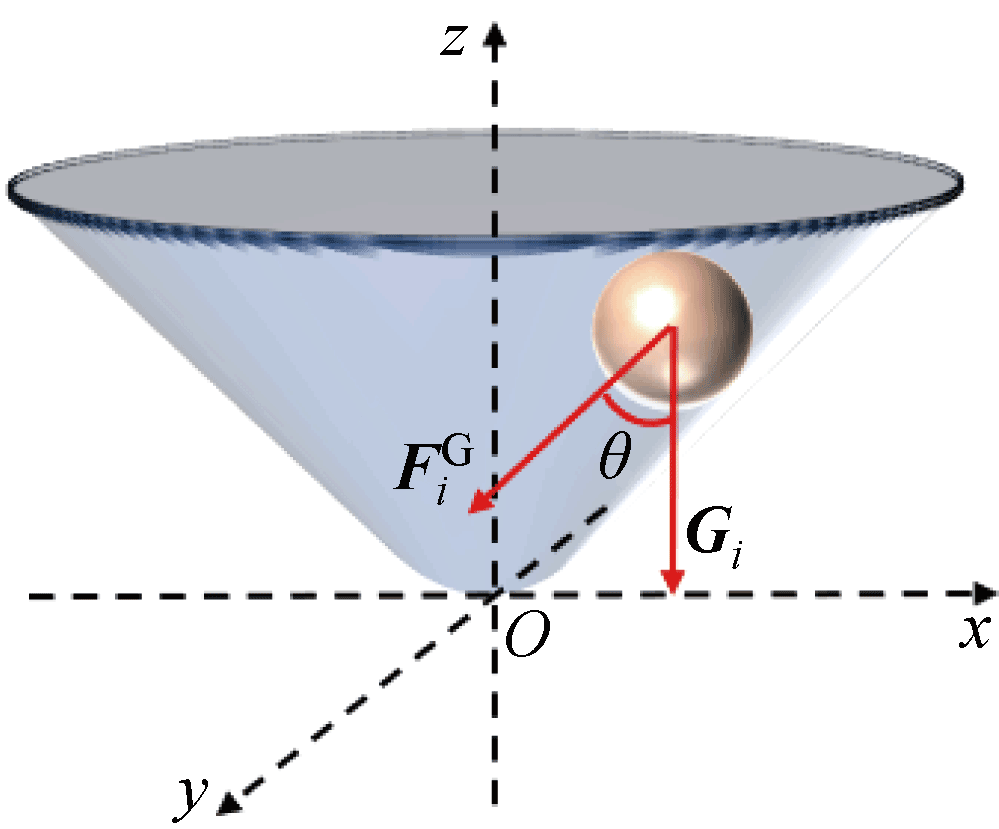

图3

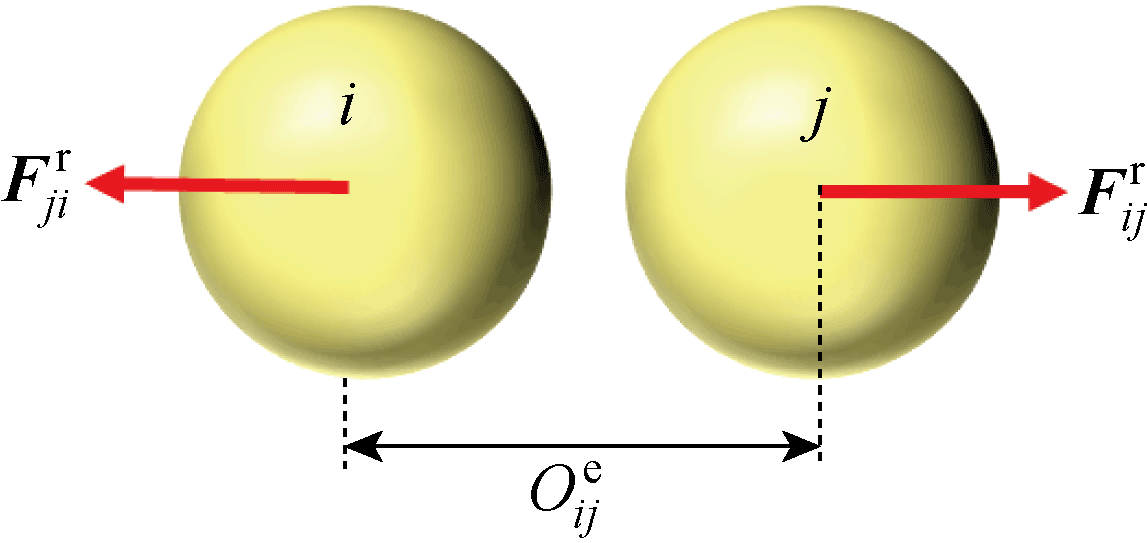

图4

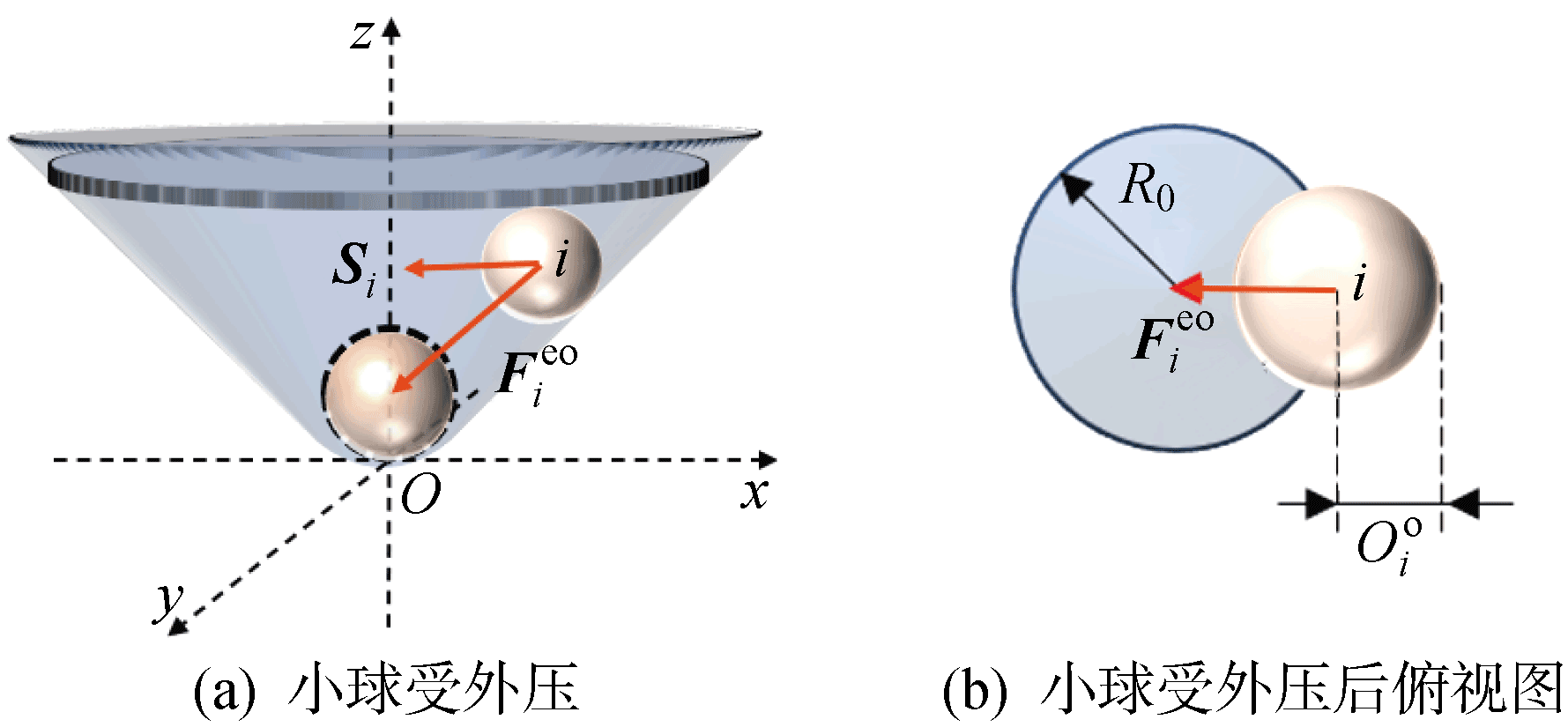

图5

图6

图7

图8

图9

图10

图11

图12

图13

表1

图14

表2

图15

图16

表3

参考文献 18

[1]	郭宏, 屈衍, 李博, 等. 国内外脐带缆技术研究现状及在我国的应用展望[J]. 中国海上油气, 2012(1): 74-78.
	GUO Hong, QU Yan, LI Bo, et al. Research situation on domestic and abroad umbilical cord technology and prospect of application in China[J]. China Offshore Oil and Gas, 2012(1): 74-78.
[2]	马国君. 考虑温度场效应的脐带缆截面结构设计与优化[D]. 大连: 大连理工大学, 2015.
	MA Guojun. Design and optimization of umbilical cable cross-section structure considering temperature field effect[D]. Dalian: Dalian University of Technology, 2015.
[3]	YANG Z, LU Q, YAN J, et al. Multidisciplinary optimization design for the section layout of umbilicals based on intelligent algorithm[J]. Journal of Offshore Mechanics & Arctic Engineering, 2018, 140(3): 031702.
[4]	YANG Z, YIN X, YAN J, et al. Study on the optimization algorithm of the cross-sectional layout of an umbilical based on the layering strategy[J]. Ocean Engineering, 2021(232): 109120.
[5]	殷旭, 杨志勋, 王立夫, 等. 基于乘子罚函数算法的脐带缆截面布局多目标优化设计研究[J]. 中国造船, 2021, 62 (3): 114-126.
	YIN Xu, YANG Zhixun, WANG Lifu, et al. Research on multi-objective optimal design of umbilical cable cross-section layout based on multiplicative penalty function algorithm[J]. Ship Building of China, 2021, 62 (3): 114-126.
[6]	YIN X, YANG Z, YAN J, et al. Study on the automatic optimization design of the cross-sectional layout of an umbilical with layers based on the GA-GLM[J]. Marine Structures, 2023(88): 103363.
[7]	杨志勋, 王刚, 阎军, 等. 填充对钢管脐带缆截面力学性能影响分析[J]. 计算机辅助工程, 2013, 22(2): 55-60.
	YANG Zhixun, WANG Gang, YAN Jun, et al. Analysis on effect of filling on mechanical property of steel tube umbilical cable section[J]. Integrated Computer-Aided Engineering, 2013, 22(2): 55-60.
[8]	YE N Q, GJOØSTEEN J K O, SÆVIK S. On choice of finite element type for the filled bodies in umbilicals for deep water application[C]// Proceedings of ASME 2010 29th International Conference on Ocean, Offshore and Arctic Engineering. Shanghai, China: British Computer Society, 2010: 679-685.
[9]	毛彦东, 杨志勋, 阎军, 等. 脐带缆截面填充构件拓扑优化轻量化设计[J]. 哈尔滨工程大学学报, 2022, 43(3): 421-428.
	MAO Yandong, YANG Zhixun, YAN Jun, et al. Topology optimization and lightweight design of filling bodies in the cross-section of umbilical cables[J]. Journal of Harbin Engineering University, 2022, 43(3): 421-428.
[10]	骆震江, 程川, 许如初, 等. 支持求解不等圆packing问题的降维策略[J]. 信息通信, 2020(9): 25-27.
	LUO Zhenjiang, CHENG Chuan, XU Ruchu, et al. Strategy for dimensionality reduction strategies for solving unequal circle packing problems[J]. Information and Communications, 2020(9): 25-27.
[11]	梁利东, 何东, 朱良恒. 不等圆Packing问题的多策略优化方法[J]. 机械科学与技术, 2022, 41(9): 1394-1402.
	LIANG Lidong, HE Dong, ZHU Liangheng. Multi-strategy optimization method forunequal circle packing problem[J]. Mechanical Science and Technology for Aerospace Engineering, 2022, 41(9): 1394-1402.
[12]	武蓓蓓, 徐青, 冯世盛. 基于MATLAB的地图符号识别算法研究[J]. 测绘与空间地理信息, 2022, 45(7): 249-252.
	WU Beibei, XU Qing, FENG Shisheng. Research on map symbol recognition algorithm based on MATLAB[J]. Geomatics & Spatial Information Technology, 2022, 45(7): 249-252.
[13]	高新洲, 郭延宁, 马广富, 等. 采用混合遗传算法的敏捷卫星自主观测任务规划[J]. 哈尔滨工业大学学报, 2021, 53 (12): 1-9.
	GAO Xinzhou, GUO Yanning, MA Fuguang, et al. Agile satellite autonomous observation mission planning using hybrid genetic algorithm[J]. Journal of Harbin Institute of Technology, 2021, 53 (12): 1-9.
[14]	郑梅生, 陈宁, 宋超. 计算任意多边形最大内圆的一种算法[J]. 机械设计与制造, 2003(5): 84-85.
	ZHENG Meisheng, CHEN Ning, SONG Chao. An algorithm for determining the largest internal circle in arbitrary polygons[J]. Machinery Design & Manufacture, 2003(5): 84-85.
[15]	孙玉芹, 车仁生. 求解最大内切圆的一种新方法[J]. 光学精密工程, 2003, 11(2): 181-187.
	SUN Yuqin, CHE Rensheng. Novel method for solving maximum inscribed circle[J]. Optics and Precision Engineering, 2003, 11(2): 181-187.
[16]	李伟, 周朝晖, 严承华. 图像最大内切圆求解算法的研究[J]. 工程图学学报, 2006, 27(2): 117-121.
	LI Wei, ZHOU Zhaohui, YAN Chenghua. Research on algorithm for solving maximum inscribed circle of image[J]. Journal of Engineering Graphics, 2006, 27(2): 117-121.
[17]	LUKASSEN T V, GUNNARSSON E, KRENK S, et al. Tension-bending analysis of flexible pipe by a repeated unit cell finite element model[J]. Marine Structures, 2019, 64: 401-420.
[18]	刘庆升, 薛鸿祥, 袁昱超, 等. 含复合材料结构的非黏结柔性立管弯曲特性[J]. 上海交通大学学报, 2022, 56 (9): 1247-1255. doi: 10.16183/j.cnki.jsjtu.2021.144
	LIU Qingsheng, XUE Hongxiang, YUAN Yuchao, et al. Bending properties of unbonded flexible risers with composite materials[J]. Journal of Shanghai Jiao Tong University, 2022, 56 (9): 1247-1255.

功能构件类型	直径,D/mm	虚拟重力,G/MN
钢管构件	40	13.2
电缆构件	40	2.6
光缆构件	40	9.1

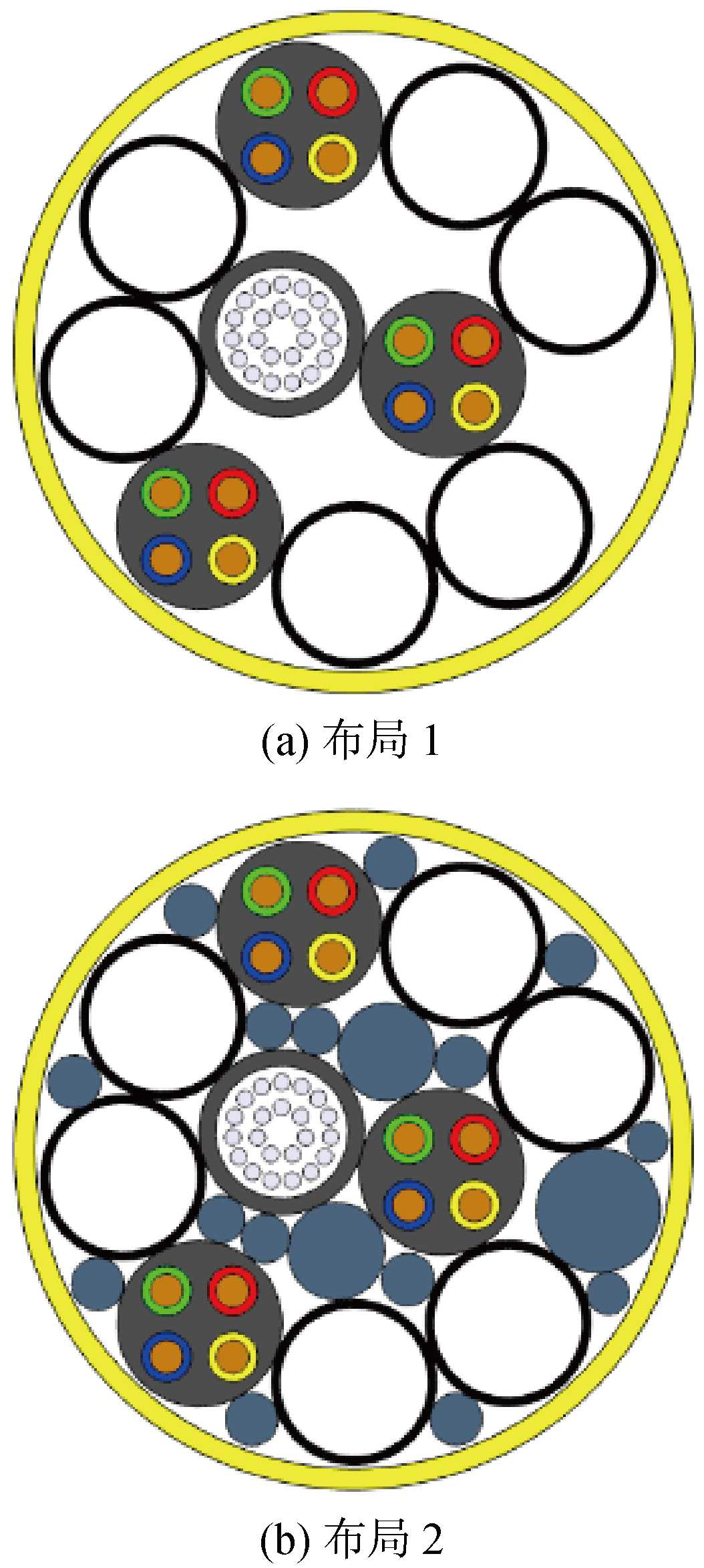

布局形式	截面半径/mm	Δ/mm	T/mm^-2
布局1	77	0.075 2	0.151 8
布局2	77	0.032 7	0.151 8

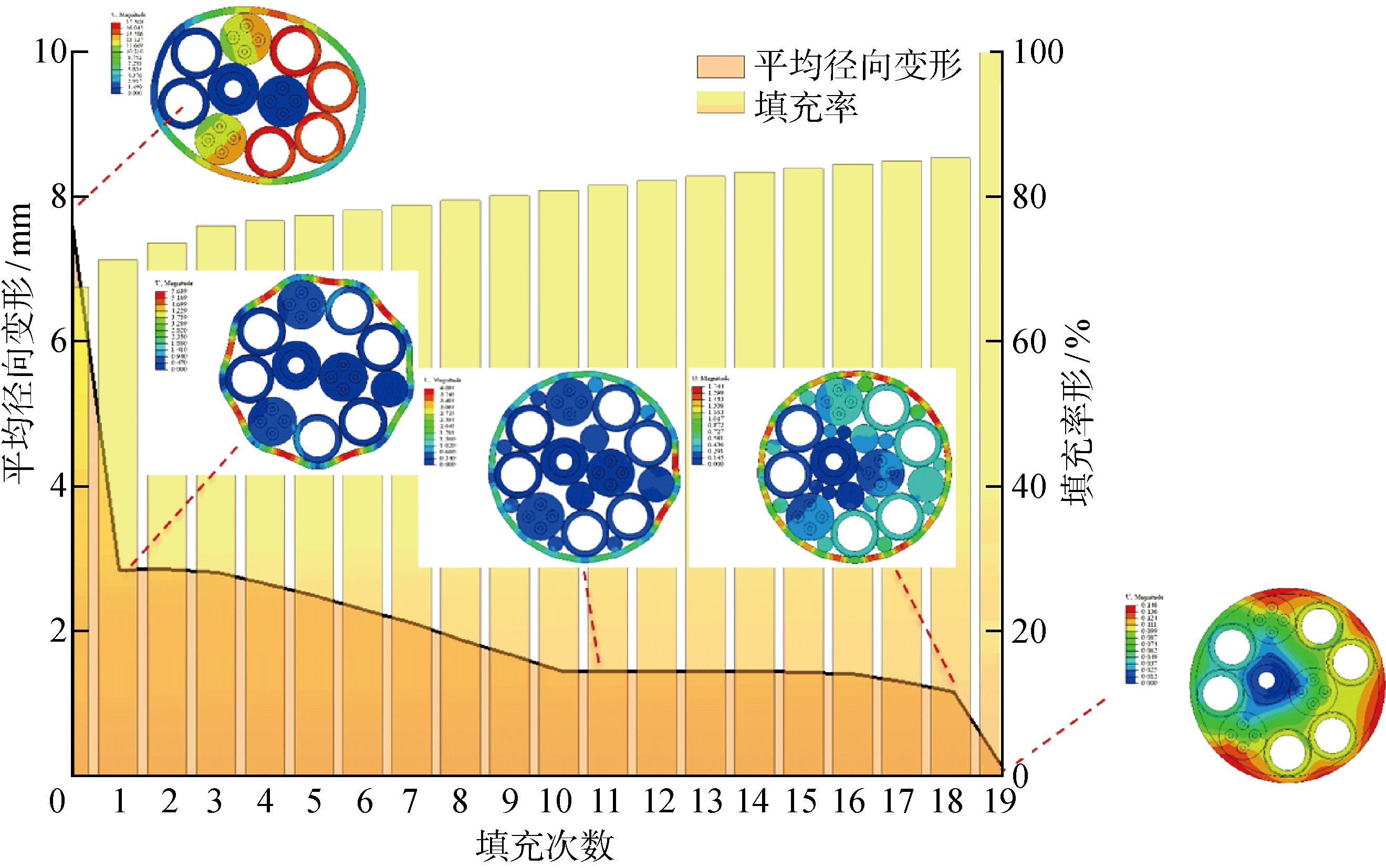

布局形式	平均径向变形/mm	偏差/%	最大径向变形差值/mm	偏差/%
布局1	7.842	—	14.670	—
布局2	0.118	-98.50	0.083	-99.43
