考虑分布式储能荷电状态均衡的光储微网黑启动协调控制策略

doi:10.16183/j.cnki.jsjtu.2023.395

上海交通大学学报 ›› 2025, Vol. 59 ›› Issue (7): 938-951.doi: 10.16183/j.cnki.jsjtu.2023.395

• 新型电力系统与综合能源 • 上一篇下一篇

考虑分布式储能荷电状态均衡的光储微网黑启动协调控制策略

周霞^a, 陈文剑^a(), 戴剑丰^b, 解相朋^a^,^b

南京邮电大学 a. 碳中和先进技术研究院; b. 自动化学院、人工智能学院,南京 210023

收稿日期:2023-08-14 修回日期:2023-10-27 接受日期:2023-12-04 出版日期:2025-07-28 发布日期:2025-07-22
通讯作者: 陈文剑 E-mail:1221056010@njupt.edu.cn
作者简介:周霞(1978—),副教授,高级工程师,从事电力通信、电力系统分析与控制研究.
基金资助:
国家自然科学基金重点项目(61933005)

Black-Start Coordinated Control Strategy of Optical Storage Microgrid Considering State of Charge Balance of Distributed Energy Storage

ZHOU Xia^a, CHEN Wenjian^a(), DAI Jianfeng^b, XIE Xiangpeng^a^,^b

a. Institute of Advanced Technology; b. College of Automation and College of Artificial Intelligence, Nanjing University of Posts and Telecommunications, Nanjing 210023, China

Received:2023-08-14 Revised:2023-10-27 Accepted:2023-12-04 Online:2025-07-28 Published:2025-07-22
Contact: CHEN Wenjian E-mail:1221056010@njupt.edu.cn

摘要/Abstract

摘要：

随着新能源在电网中占比逐步增加,配备大容量分布式储能的光伏微网支撑火电厂黑启动成为可能.针对黑启动期间微网有功频繁波动,分布式储能荷电状态(SOC)越限导致黑启动失败的问题,提出一种考虑分布式储能SOC均衡的光储微网黑启动协调控制策略.该策略根据分布式储能单元SOC,将光伏系统负荷跟踪控制与最大功率跟踪控制相结合,使光伏出力有效跟踪微网负荷以避免SOC越限.在光伏出力与黑启动负荷不平衡时,分布式储能系统用于平滑系统有功功率差.对储能单元下垂控制进行改进,确保基于储能SOC的有功分配,实现各储能单元SOC均衡.通过基于一致性协议的储能二次控制,实现黑启动过程中系统有功波动下的频率稳定.仿真结果证明了光储微网黑启动可行性与所提控制策略的有效性.

关键词: 光储系统, 孤岛微网黑启动, 负荷跟踪, 分布式储能, 荷电状态(SOC)均衡

Abstract:

With the increasing proportion of new energy in the power grid, photovoltaic microgrids equipped with large-capacity distributed energy storage have the potential to support the black start of thermal power plants. To address this issue of frequent fluctuation in the active power of the microgrid during the black-start period, and the risk of exceeding the state of charge (SOC) limits of the distributed energy storage, which could lead to the failure of the black-start, a coordinated control strategy for the optical storage microgrid black-start is proposed considering the SOC balance of the distributed energy storage. Based on the SOC of the distributed energy storage unit, the proposed strategy combines the load tracking control of the photovoltaic system and the maximum power tracking (MPPT) control, which ensures that the photovoltaic output effectively tracks the microgrid load to prevent the SOC from exceeding its limit. When the photovoltaic output becomes unbalanced with the black-start load, the distributed energy storage system is used to smooth the active power difference of the system. Furtherfore, the droop control for the traditional energy storage units is improved to ensure the active power distribution based on the energy storage SOC, enabling the SOC balance among energy storage units. Through secondary control of the energy storage units based on distributed consensus protocol, the strategy ensures frequency stability in the active power fluctuation during the black start process. The simulation results verify the feasibility of black start and the effectiveness of the proposed control strategy.

Key words: optical storage system, black start of island microgrid, load tracking, distributed energy storage, state of storage (SOC) equilibrium

中图分类号:

TM614

周霞, 陈文剑, 戴剑丰, 解相朋. 考虑分布式储能荷电状态均衡的光储微网黑启动协调控制策略[J]. 上海交通大学学报, 2025, 59(7): 938-951.

ZHOU Xia, CHEN Wenjian, DAI Jianfeng, XIE Xiangpeng. Black-Start Coordinated Control Strategy of Optical Storage Microgrid Considering State of Charge Balance of Distributed Energy Storage[J]. Journal of Shanghai Jiao Tong University, 2025, 59(7): 938-951.

图/表 14

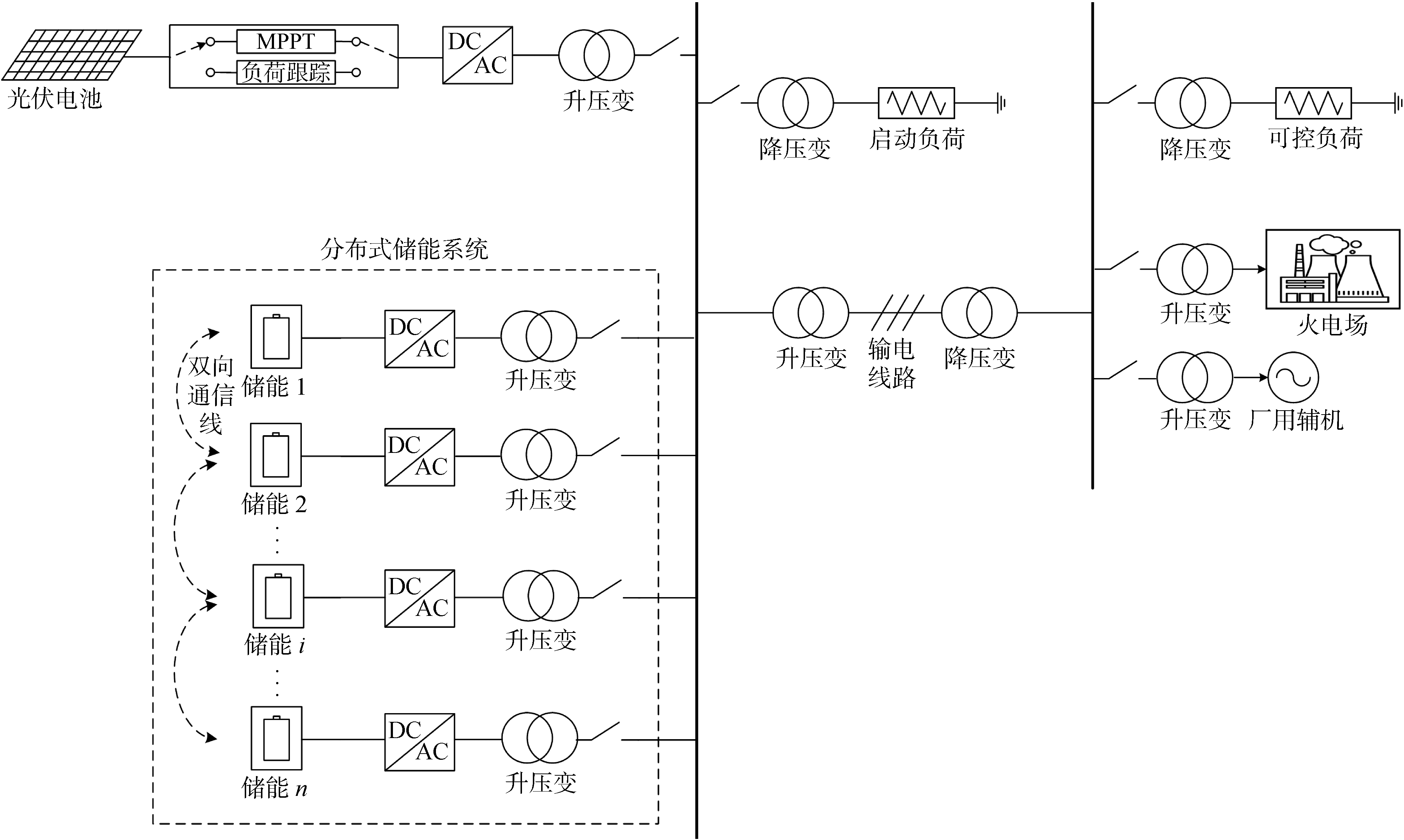

图1

图2

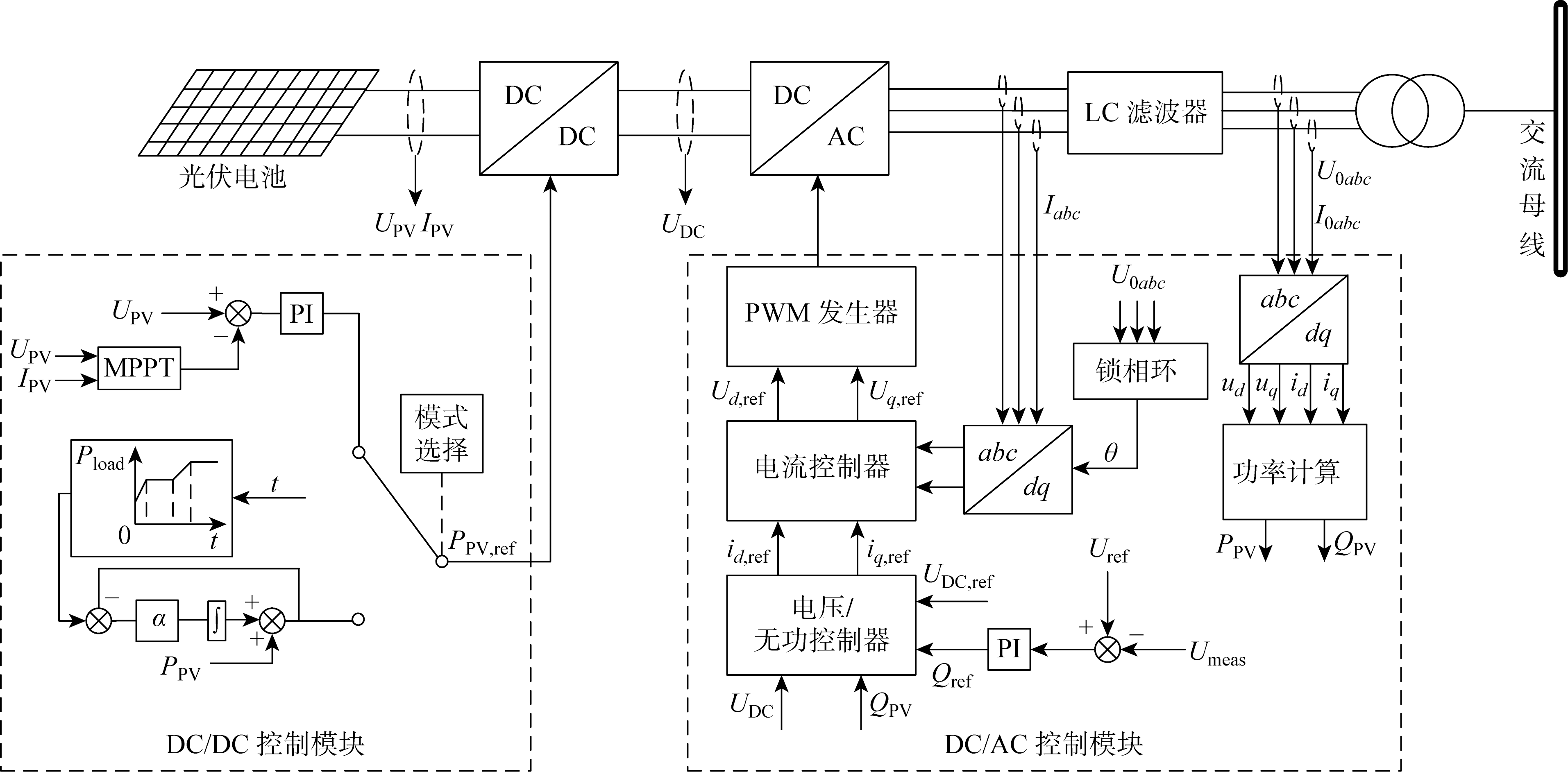

图3

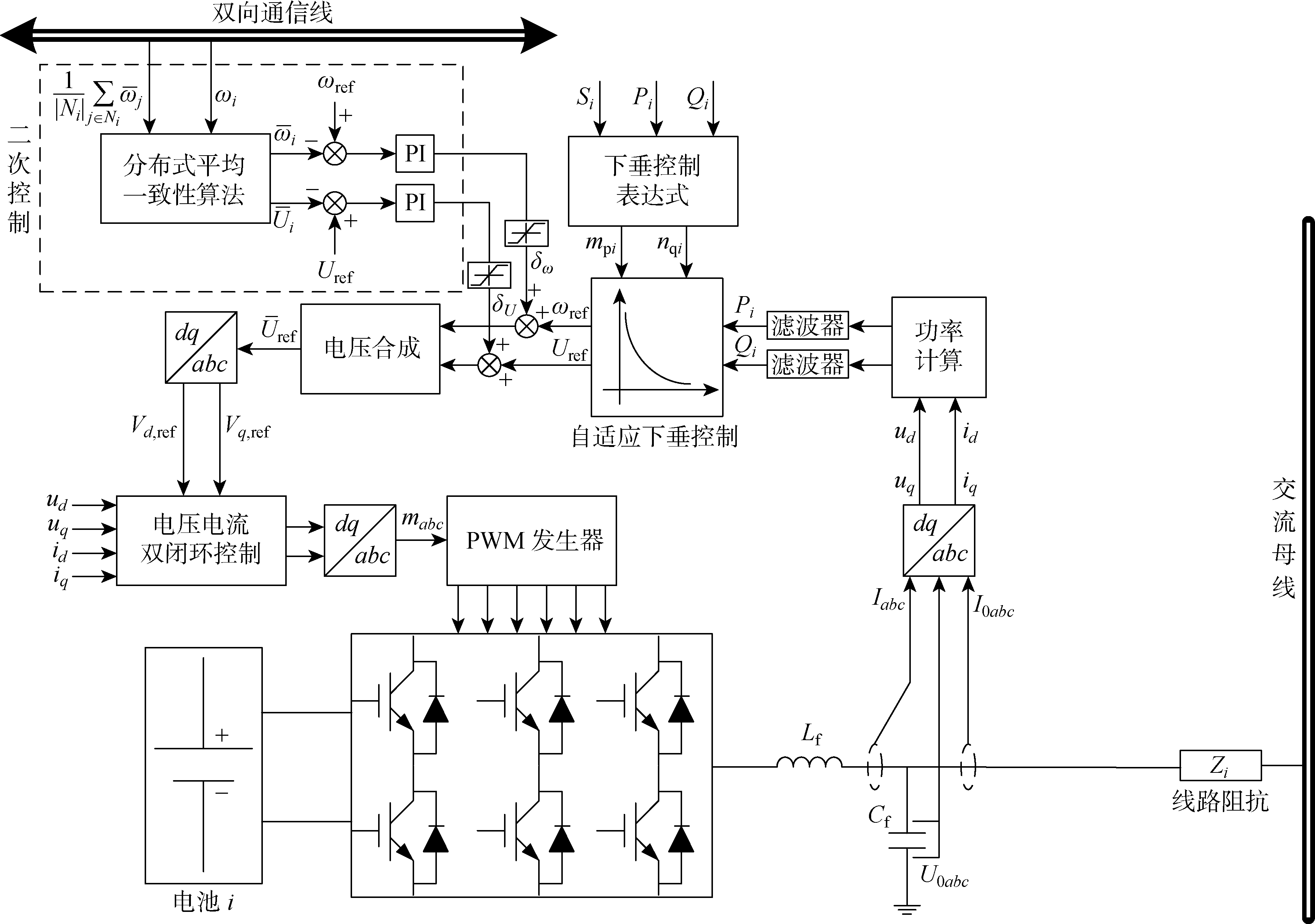

图4

图5

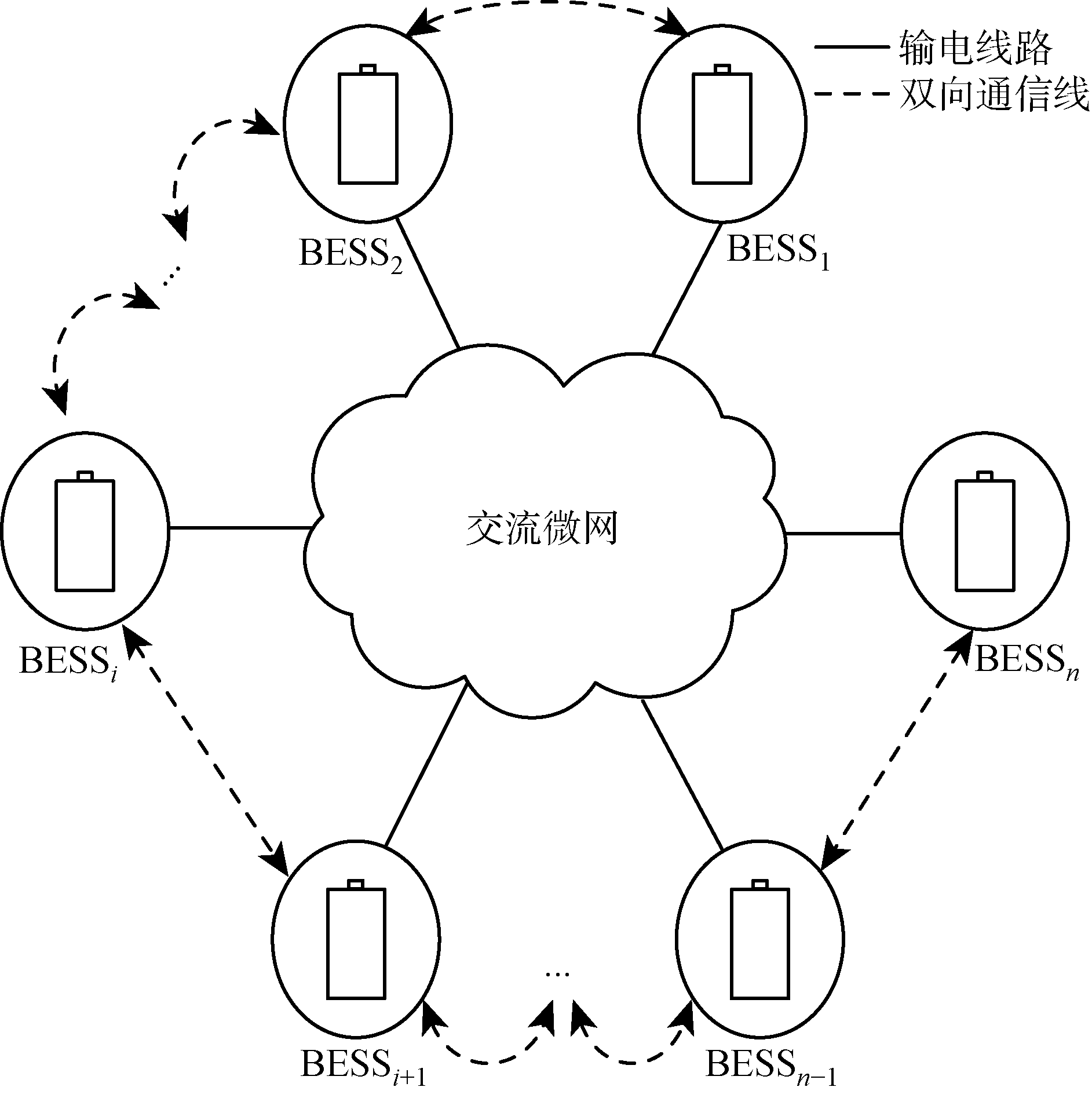

图6

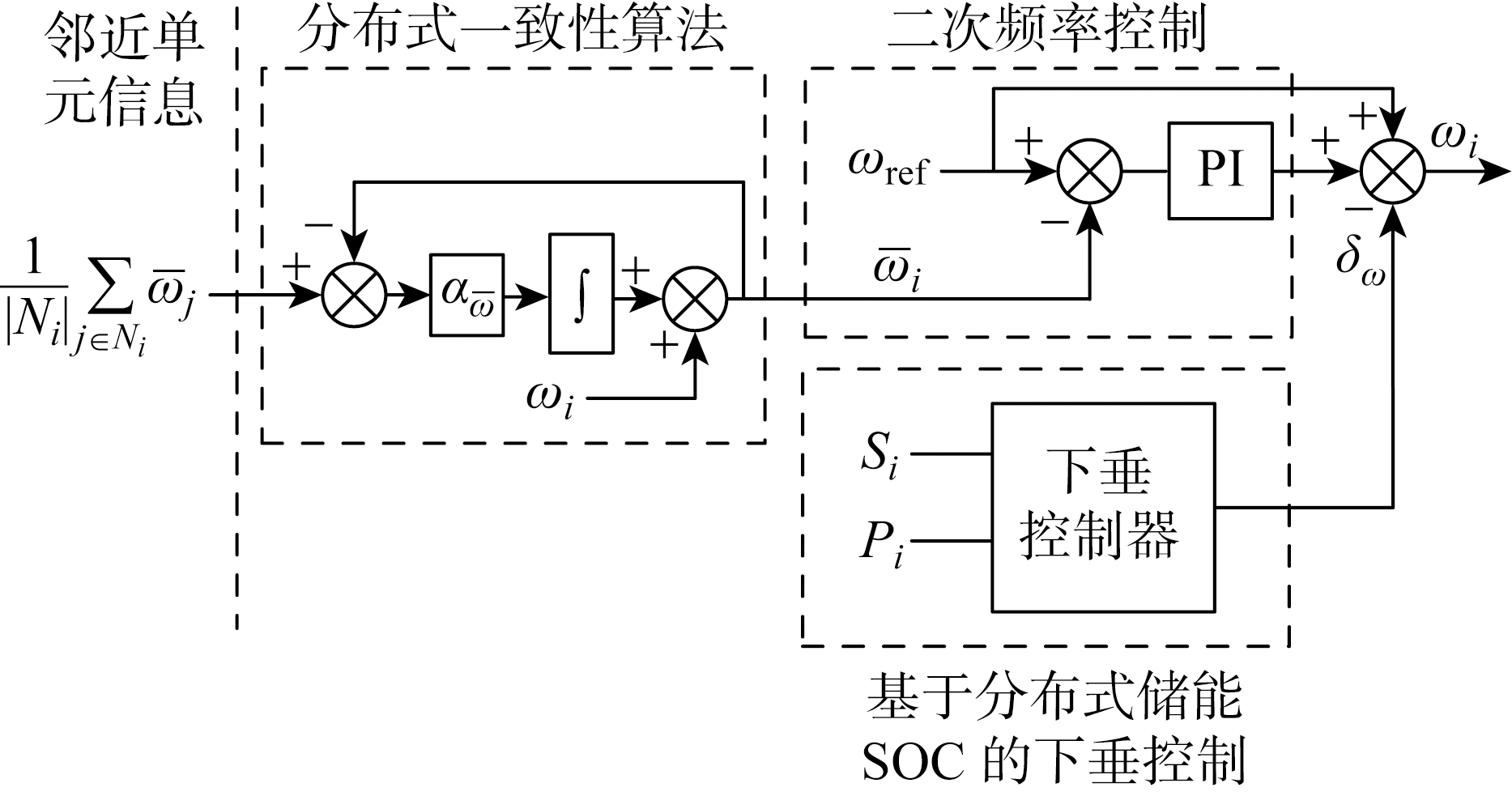

图7

表1

表2

表3

下垂控制器设计参数

参数	取值	参数	取值
m₀	0.05	γ₀	1
c	9	v	2
γ_i上限,γ_max	6	γ_i下限,γ_min	1
$α ω -$	0.5	无功下垂系数,n_q	0.002

表3

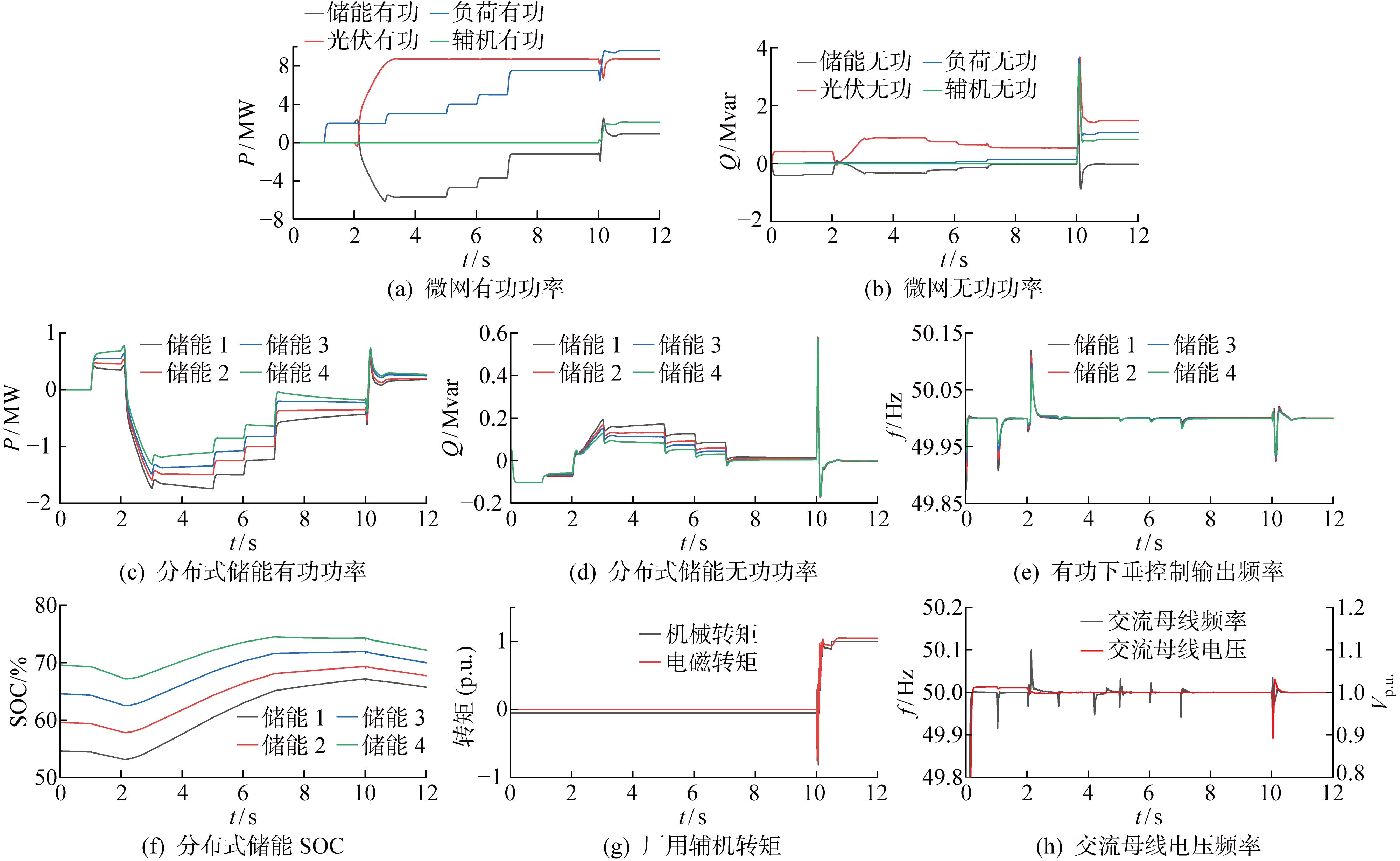

图8

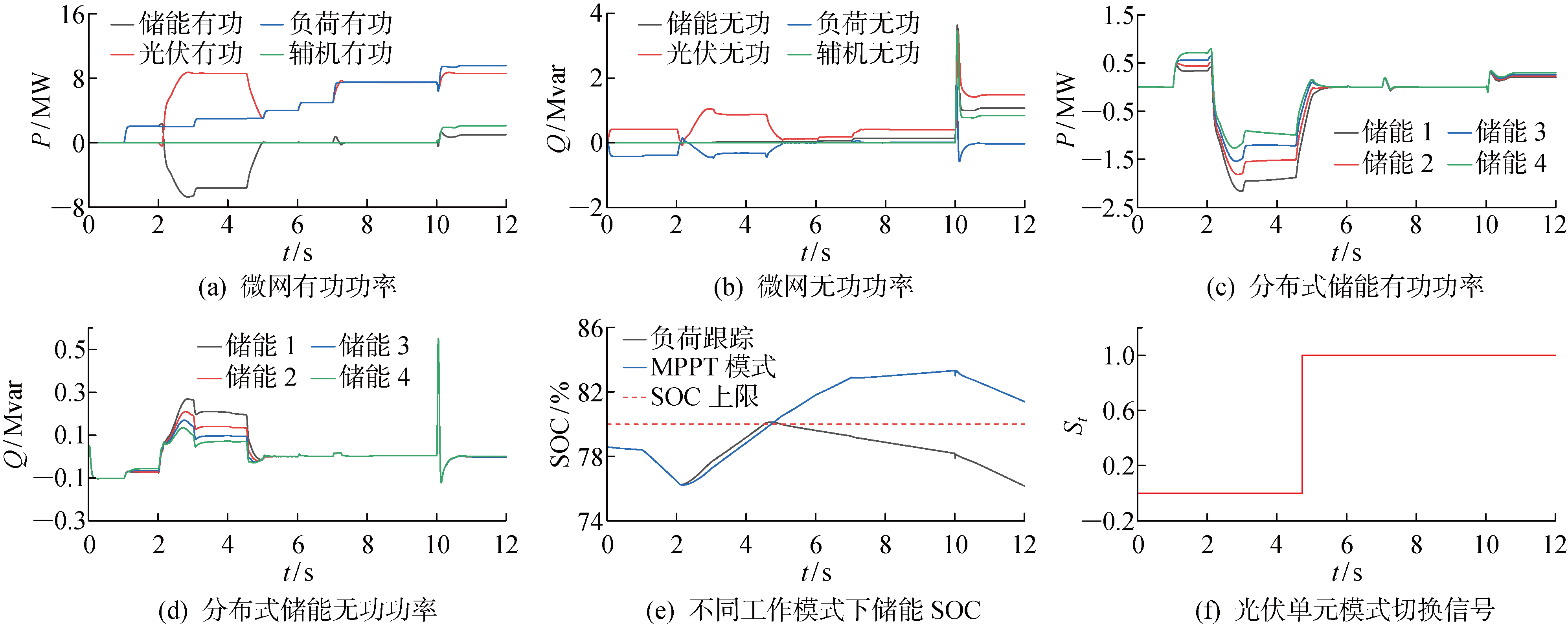

图9

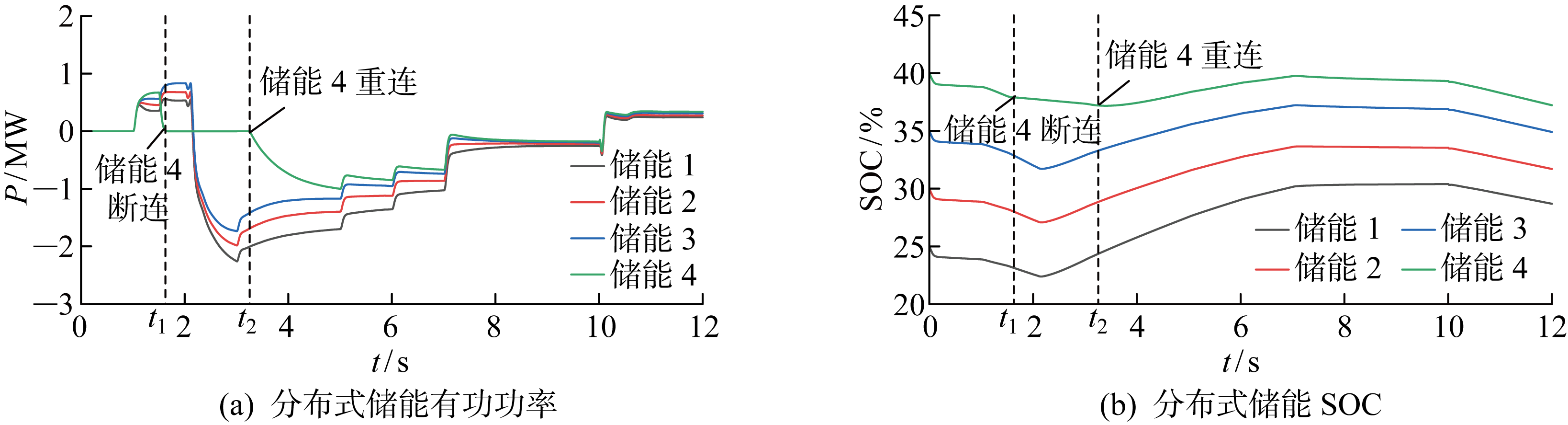

图10

图11

参考文献 26

[1]	李鹏, 王瑞, 冀浩然, 等. 低碳化智能配电网规划研究与展望[J]. 电力系统自动化, 2021, 45(24): 10-21.
	LI Peng, WANG Rui, JI Haoran, et al. Research and prospect of planning for low-carbon smart distribution network[J]. Automation of Electric Power Systems, 2021, 45(24): 10-21.
[2]	周劼英, 张晓, 邵立嵩, 等. 新型电力系统网络安全防护挑战与展望[J]. 电力系统自动化, 2023, 47(8): 15-24.
	ZHOU Jieying, ZHANG Xiao, SHAO Lisong, et al. Challenges and prospects of cyber security protection for new power system[J]. Automation of Electric Power Systems, 2023, 47(8): 15-24.
[3]	郭琦, 卢远宏. 新型电力系统的建模仿真关键技术及展望[J]. 电力系统自动化, 2022, 46(10): 18-32.
	GUO Qi, LU Yuanhong. Key technologies and prospects of modeling and simulation of new power system[J]. Automation of Electric Power Systems, 2022, 46(10): 18-32.
[4]	桑博, 张涛, 刘亚杰, 等. 多微电网能量管理系统研究综述[J]. 中国电机工程学报, 2020, 40(10): 3077-3093.
	SANG Bo, ZHANG Tao, LIU Yajie, et al. Energy management system research of multi-microgrid: A review[J]. Proceedings of the CSEE, 2020, 40(10): 3077-3093.
[5]	HU J F, SHAN Y H, CHENG K W, et al. Overview of power converter control in microgrids—Challenges, advances, and future trends[J]. IEEE Transactions on Power Electronics, 2022, 37(8): 9907-9922.
[6]	李琳, 冀鲁豫, 张一驰, 等. 巴基斯坦 “1·9” 大停电事故初步分析及启示[J]. 电网技术, 2022, 46(2): 655-661.
	LI Lin, JI Luyu, ZHANG Yichi, et al. Preliminary analysis and lessons of blackout in Pakistan power grid on January 9, 2021[J]. Power System Technology, 2022, 46(2): 655-661.
[7]	王新宝, 葛景, 韩连山, 等. 构网型储能支撑新型电力系统建设的思考与实践[J]. 电力系统保护与控制, 2023, 51(5): 172-179.
	WANG Xinbao, GE Jing, HAN Lianshan, et al. Theory and practice of grid-forming BESS supporting the construction of a new type of power system[J]. Power System Protection & Control, 2023, 51(5): 172-179.
[8]	DANG H P, VILLEGAS PICO H N. Blackstart and fault ride-through capability of DFIG-based wind turbines[J]. IEEE Transactions on Smart Grid, 2023, 14(3): 2060-2074.
[9]	LI J H, YOU H F, QI J, et al. Stratified optimization strategy used for restoration with photovoltaic-battery energy storage systems as black-start resources[J]. IEEE Access, 2019, 7: 127339-127352.
[10]	陈春, 高靖, 曹一家, 等. 多源配网主动孤岛恢复过程电压频率波动的平抑方法[J]. 上海交通大学学报, 2022, 56(5): 543-553. doi: 10.16183/j.cnki.jsjtu.2021.418
	CHEN Chun, GAO Jing, CAO Yijia, et al. Voltage and frequency suppression of intentional islanding restoration process for distribution system with multi-generations[J]. Journal of Shanghai Jiao Tong University, 2022, 56(5): 543-553.
[11]	ZHANG B, DEHGHANIAN P, KEZUNOVIC M. Optimal allocation of PV generation and battery storage for enhanced resilience[J]. IEEE Transactions on Smart Grid, 2019, 10(1): 535-545.
[12]	周宜昌, 刘艳, 顾雪平. 考虑多风电场黑启动价值的机组恢复顺序双层优化决策[J]. 电力系统自动化, 2020, 44(16): 87-97.
	ZHOU Yichang, LIU Yan, GU Xueping. Bi-level optimization decision for unit recovery sequence considering black-start value of multiple wind farms[J]. Automation of Electric Power Systems, 2020, 44(16): 87-97.
[13]	汤奕, 戴剑丰, 冯祎鑫, 等. 基于虚拟惯量的风电场黑启动频率协同控制策略[J]. 电力系统自动化, 2017, 41(3): 19-24.
	TANG Yi, DAI Jianfeng, FENG Yixin, et al. Cooperative frequency control strategy for wind farm black-start based on virtual inertia[J]. Automation of Electric Power Systems, 2017, 41(3): 19-24.
[14]	桑顺, 齐琛, 张新松, 等. 永磁直驱风电机组的构网型控制与黑启动[J]. 电网技术, 2022, 46(8): 3168-3180.
	SANG Shun, QI Chen, ZHANG Xinsong, et al. Grid-forming control and black start of PMSG-based direct-driven wind turbine[J]. Power System Technology, 2022, 46(8): 3168-3180.
[15]	陈夏, 辛妍丽, 唐文虎, 等. 海上风电场黑启动系统的风柴协同控制策略[J]. 电力系统自动化, 2020, 44(13): 98-105.
	CHEN Xia, XIN Yanli, TANG Wenhu, et al. Coordinated control strategy of wind turbine and diesel generator for black-start system of offshore wind farm[J]. Automation of Electric Power Systems, 2020, 44(13): 98-105.
[16]	谢楠, 杨沛豪, 何萍, 等. 风光储微电网-火电机组黑启动全过程储能控制策略研究[J]. 电力系统及其自动化学报, 2023, 35(2): 75-82.
	XIE Nan, YANG Peihao, HE Ping, et al. Research on energy storage control strategy during whole black start process of wind-PV-energy storage microgrid and thermal power unit[J]. Proceedings of the CSU-EPSA, 2023, 35(2): 75-82.
[17]	何秀强, 耿华, 杨耕, 等. 接入LCC-HVDC的双馈风电场孤岛启动与并网控制策略[J]. 电力系统自动化, 2019, 43(9): 99-107.
	HE Xiuqiang, GENG Hua, YANG Geng, et al. Startup and integration control strategy of DFIG based isolated wind farm connected with LCC-HVDC[J]. Automation of Electric Power Systems, 2019, 43(9): 99-107.
[18]	刘英培, 侯亚欣, 梁海平, 等. 一种适用于黑启动的光储联合发电系统协调控制策略[J]. 电网技术, 2017, 41(9): 2979-2986.
	LIU Yingpei, HOU Yaxin, LIANG Haiping, et al. A coordinated control strategy of PV battery-energy storage hybrid power system for black start[J]. Power System Technology, 2017, 41(9): 2979-2986.
[19]	李军徽, 尤宏飞, 李翠萍, 等. 基于模型预测控制的风光储黑启动功率协调策略[J]. 电网技术, 2020, 44(10): 3700-3708.
	LI Junhui, YOU Hongfei, LI Cuiping, et al. Power coordination strategy based on model predictive control for black start with PV-wind-battery system[J]. Power System Technology, 2020, 44(10): 3700-3708.
[20]	闫来清, 曹丽源, 薛太林, 等. 风电场黑启动储能容量优化配置: 一种考虑储能运行策略的方法[J]. 电力系统保护与控制, 2022, 50(16): 131-139.
	YAN Laiqing, CAO Liyuan, XUE Tailin, et al. Optimal configuration of wind farm black start energy storage capacity: A method considering energy storage operation strategy[J]. Power System Protection & Control, 2022, 50(16): 131-139.
[21]	赵昱宣, 孙磊, 林振智, 等. 微网作为黑启动电源的电力系统网架重构优化策略[J]. 电力系统自动化, 2018, 42(17): 9-17.
	ZHAO Yuxuan, SUN Lei, LIN Zhenzhi, et al. Power network reconfiguration strategy with microgrids as black-start power sources[J]. Automation of Electric Power Systems, 2018, 42(17): 9-17.
[22]	张英敏, 吴谨轶, 江琴, 等. 基于风储联合系统的受端电网黑启动技术及协调恢复策略[J]. 工程科学与技术, 2023, 55(2): 72-83.
	ZHANG Yingmin, WU Jinyi, JIANG Qin, et al. Receiving-end power grid black start technology and coordinated restoration strategy based on wind-storage combined system[J]. Advanced Engineering Sciences, 2023, 55(2): 72-83.
[23]	赵晶晶, 朱天天, 陈凌汉, 等. 风光储电站对临近火电厂黑启动的协调控制策略[J]. 电力系统及其自动化学报, 2021, 33(11): 105-111.
	ZHAO Jingjing, ZHU Tiantian, CHEN Linghan, et al. Coordinated control strategy for black start of adjacent thermal power plants using wind-PV-storage power station[J]. Proceedings of the CSU-EPSA, 2021, 33(11): 105-111.
[24]	QIU F, ZHANG Y C, YAO R, et al. Power system restoration with renewable participation[J]. IEEE Transactions on Sustainable Energy, 2023, 14(2): 1112-1121.
[25]	王炜信, 段建东, 张润松, 等. 孤岛电网中多储能设备SOC一致性优化策略[J]. 电工技术学报, 2015, 30(23): 126-135.
	WANG Weixin, DUAN Jiandong, ZHANG Runsong, et al. Optimal state-of-charge balancing control for paralleled battery energy storage devices in islanded microgrid[J]. Transactions of China Electrotechnical Society, 2015, 30(23): 126-135.
[26]	MORSTYN T, SAVKIN A V, HREDZAK B, et al. Multi-agent sliding mode control for state of charge balancing between battery energy storage systems distributed in a DC microgrid[J]. IEEE Transactions on Smart Grid, 2018, 9(5): 4735-4743.

参数	取值	参数	取值
额定功率/MW	2	额定电压/V	380
储能单元数	4	储能升压变变比	380/33 000
电池充电保护值/%	80	电池放电保护值/%	20

参数	取值	参数	取值
额定功率/MW	2	额定线电压/kV	6
电动机基准角频率/ (rad·s^-1)	314.1593	定子绕组电阻/MΩ	0.01
转子绕组电阻/MΩ	0.02	定子绕组电感/mH	0.5
转子绕组电感/H	0.42	辅机漏感/H	2.1
