有和无电流环控制构网型VSC暂态建模与特性对比分析

任先成, 李尚志, 李英彪, 胡家兵, 徐泰山, 鲍颜红, 吴峰

Transient Modeling and Characteristic Comparative Analysis of Grid-Forming VSC with and Without Current Control

REN Xiancheng, LI Shangzhi, LI Yingbiao, HU Jiabing, XU Taishan, BAO Yanhong, WU Feng

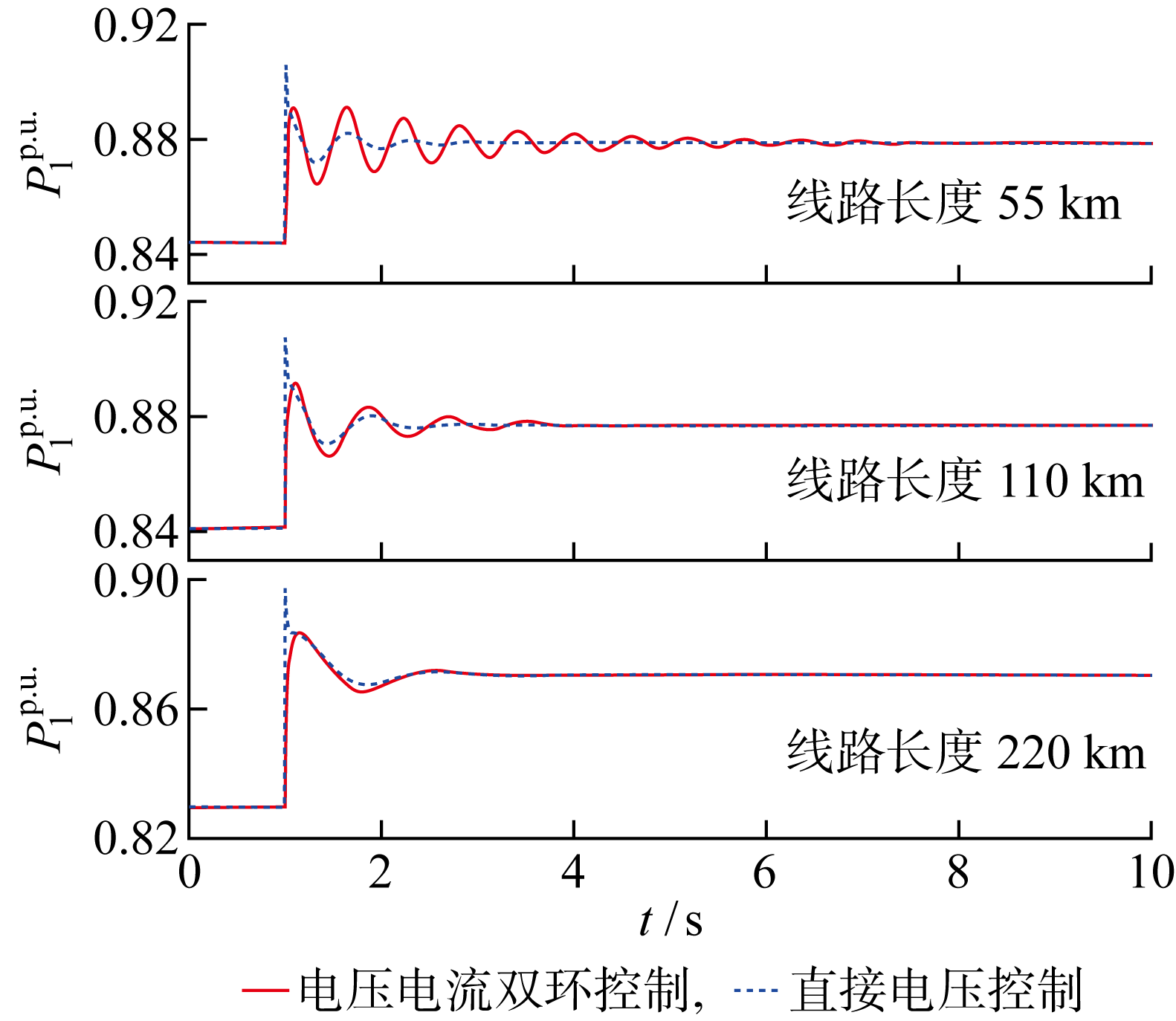

图15 两VSC系统不同线路长度下的内电势有功功率

Fig.15 Active power at internal voltage of two VSC systems at different line lengths
