有和无电流环控制构网型VSC暂态建模与特性对比分析

任先成, 李尚志, 李英彪, 胡家兵, 徐泰山, 鲍颜红, 吴峰

Transient Modeling and Characteristic Comparative Analysis of Grid-Forming VSC with and Without Current Control

REN Xiancheng, LI Shangzhi, LI Yingbiao, HU Jiabing, XU Taishan, BAO Yanhong, WU Feng

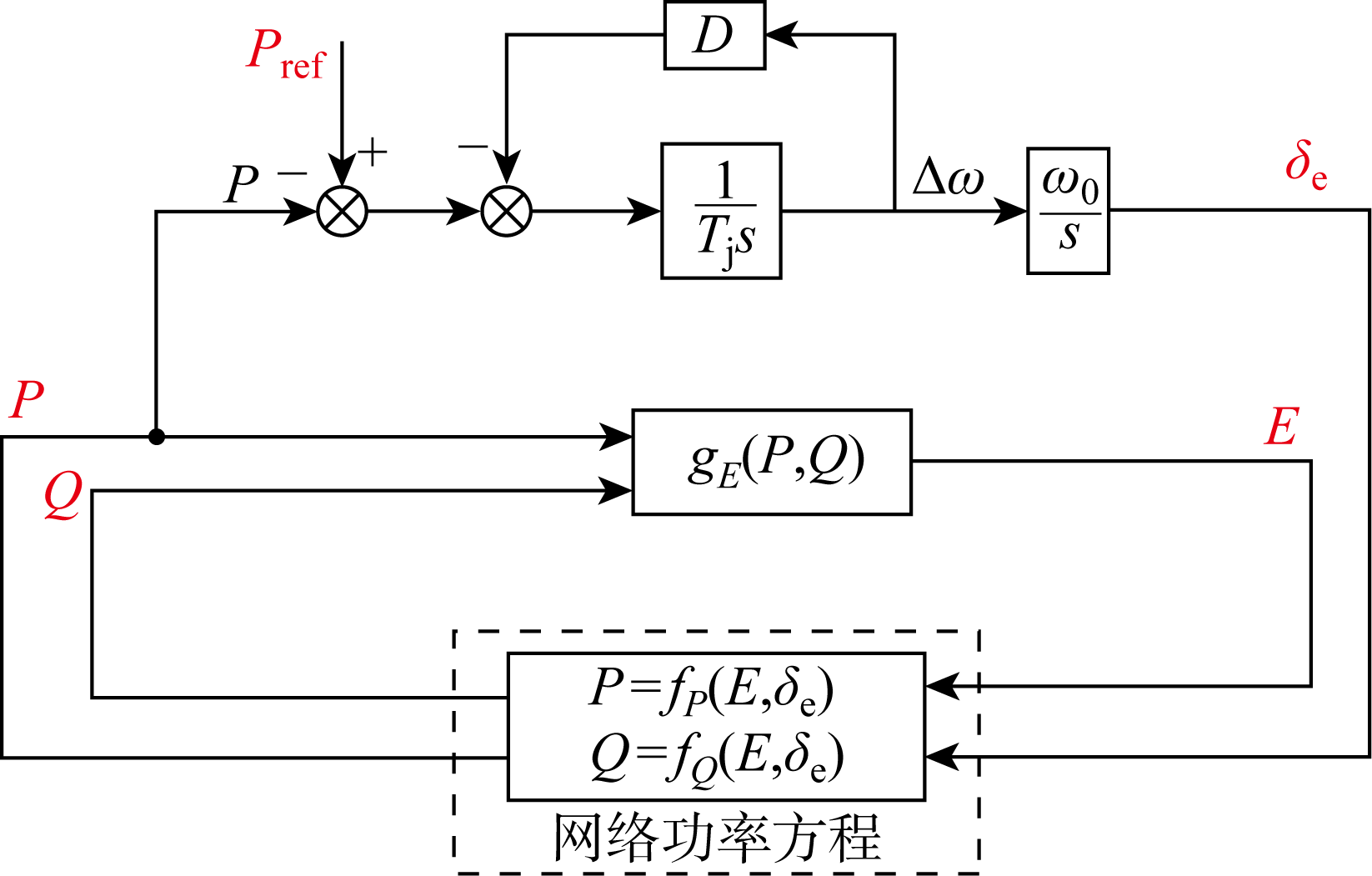

图11 直接电压控制VSC并网系统机电尺度模型

Fig.11 Electromechanical scale model of VSC-connected system with direct voltage control
