有和无电流环控制构网型VSC暂态建模与特性对比分析

任先成, 李尚志, 李英彪, 胡家兵, 徐泰山, 鲍颜红, 吴峰

Transient Modeling and Characteristic Comparative Analysis of Grid-Forming VSC with and Without Current Control

REN Xiancheng, LI Shangzhi, LI Yingbiao, HU Jiabing, XU Taishan, BAO Yanhong, WU Feng

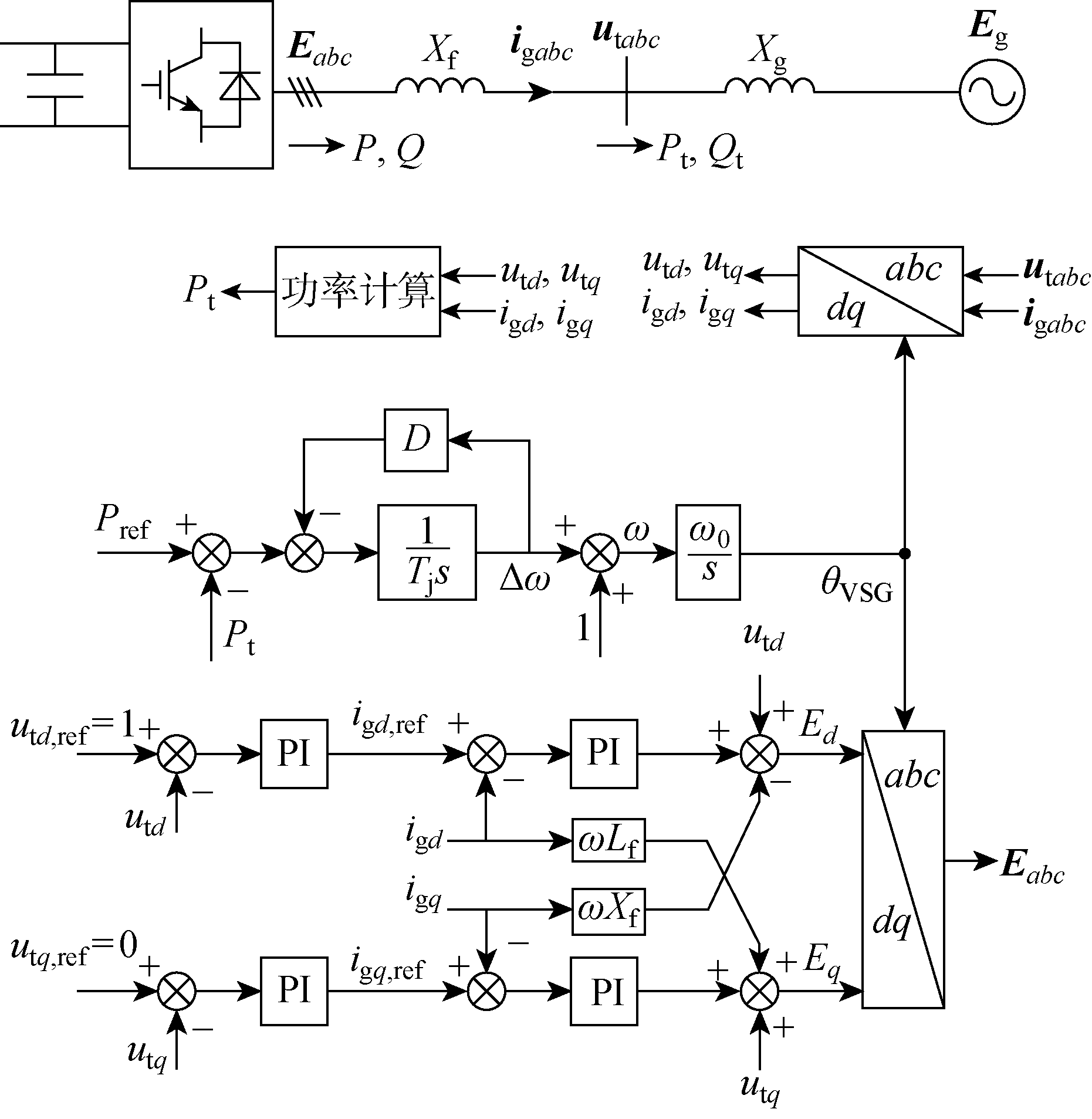

图1 电压电流双环控制构网型VSC结构

Fig.1 Structure of VSC with voltage and current dual loop control
