电网短路故障下风电场内跟-构网电源瞬时频率交互影响机理

张宇, 张琛, 鲍颜红, 吴峰, 蔡旭

Transient Frequency Interaction Between Grid-Following and Grid-Forming Sources in Windfarm Under Severe Grid Faults

ZHANG Yu, ZHANG Chen, BAO Yanhong, WU Feng, CAI Xu

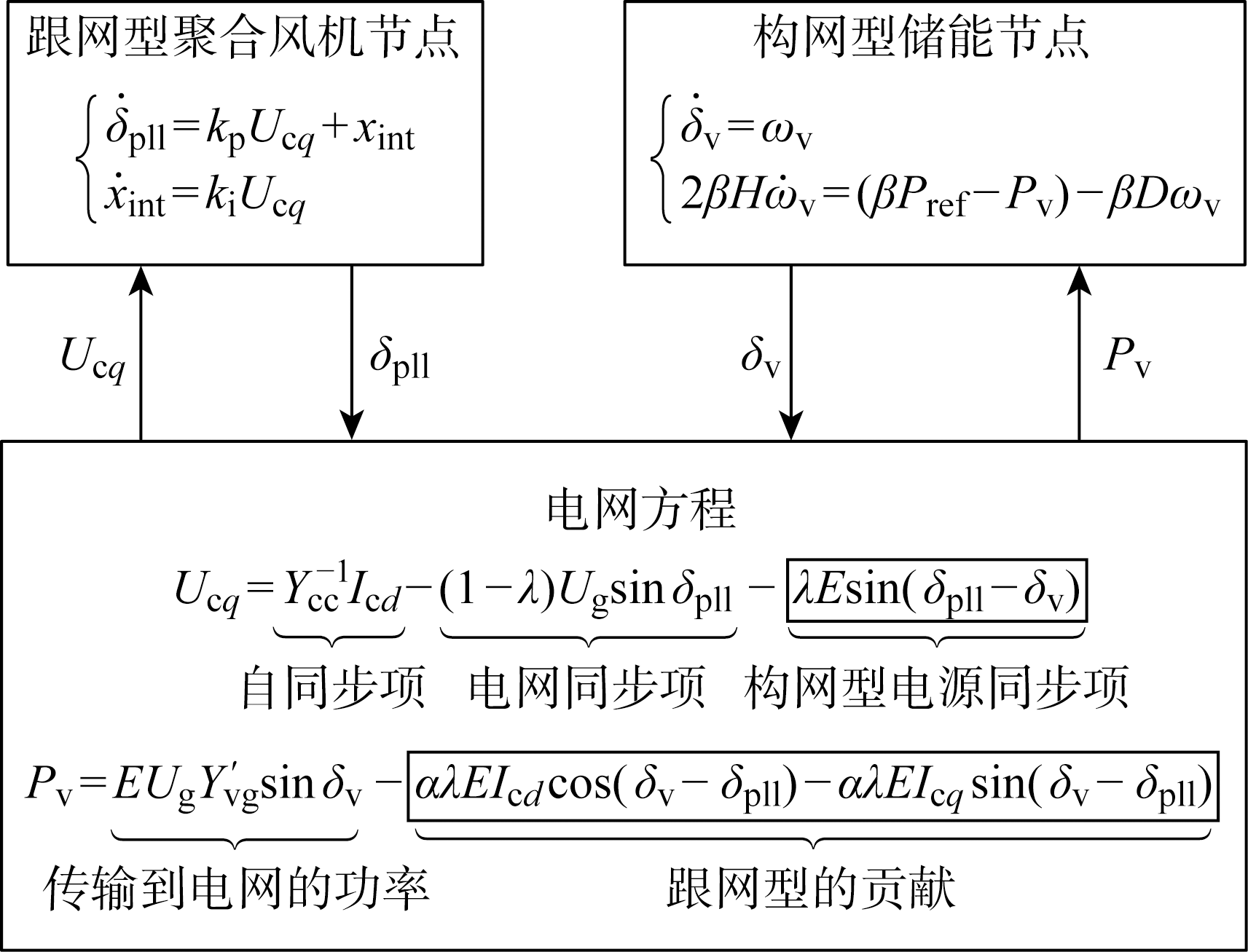

图5 面向暂态稳定性分析的异构控制风储联合新能源场站系统动力学方程

Fig.5 Dynamic equation of heterogeneous windfarm for transient stability analysis
