电网短路故障下风电场内跟-构网电源瞬时频率交互影响机理

张宇, 张琛, 鲍颜红, 吴峰, 蔡旭

Transient Frequency Interaction Between Grid-Following and Grid-Forming Sources in Windfarm Under Severe Grid Faults

ZHANG Yu, ZHANG Chen, BAO Yanhong, WU Feng, CAI Xu

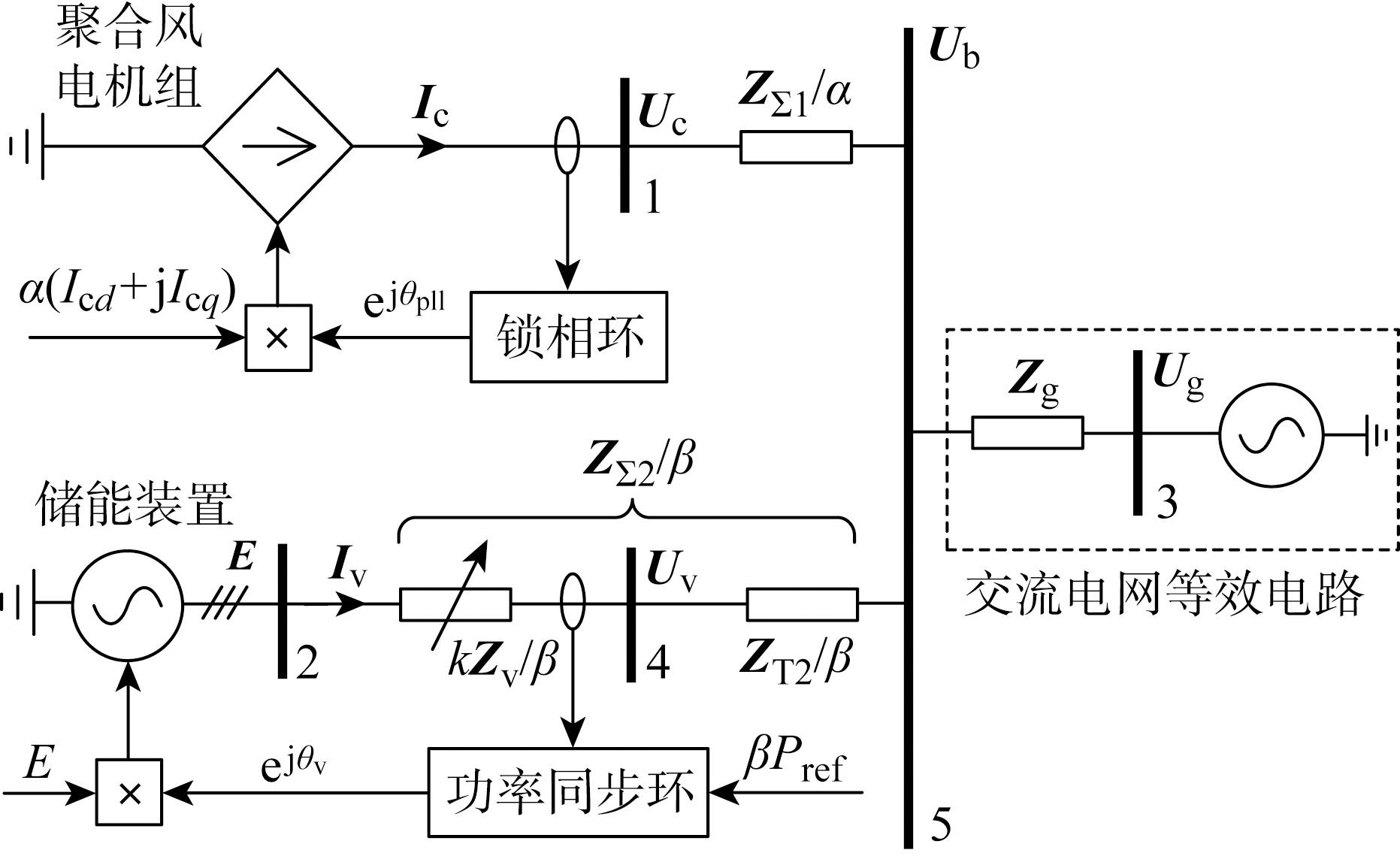

图4 异构控制风储联合新能源场站的暂态稳定性分析等效模型

Fig.4 Equivalent model of heterogeneous windfarm for transient stability analysis
