基于半混合欧拉-拉格朗日边界元法不规则波群模拟

doi:10.16183/j.cnki.jsjtu.2023.302

摘要/Abstract

摘要：

为了实现更能表征真实海浪特征的不规则波群的有效模拟,结合不规则波群理论生成方法,开发基于半混合欧拉-拉格朗日边界元方法的数值波浪水池.首先,分析不同模型参数对数值计算的影响.研究发现,波浪模拟精度随阻尼层长度的增加和时间步长的减小而提高,适当的源点外移距离、源点分布范围和源点数量能兼顾计算精度和稳定性.然后,基于验证的模型参数对单向不规则波群进行模拟,将数值模拟结果与物理试验结果和理论目标值进行对比,验证数值水池对不规则波群模拟的有效性.结果表明,所开发的数值水池能有效模拟不规则波群的生成和传播.

关键词: 不规则波群, 数值波浪水池, 半混合欧拉-拉格朗日算法, 边界元法

Abstract:

In order to effectively simulate irregular wave groups that better represent the characteristics of real waves, a numerical wave tank based on a semi-mixed Eulerian-Lagrangian algorithm combined with boundary element method was developed in conjunction with a theoretical generation method for irregular wave groups. First, the impact of model parameters on the numerical solution was analyzed. The results showed that the accuracy of wave simulation improved with an increase in damping layer length or a decrease in the time step. Additionly, selecting appropriate deviation distance, distribution range, and the number of source points can balance computation accuracy and stability. Then, unidirectional irregular wave groups were simulated based on the verified model parameters. The numerical results were compared with the physical test data and theoretical values to validate the performance of the numerical tank in simulating irregular wave groups. The findings indicated that the developed numerical wave tank can effectively simulate the generation and propagation of irregular wave groups.

Key words: irregular wave group, numerical wave tank, semi-mixed Eulerian-Lagrangian algorithm, boundary element method

中图分类号:

U661.1

薛文, 高志亮. 基于半混合欧拉-拉格朗日边界元法不规则波群模拟[J]. 上海交通大学学报, 2025, 59(4): 435-446.

XUE Wen, GAO Zhiliang. Irregular Wave Groups Simulation Based on Semi-Mixed Eulerian-Lagrangian Boundary Element Method[J]. Journal of Shanghai Jiao Tong University, 2025, 59(4): 435-446.

图/表 19

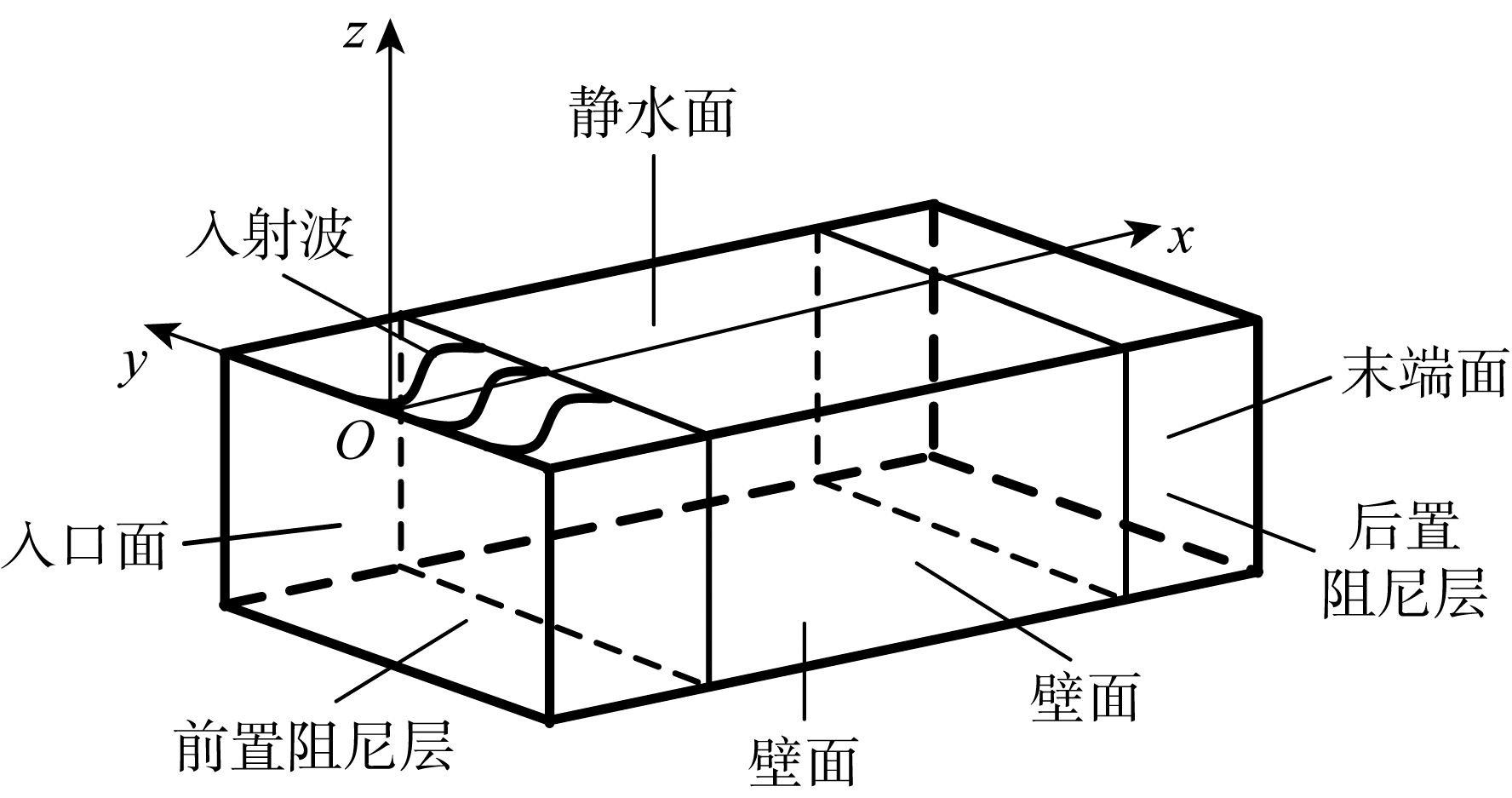

图1

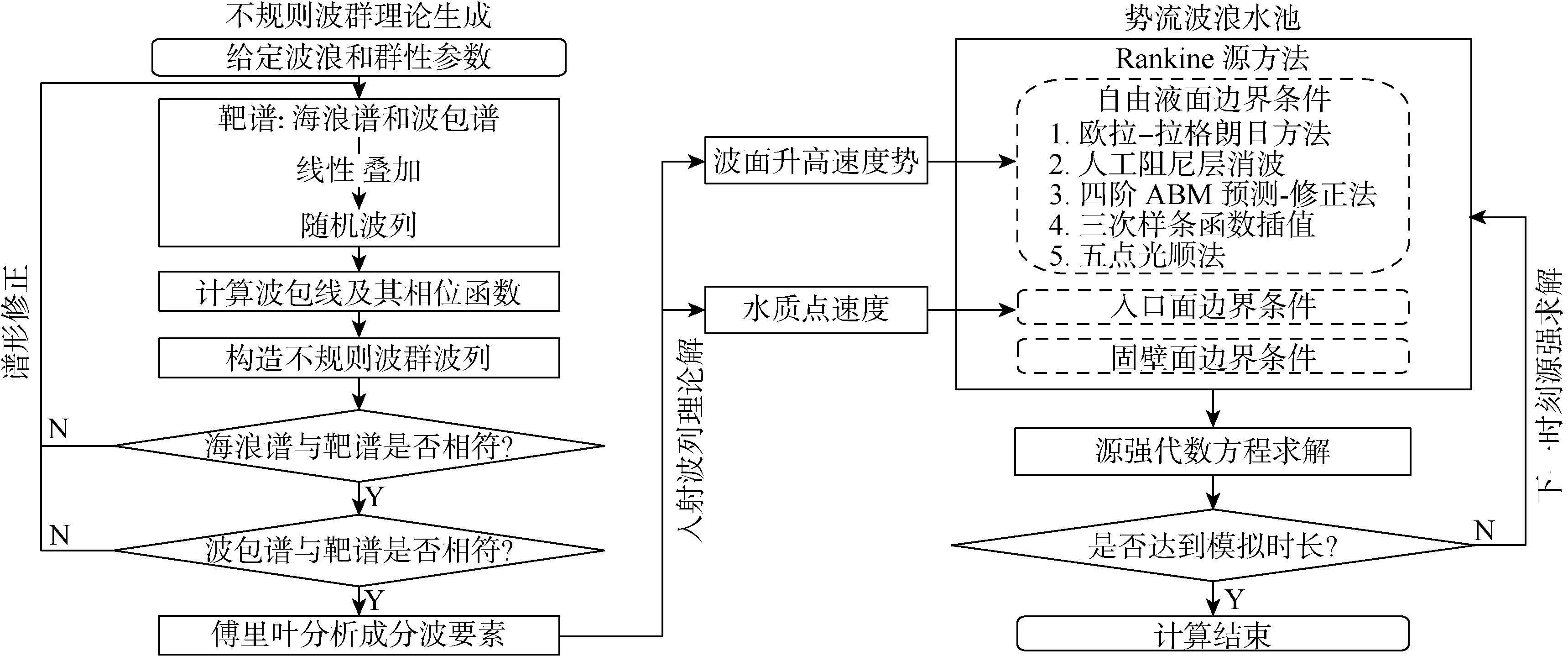

图2

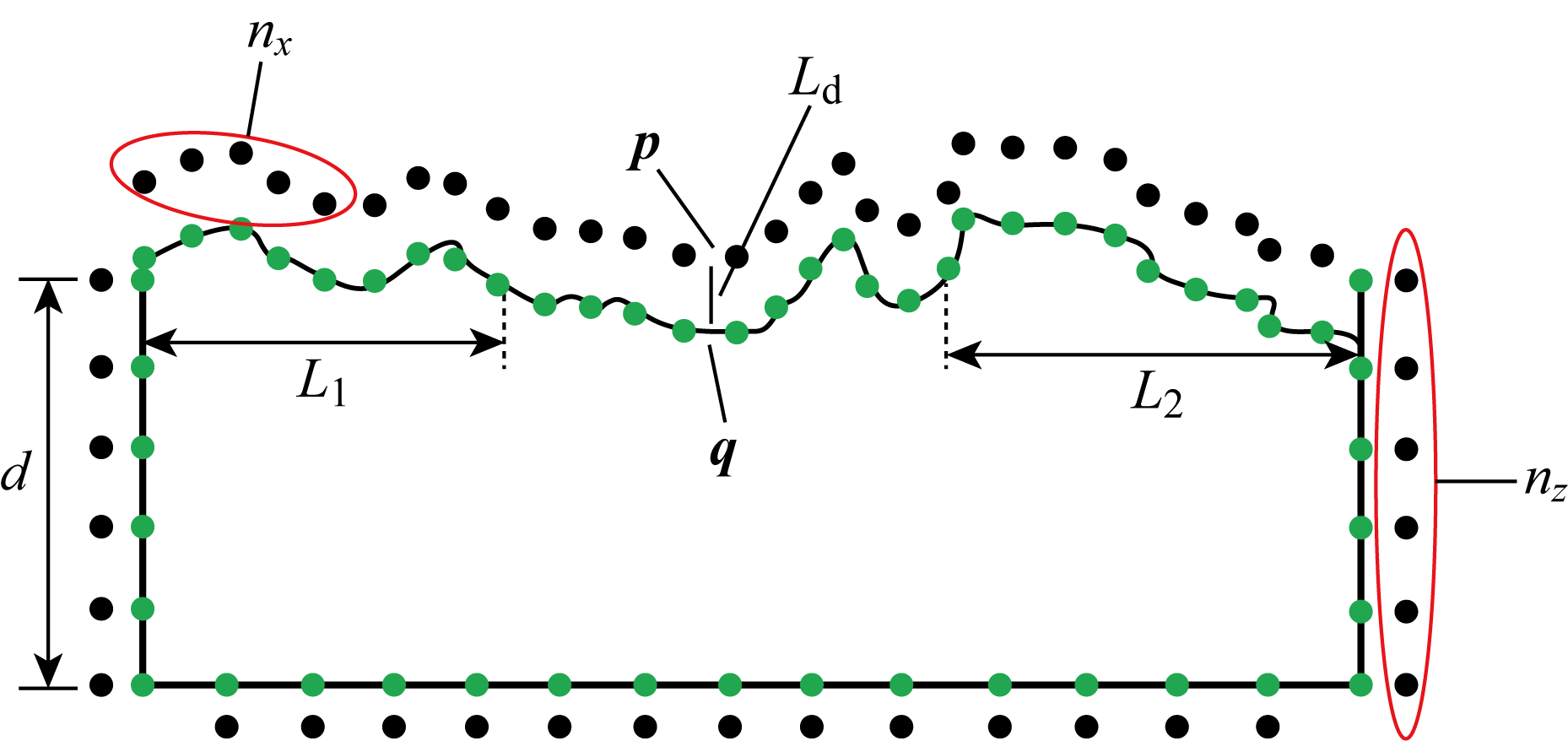

图3

表1

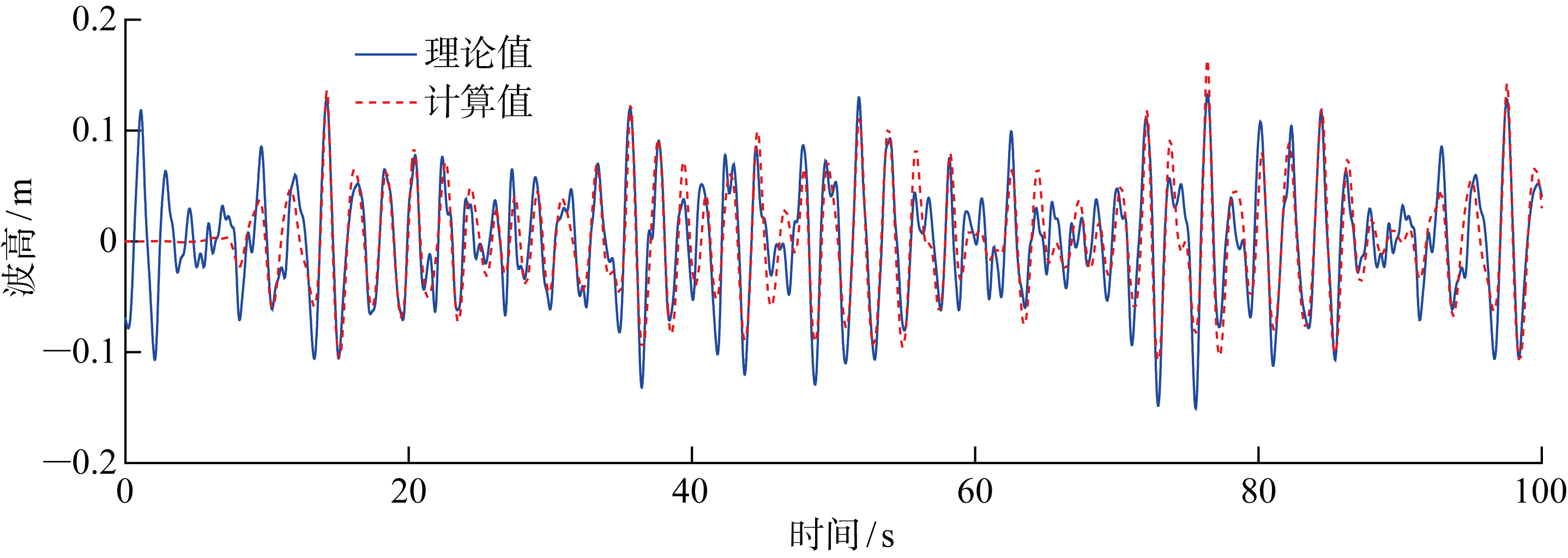

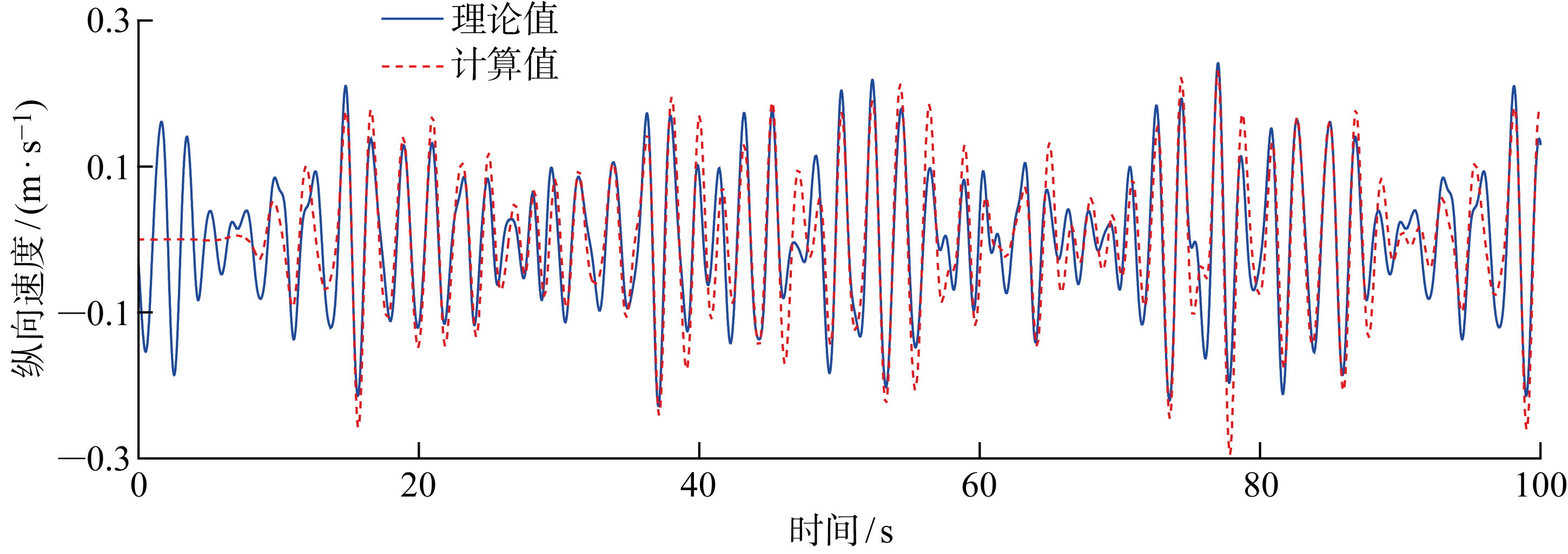

图4

图5

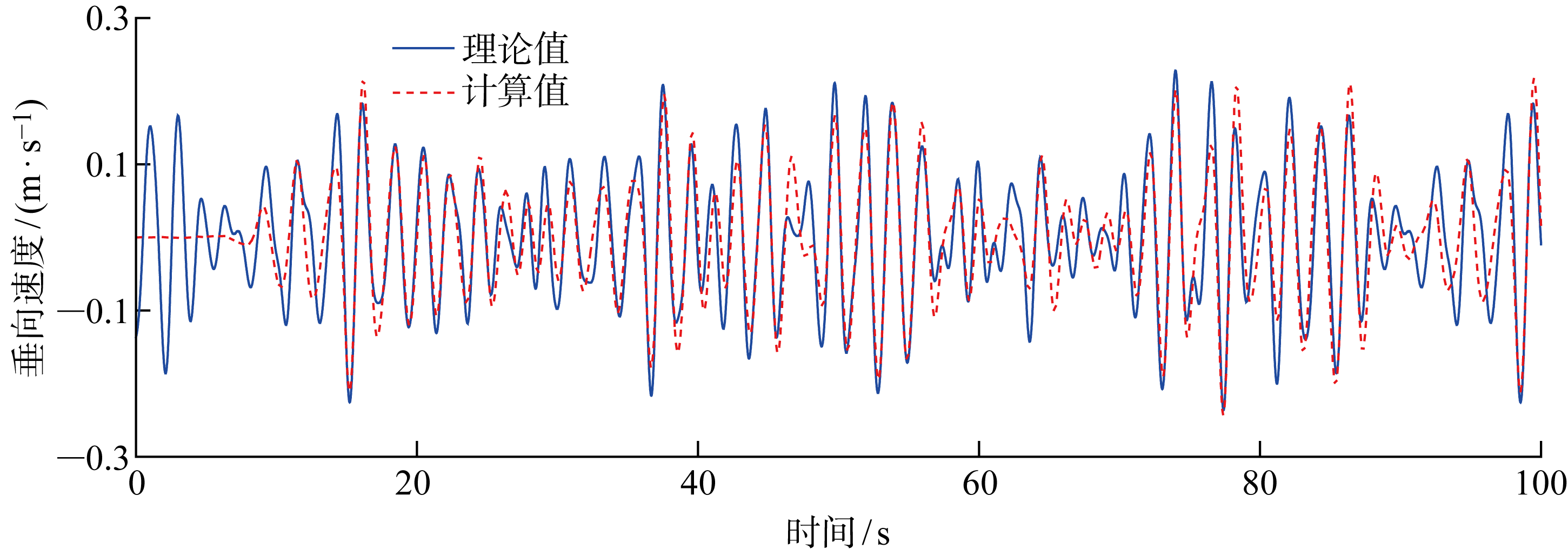

图6

图7

图8

图9

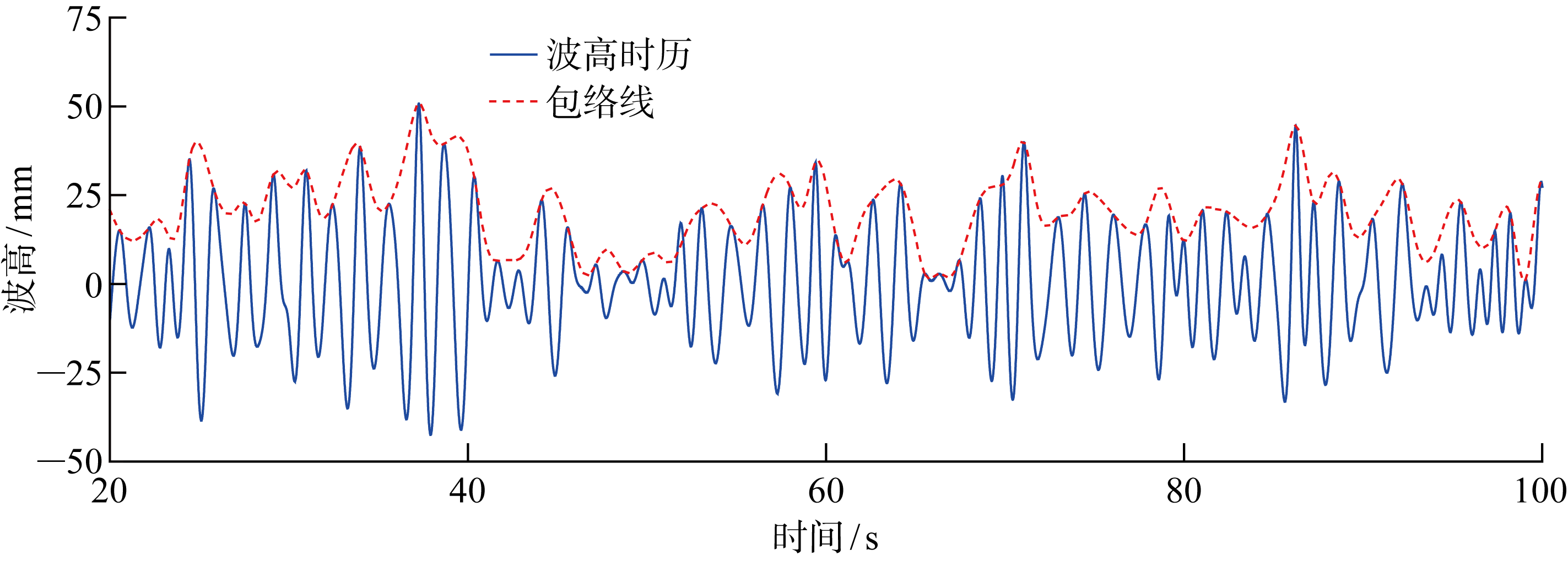

图10

图11

表2

表3

表4

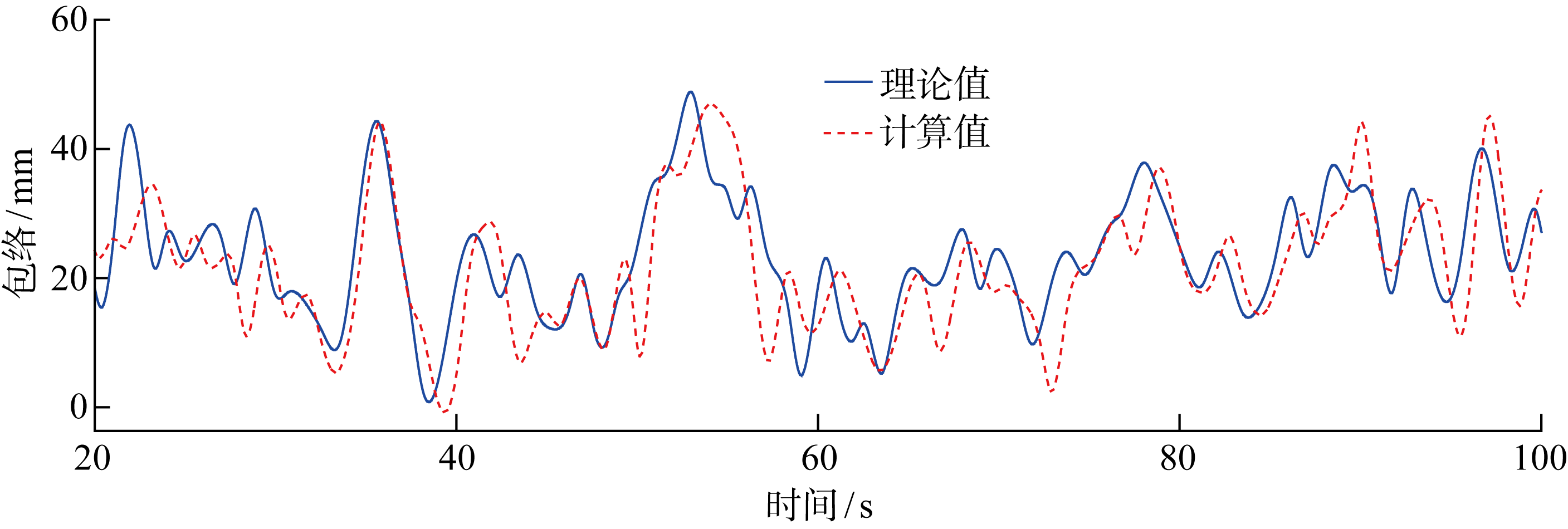

图12

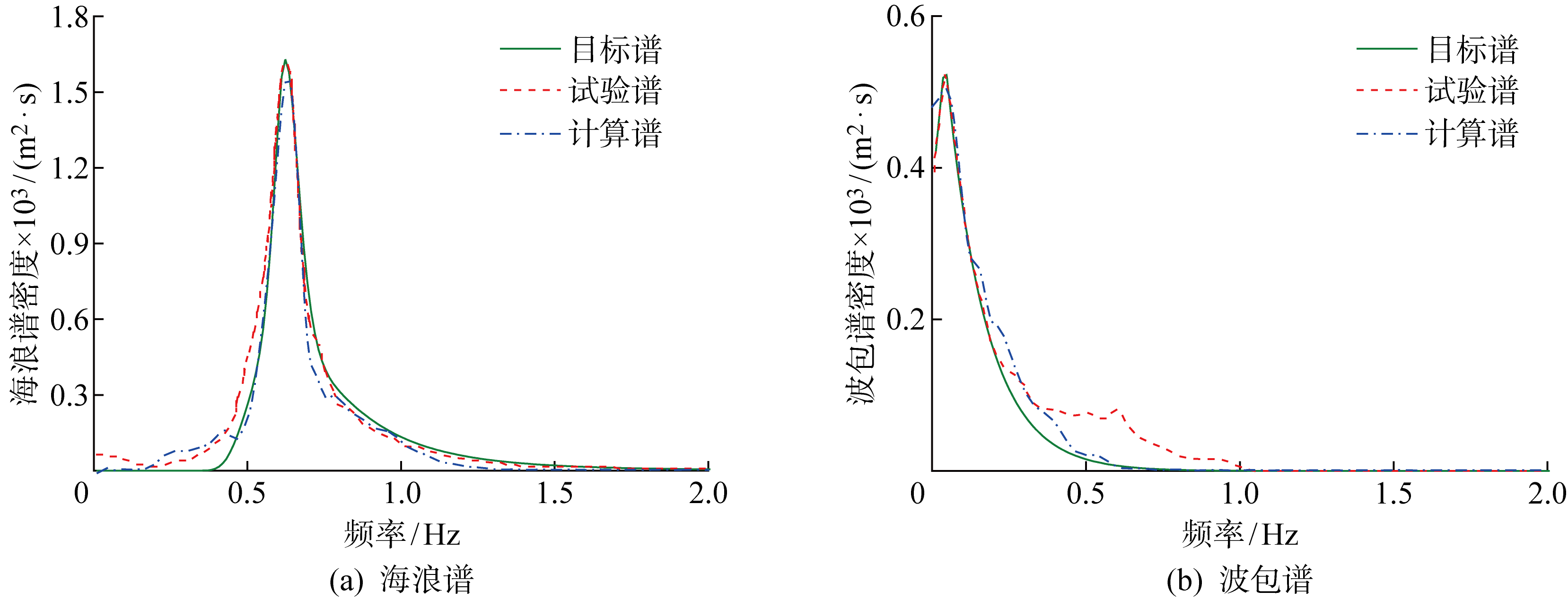

图13

图14

图15

参考文献 23

[1]	TANG H, HUANG C. Bragg reflection in a fully nonlinear numerical wave tank based on boundary integral equation method[J]. Ocean Engineering, 2008, 35 (17/18): 1800-1810.
[2]	李裕龙, 朱仁传, 缪国平. 基于全时域势流理论的船舶与液舱晃荡耦合运动的数值计算[J]. 船舶力学, 2016, 20 (11): 1369-1380.
	LI Yulong, ZHU Renchuan, MIU Guoping. Numerical method of ship motions coupled with tank sloshing based on fully time domain potential flow theory[J]. Ship Mechanics, 2016, 20 (11): 1369-1380.
[3]	卜淑霞, 鲁江, 顾民. 基于三维时域混合源法的顶浪不规则波参数横摇研究[J]. 船舶力学, 2018, 22 (8): 926-934.
	PU Shuxia, LU Jiang, GU Min. Research on parameter roll of irregular top wave based on three-dimensional time-domain mixed source method[J]. Ship Mechanics, 2018, 22 (8): 926-934.
[4]	WANG L X, TANG H, WU Y H. Simulation of wave-body interaction: A desingularized method coupled with acceleration potential[J]. Journal of Fluids & Structures, 2015, 52: 37-48.
[5]	ZHANG X T, KHOO B C, LOU J. Application of desingularized approach to water wave propagation over three-dimensional topography[J]. Ocean Engineering, 2007, 34 (10): 1449-1458.
[6]	沈王刚. 基于FMBEM的数值波浪水池及非线性波浪重构方法[D]. 上海: 上海交通大学, 2018.
	SHENG Wanggang. A numerical wave pool and nonlinear wave reconstruction method based on FMBEM[D]. Shanghai: Shanghai Jiao Tong University, 2018.
[7]	XU G, BAI X, MA X, et al. Numerical simulation of fully nonlinear NWT by DBIEM method with MTF for the downstream boundary[J]. Journal of Ship Mechanics, 2017, 21 (9): 1062-1070.
[8]	XU G, ZHAO G, CHEN J, et al. The numerical analysis of the flow on the smooth and nonsmooth boundaries by IBEM/DBIEM[J]. Mathematical Problems in Engineering, 2019, 2019 (3): 1-14.
[9]	FENG A, CHEN Z, PRICE W G. A desingularized Rankine source method for nonlinear wave-body interaction problems[J]. Ocean Engineering, 2015, 101 (1): 131-141.
[10]	杨师宇, 吴静萍, 汪敏, 等. 基于去奇异边界元法的二维数值波浪水池计算参数影响分析[J]. 武汉理工大学学报: 交通科学与工程版, 2021, 45 (5): 912-918.
	YANG Shiyu, WU Jingping, WANG Min, et al. Influence analysis of calculation parameters in two-dimensional numerical wave tank based on Dbiem[J]. Journal of Wuhan University of Technology: Transportation Science and Engineering, 2021, 45 (5): 912-918.
[11]	吴明, 应荣熔, 蔡烽, 等. 不规则波数值模拟精度影响因素分析[J]. 舰船科学技术, 2020, 42 (9): 75-81.
	WU Ming, YING Rongrong, CAI Feng, et al. Analysis of factors affecting the accuracy of irregular wave numerical simulation[J]. Ship Science and Technology, 2020, 42 (9): 75-81.
[12]	SCOLAN Y M. Some aspects of the flip-through phenomenon: A numerical study based on the desingularized technique[J]. Journal of Fluids and Structures, 2010, 26 (6): 918-953.
[13]	RYE H. Ocean wave groups[R]. Trondheim, Norway: Department of Marine Technology, University of Trondheim, 1982.
[14]	GODA Y. On wave groups[C]// Proceeding of the Behaviour of Offshore Structures Conference. Trondheim, Norway: Norwegian Institute of Technology, 1976, 1: 115-128.
[15]	FUNKE E R, MANSARD E. On the synthesis of realistic sea states in a laboratory flume[J]. Report, NRC of Canada, 1979, 66: 2974-2991.
[16]	XU D, HOU W, ZHAO M, et al. The statistical simulation of wave groups[J]. Applied Ocean Research, 1993, 15: 217-226.
[17]	刘思. 多向不规则波群的模拟研究[D]. 大连: 大连理工大学, 2012.
	LIU Si. Simulation study of multi-directional irregular wave groups[D]. Dalian: Dalian University of Technology, 2012.
[18]	王文杰. 基于高阶造波理论的单向不规则波群RANS模拟研究[D]. 武汉: 武汉理工大学, 2022.
	WANG Wenjie. Research on RANS simulation of unidirectional irregular wave groups based on higher-order wave theory[D]. Wuhan: Wuhan University of Technology, 2022.
[19]	宁德志. 快速多极子边界元方法在完全非线性水波问题中的应用[D]. 大连: 大连理工大学, 2005.
	NING Dezhi. The application of fast multipole boundary element method in completely nonlinear water wave problems[D]. Dalian: Dalian University of Technology, 2005.
[20]	GODA Y. Random seas and design of maritime structures[M]. London,UK: World Scientific Publishing Company, 2010.
[21]	CAO Y, SCHULTZ W W, BECK R F. Three-dimensional desingularized boundary integral methods for potential problems[J]. International Journal for Numerical Methods in Fluids, 1991, 12 (8): 785-803.
[22]	俞聿修. 随机波浪及其工程应用[M]. 大连: 大连理工大学出版社, 1999.
	YU Yuxiu. Random waves and their engineering applications[M]. Dalian: Dalian University of Technology Press, 1999.
[23]	刘思, 柳淑学, 李金宣, 等. 单向不规则波群的实验室模拟和分析[J]. 水道港口, 2011, 32 (5): 305-312.
	LIU Si, LIU Shuxue, LI Jinxuan, et al. Laboratory simulation and analysis of unidirectional irregular wave groups[J]. Waterway Port, 2011, 32 (5): 305-312.

编辑推荐 0

Metrics

阅读次数

全文

114

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
0	0	11	34	0	69

来源	本网站	其他网站

次数	79	35
比例	69%	31%

摘要

1685

最新录用	在线预览	正式出版

78	0	1607

来源	本网站	其他网站

次数	97	1588
比例	6%	94%

参数	取值	H_1/3/m			T_1/3/s
参数	取值	目标值	计算值	相对误差/%	目标值	计算值	相对误差/%
L₁	λ₀	0.2	0.197	-1.5	2.22	2.258	1.7
	2λ₀	0.2	0.199	-0.5	2.22	2.253	1.5
	3λ₀	0.2	0.199	-0.5	2.22	2.223	0.1
L₂	λ₀	0.2	0.203	1.5	2.22	2.248	1.2
	2λ₀	0.2	0.201	0.5	2.22	2.224	0.2
	4λ₀	0.2	0.199	-0.5	2.22	2.223	0.1
α₁	2	0.2	0.199	-0.5	2.22	2.214	-0.3
	3	0.2	0.200	0.0	2.22	2.213	-0.4
	4	0.2	0.199	-0.5	2.22	2.223	0.1
	5	0.2	0.200	0.0	2.22	2.205	-0.7
	6	0.2	0.200	0.0	2.22	2.239	0.8
α₂	2	0.2	0.199	-0.5	2.22	2.233	0.6
	3	0.2	0.200	0.0	2.22	2.230	0.4
	4	0.2	0.199	-0.5	2.22	2.223	0.1
	5	0.2	0.201	0.5	2.22	2.210	-0.5
	6	0.2	0.200	0.0	2.22	2.214	-0.3
β	0.1	0.2	0.198	-1.0	2.22	2.228	0.4
	0.2	0.2	0.199	-0.5	2.22	2.235	0.6
	0.3	0.2	0.199	-0.5	2.22	2.223	0.1
	0.4	0.2	0.199	-0.5	2.22	2.233	0.6
	0.5	0.2	0.192	-4.0	2.22	2.249	1.3
l_d	0.5	0.2	0.198	-1.0	2.22	2.252	1.4
	0.6	0.2	0.198	-1.0	2.22	2.241	0.9
	0.7	0.2	0.199	-0.5	2.22	2.243	1.0
	0.8	0.2	0.200	0.0	2.22	2.240	0.9
	0.9	0.2	0.200	0.0	2.22	2.243	1.0
	1.0	0.2	0.199	-0.5	2.22	2.223	0.1
d	λ₀/20	0.2	0.177	-11.5	2.22	2.219	-0.1
	λ₀/10	0.2	0.199	-0.5	2.22	2.223	0.1
	λ₀/5	0.2	0.198	-1.0	2.22	2.222	0.1
n_x×n_z	20×4	0.2	0.199	-0.5	2.22	2.200	-0.9
	20×6	0.2	0.200	0.0	2.22	2.236	0.7
	20×8	0.2	0.199	-0.5	2.22	2.223	0.1
	15×8	0.2	0.191	-4.5	2.22	2.275	2.5
	25×8	0.2	0.204	2.0	2.22	2.193	-1.2
Δt	T₀/100	0.2	0.191	-4.5	2.22	2.036	-8.3
	T₀/150	0.2	0.204	2.0	2.22	2.163	-2.6
	T₀/200	0.2	0.199	-0.5	2.22	2.223	0.1

工况	群性参数	均方根误差/mm	相关系数
1	G_FH=0.6,G_LF=15	8.5	0.77
2	G_FH=0.7,G_LF=15	8.3	0.78
3	G_FH=0.8,G_LF=15	8.0	0.79

工况	H_1/3/mm			T_1/3/s
工况	目标	物理试验	数值计算	目标	物理试验	数值计算
1	70	71 (1.4%)	69 (-1.4%)	1.5	1.562 (4.1%)	1.563 (4.2%)
2	70	79 (12.9%)	65 (-7.1%)	1.5	1.574 (4.9%)	1.514 (0.9%)
3	70	85 (21.4%)	68 (-2.9%)	1.5	1.655 (10.3%)	1.491 (-0.6%)

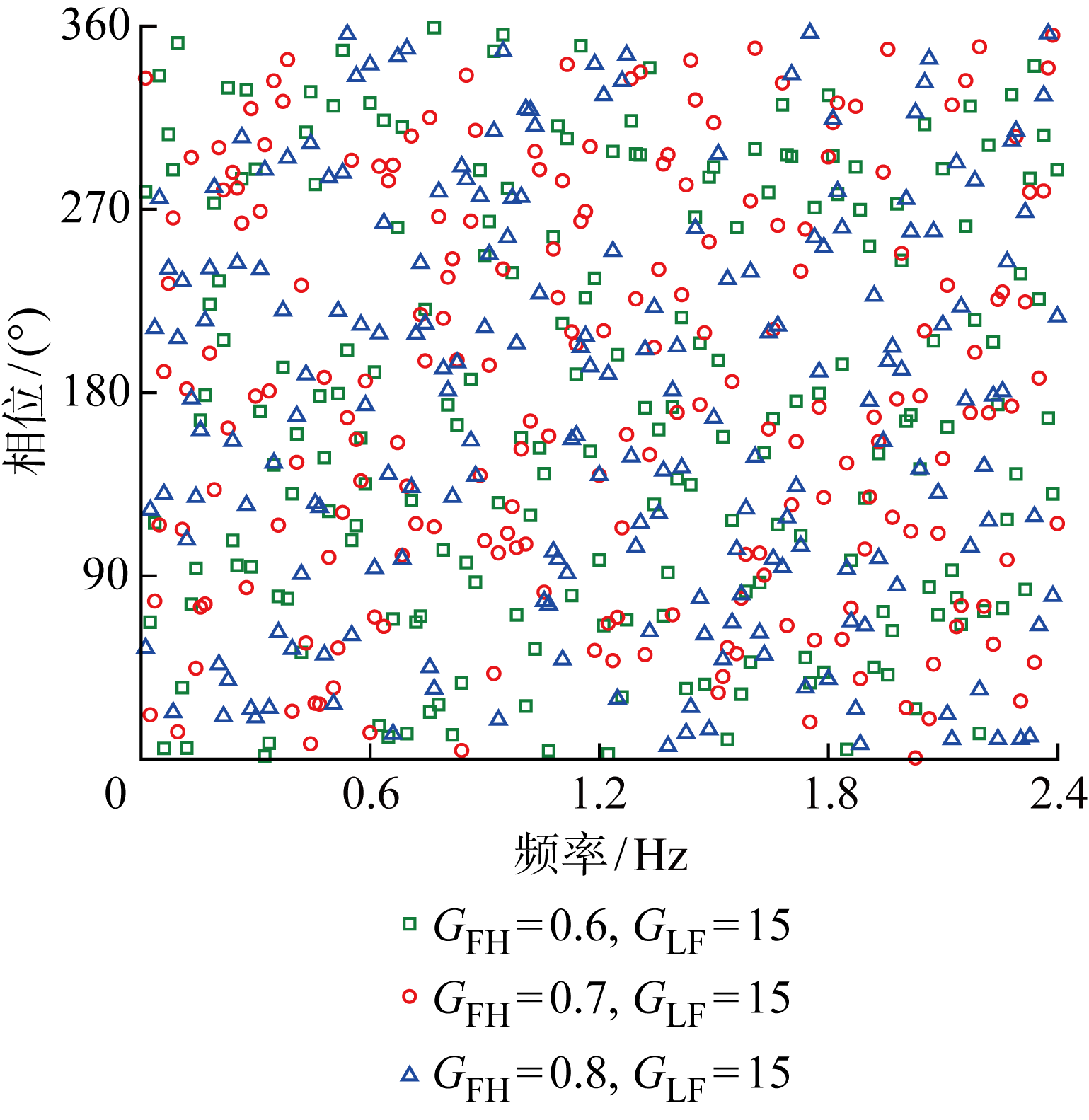

工况	G_FH			G_LF
工况	目标	物理试验	数值计算	目标	物理试验	数值计算
1	0.6	0.65 (8.3%)	0.64 (6.7%)	15	15.20 (1.3%)	15.87 (5.8%)
2	0.7	0.73 (4.3%)	0.71 (1.4%)	15	15.14 (0.9%)	15.02 (0.1%)
3	0.8	0.81 (1.3%)	0.82 (2.5%)	15	16.60 (10.7%)	14.28 (-4.8%)
