数字化模型下的气体绝缘封闭开关设备特高频信号反演实际放电量方法

doi:10.16183/j.cnki.jsjtu.2023.374

摘要/Abstract

摘要：

对气体绝缘封闭开关设备(GIS)局部放电(PD)的检测是进行状态评估和故障诊断行之有效的方法.放电量估计是PD检测中的重要内容,脉冲电流法是通用的测量方法,但无法在线应用.针对这一问题,基于特高频(UHF)信号对时间的二次积分值估计最大实际放电量,提出了数字化模型下GIS的UHF信号反演实际放电量的方法.首先,建立GIS数字化模型及局部放电源、UHF传感器模型;然后,采用更适用于大尺寸运算的时域有限差分(FDTD)法模拟放电脉冲激发电磁波传播的过程,利用仿真数据验证通过UHF信号对时间积分的值来估计实际放电量方法的合理性,并给出了电磁波在GIS内传播中电磁场的分布图;最后,通过与高压试验结果的对比分析给出了影响实际放电量估计准确性的因素.研究结论为基于数字化模型的GIS内部实际放电量反演分析提供解决思路,且相较于有限元法在求解时间上更具优势.

关键词: 气体绝缘封闭开关设备, 局部放电, 特高频, 局部放电定量

Abstract:

The detection of partial discharge (PD) in gas insulated switchgear (GIS) is an effective method for state assessment and fault diagnosis. The estimation of discharge amount is important in PD detection. The common measurement method is the pulse current method, but it can not be applied online. To solve this problem, this paper proposes a method for estimating the maximum actual discharge based on the quadratic integral value of ultra high frequency (UHF) signal. A method for retrieving the actual discharge of GIS using the UHF signal in a digital model is proposed. First, a GIS digital model, local discharge power source, and UHF sensor model are established. Then, the finite difference time domain (FDTD) method, which is more suitable for large-scale operation, is used to simulate the process of electromagnetic wave propagation stimulated by discharge pulse, and the simulation data is used to verify the rationality of the method in estimating the actual discharge by using the time integral of the UHF signal. The distribution of the electromagnetic field in GIS is also given. Finally, the factors influencing the accuracy of actual discharge estimate are discussed by comparing with the high voltage test results. The findings provide a solution for the inverse analysis of the actual internal discharge in GIS based on the digital model. Compared to the finite element method, this approach offers more advantages in solving time.

Key words: gas insulated switchgear (GIS), partial discharge (PD), ultra high frequency (UHF), partial discharge quantification

中图分类号:

TM595

陶然, 沈培锋, 陈挺, 罗林根, 盛戈皞, 江秀臣. 数字化模型下的气体绝缘封闭开关设备特高频信号反演实际放电量方法[J]. 上海交通大学学报, 2025, 59(6): 800-811.

TAO Ran, SHEN Peifeng, CHEN Ting, LUO Lingen, SHENG Gehao, JIANG Xiuchen. Estimation Method of Actual Discharge Quantity Inferred from Ultra-High Frequency Signals in Digital Modeling of GIS[J]. Journal of Shanghai Jiao Tong University, 2025, 59(6): 800-811.

图/表 23

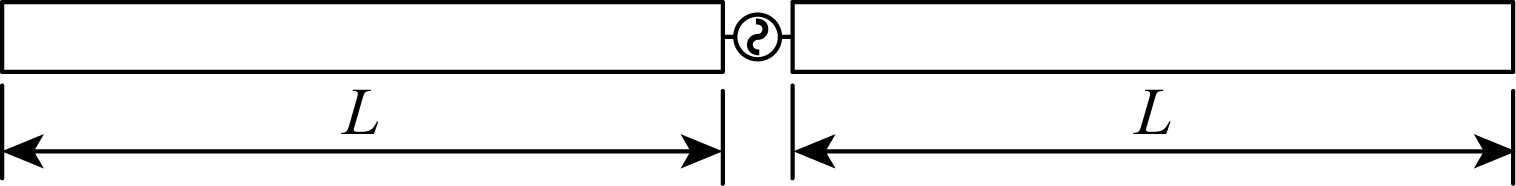

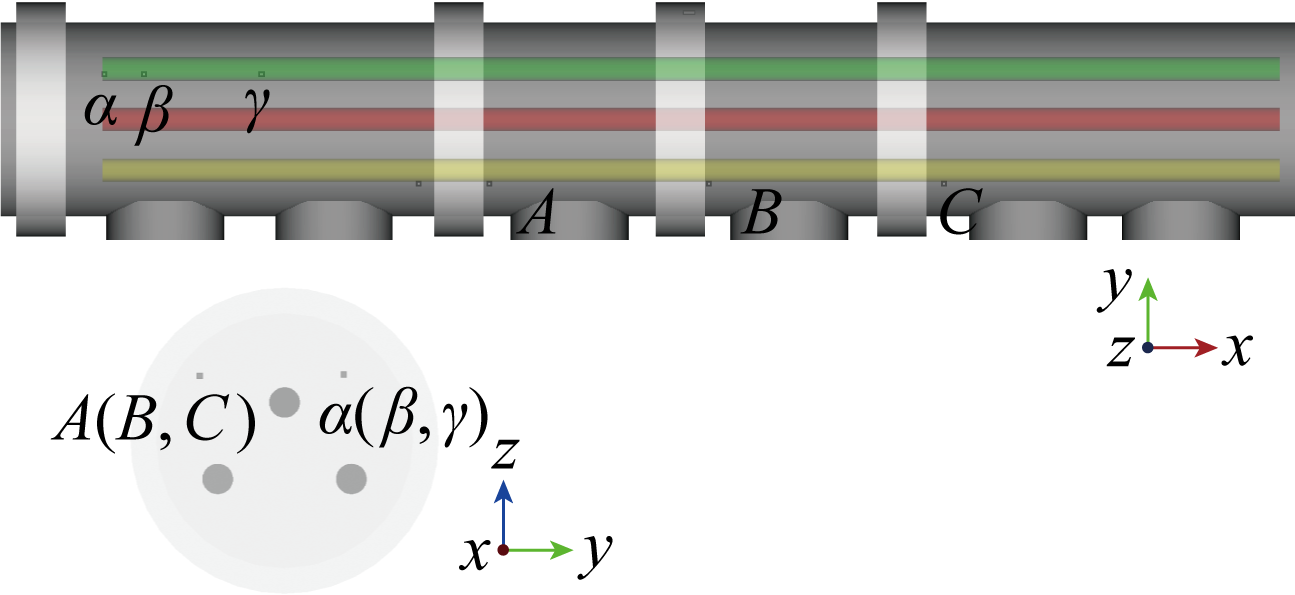

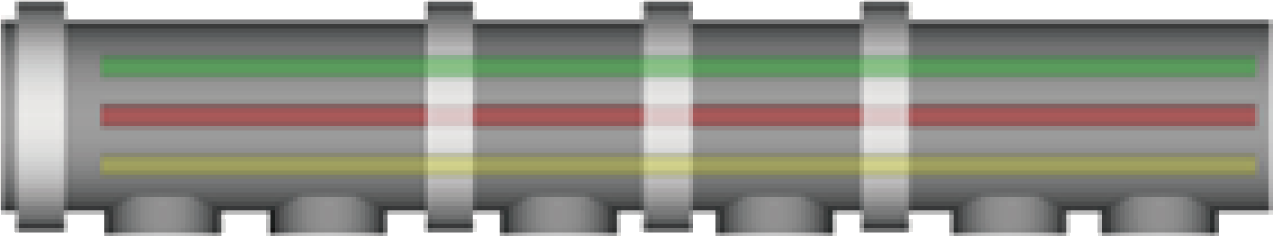

图1

图2

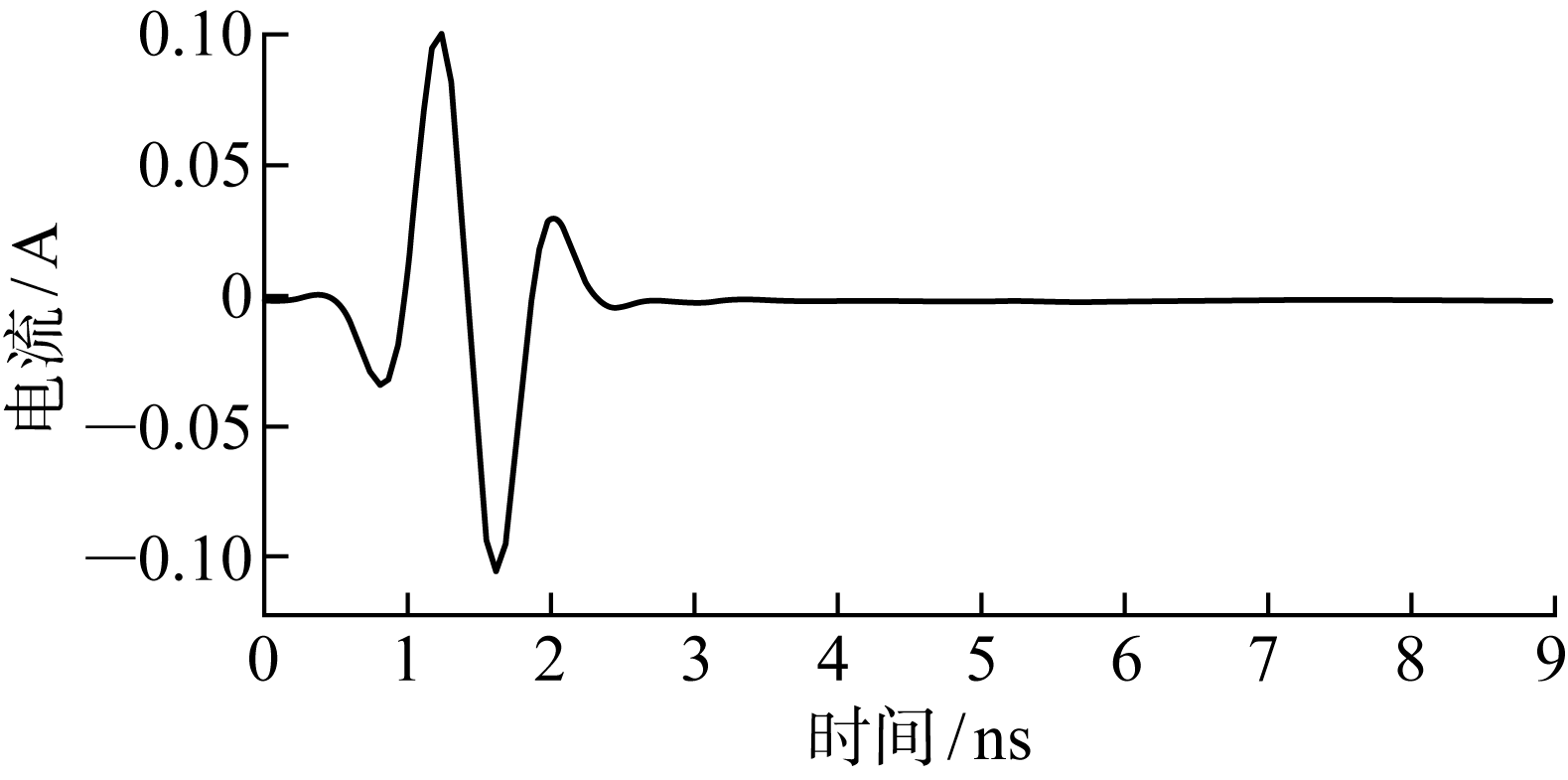

图3

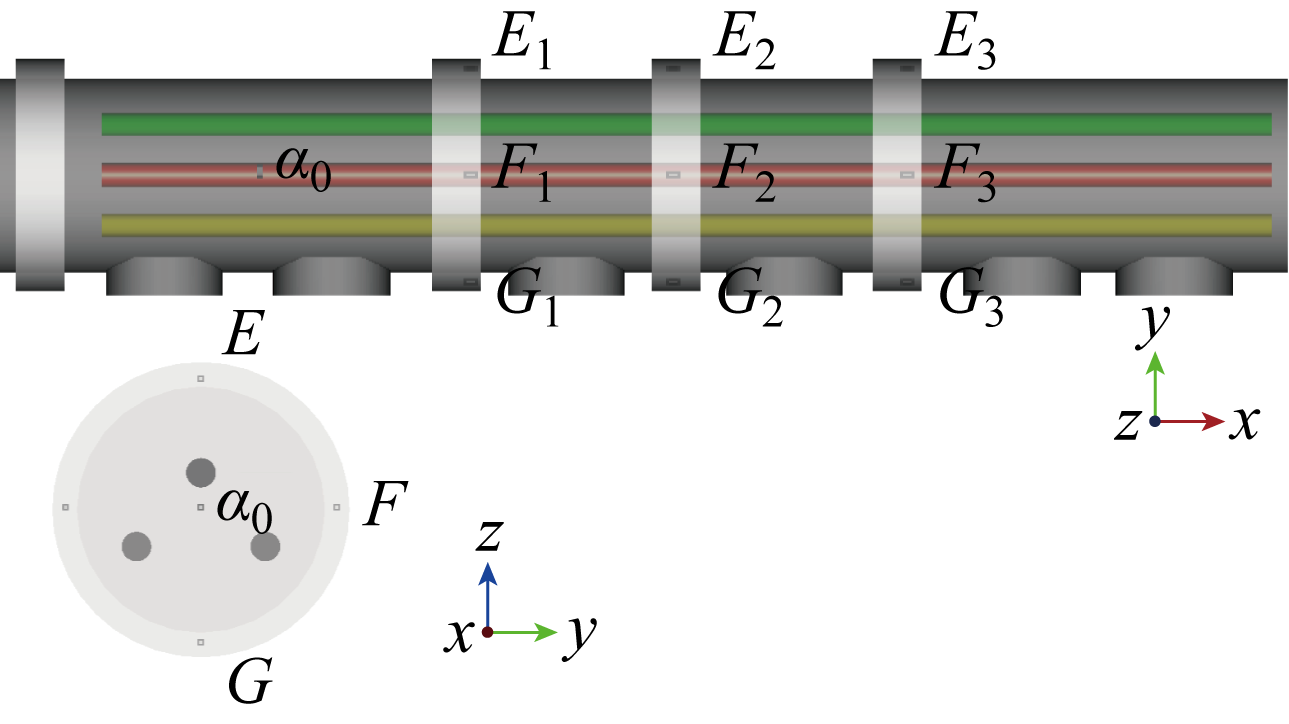

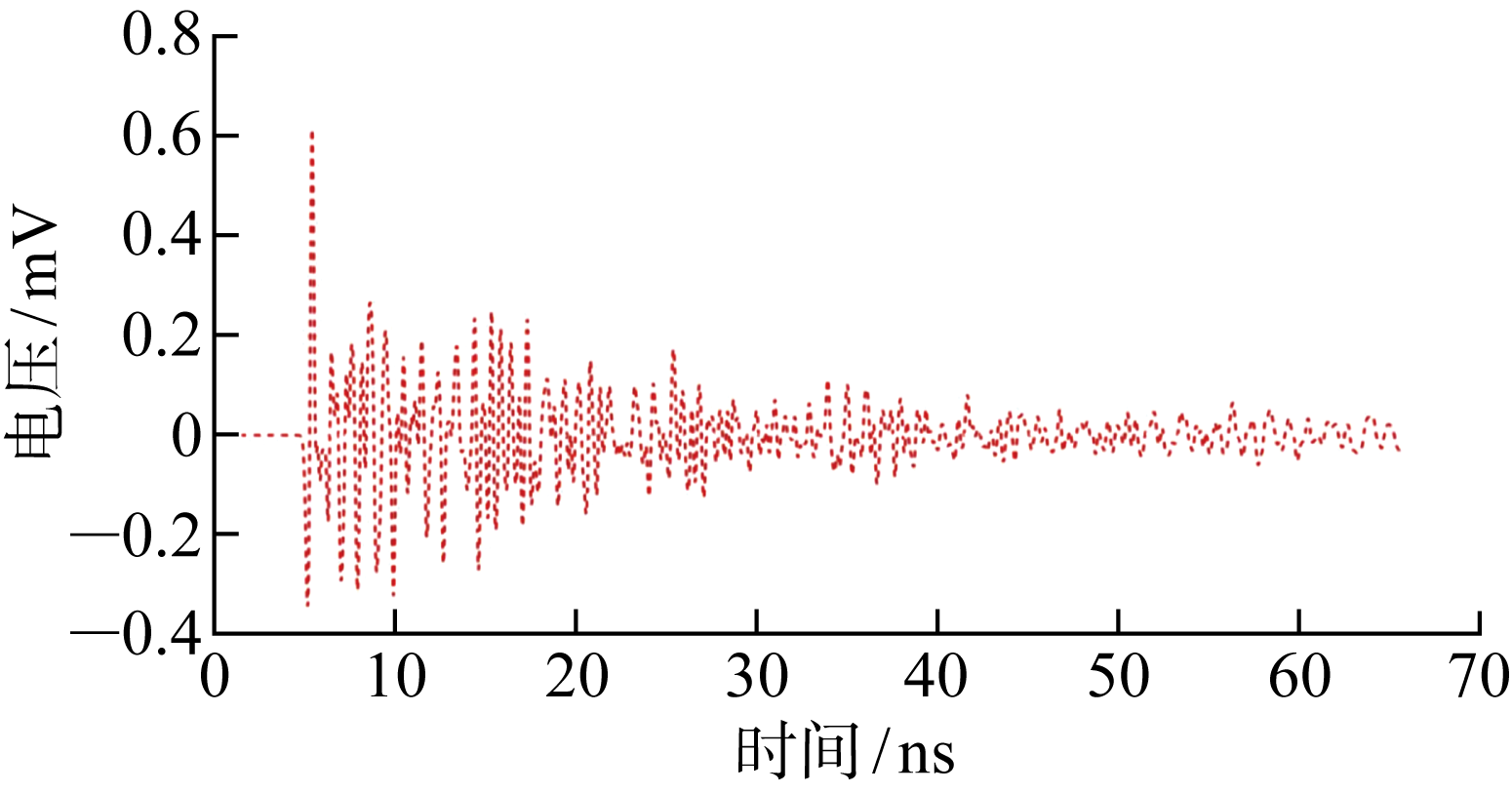

图4

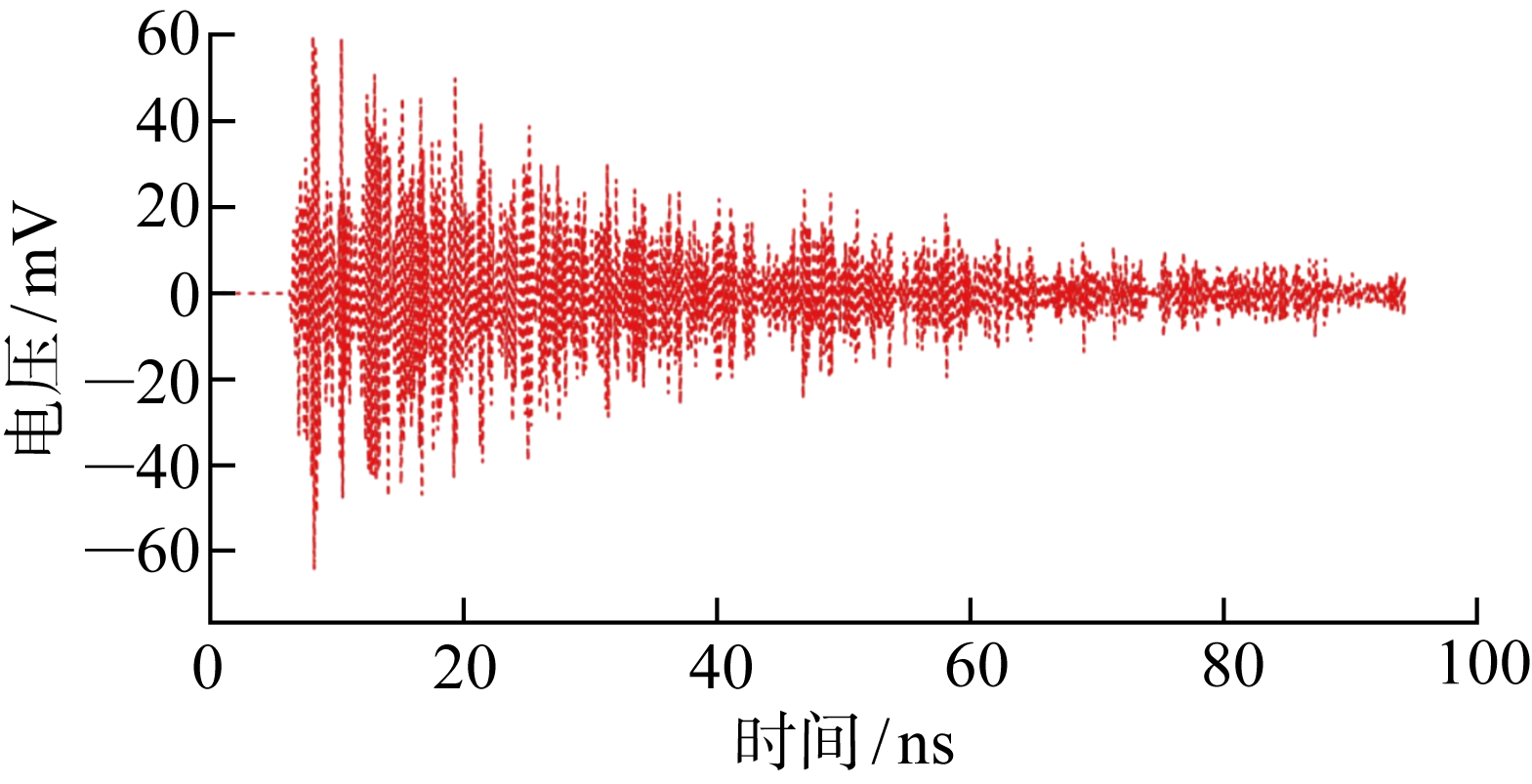

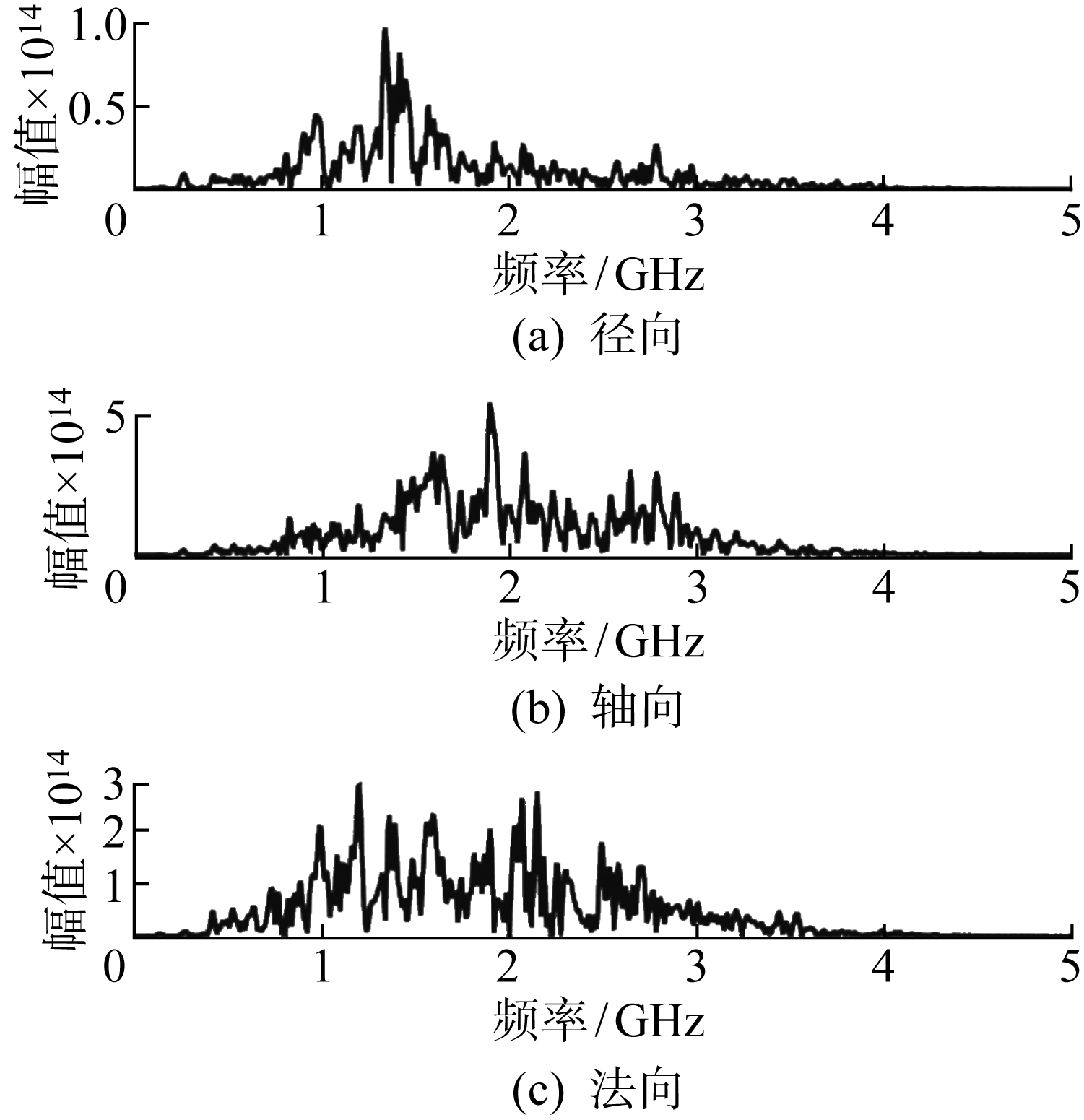

图5

图6

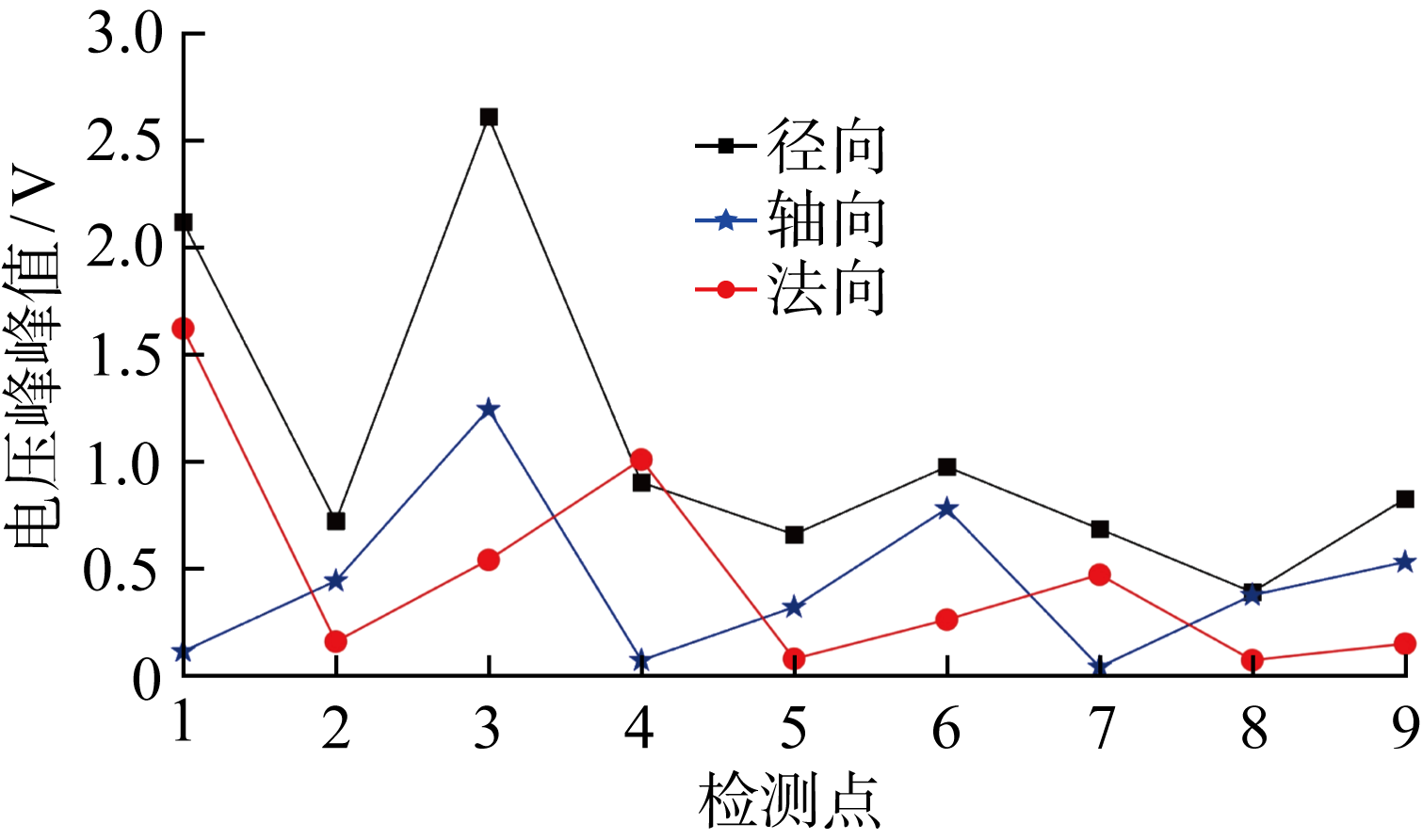

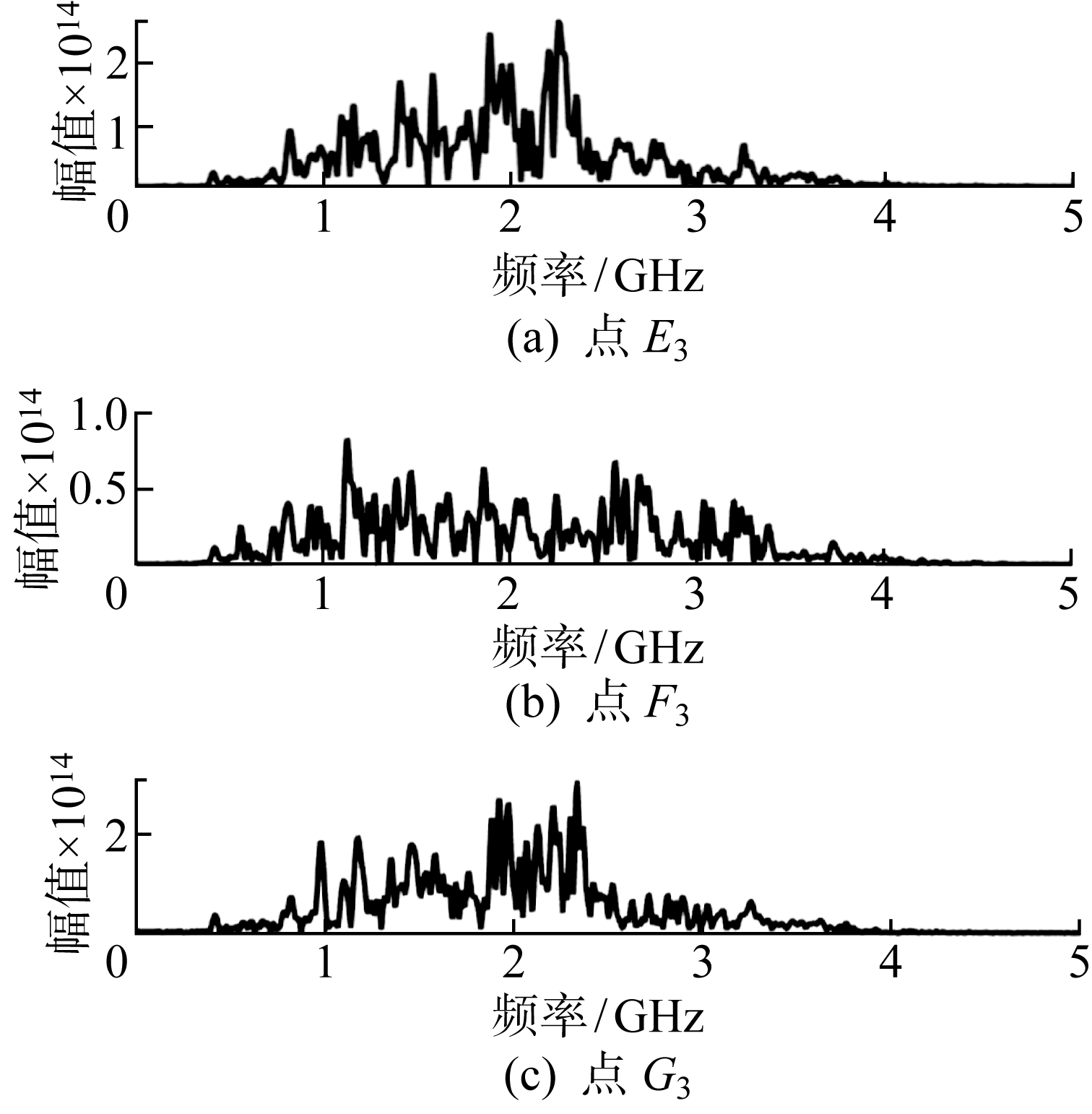

图7

图8

图9

图10

图11

表1

表2

图12

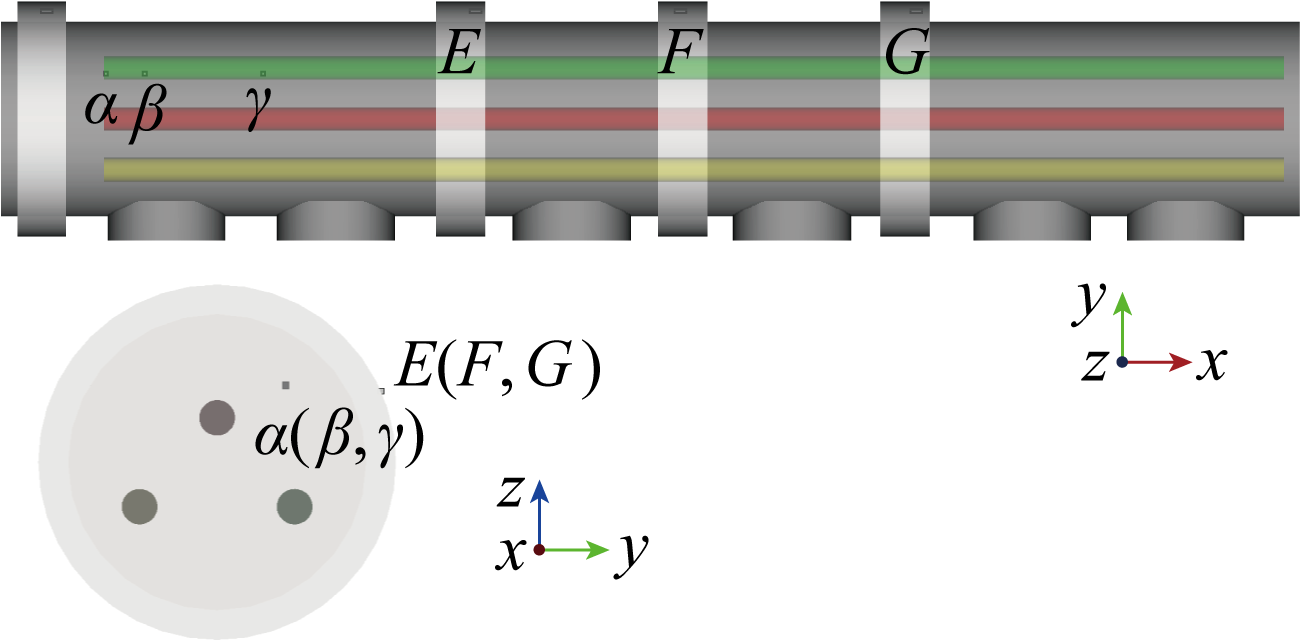

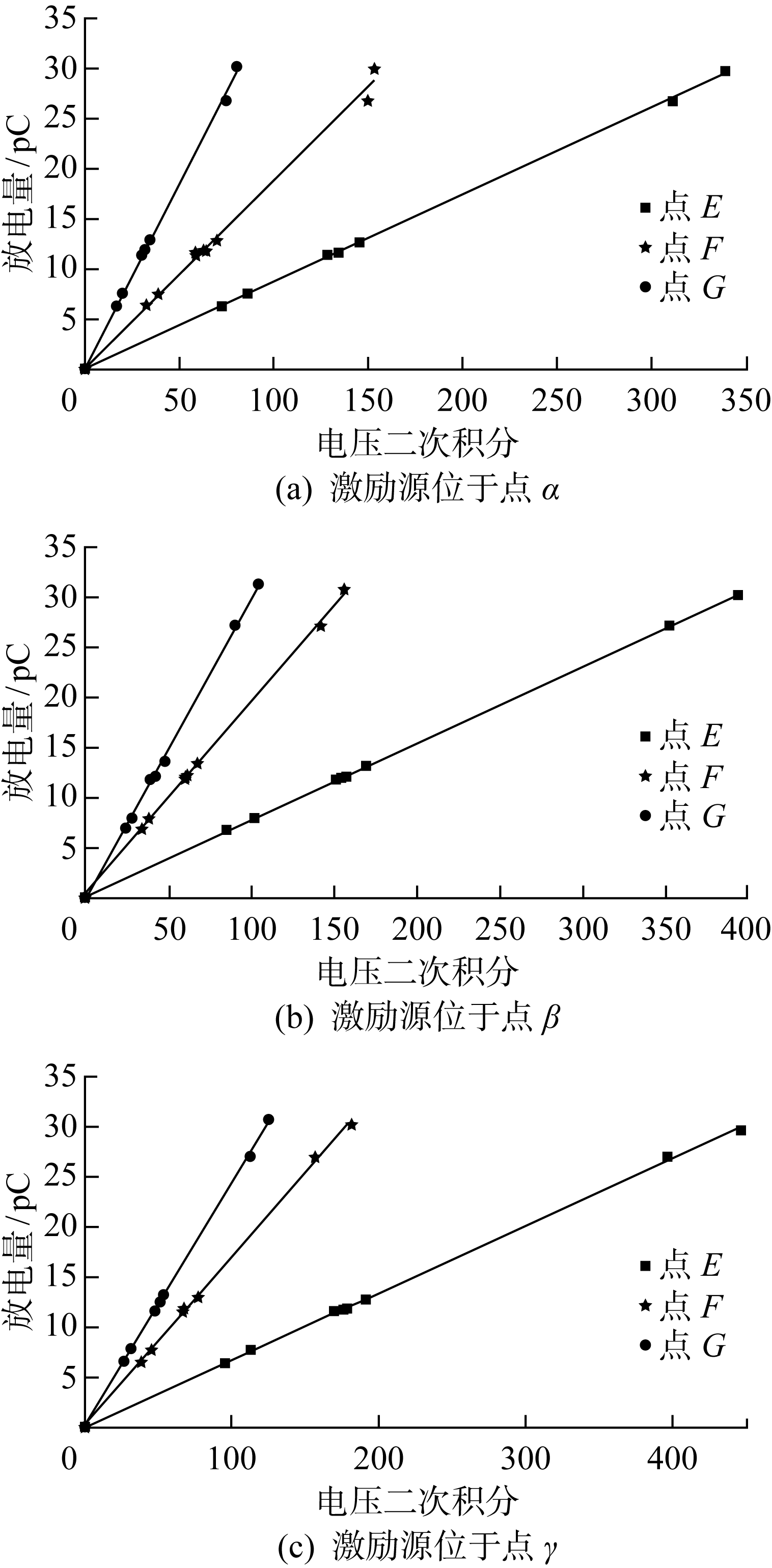

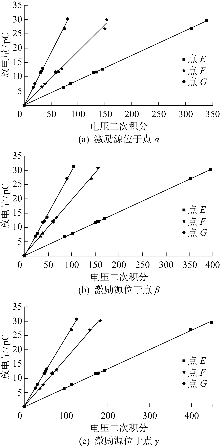

图13

图14

表3

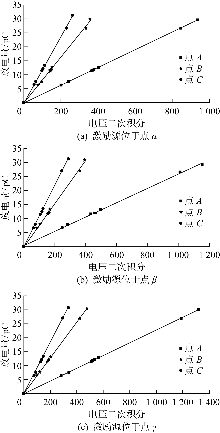

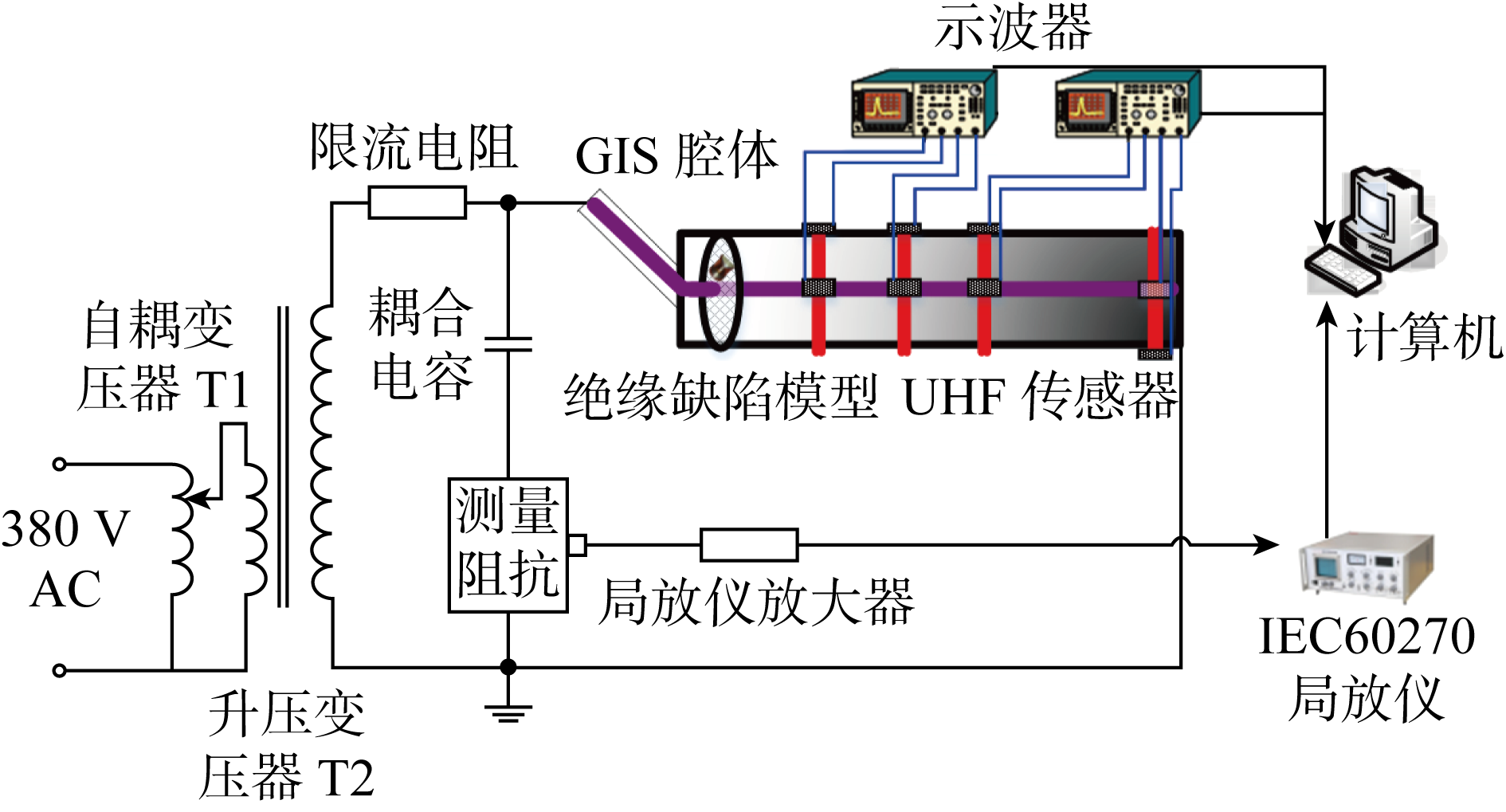

图15

图16

表4

表5

不同条件下视在放电量与信号二次积分值

激励波形	Q/C	Q²/C²	U_L	$Q U L$ ×10^-10/C	$Q 2 U L$ /C²
高斯脉冲	5.77×10^-12	3.33×10^-23	2.17×10^-22	2.67	1.54×10^-1
	1.15×10^-11	1.33×10^-22	4.33×10^-22	2.61	3.08×10^-1
	2.66×10^-11	7.09×10^-22	1.01×10^-21	2.63	7.01×10^-1
高斯包络	7.73×10^-14	5.98×10^-27	2.83×10^-24	2.74	2.12×10^-3
	7.70×10^-12	5.93×10^-23	2.83×10^-22	2.73	2.10×10^-1
	9.74×10^-12	9.48×10^-23	3.80×10^-22	2.56	2.49×10^-1
	9.78×10^-12	9.57×10^-23	3.80×10^-22	2.57	2.52×10^-1
	1.18×10^-11	1.40×10^-22	4.65×10^-22	2.54	3.01×10^-1

表5

图17

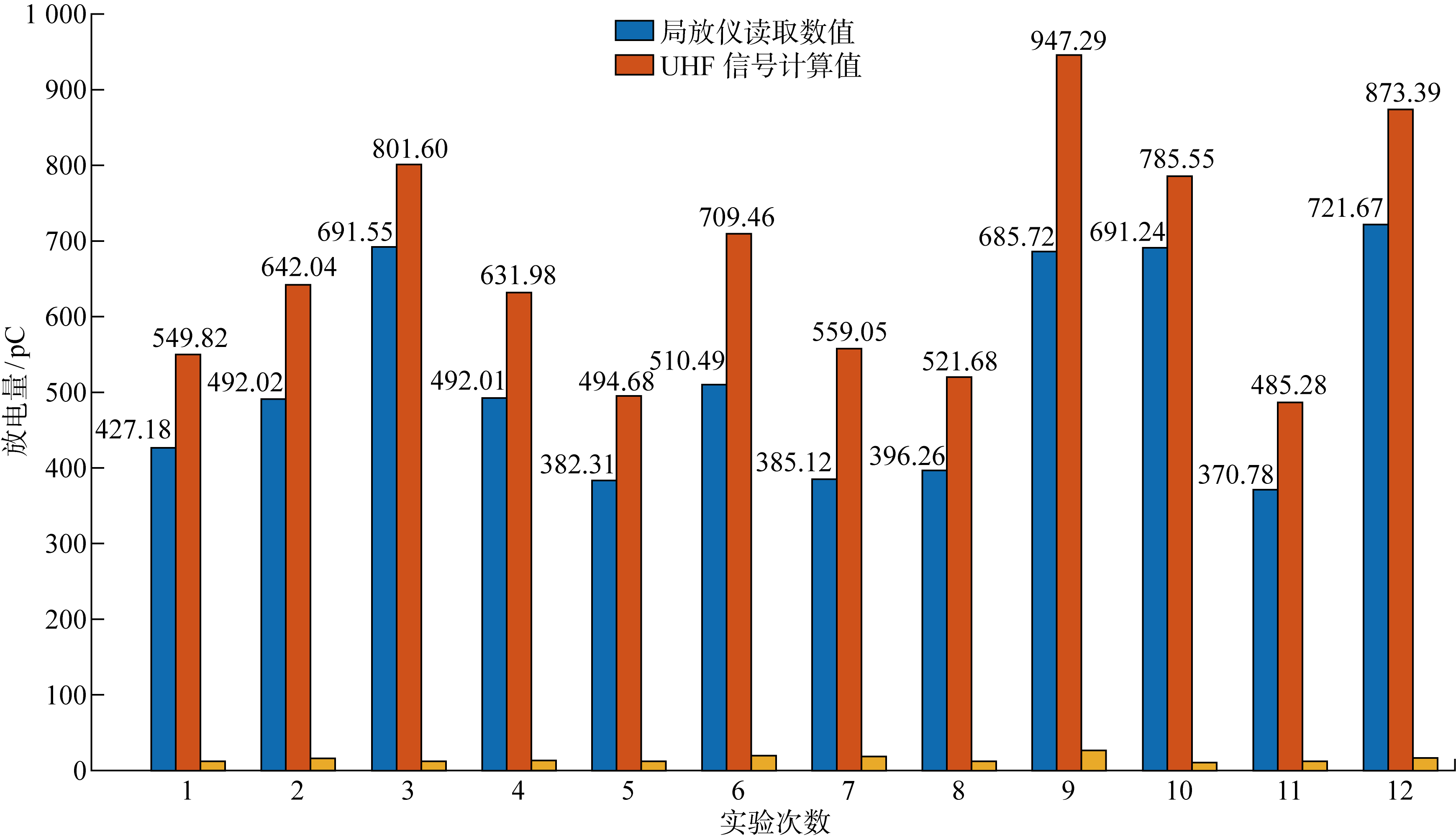

图18

参考文献 20

[1]	BOGGS S A, STONE G C. Fundamental limitations in measurement of corona and partial discharge[J]. IEEE Transactions on Electrical Insulation, 1982, 17(2): 143-150.
[2]	李泽, 钱勇, 臧奕茗, 等. 基于多光谱阵列的C₄F₇N/CO₂混合气体局部放电光学特征分析与诊断[J]. 上海交通大学学报, 2023, 57(9): 1176-1185. doi: 10.16183/j.cnki.jsjtu.2022.299
	LI Ze, QIAN Yong, ZANG Yiming, et al. Optical feature analysis and diagnosis of partial discharge in C₄F₇N/CO₂ based on multispectral array[J]. Journal of Shanghai Jiao Tong University, 2023, 57(9): 1176-1185.
[3]	GUTFLEISCH F, NIEMEYER L. Measurement and simulation of PD in epoxy voids[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 1995, 2(5): 729-743.
[4]	陈昌川, 刘凯, 刘仁光, 等. 基于多源局部放电信号数据流聚类分离方法[J]. 上海交通大学报, 2022, 56(8): 1014-1023.
	CHEN Changchuan, LIU Kai, LIU Renguang, et al. Clustering separation method based on multi-source partial discharge signal data stream[J]. Journal of Shanghai Jiao Tong University, 2022, 56(8): 1014-1023.
[5]	IEC. High-voltage test techniques—Partial discharge measurements: IEC 60270-2015[S]. Geneva, Switzerland: IEC, 2015.
[6]	吴建蓉, 唐炬, 卓然, 等. 针板局部放电VHF信号与放电量之间的等量关系[C]// 2010电工测试技术学术交流会论文集. 武汉: 重庆大学输配电装备及系统安全与新技术国家重点实验室, 2010: 7.
	WU Jianrong, TANG Ju, ZHUO Ran, et al. Equivalence relationship between VHF signal of needle plate partial discharge and discharge quantity[C]// Academic Exchange on Electrical Testing Technology, 2010. Wuhan, China: State Key Laboratory of Transmission and Distribution Equipment and System Safety and New Technology, Chongqing University, 2010: 7.
[7]	KANG W, LEE D, HAM S, et al. Development of a UHF PD detection system to estimate the dielectric condition of a medium voltage switchgear[C]// Conference Record of the 2008 IEEE International Symposium. Vancouver, Canada: ISEI, 2008: 377-380.
[8]	JUDD M D, FARISH O, PEARSON J S, et al. Power transformer monitoring using UHF sensors: Installation and testing[C]// Proceedings of the 2000 IEEE International Symposium on Electrical Insulation. Ana-heim, CA, USA: IEEE, 2000: 373-376.
[9]	JUDD M D, HAMPTON B F. Modelling partial discharge excitation of UHF signals in waveguide structures using Green’s function[J]. IEE Proceedings—Science, Measurement and Technology, 1996, 143(1): 60-73.
[10]	CLEARY G P, JUDD M D. UHF and current pulse measurements of partial discharge activity in mineral oil[J]. IEE Proceedings—Science, Measurement and Technology, 2006, 153(2): 47-54.
[11]	OHTSUKA S, TESHIMA T, MATSUMOTO S, et al. Relationship between PD induced electromagnetic wave measured with UHF method and charge quantity obtained by PD current waveform in model GIS[C]// 2006 IEEE Conference on Electrical Insulation and Dielectric Phenomena. Kansas City, MO, USA: IEEE, 2006: 615-618.
[12]	齐波, 张鹏, 张书琦, 等. 数字孪生技术在输变电设备状态评估中的应用现状与发展展望[J]. 高电压技术, 2021, 47(5): 1522-1538.
	QI Bo, ZHANG Peng, ZHANG Shuqi, et al. Application status and development prospects of digital twin technology in condition assessment of power transmission and transformation equipment[J]. High Voltage Engineering, 2021, 47(5): 1522-1538.
[13]	JAIN P, POON J, SINGH J P, et al. A digital twin approach for fault-diagnosis in distributed photovoltaic systems[J]. IEEE Transactions on Power Electronics, 2020, 35(1): 940-956.
[14]	杨帆, 吴涛, 廖瑞金, 等. 数字孪生在电力装备领域中的应用与实现方法[J]. 高电压技术, 2021, 47(5): 1505-1521.
	YANG Fan, WU Tao, LIAO Ruijin, et al. Application and implementation method of digital twin in electric equipment[J]. High Voltage Engineering, 2021, 47(5): 1505-1521.
[15]	王淼, 罗林根, 钱勇, 等. 基于模拟故障数据库的GIS局部放电反演方法[J]. 高电压技术, 2022, 48(5): 1663-1673.
	WANG Miao, LUO Lingen, QIAN Yong, et al. Partial discharge inversion method for GIS based on simulated fault database[J]. High Voltage Engineering, 2022, 48(5): 1663-1673.
[16]	邵先军, 何文林, 刘浩军, 等. 基于数值仿真与多源聚类的GIS局部放电诊断与回归分析[J]. 高电压技术, 2017, 43(10): 3163-3172.
	SHAO Xianjun, HE Wenlin, LIU Haojun, et al. Partial discharge diagnosis and regression analysis on GIS based on numerical simulation and multiple sources clustering[J]. High Voltage Engineering, 2017, 43(10): 3163-3172.
[17]	刘君华. 局部放电电磁波在GIS中的衰减特性[J]. 电工技术学报, 2010, 25(8): 53-58.
	LIU Junhua. Investigation on the attenuation characteristics of electromagnetic waves in GIS[J]. Transactions of China Electrotechnical Society, 2010, 25(8): 53-58.
[18]	逄凯. GIS局部放电超高频信号传播特性和模式识别的研究[D]. 山东: 山东大学, 2010.
	PANG Kai. Study on propagation characteristics and pattern recognition of the UHF partial discharge signal in GIS[D]. Shandong: Shandong University, 2010.
[19]	李信. GIS局部放电特高频检测技术的研究[D]. 北京: 华北电力大学, 2005.
	LI Xin. Study on the ultra high frequency detection technology of GIS partial discharge[D]. Beijing: North China Electric Power University, 2005.
[20]	TANG J, XIE Y B, ZHANG X X, et al. Relationship between PD measured with RF techniques and apparent charge quantity[J]. High Voltage Engineering, 2012, 38(8): 1828-1833.

相对角度/(°)	峰值/mV
相对角度/(°)	x=930 mm	x=1 450 mm	x=2 050 mm
0	0.059 0	0.035 8	0.033 9
90	0.034 4	0.029 9	0.021 9
180	0.053 3	0.032 0	0.034 9

相对角度/(°)	累积能量值/μJ
相对角度/(°)	x=930 mm	x=1 450 mm	x=2 050 mm
0	2.130	0.910	0.692
90	0.727	0.667	0.597
180	2.620	0.983	0.832

激励源x轴坐标/mm	探针x轴坐标/mm	Ω	Q₀
0	930	0.086 1	0.074 9
	1 450	0.187 0	0.256 0
	2 050	0.374 0	0.077 1
100	930	0.076 6	0.002 6
	1 450	0.201 0	0.016 9
	2 050	0.293 0	0.086 4
400	930	0.067 2	0.000 4
	1 450	0.172 0	136.000 0
	2 050	0.244 0	613.000 0

激励源x轴坐标/mm	探针x轴坐标/mm	Ω	Q₀
0	930	0.086 5	0.119 0
	1 450	0.185 0	0.256 0
	2 050	0.364 0	0.322 0
100	930	0.076 7	0.007 7
	1 450	0.193 0	0.209 0
	2 050	0.305 0	0.521 0
400	930	0.067 3	3.510 0
	1 450	0.169 0	1.310 0
	2 050	0.244 0	33.900 0
