室温磁致冷材料Mn5Ge2.7Zn0.3的相变、磁热效应和临界行为

doi:10.16183/j.cnki.jsjtu.2023.112

上海交通大学学报 ›› 2025, Vol. 59 ›› Issue (1): 131-138.doi: 10.16183/j.cnki.jsjtu.2023.112

室温磁致冷材料Mn₅Ge_2.7Zn_0.3的相变、磁热效应和临界行为

许童杰¹, 刘振华¹, 金怀宇¹, 刘结¹, 蒋秀丽¹, 李哲², 刘永生¹()

1.上海电力大学数理学院, 上海 200090
2.曲靖师范学院磁性材料及器件研究中心, 云南曲靖 655011

收稿日期:2023-03-28 修回日期:2023-05-22 接受日期:2023-05-29 出版日期:2025-01-28 发布日期:2025-02-06
通讯作者: 刘永生,教授;E-mail: ysliu@shiep.edu.cn.
作者简介:许童杰(1997—),硕士生,从事室温磁致冷工质、光纤光栅传感的研究.
基金资助:
国家自然科学基金项目(51971128);国家自然科学基金项目(52171185);上海市优秀学术/技术带头人项目(20XD1401800)

Phase Transition, Magnetocaloric Effect, and Critical Behavior of Room Temperature Magnetic Refrigerant Material Mn₅Ge_2.7Zn_0.3

XU Tongjie¹, LIU Zhenhua¹, JIN Huaiyu¹, LIU Jie¹, JIANG Xiuli¹, LI Zhe², LIU Yongsheng¹()

1. College of Mathematics and Physics, Shanghai University of Electric Power, Shanghai 200090, China
2. Center for Magnetic Materials and Devices, Qujing Normal University, Qujing 655011, Yunnan, China

Received:2023-03-28 Revised:2023-05-22 Accepted:2023-05-29 Online:2025-01-28 Published:2025-02-06

摘要/Abstract

摘要：

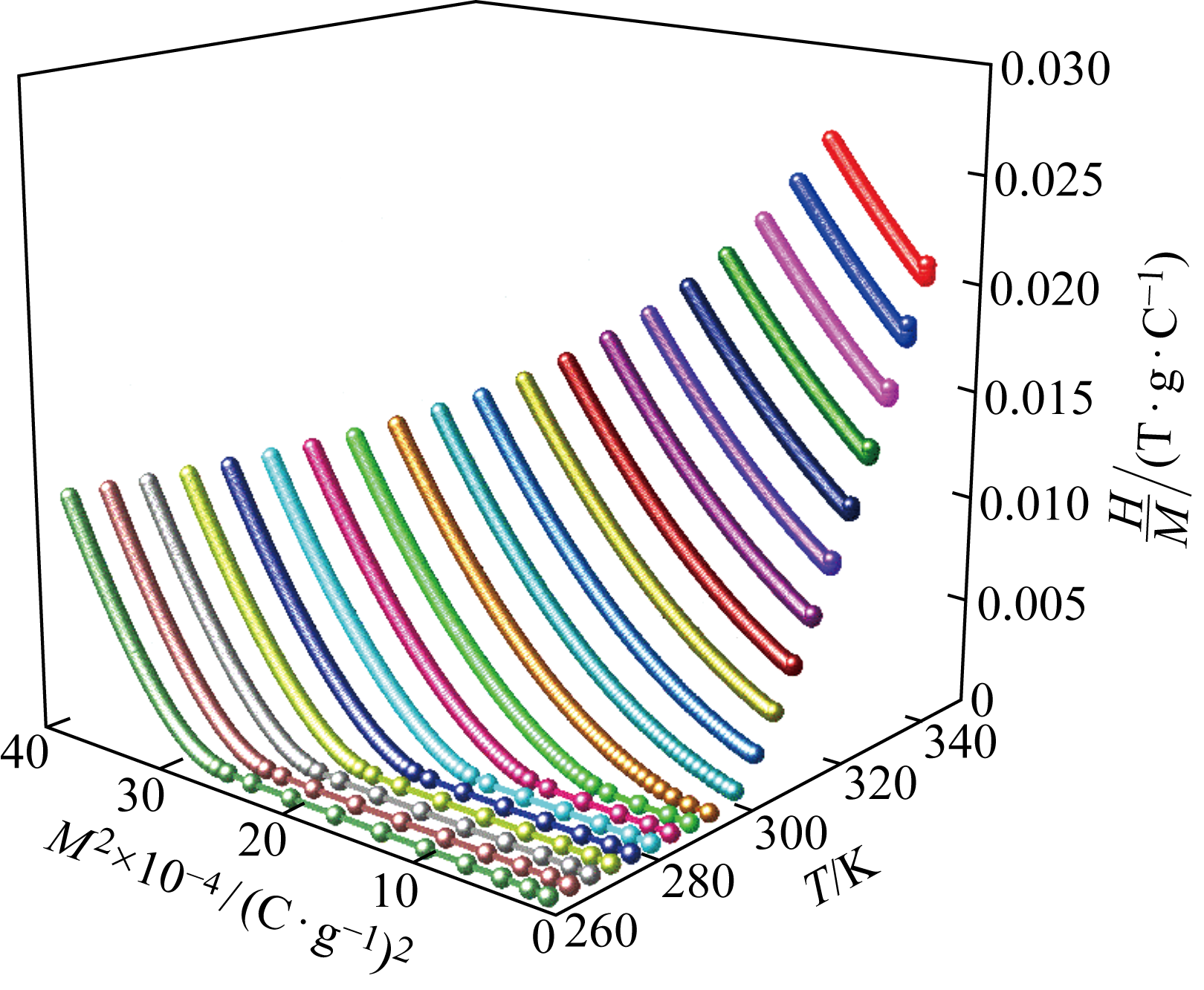

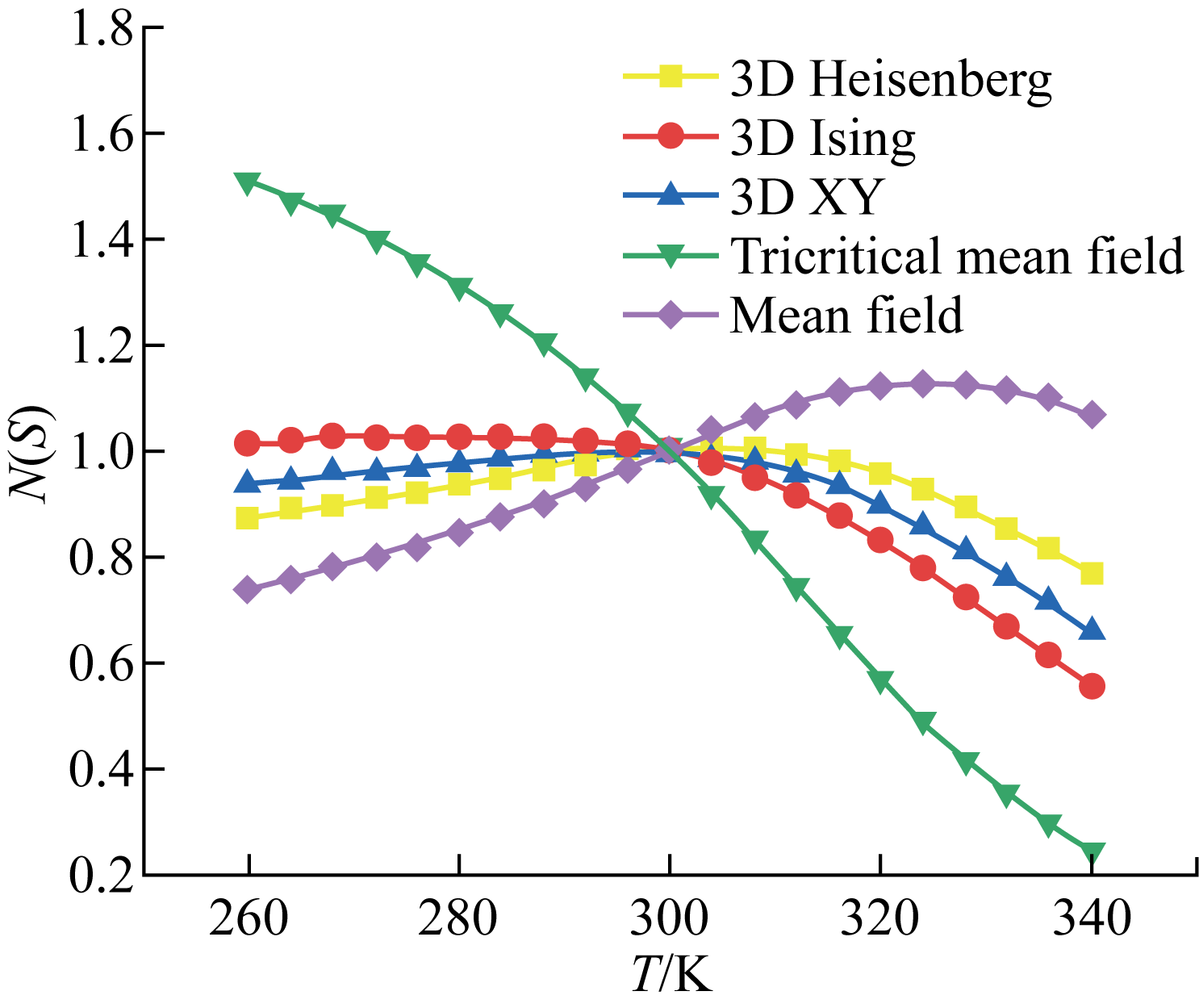

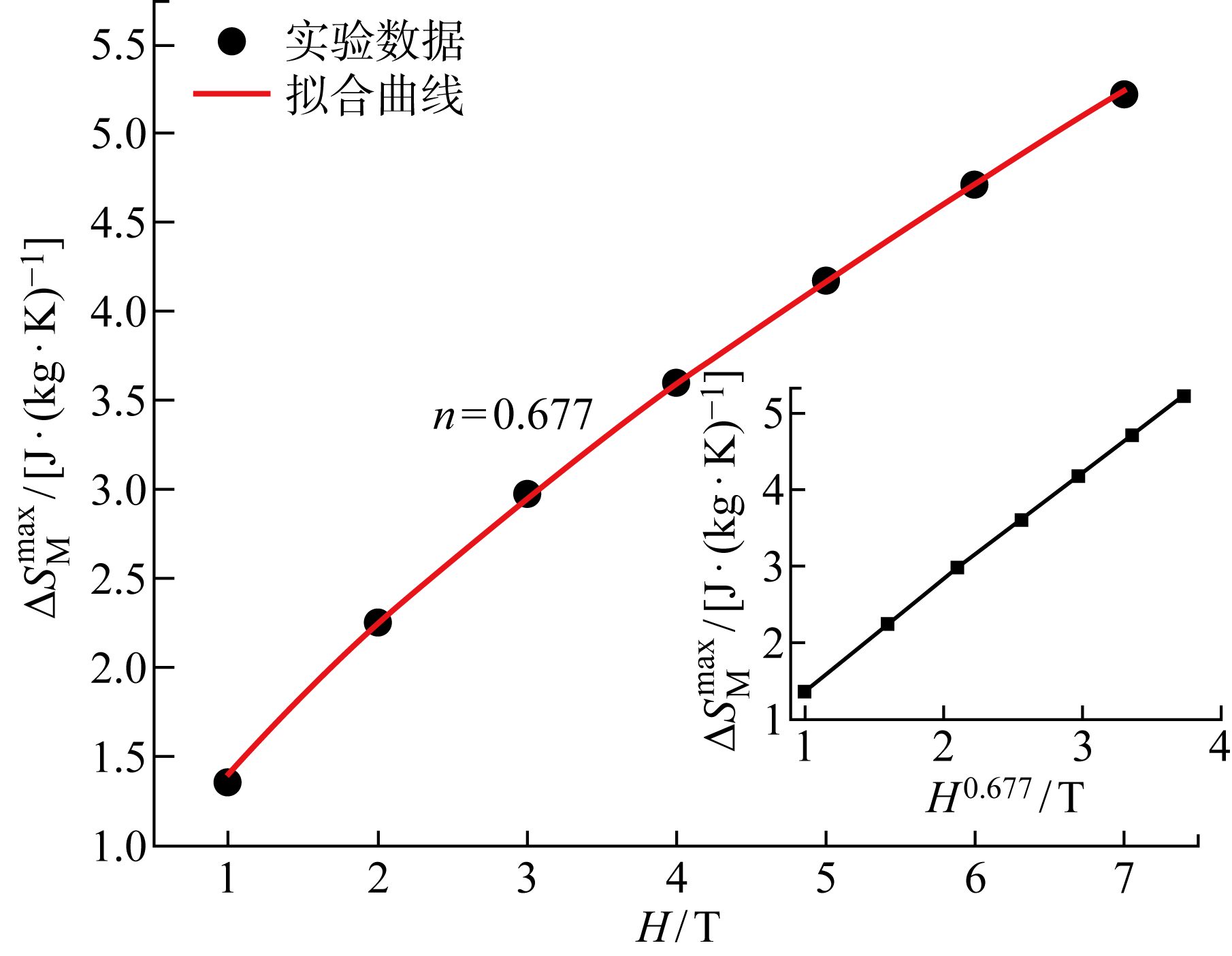

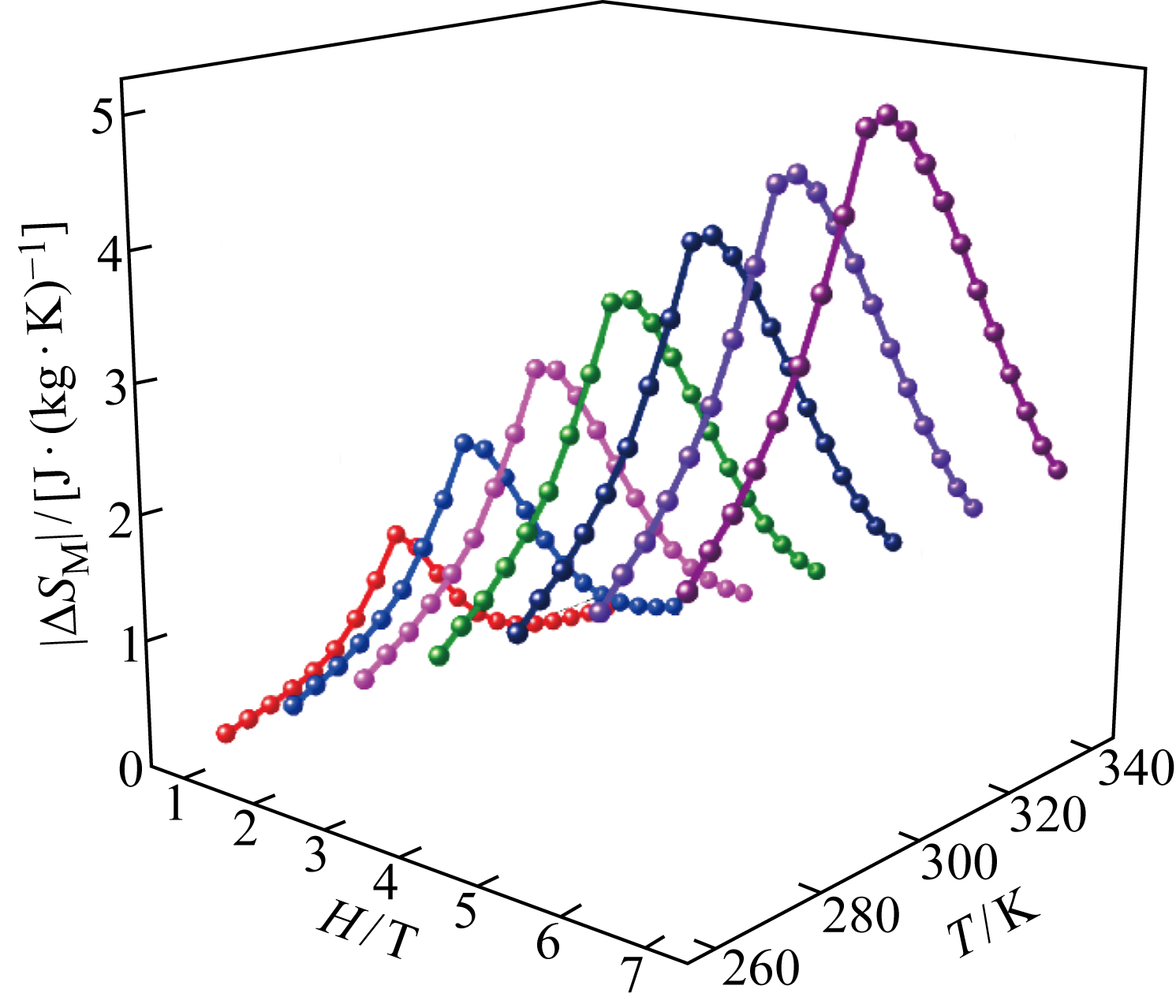

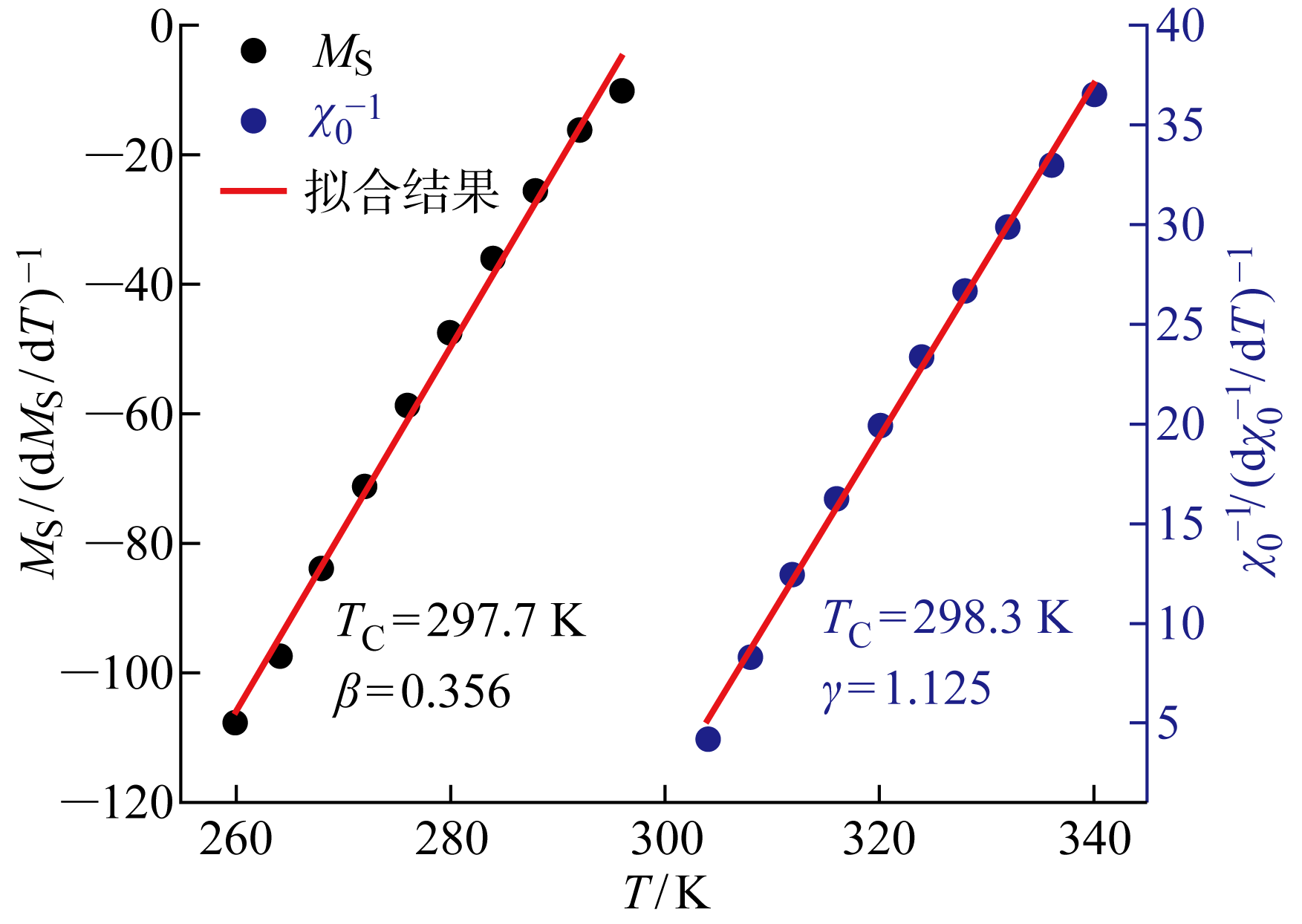

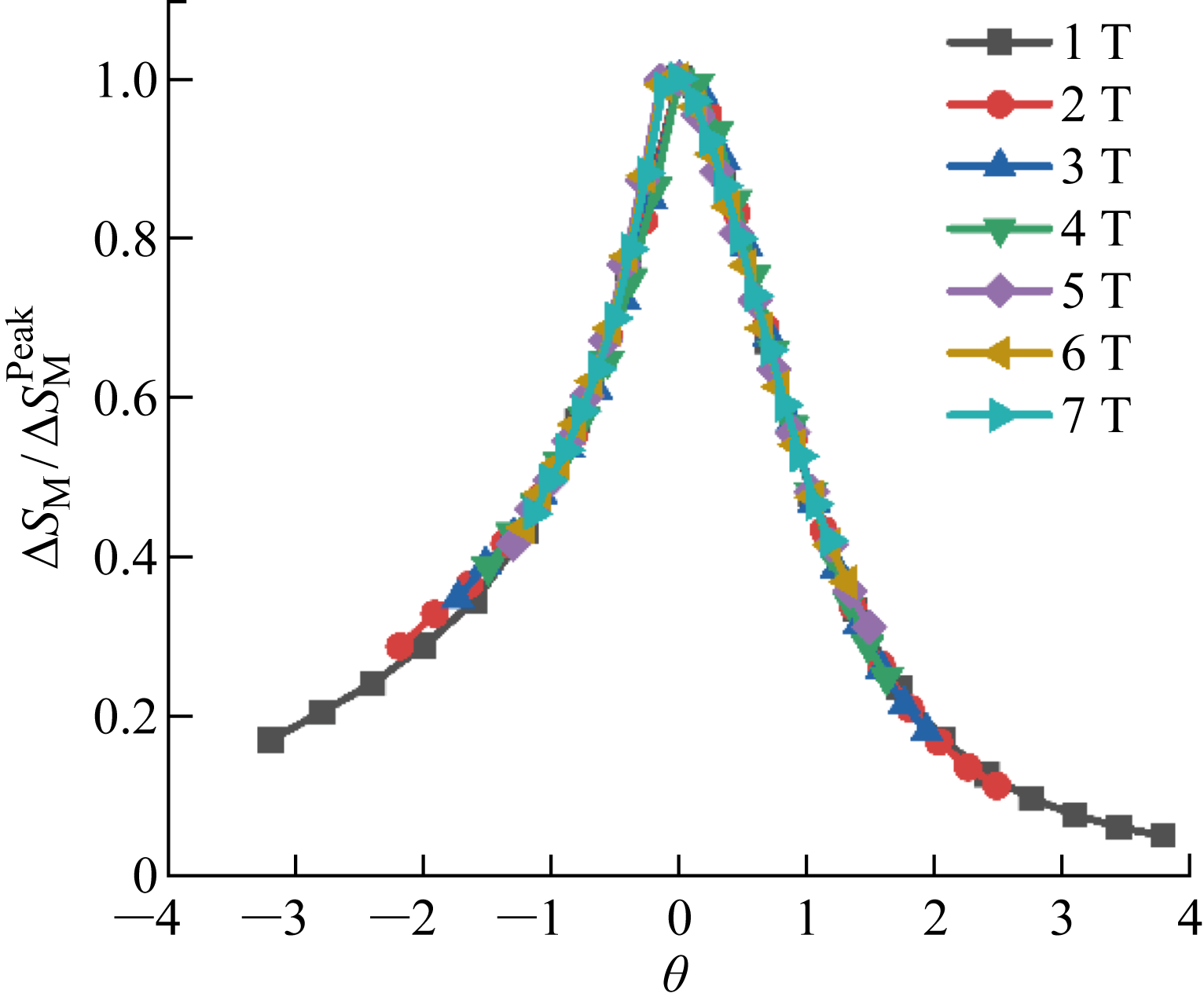

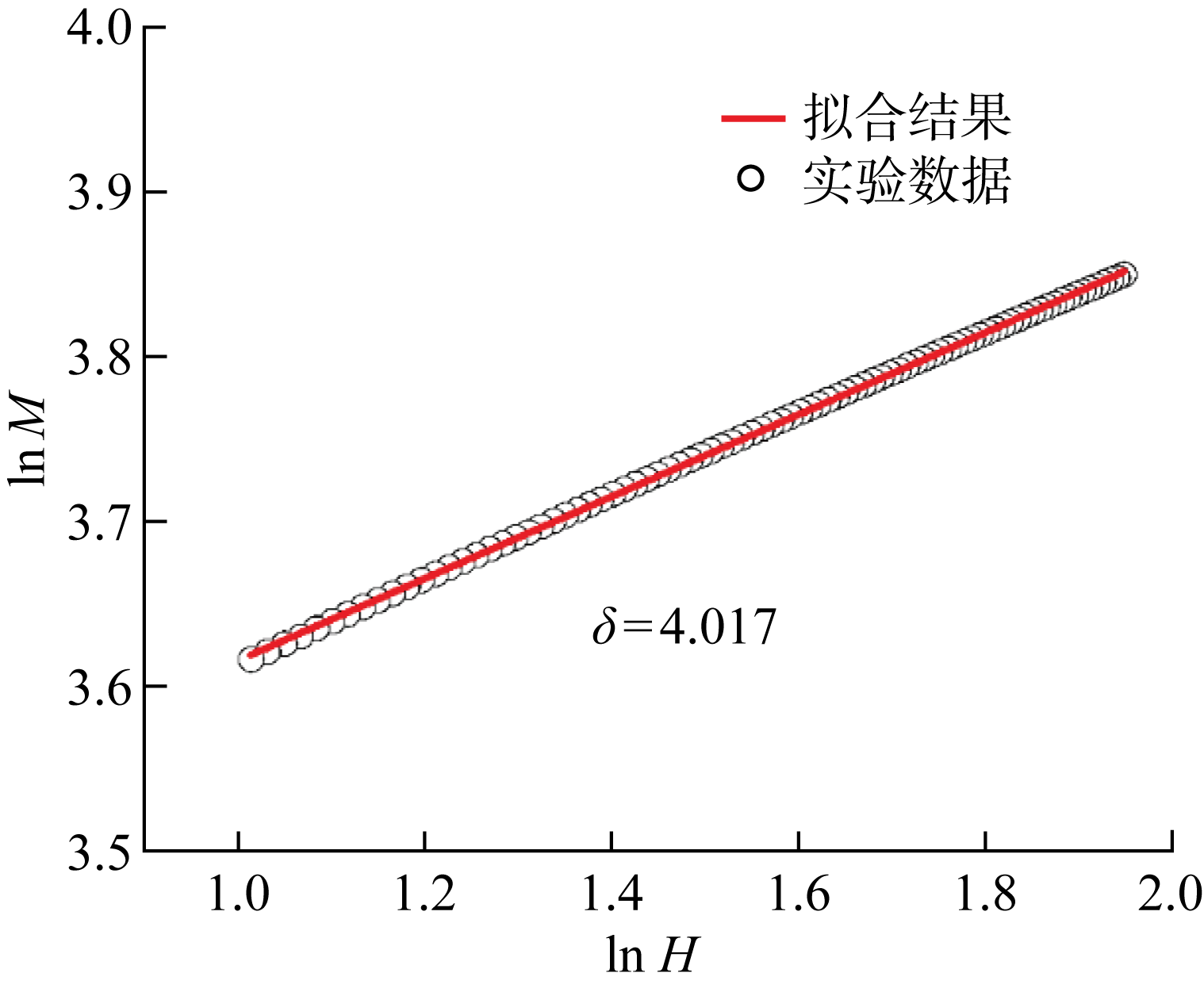

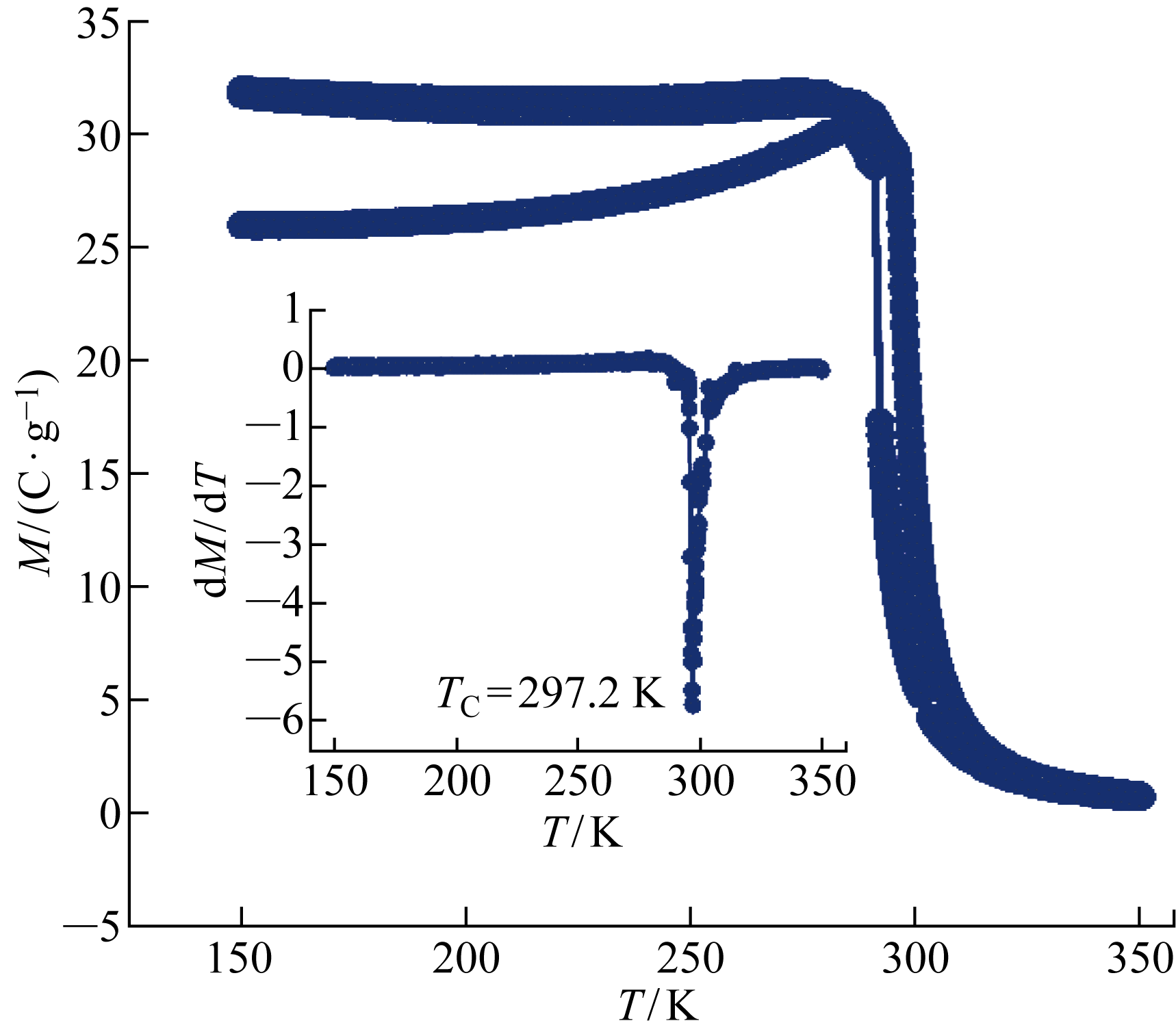

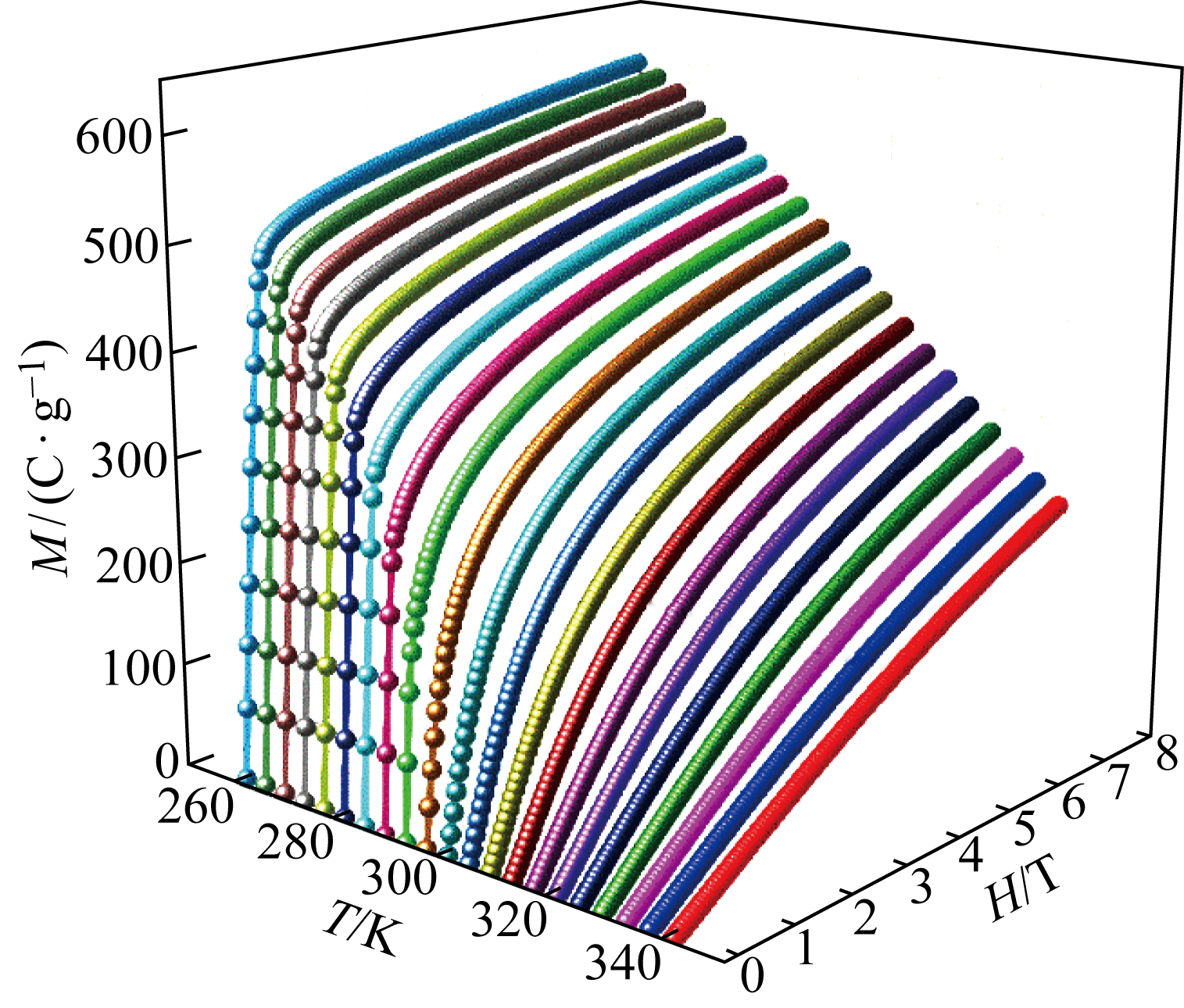

通过电弧熔炼法成功制备了Mn₅Ge_2.7Zn_0.3合金,并对其相变、磁热效应和临界行为等进行研究.利用热磁曲线确定了样品的居里温度为297.2 K,等温磁化曲线发现样品没有热滞,通过M²-H/M曲线和Banerjee准则证实样品经历了二级相变,进一步根据Maxwell方程计算样品的等温熵变,场-熵的幂律关系和归一化曲线也验证了二级相变.利用modified Arrott plot(MAP)法、Kouvel-Fisher(KF)法和等温磁化(CI)法求解临界指数,并用Widom标度定律和标度方程验证了临界指数的准确性.最后利用Arrott-Noaks方程对样品的临界行为进一步分析,归一化斜率和磁相互作用距离的分析证实了样品内部磁相互作用的复杂性.

关键词: Mn₅Ge₃基合金, 二级相变, 磁热效应, 临界行为, 相互作用

Abstract:

Mn₅Ge_2.7Zn_0.3 alloy was successfully prepared by using the arc-melting method, and its phase transition, magnetocaloric effect, and critical behavior were studied. The thermomagnetic curve determined that the Curie temperature of the sample was 297.2 K, the isothermal magnetization curve found that the sample had no thermal hysteresis. The sample underwent a second-order phase transition through the M²-H/M plot and Banerjee’s criterion, and the isothermal entropy change of the sample was further calculated according to Maxwell’s equation, and the power-law relationship of field-entropy and the normalization curve also verified the fact of the second-order phase transition. The critical index was solved by the modified Arrott plot(MAP) method, the Kouvel-Fisher(KF) method and the critical isothermal (CI) method, and the accuracy of the critical index was verified by Widom scaling ansatz and scaling laws. Finally, the Arrott-Noaks equation was used to further analyze the critical behavior of the sample, and the normalization slope and magnetic interaction distance were analyzed to confirm the complexity of the magnetic interaction inside the sample.

Key words: Mn₅Ge₃ based alloys, second-order phase transition, magnetocaloric effect, critical behavior, interaction

中图分类号:

TB64
O482.6

许童杰, 刘振华, 金怀宇, 刘结, 蒋秀丽, 李哲, 刘永生. 室温磁致冷材料Mn₅Ge_2.7Zn_0.3的相变、磁热效应和临界行为[J]. 上海交通大学学报, 2025, 59(1): 131-138.

XU Tongjie, LIU Zhenhua, JIN Huaiyu, LIU Jie, JIANG Xiuli, LI Zhe, LIU Yongsheng. Phase Transition, Magnetocaloric Effect, and Critical Behavior of Room Temperature Magnetic Refrigerant Material Mn₅Ge_2.7Zn_0.3[J]. Journal of Shanghai Jiao Tong University, 2025, 59(1): 131-138.

图/表 13

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 30

[1]	沈文忠. 什么将是地球上最便宜的能源?[J]. 上海交通大学学报, 2021, 55(Sup.1): 86-87. doi: 10.16183/j.cnki.jsjtu.2021.S1.014
	SHEN Wenzhong. What will be the cheapest energy on the earth?[J]. Journal of Shanghai Jiao Tong University, 2021, 55(Sup.1): 86-87.
[2]	卓振宇, 张宁, 康重庆, 等. 面向双碳目标的电力系统规划方案量化归因分析方法[J]. 电力系统自动化, 2023, 47(2): 1-14.
	ZHUO Zhenyu, ZHANG Ning, KANG Chongqing, et al. Quantitative attribution analysis method of power system planning scheme oriented to double carbon target[J]. Automation of Electric Power Systems, 2023, 47(2): 1-14.
[3]	孙欣, 严佳嘉, 谢敬东, 等. “碳中和”目标下电气互联系统有功-无功协同优化模型[J]. 上海交通大学学报, 2021, 55(12): 1554-1566. doi: 10.16183/j.cnki.jsjtu.2021.233
	SUN Xin, YAN Jiajia, XIE Jingdong, et al. Coordinated optimization model of active power and reactive power in power and gas systems with the objective of carbon neutrality[J]. Journal of Shanghai Jiao Tong University, 2021, 55(12): 1554-1566.
[4]	符小坤, 舒嵘, 侯育花, 等. LaAl添加对放电等离子烧结LaFeSi磁体微观结构和磁热效应的影响[J]. 稀有金属材料与工程, 2022, 51(4): 1239-1244.
	FU Xiaokun, SHU Rong, HOU Yuhua, et al. Microstructure and magnetocaloric effect of spark plasma sintered LaFeSi magnets with LaAl addition[J]. Rare Metal Materials and Engineering, 2022, 51(4): 1239-1244.
[5]	左良, 李宗宾, 闫海乐, 等. 多晶Ni-Mn-X相变合金的织构化与功能行为[J]. 金属学报, 2021, 57(11): 1396-1415. doi: 10.11900/0412.1961.2021.00276
	ZUO Liang, LI Zongbin, YAN Haile, et al. Texturation and functional behaviors of polycrystalline Ni-Mn-X phase transformation alloys[J]. Acta Metallurgica Sinica, 2021, 57(11): 1396-1415. doi: 10.11900/0412.1961.2021.00276
[6]	SI X D, SHEN Y L, MA X X, et al. Field dependence of magnetic entropy change and estimation of spontaneous magnetization in Cd substituted MnCoGe[J]. Acta Materialia, 2018, 143: 306-317.
[7]	SI X D, LIU Y S, SHEN Y L, et al. Critical behavior and magnetocaloric effect near room temperature in MnCo_1-_xTi_xGe alloys[J]. Intermetallics, 2018, 93: 30-39.
[8]	SYNORADZKI K, URBAN K, SKOKOWSKI P, et al. Tuning of the magnetocaloric properties of Mn₅Ge₃ compound by chemical modification[J]. Magnetism, 2022, 2(1): 56-73.
[9]	WANG S B, FAN C Z, LIU D M. Large anisotropic magnetocaloric effect, wide operating temperature range, and large refrigeration capacity in single-crystal Mn₅Ge₃ and Mn₅Ge₃/Mn_3.5Fe_1.5Ge₃ heterostructures[J]. ACS Applied Materials & Interfaces, 2021, 13(28): 33237-33243.
[10]	ZHANDUN V, MATSYNIN A. The effect of the impurities on the magnetic, electronic and optical properties of Mn₅Ge₃[J]. Chinese Journal of Physics, 2020, 68: 9-18.
[11]	TOLIŃSKI T, SYNORADZKI K. Specific heat and magnetocaloric effect of the Mn₅Ge₃ ferromagnet[J]. Intermetallics, 2014, 47: 1-5.
[12]	QIAN Y T, MA X X, SI X D, et al. The analysis of magnetocaloric effect and magnetic critical behavior in Mn₅Ge_3-_xAg_x compounds[J]. Physica Scripta, 2020, 95(6): 065701.
[13]	ZHAO F Q, DAGULA W, TEGUS O, et al. Magnetic-entropy change in Mn₅Ge_3-_xSi_x alloys[J]. Journal of Alloys and Compounds, 2006, 416(1/2): 43-45.
[14]	RATHI A, VERMA A K, GAHTORI B, et al. Field dependence of magnetic entropy change in Mn₅Ge₃ near room temperature[J]. Journal of Alloys and Compounds, 2021, 876: 159908.
[15]	LIU Z H, DONG J A, LIU T T, et al. Magnetocaloric effect and critical behavior of the Mn₅Ge_3-_xZn_x alloys[J]. Physica Scripta, 2023, 98(4): 045817.
[16]	SI X D, LIU Y S, ZHANG Z X, et al. Analysis of the magnetic transition and magnetocaloric effect in Mn₅Ge_2.9Ag_0.1 compound[J]. Journal of Alloys and Compounds, 2019, 795: 304-313.
[17]	SI X D, ZHOU K Y, ZHANG R, et al. Universal curve and long-range ferromagnetic order in the intermetallic compound Mn_0.92Sn_0.08CoGe[J]. Materials Research Express, 2018, 5(8): 086507.
[18]	DONG J, LIU Z H, SI X D, et al. Martensitic transformation and magnetocaloric effect of Cr-doped Mn-Ni-Fe-Ti all-d-metal Heusler alloys near room temperature[J]. Solid State Communications, 2023, 362: 115099.
[19]	LIU Y K, QIAN Y T, LIU Z H, et al. Room temperature magnetocaloric effect and electrical transport properties of Co₅₀Fe₇V₂₅Ga₁₈ Heusler alloys undergoing martensitic transformation[J]. Journal of Alloys and Compounds, 2023, 948: 169573.
[20]	生利英. 金属单质对Gd₃Al₂合金磁热效应的影响[J]. 金属功能材料, 2022, 29(5): 73-76.
	SHENG Liying. Influence of metallic monomers on magnetocaloric effect in Gd₃Al₂ alloy[J]. Metallic Functional Materials, 2022, 29(5): 73-76.
[21]	LAW J Y, FRANCO V, MORENO-RAMíREZ L M, et al. A quantitative criterion for determining the order of magnetic phase transitions using the magnetocaloric effect[J]. Nature Communications, 2018, 9: 2680. doi: 10.1038/s41467-018-05111-w pmid: 29992958
[22]	张鹏, 朴红光, 张英德, 等. 钙钛矿锰氧化物的磁相变临界行为及磁热效应研究进展[J]. 物理学报, 2021, 70(15): 157501.
	ZHANG Peng, PIAO Hongguang, ZHANG Yingde, et al. Research progress of critical behaviors and magnetocaloric effects of perovskite manganites[J]. Acta Physica Sinica, 2021, 70(15): 157501.
[23]	YANG T H, HE W, CHEN F K, et al. Structure, magnetic anisotropy and magnetocaloric effect of Mn₅Ge_3-_xSi_x single crystals[J]. Journal of Magnetism and Magnetic Materials, 2022, 559: 169539.
[24]	ANWAR M S, KOO B H. Investigation on magnetic critical behavior related to its magnetocaloric effect in Mn_0.5Zn_0.5Fe₂O₄ spinel ferrite[J]. Applied Physics A, 2022, 128(7): 1-8.
[25]	NAG R, BISWAS B. Intercluster interaction and critical behavior near magnetic phase transition of electron-doped ceramic manganite Ca_0.85Nd_0.15MnO₃[J]. Applied Physics A, 2022, 128(6): 1-12.
[26]	JEDDI M, MASSOUDI J, GHARSALLAH H, et al. Short-range ferromagnetic order in Nd_0.6Sr_0.4-_xK_xMnO₃ (x=0.2) perovskite[J]. Journal of Superconductivity and Novel Magnetism, 2022, 35(7): 1891-1898.
[27]	BAAZAOUI M, OUMEZZINE M, CHEIKHROUHOU-KOUBAA W. Critical behavior in Ga-doped manganites La_0.65Bi_0.05Sr_0.3Mn_1-_xGa_xO₃ (x=0 and 0.06)[J]. Physics of the Solid State, 2020, 62(2): 278-284.
[28]	CHEN W J, HONG B, ZENG Y X, et al. Structure, magnetism, critical behavior and magnetocaloric effects of La_0.66Ca_0.33MnO₃ porous nanospheres tuned by a solvothermal method with PVP addition[J]. Journal of Alloys and Compounds, 2023, 933: 167625.
[29]	LIU Y, KOCH R J, HU Z X, et al. Three-dimensional Ising ferrimagnetism of Cr-Fe-Cr trimers in FeCr₂Te₄[J]. Physical Review B, 2020, 102(8): 085158.
[30]	FRANCO V, BLÁZQUEZ J S, CONDE A. Field dependence of the magnetocaloric effect in materials with a second order phase transition: A master curve for the magnetic entropy change[J]. Applied Physics Letters, 2006, 89(22): 222512.

编辑推荐 0

Metrics

阅读次数

全文

414

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
0	0	12	288	0	114

来源	本网站	其他网站

次数	103	311
比例	25%	75%

摘要

344

最新录用	在线预览	正式出版

94	0	250

来源	本网站	其他网站

次数	96	248
比例	28%	72%

化合物	来源	a/nm	b/nm	c/nm	V/nm³
Mn₅Ge_2.7Zn_0.3	本实验	0.726 9	0.726 9	0.508 1	0.268 4
Mn₅Ge_2.7Si_0.3	文献[13]	0.717 5	0.717 5	0.501 0	0.257 9
Mn₅Ge₃	文献[14]	0.720 5	0.720 5	0.503 6	0.261 4
