基于FloMaster-Simulink联合仿真的大流量海水冷却系统控制方案优化

王宁, 付云鹏, 李艇, 李铁, 依平

Optimization of Control Scheme for Large Flow Seawater Cooling System Based on FloMaster-Simulink Co-Simulation

WANG Ning, FU Yunpeng, LI Ting, LI Tie, YI Ping

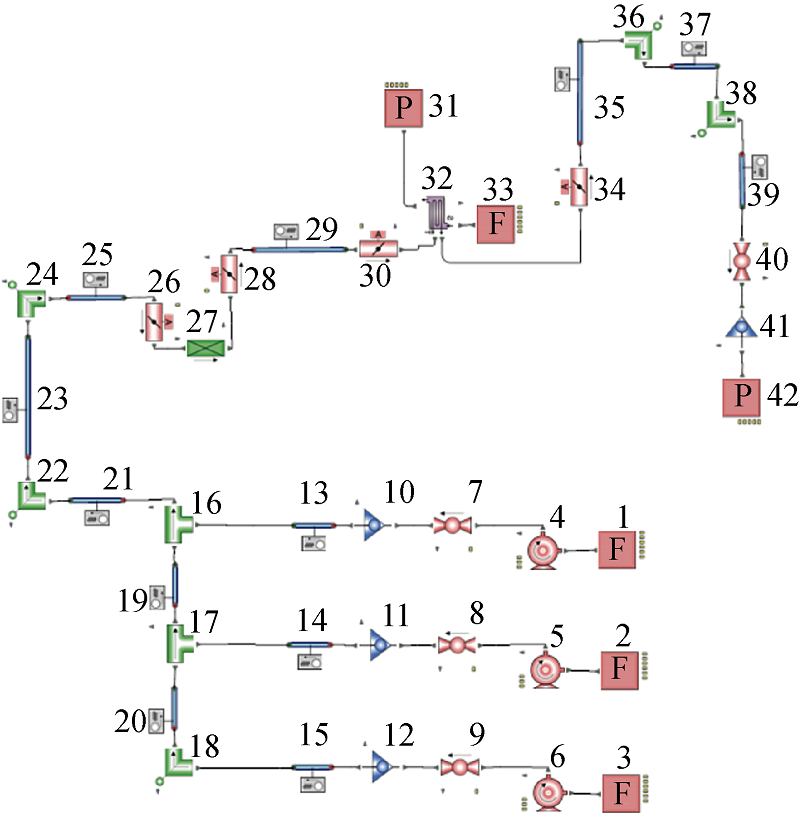

图2 冷却系统模型图 1, 2, 3—海水水源; 4, 5, 6 —离心泵; 7, 8, 9, 40—截止阀; 10, 11, 12, 41—止回阀; 13, 14, 15, 19, 20, 21, 23, 25, 29, 35, 37, 39—管道; 16, 17, 18, 22, 24, 36, 38—连接件; 26, 28, 30, 34—蝶阀; 27—阻力模块; 31, 42—压力边界条件(P); 32—换热器; 33—流量边界条件(F)

Fig.2 Model diagram of cooling system
